Signal wires of TPS,MAF and coils of corolla 2015

engnr.mubashir (engnr.mubashir) 2022-06-15 16:14:30 +0500 #1

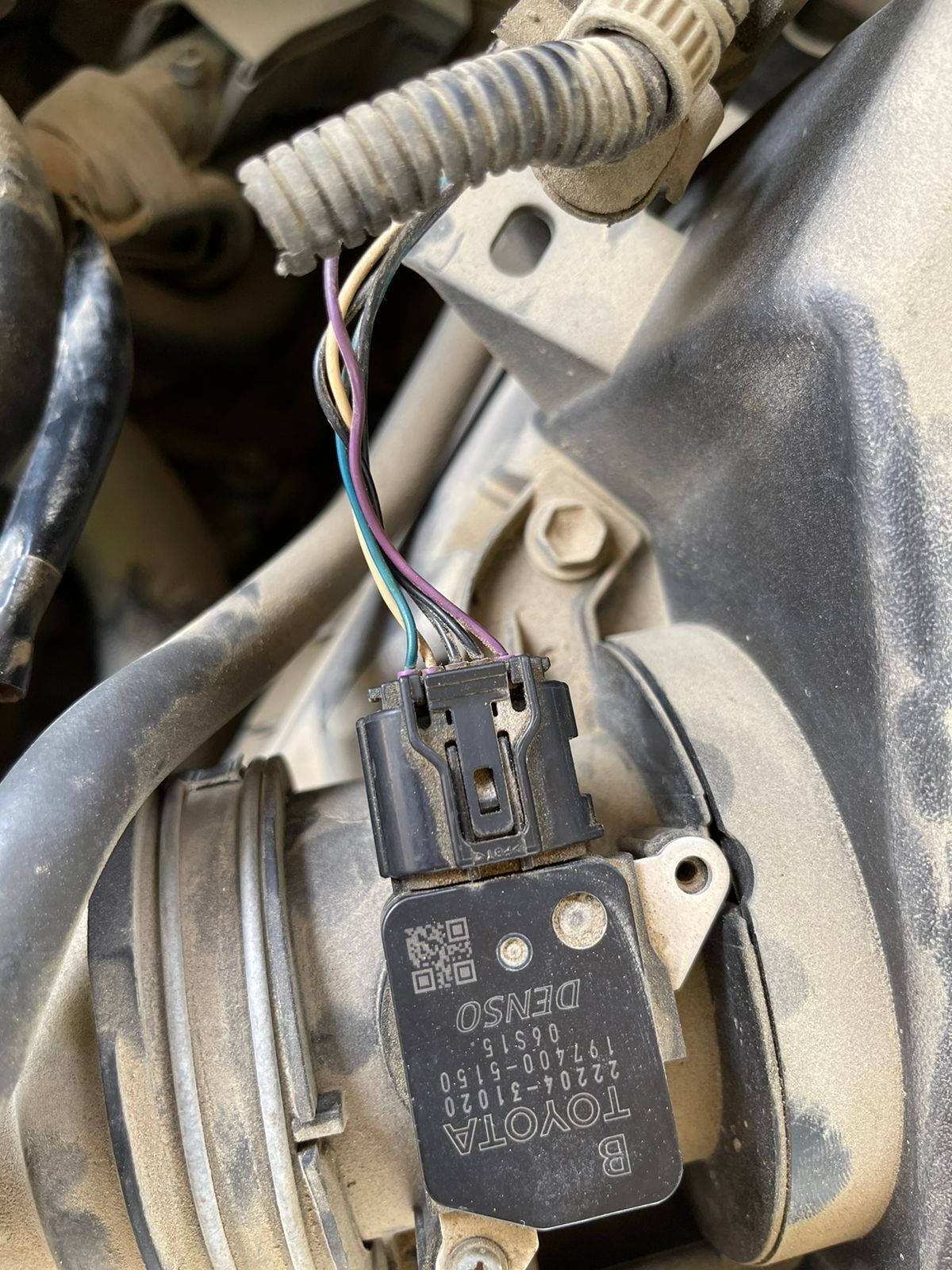

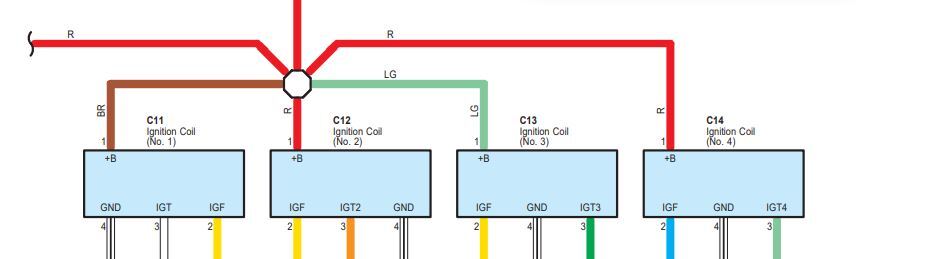

Can anyone tell me signal wire of these sensors TPS, MAF and Coils of Toyota corolla GLi 2015 automatic.

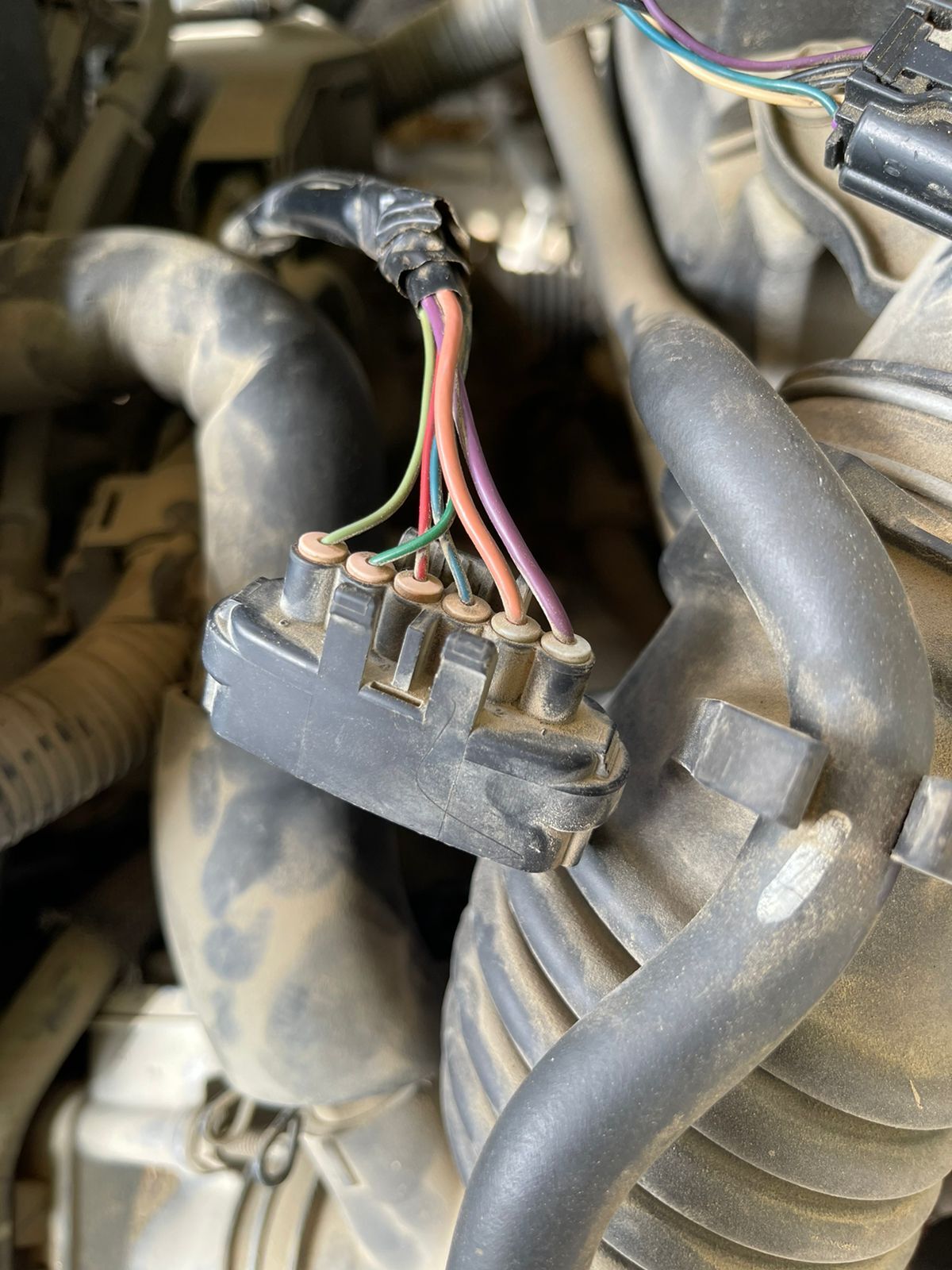

second image is of DBW Throttle body.

engnr.mubashir (engnr.mubashir) 2022-06-15 23:36:48 +0500 #2

Bump ?

Hassan1991 (Electrical Engineer ) 2022-06-16 00:08:25 +0500 #3

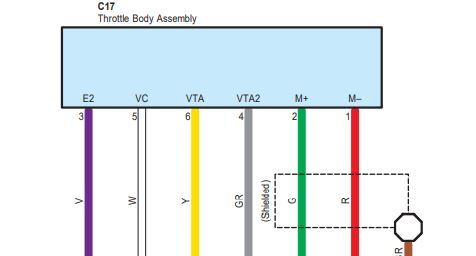

That's electronic throttle. It got 2 position feedbacks.

engnr.mubashir (engnr.mubashir) 2022-06-16 12:25:49 +0500 #4

Thanks
