Spano 9th Gen Civic and addons

[Spano]

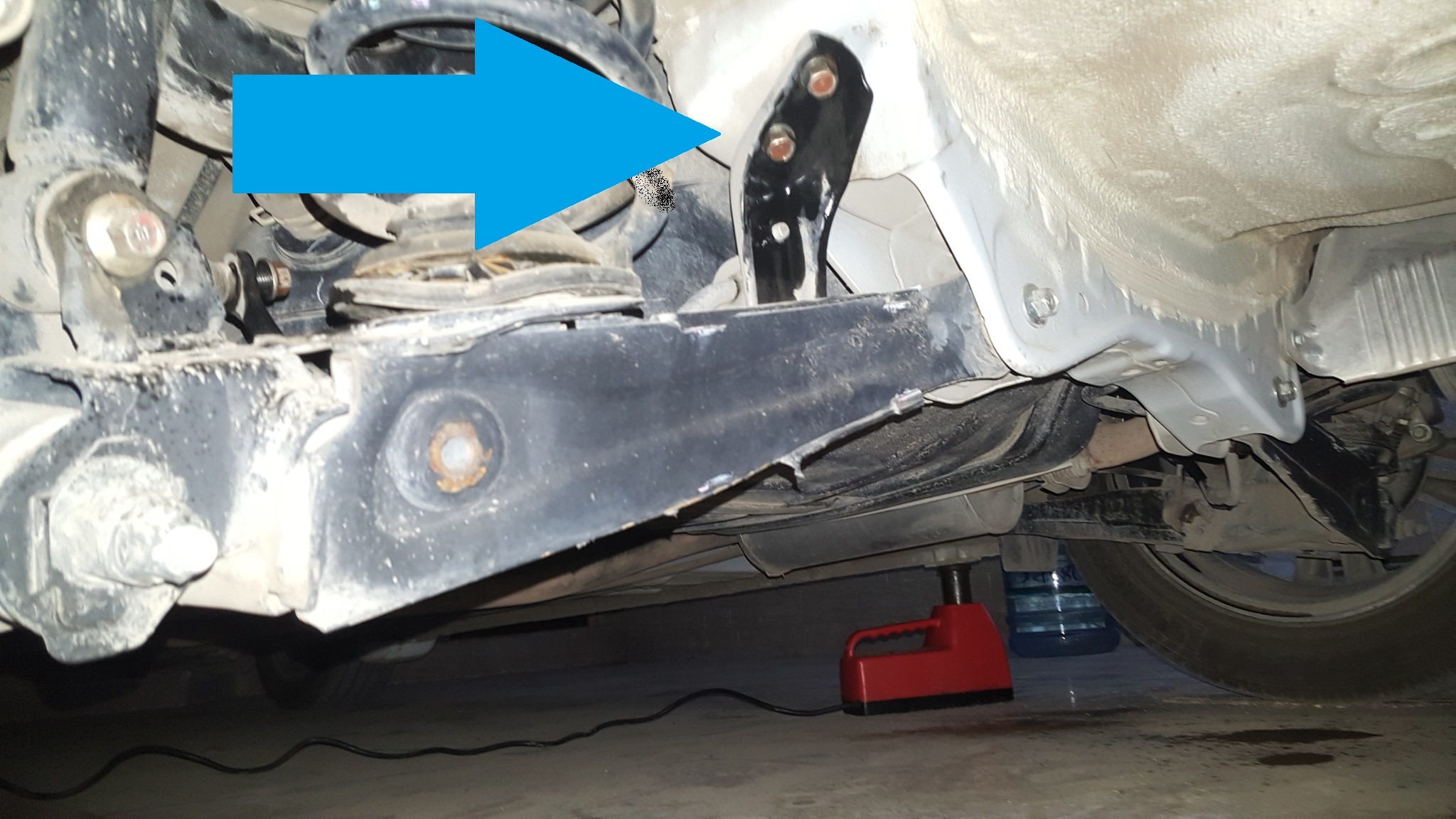

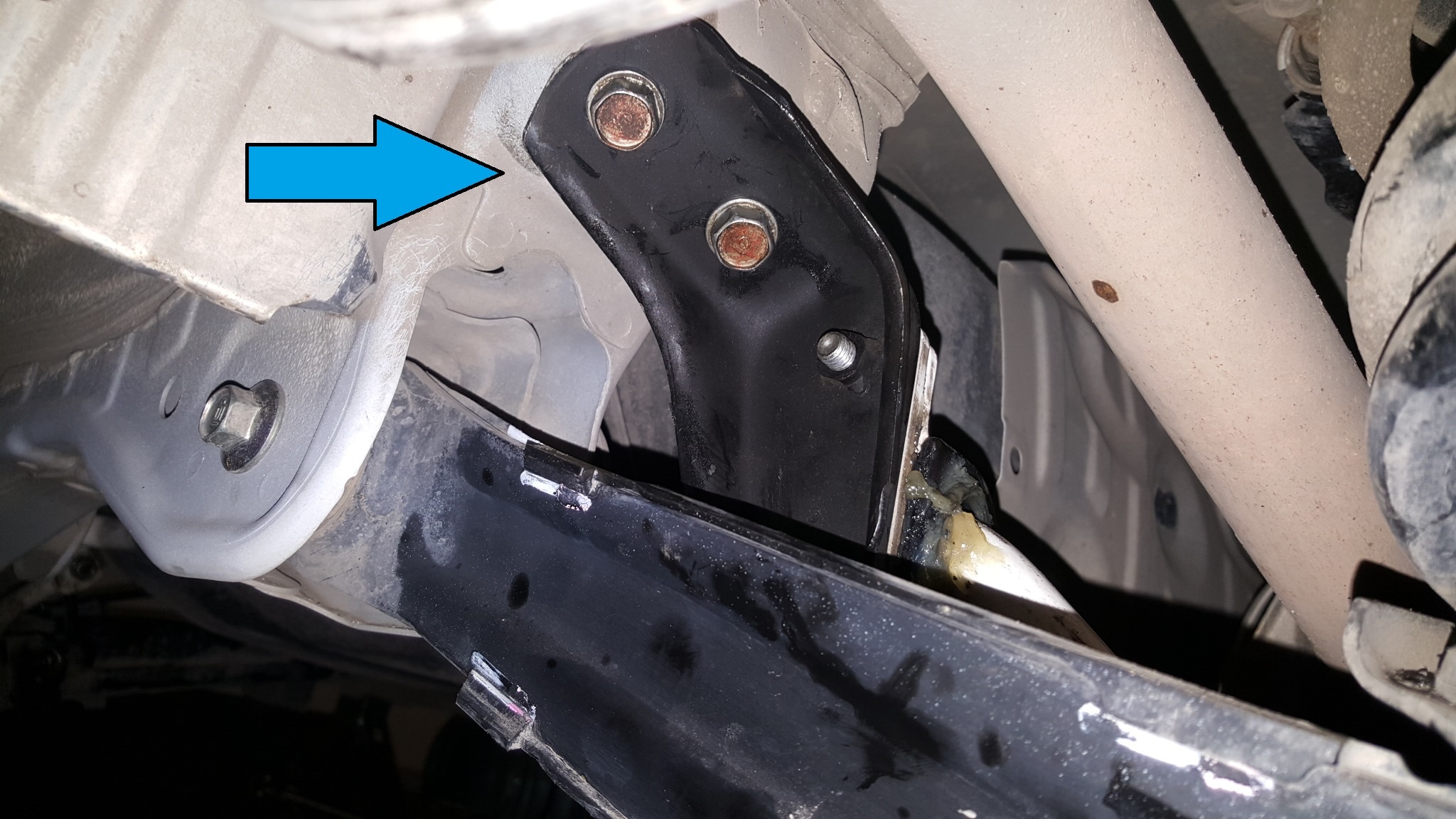

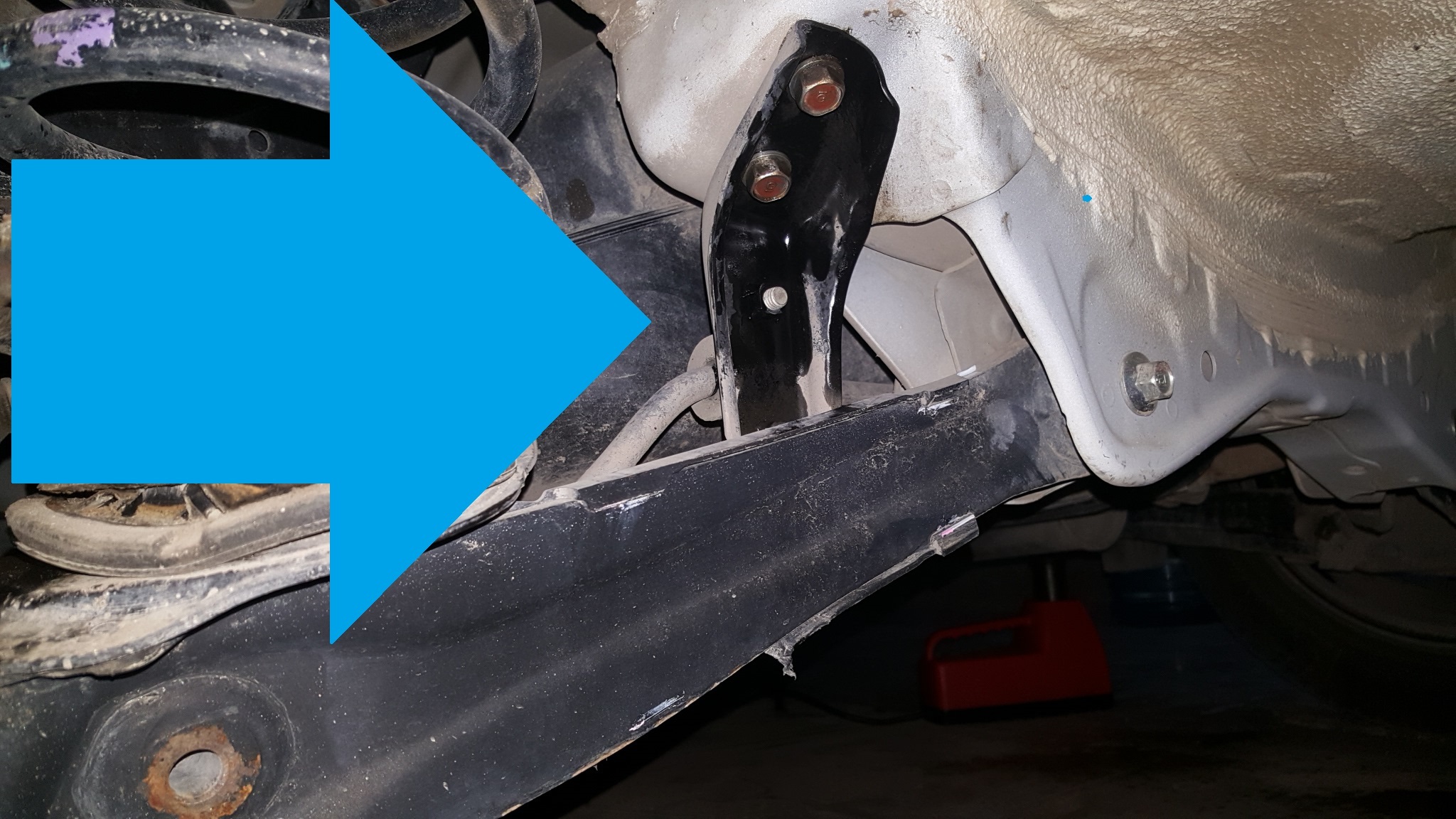

This is where the sway bar passenger side bracket is connected with the Chassis.
These two two 14 mm bolts on both sides. I opened these with Ratchet set. It was easier than I expected.

[Spano]

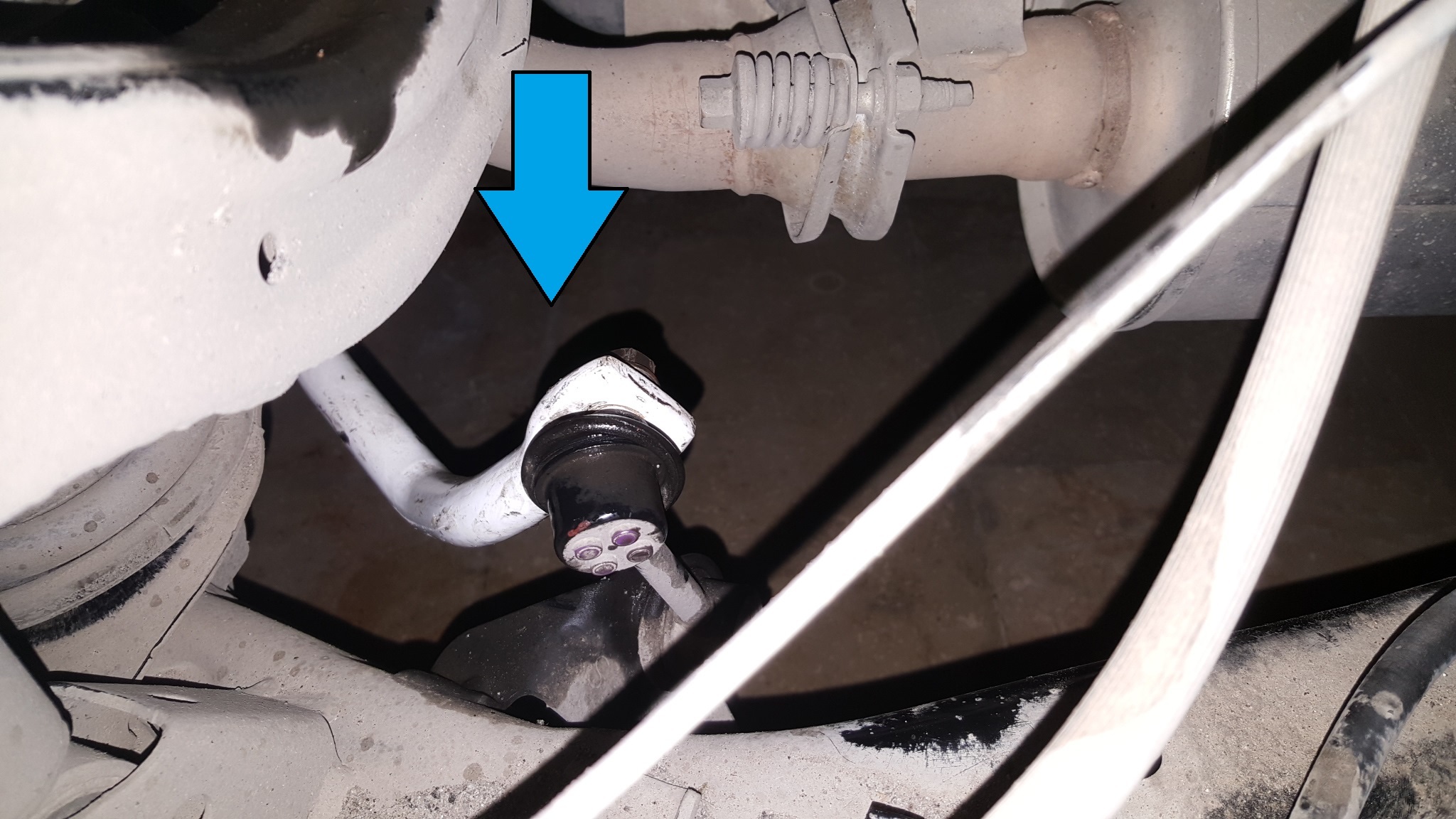

in the above picture you can see the OEM sway bar connected through bushing to the bracket

[Spano]

Next step was greasing of bushing.
Because the new sway bar is thicker. Therefore it has its own bushing.

[Spano]

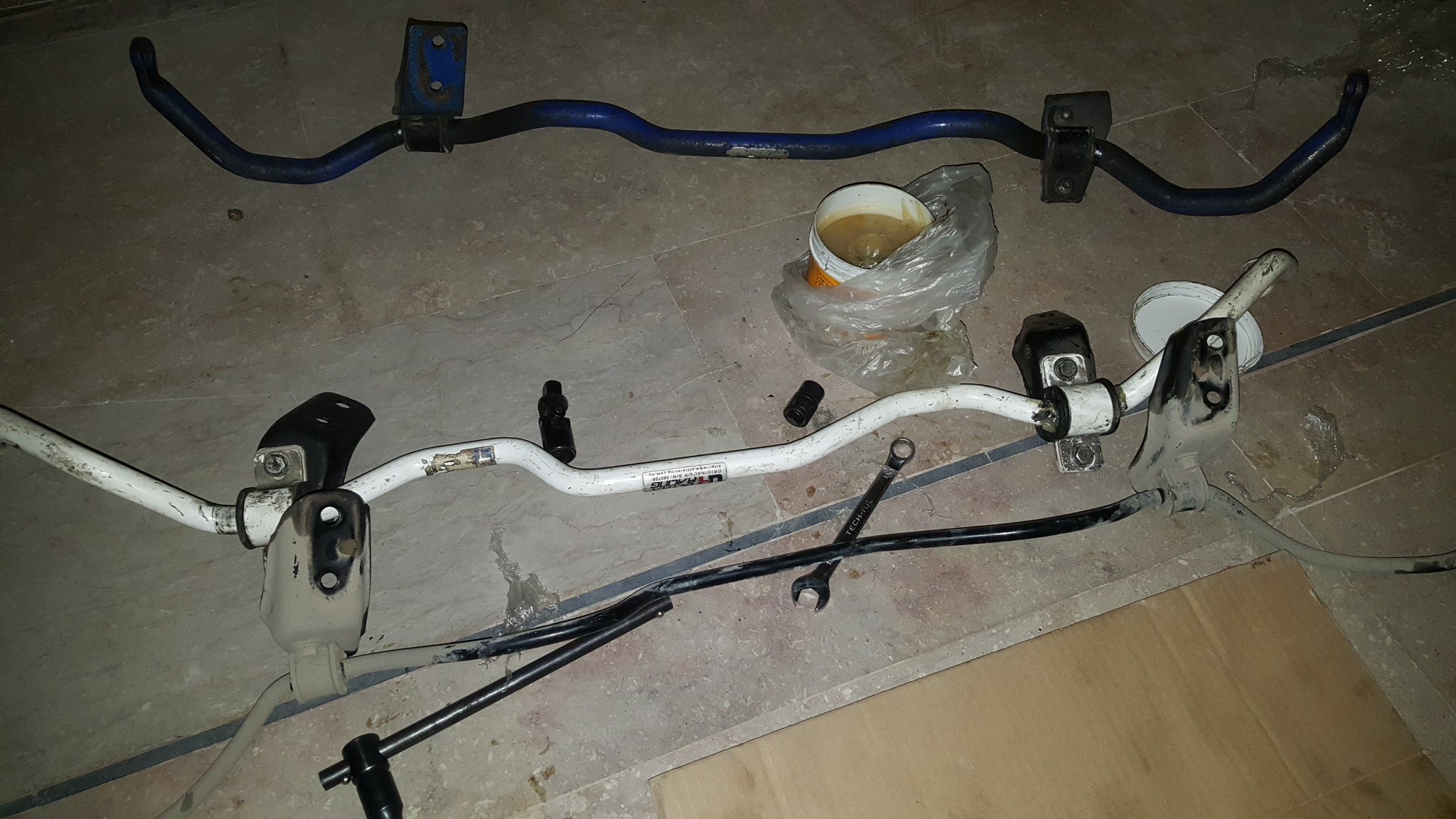

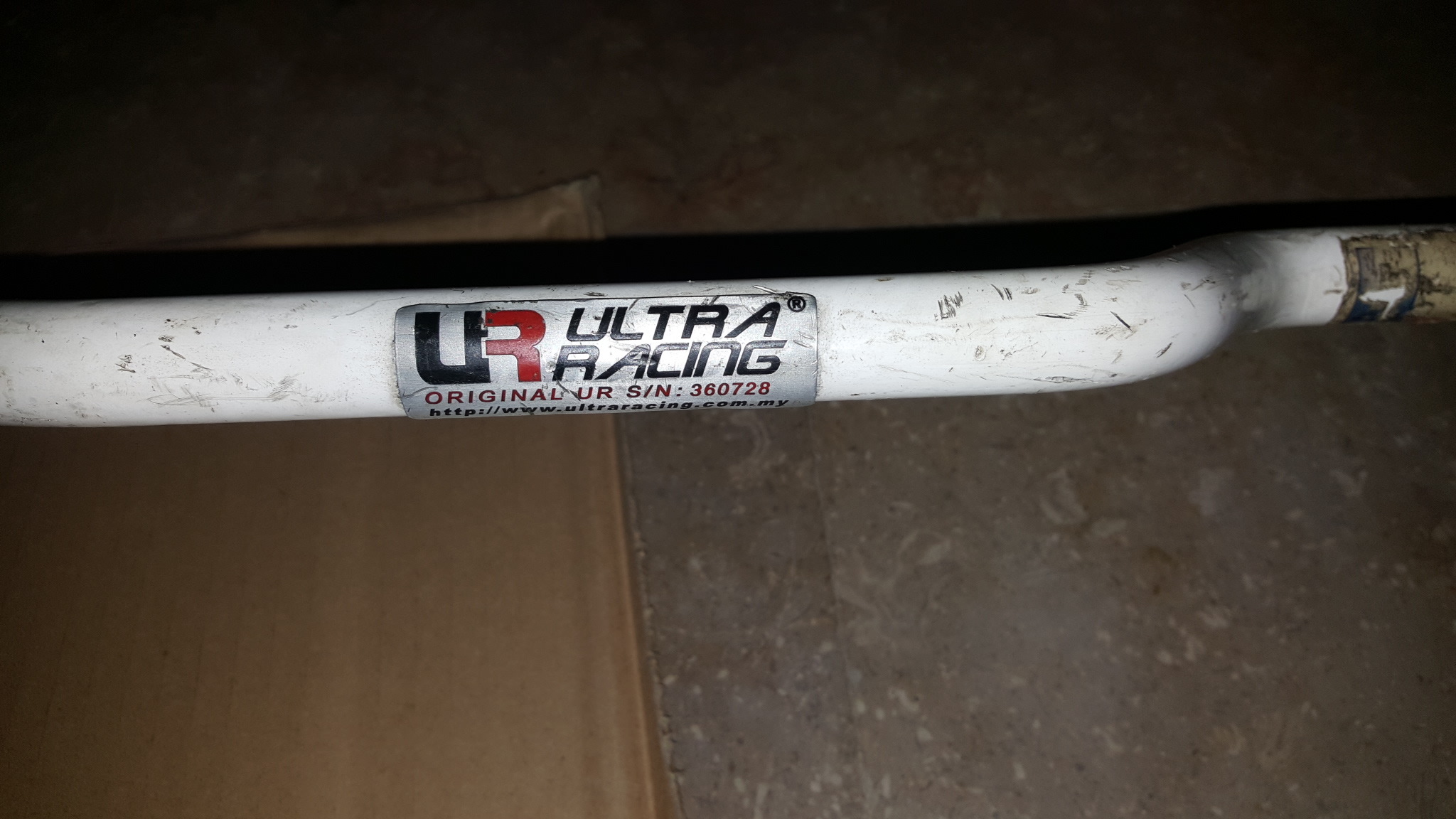

Here are couple of pictures of the Ultra Racing rear sway bar (anti roll bar) after I greased the bushing.

[Spano]

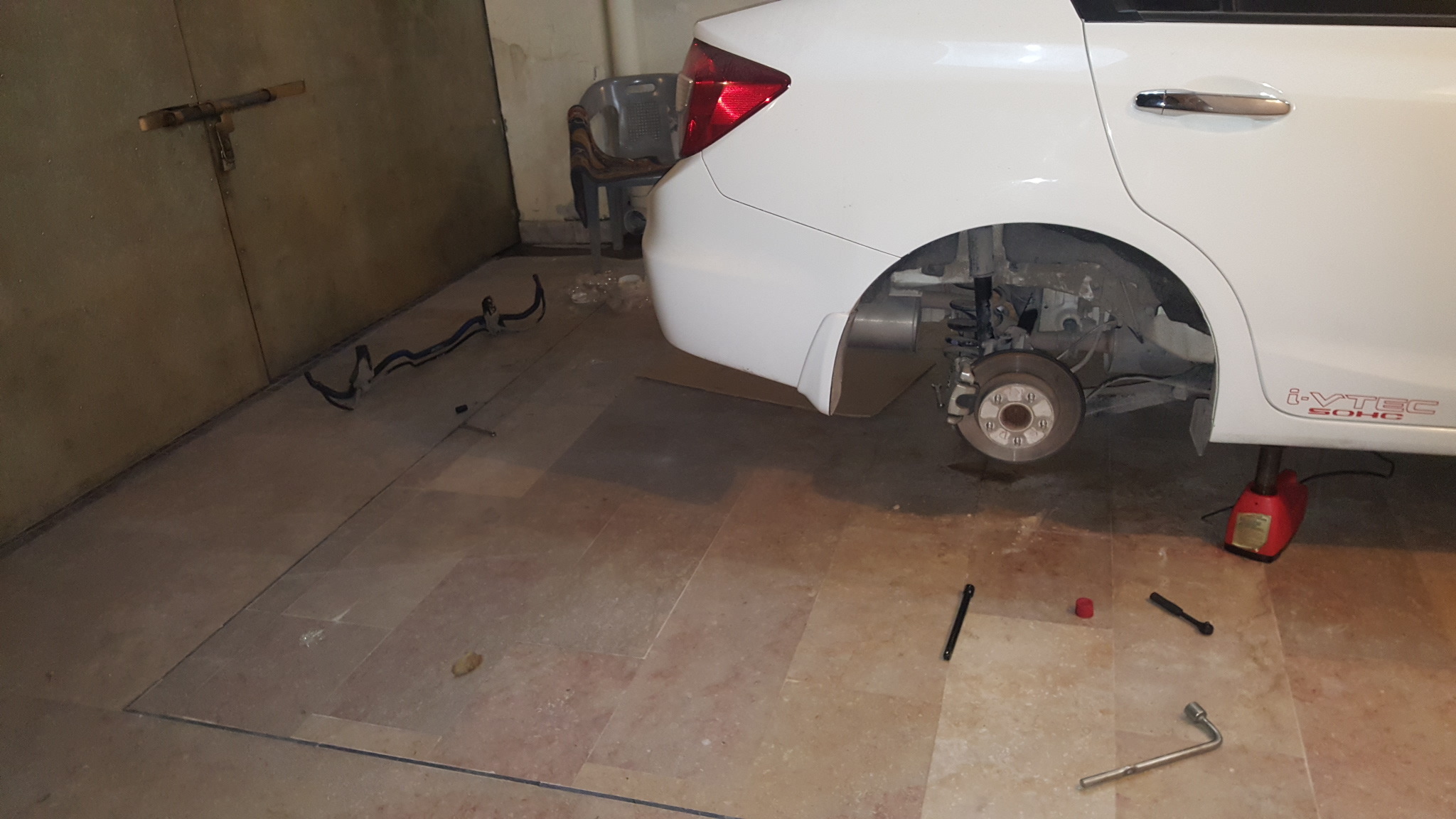

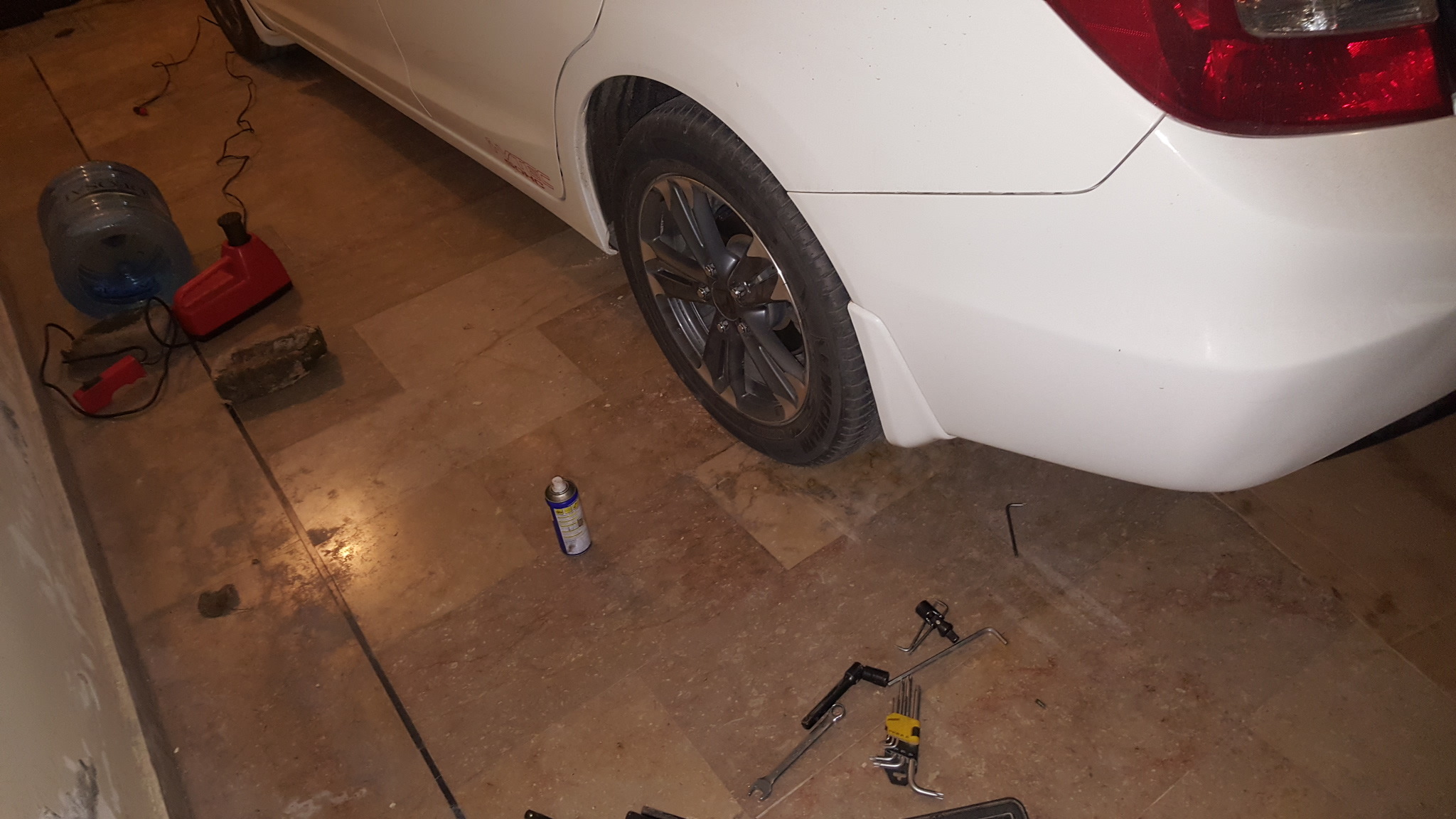

Here is a picture of the jacked up car during the "Sway Bar Change" DIY

[Spano]

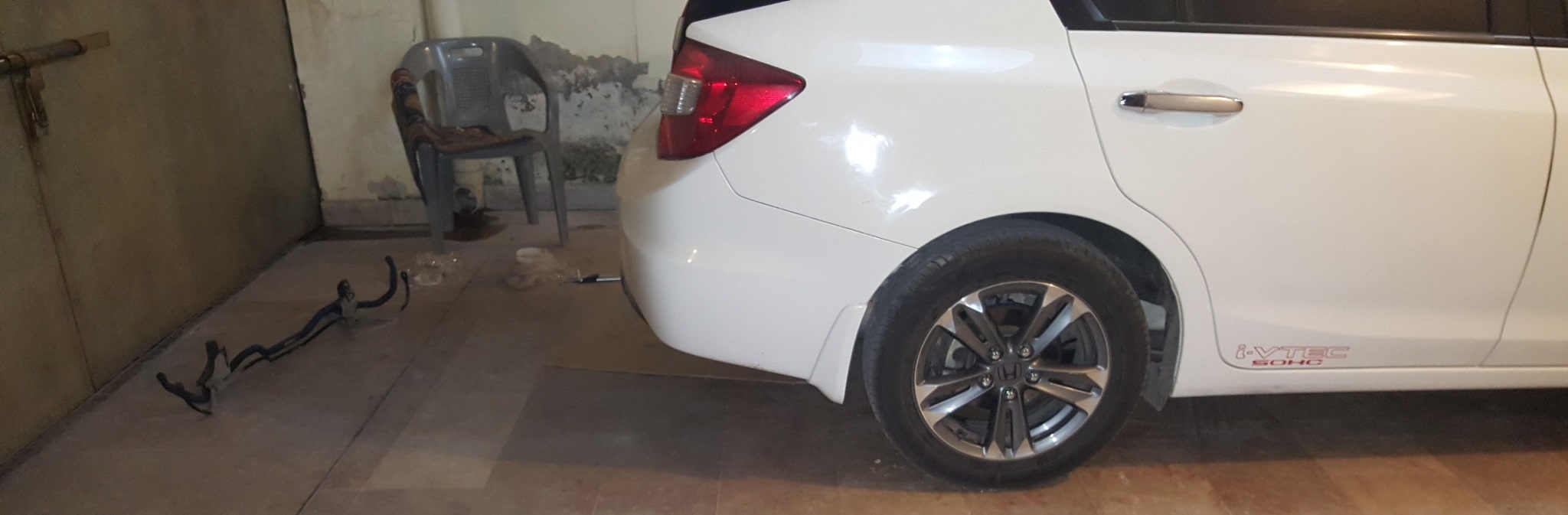

Then I unbolted all the bolts and nuts and took out the OEM stock Sway Bar

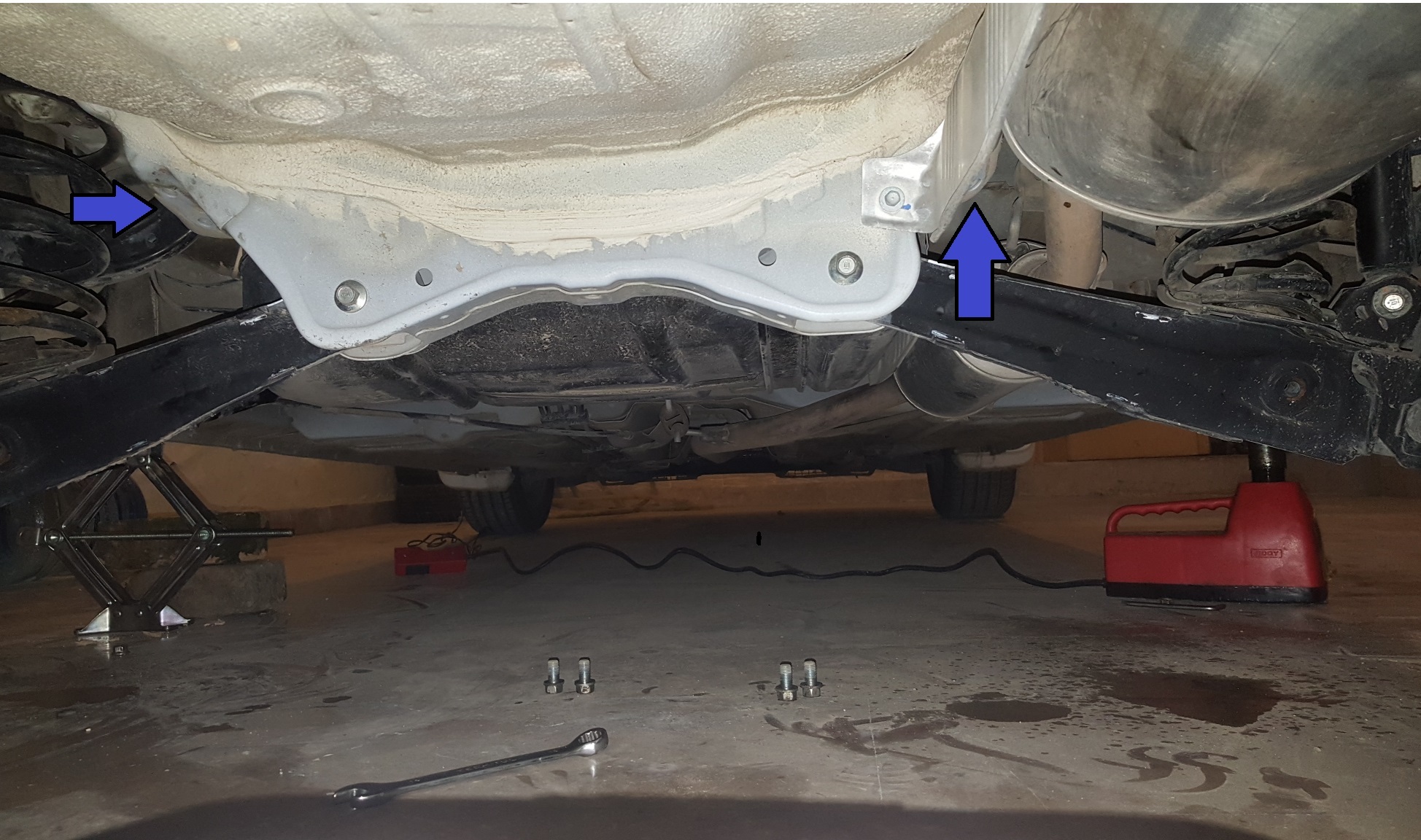

The empty places where Brackets are connected on the Chassis can be seen in the below picture

[Spano]

Then I held the Ultra Racing sway bar and Bolted the Brackets with the Chassis.
This was little tricky but when I decided not to care about my clothes, it was easy

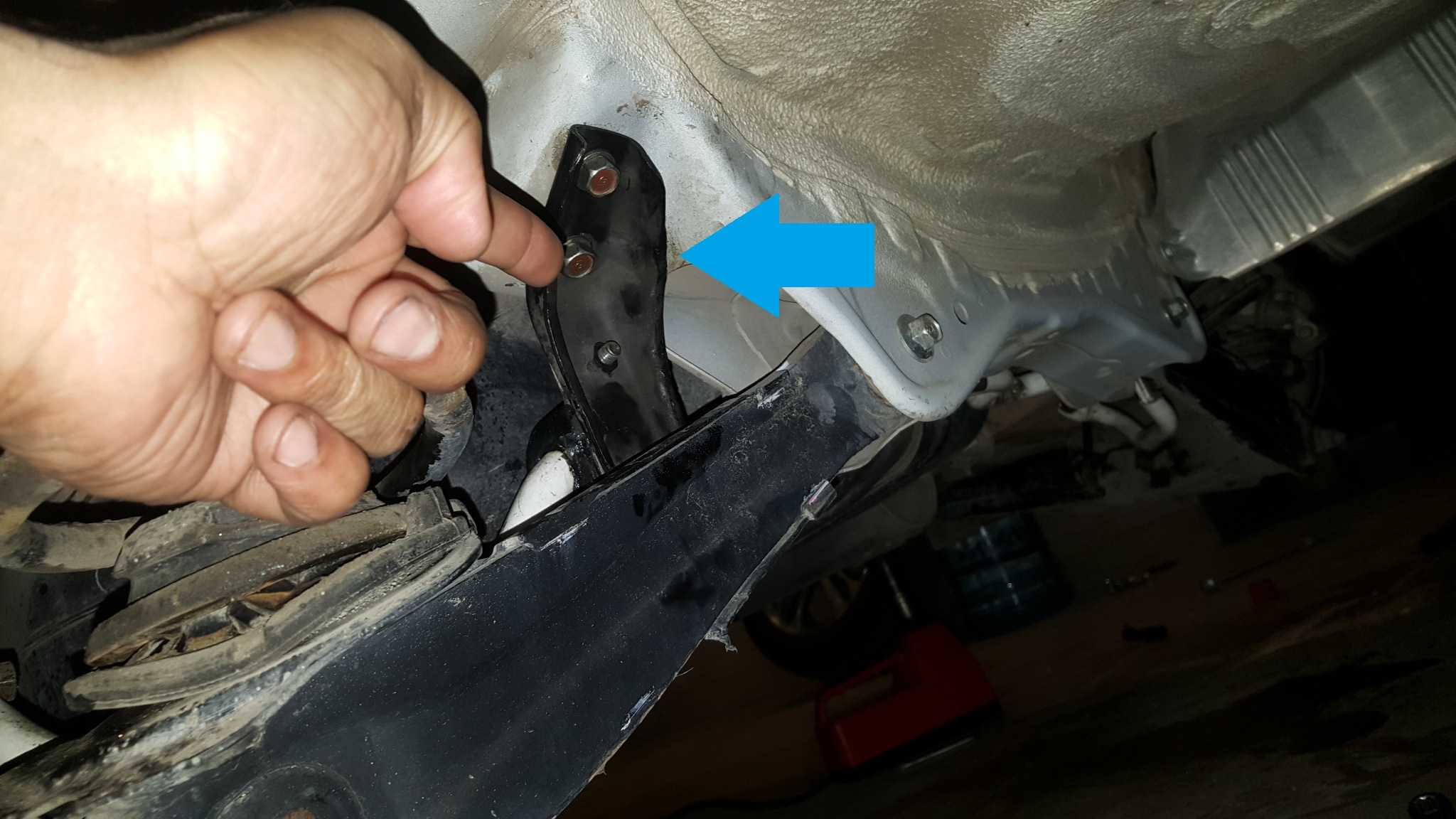

This is the picture of Passenger Side Bracket connected to the Chassis

This is the Driver Side Bracket

[Spano]

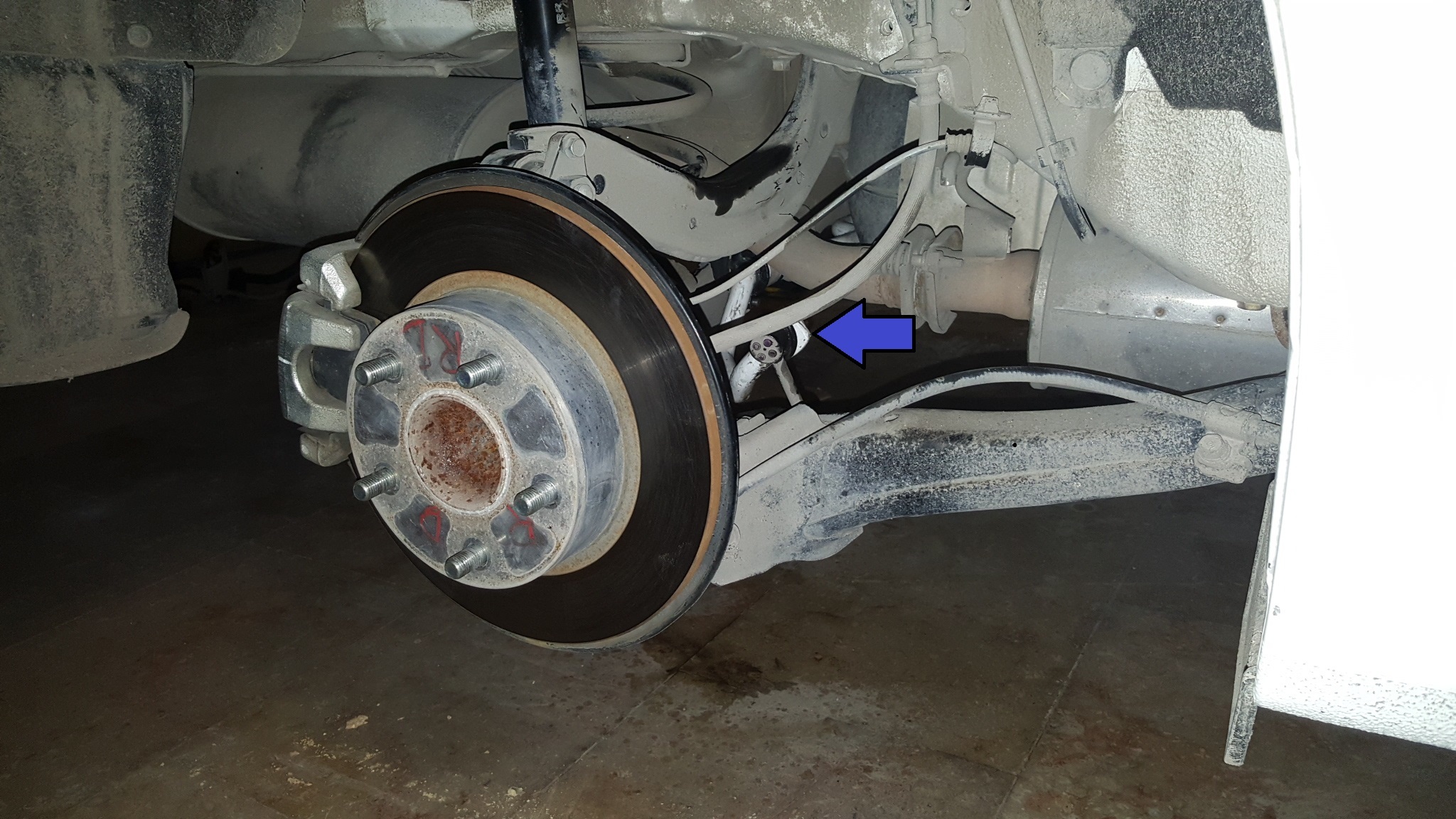

Then I connected the End Links of the sway Bar to right and left sides
It requires L-Key and 14 mm Spanner

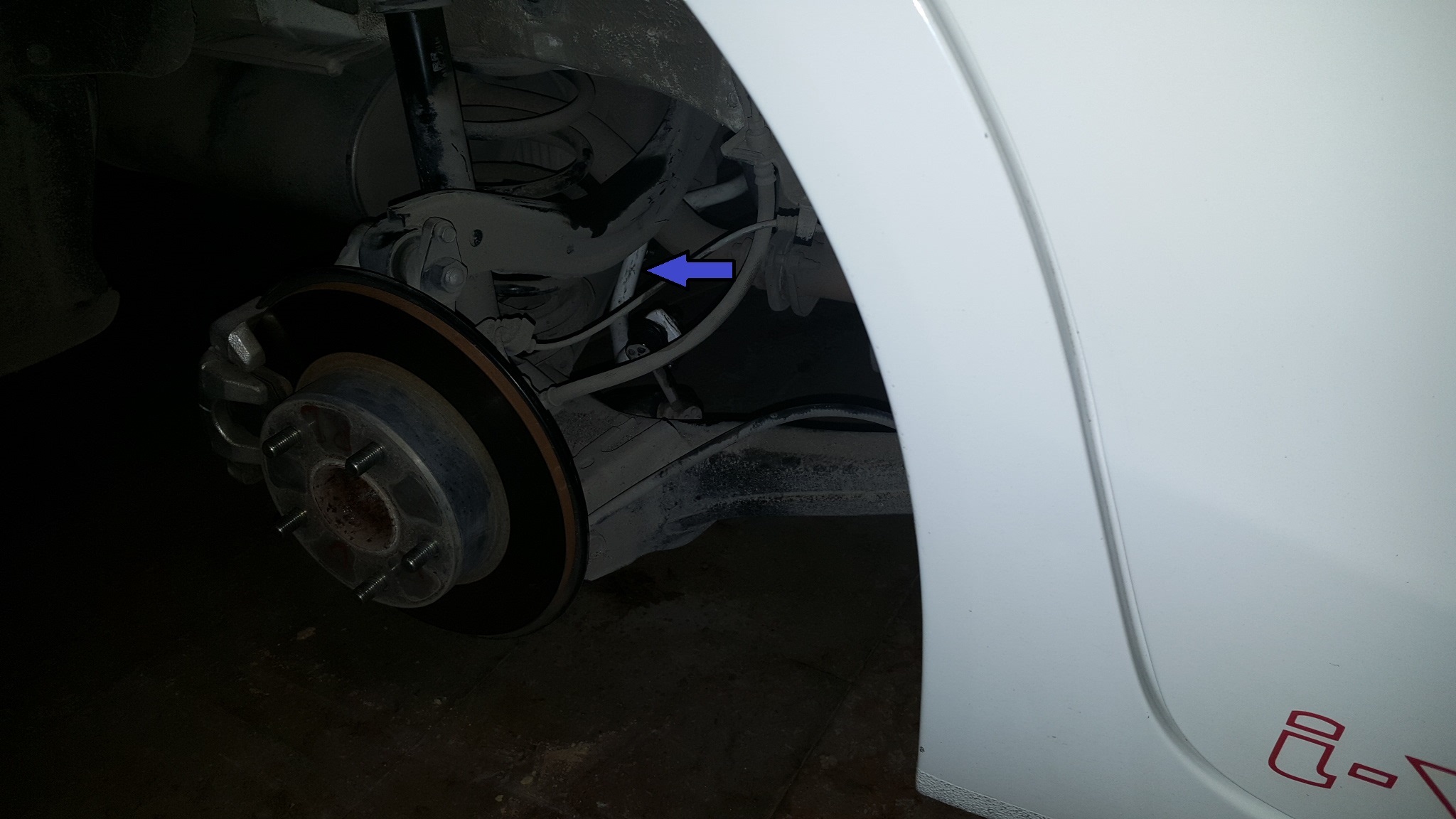

Here are a picture of Passenger Side

[Spano]

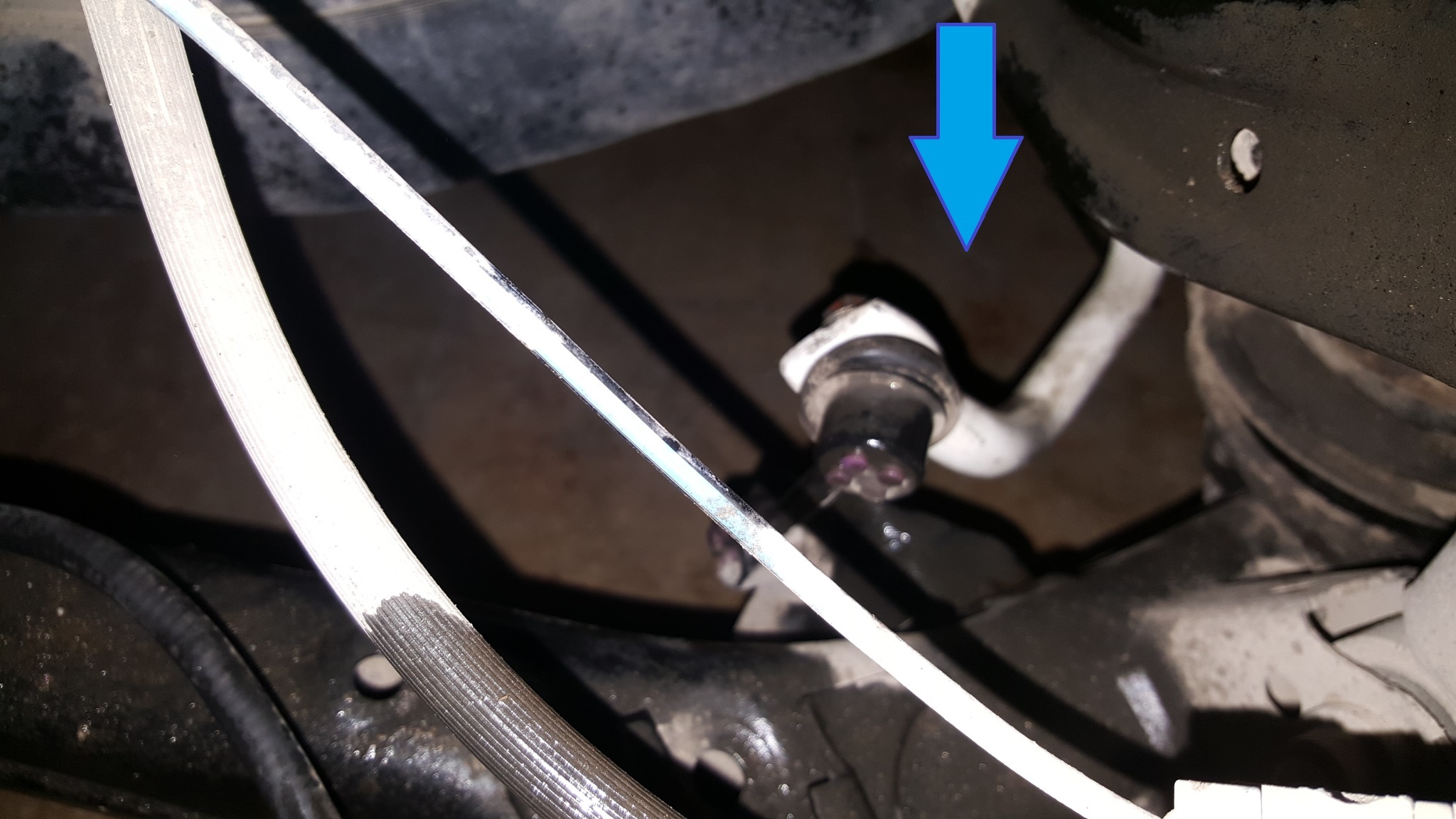

Here are few pictures of End Link (Z-Link) of Driver Side
The white colored Ultra Racing Sway Bar Can be Seen in the pictures

[Spano]

**After Every Bolt and Nut was tightened. **

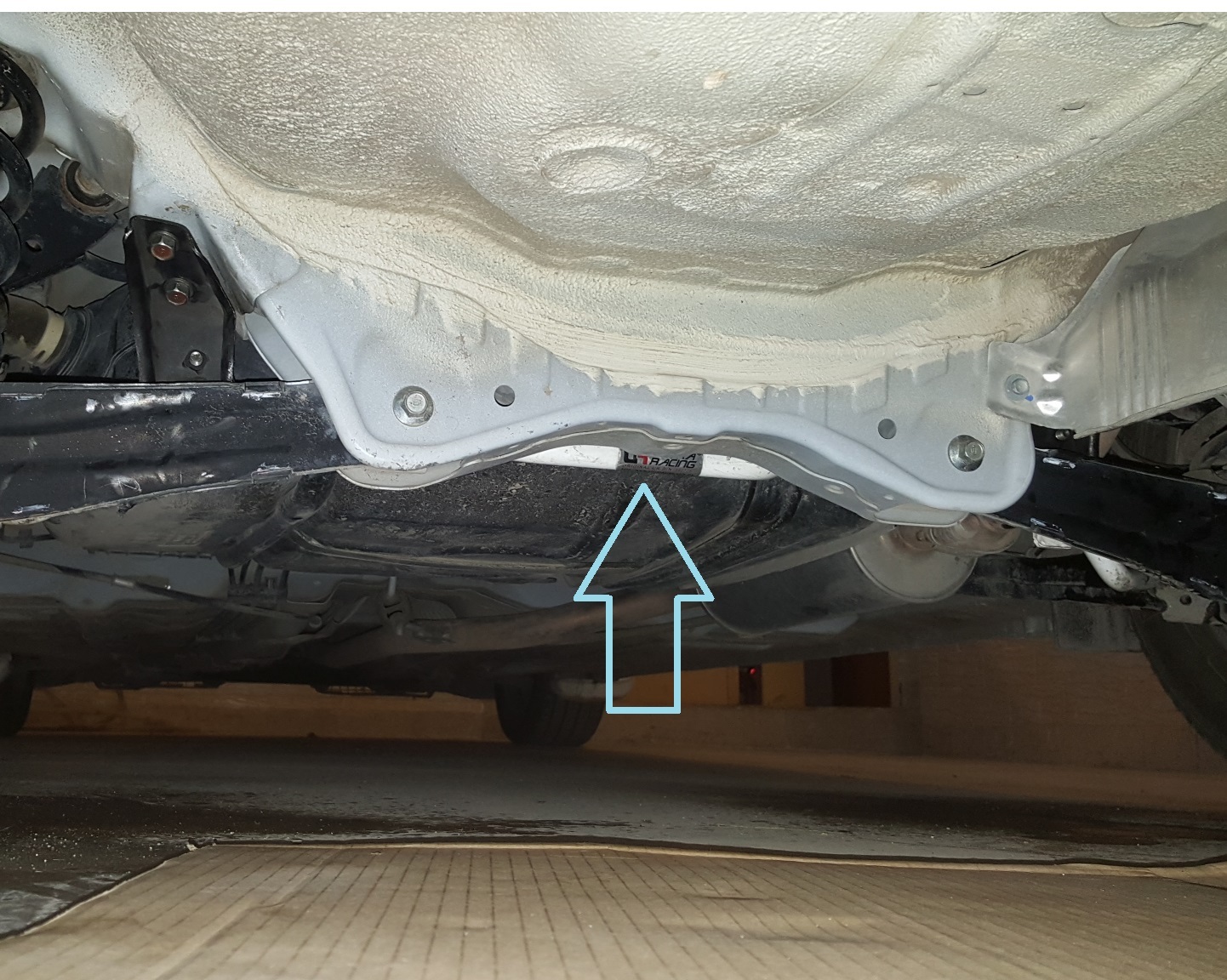

Here you can see newly installed Sway Bar

[Spano]

Here are couple of Pictures after the Job was done.

[Spano]

My Experience after Driving the car was amazing. The car has become much responsive in the corners.
I was missing the 8th generation touch since I bought this 9th gen.
But its not even better than a stock 8th generation in the corners.

Before,
1. when I used to go hard on cornering the rear end of the car used to lag behind and
2. the body roll used to kind of follow me with a delay.
3. The rear tyres used to mostly lack the grip while cornering
4. The car used to give me hints that it wants togo to a side slip

But now on the same maneuver
1. the rear axle of the car responds and supports the movements.
2. It doesn't let me feel like its delaying or lagging the movement.
3. The rear tyres are now gripping the surface.
4. There is absolutely no difference in ride comfort.
5. It is as soft as It was before.
