Then I had to open steering wheel because I want to shift paddle shifters and buttons to leather steering wheel
.
You will need a 10mm L key and a lot of power to open the steering wheel bolt( for first time only)
.
.

[Spano]

That's the bolt
.
.

[Spano]

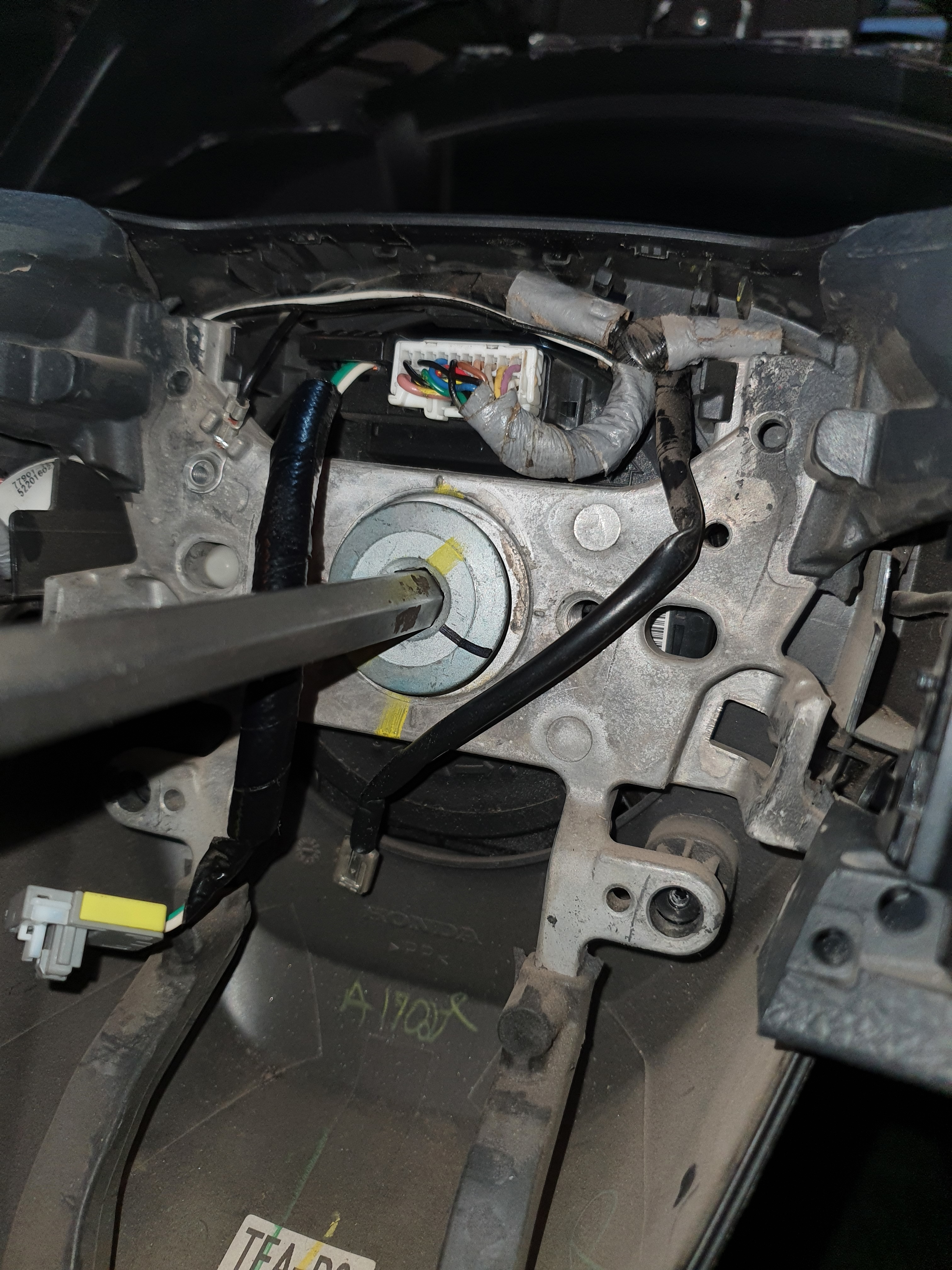

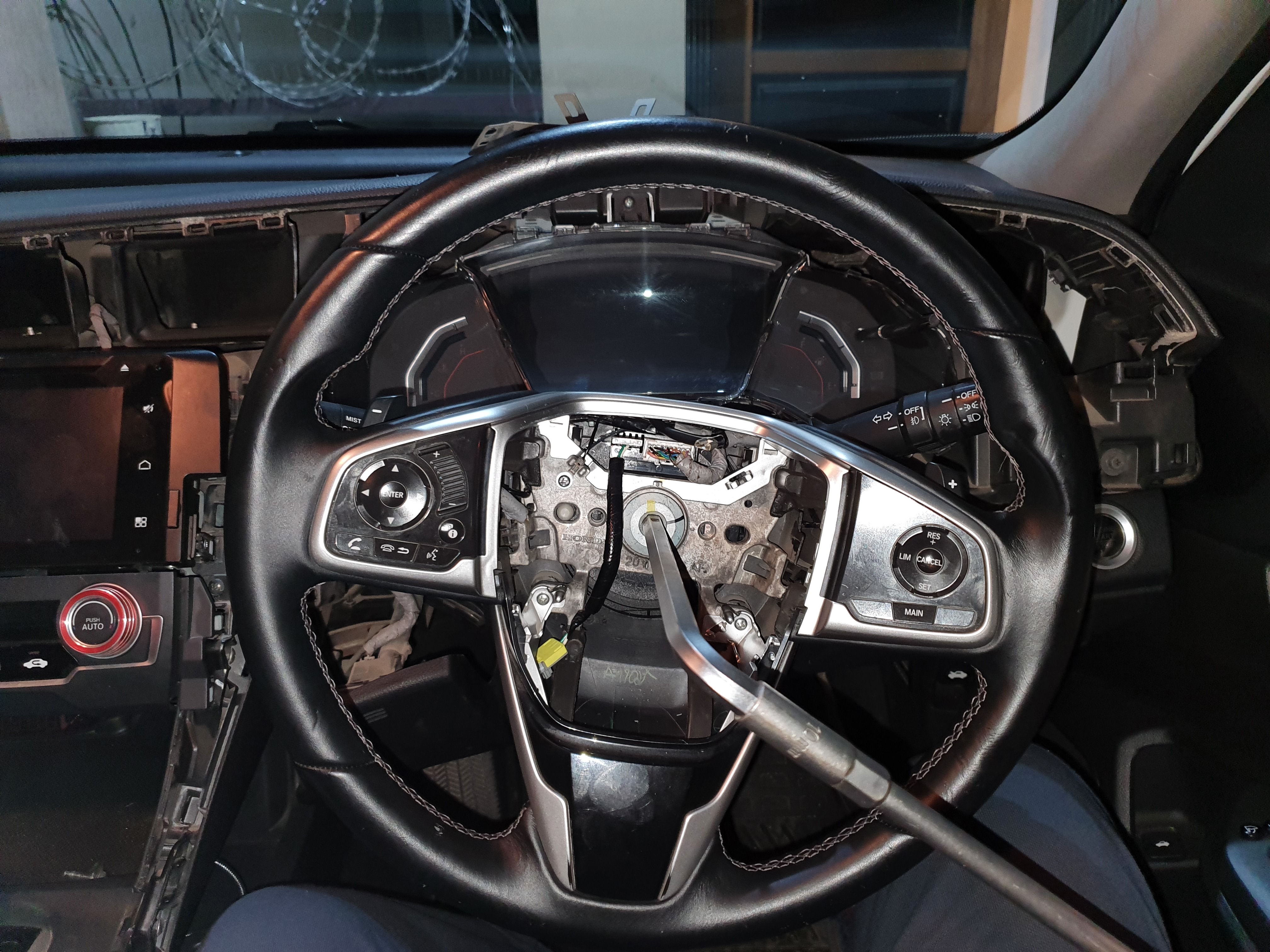

Remove clock spring grip and remived steering
.

[Spano]

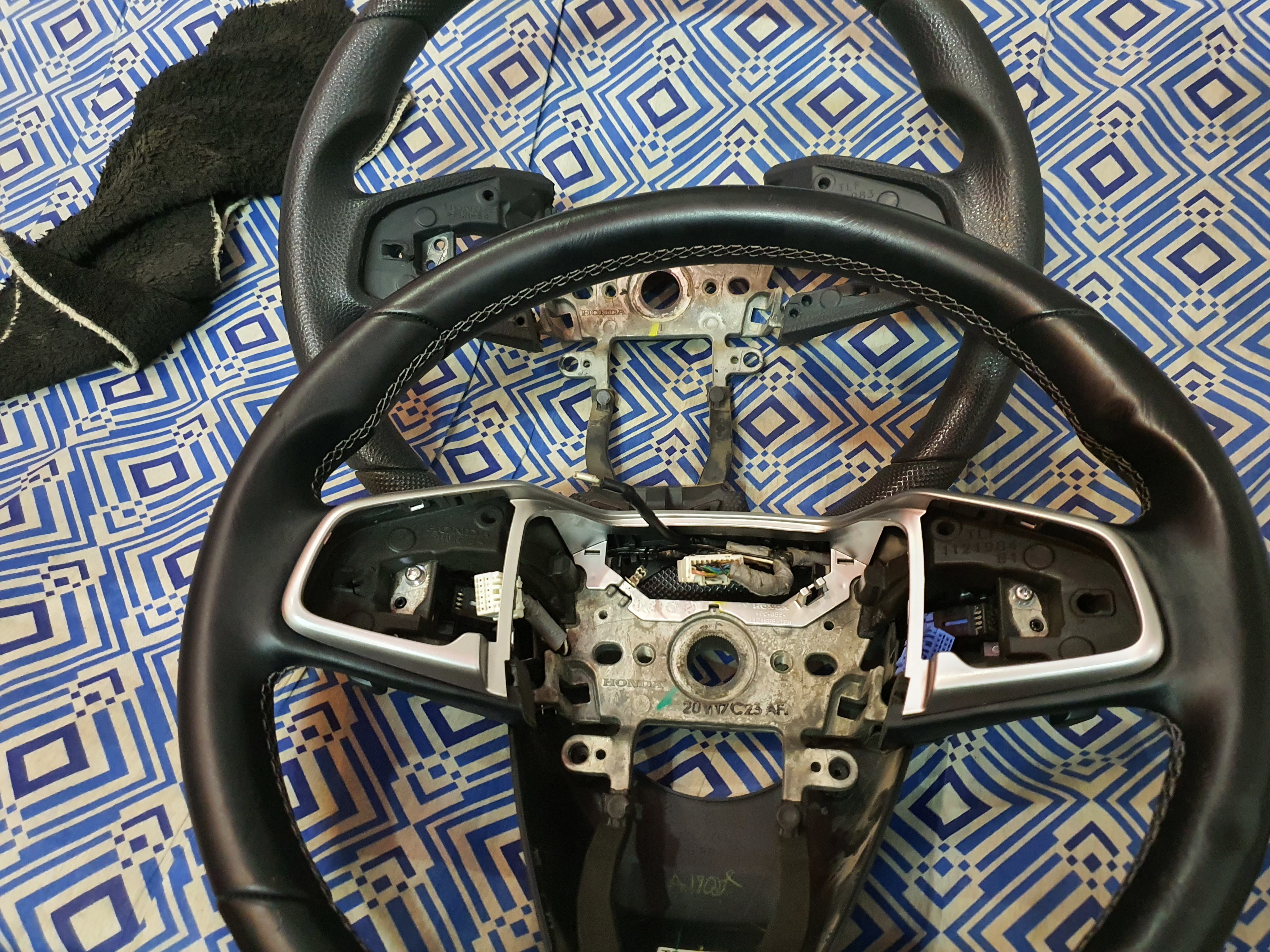

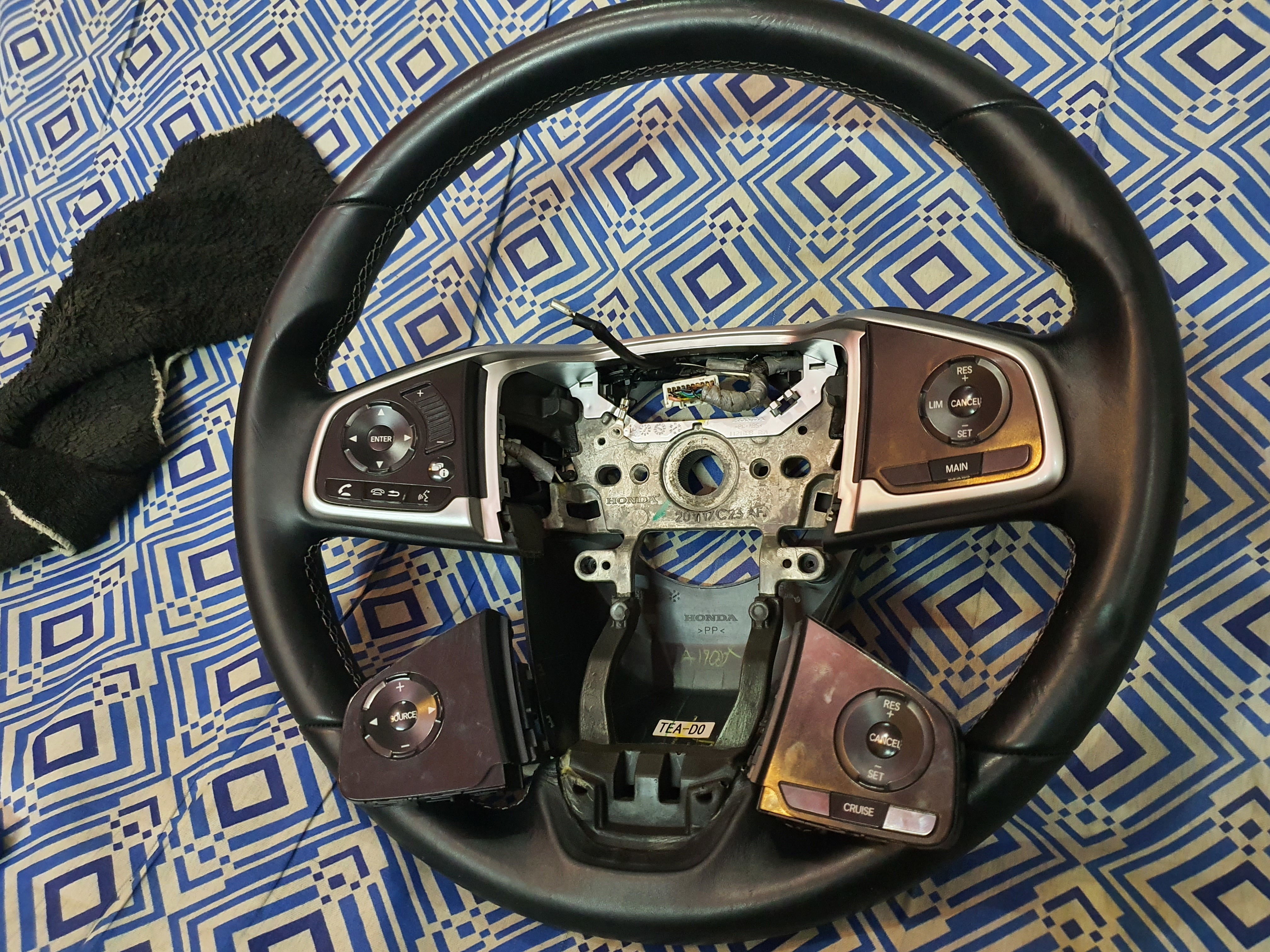

Few pictures during steering swap
.

.

.

[Spano]

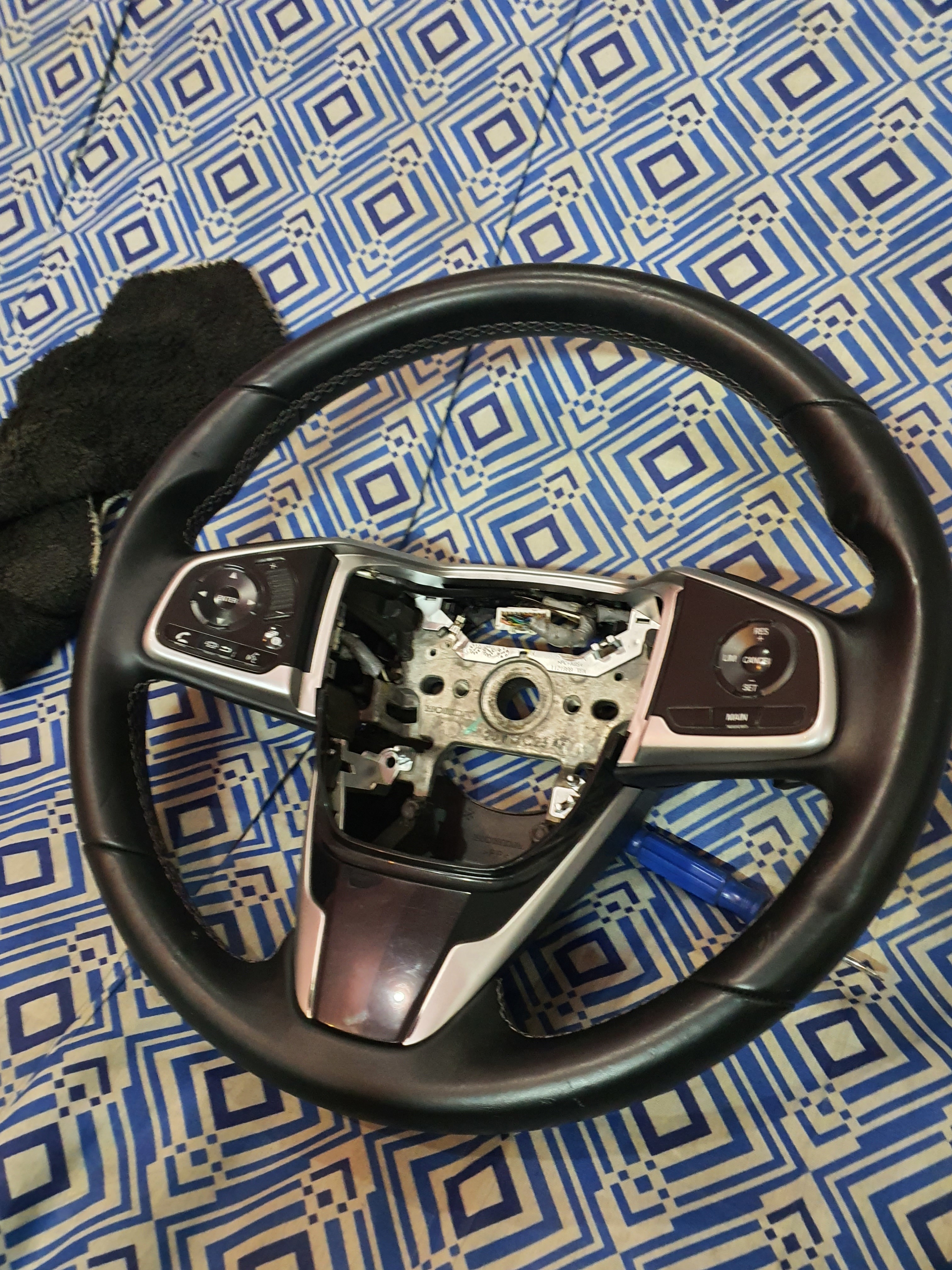

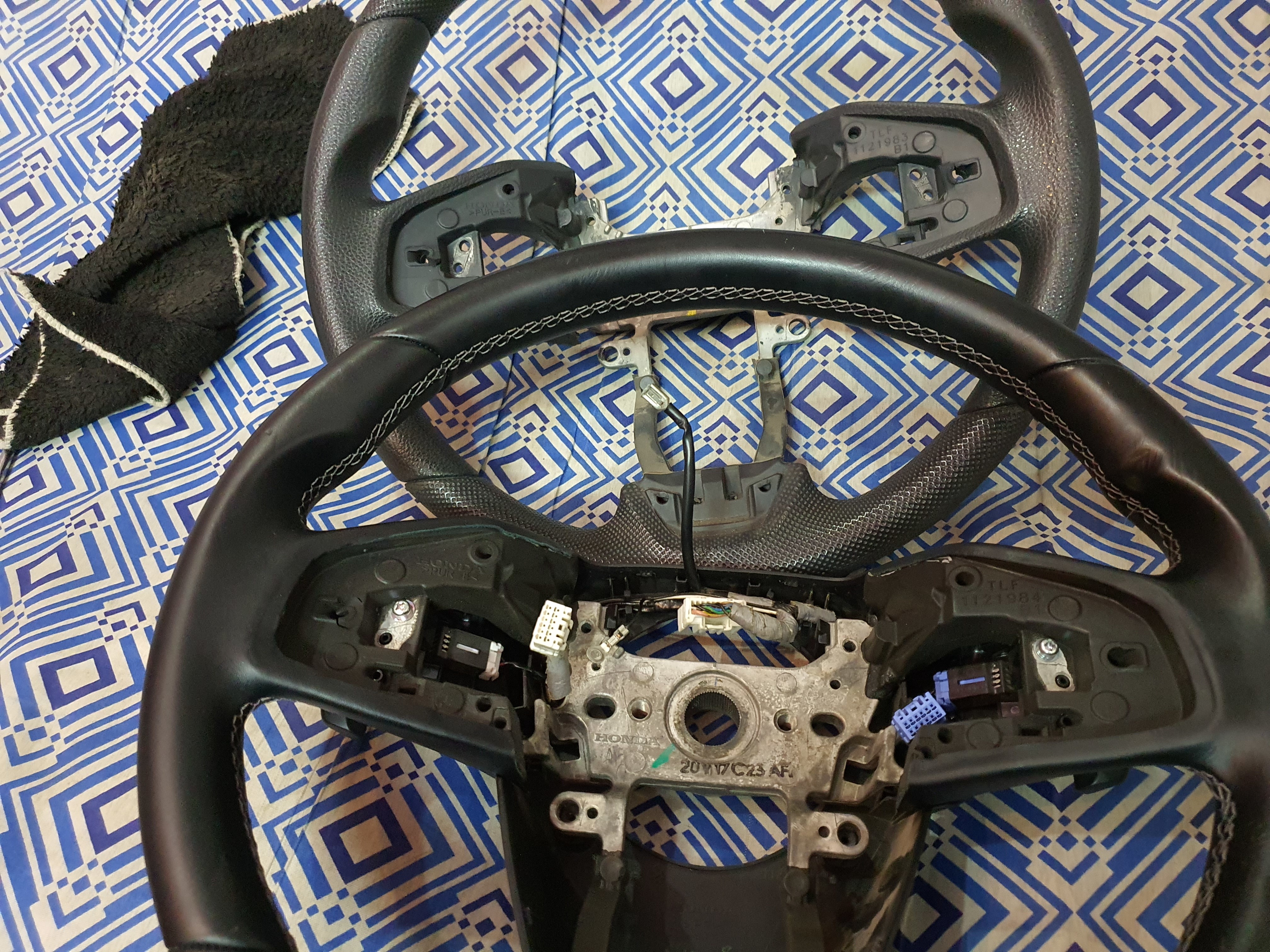

Another view of new wheel.

.

[Spano]

On car
.

[Spano]

Now the connection part of new cluster meter and new multimedia buttons.i will make a neat diagram but for now, let it me share the idea and connections
.
You need only two new connections
.
1. Giving +12v to new bottoms
2. Connecting new buttons to new led cluster (communication)

[Spano]

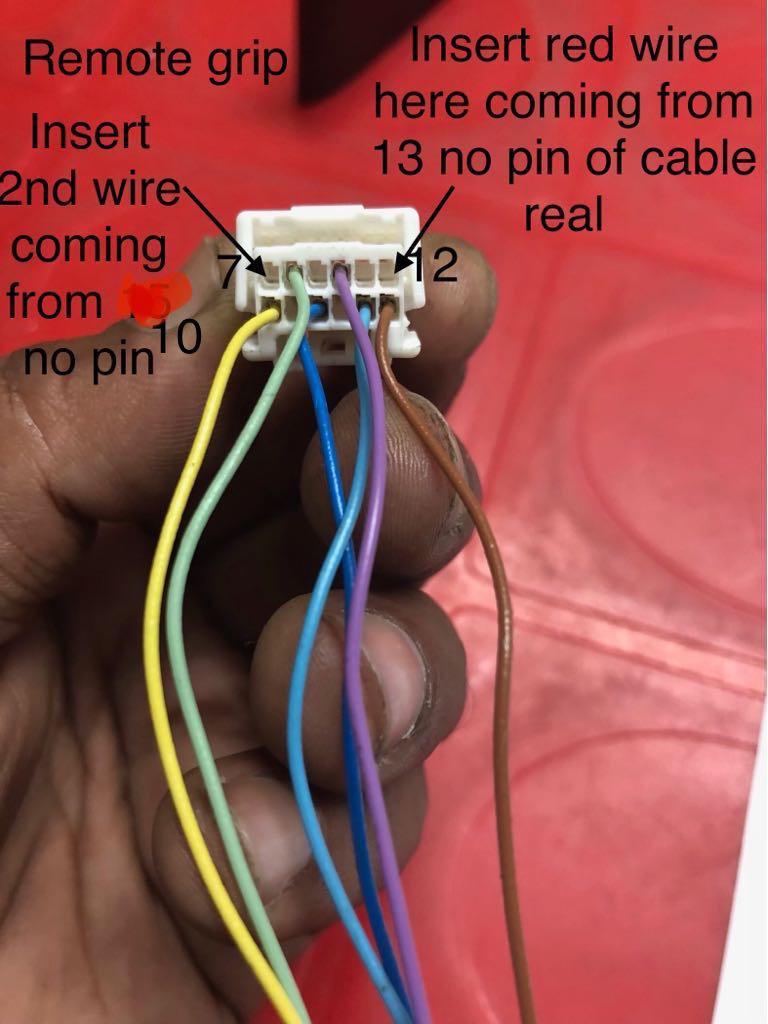

Pin#12 of steering multimedia is to connect to cluster meter pin number 23
.
Pin#7 of steering multimedia is to connect to car's ignition (use a small fuse)

[Spano]

Wiring goes through clock spring.
I didn't cut any wire
I didn't put any joint in the steering wheel.

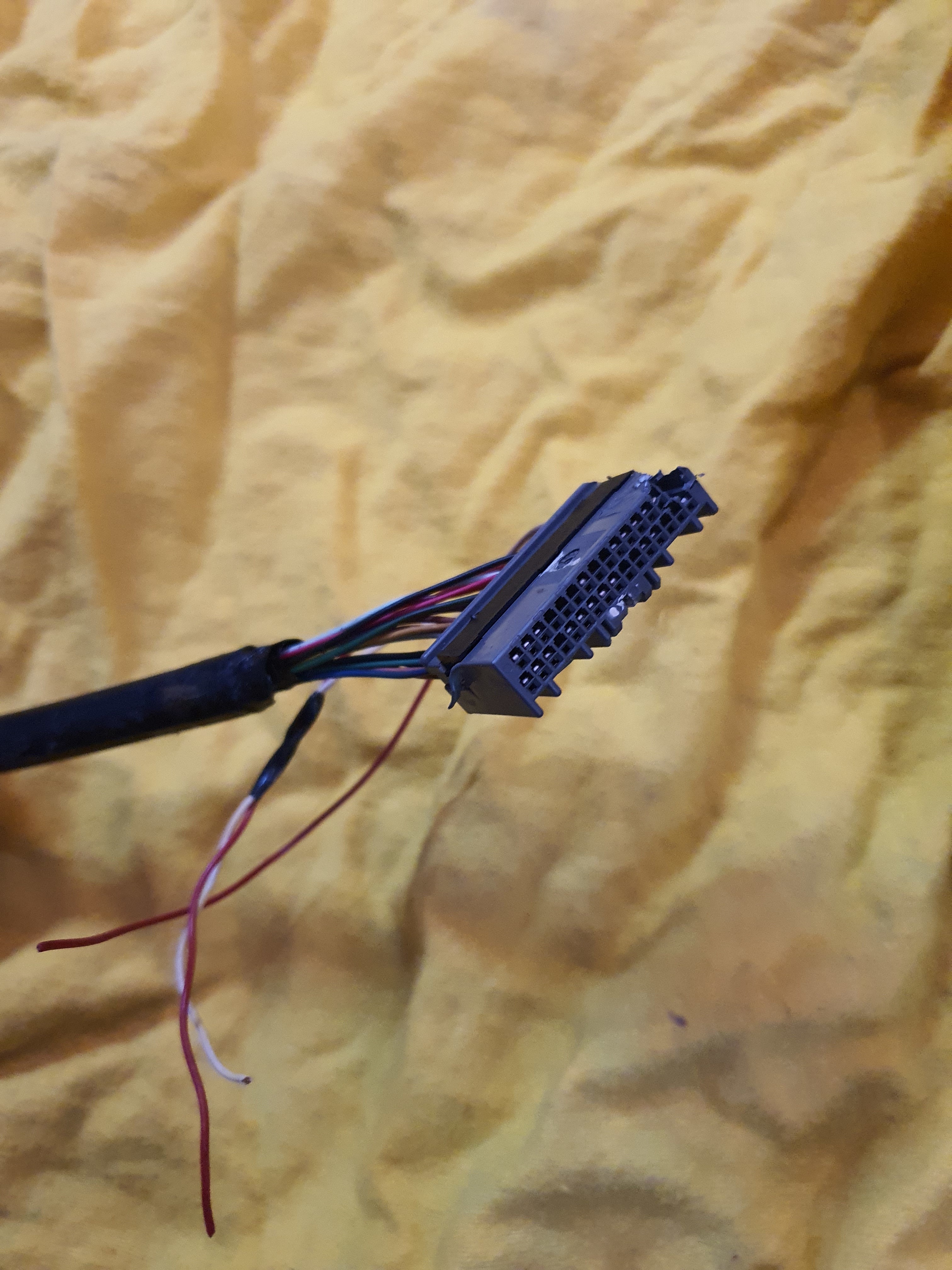

Took out wires from the spare connectors that I got with the buttons.
.

[Spano]

Well what I said in my last post is easier said than done.
Just to avoid joint, it got me at least 3 to 4 hours long.
.
To take out pin from existing harnesses.
I didn't have any small straight screw driver.
Small enough to lift the lock of pin from the connector.

[Spano]

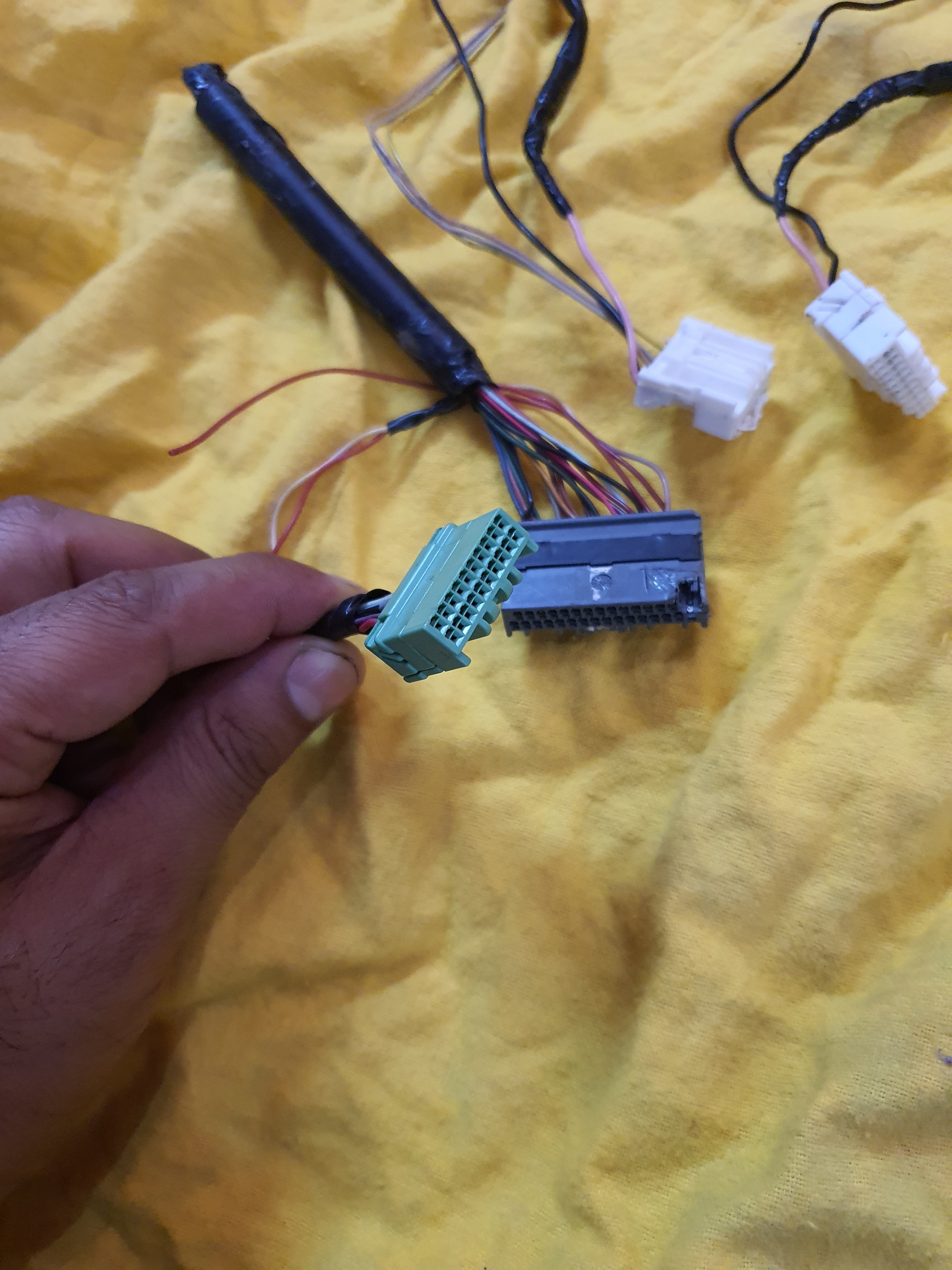

And I am talking about these connectors harness
.

.

[Spano]

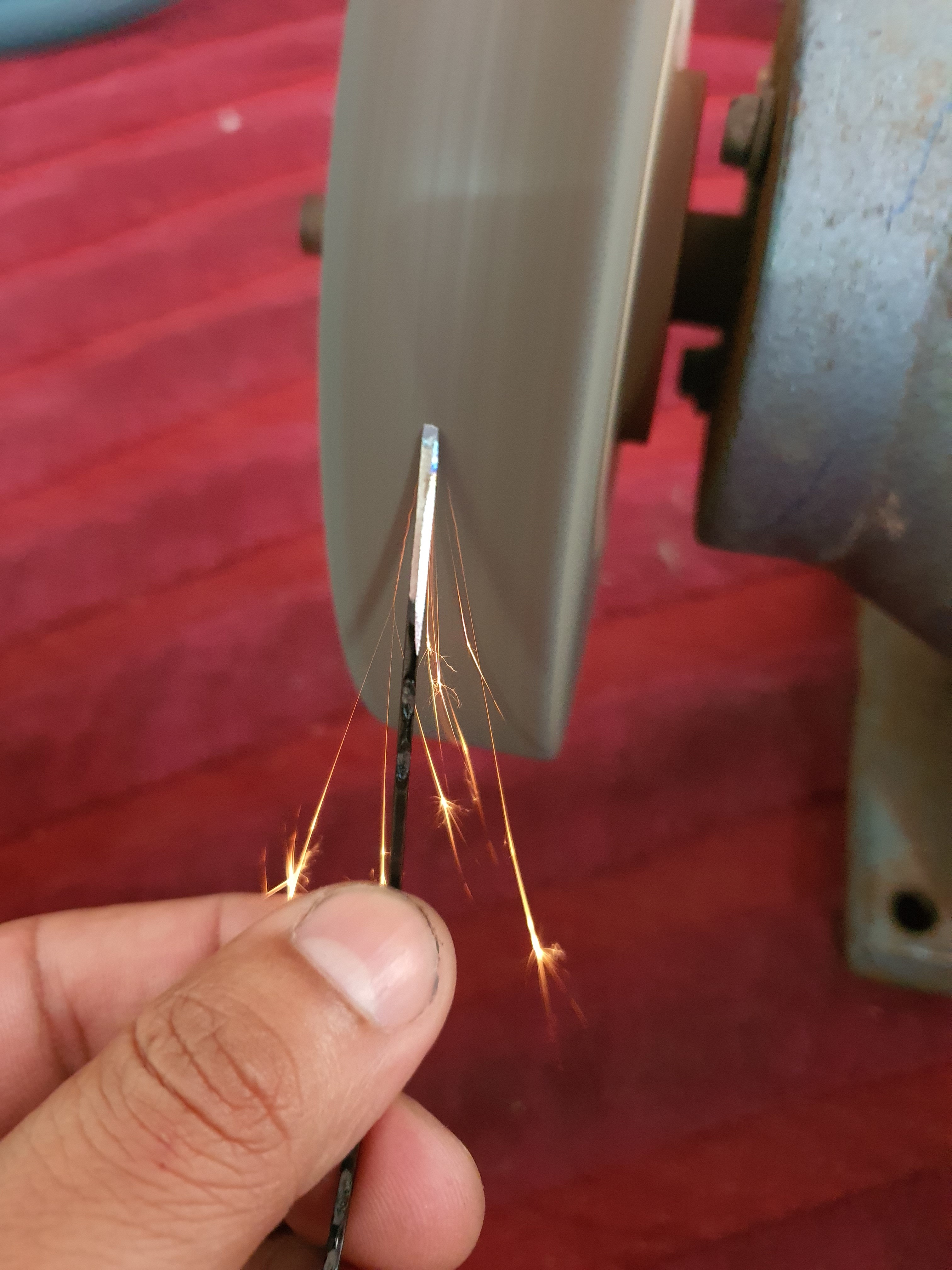

So I took a hair pin and by using grinder I made it small enough so I could put it in the connector to lift the lock of the pin
.
Here are few pictures when I was making that tool for my work
.
That's the hair pin
.

[Spano]

Here is when I was about to make it
.

[arshadahmed]

How to reprogram the cluster ?

[Spano]

Had to make it small enough to meet my requirement
.

.

.

[Spano]

I couldn't take pictures during I was making the connection as I was trying to focus on the connections.
And double checking etc.

[Spano]

I hasn't been completed yet
I will continue it today as I couldn't find a small fuse (preferably 1amp but not more than 5amp)
.
I will go to F-10 to get this fuse and will share the final pictures of new steering wheel and cluster

[Spano]

I am not satisfied with the leather steering in terms of its condition
.
After all it's a used one.
But I intend to do a DIY to restore it to look like brand new.
So I installed

[Spano]

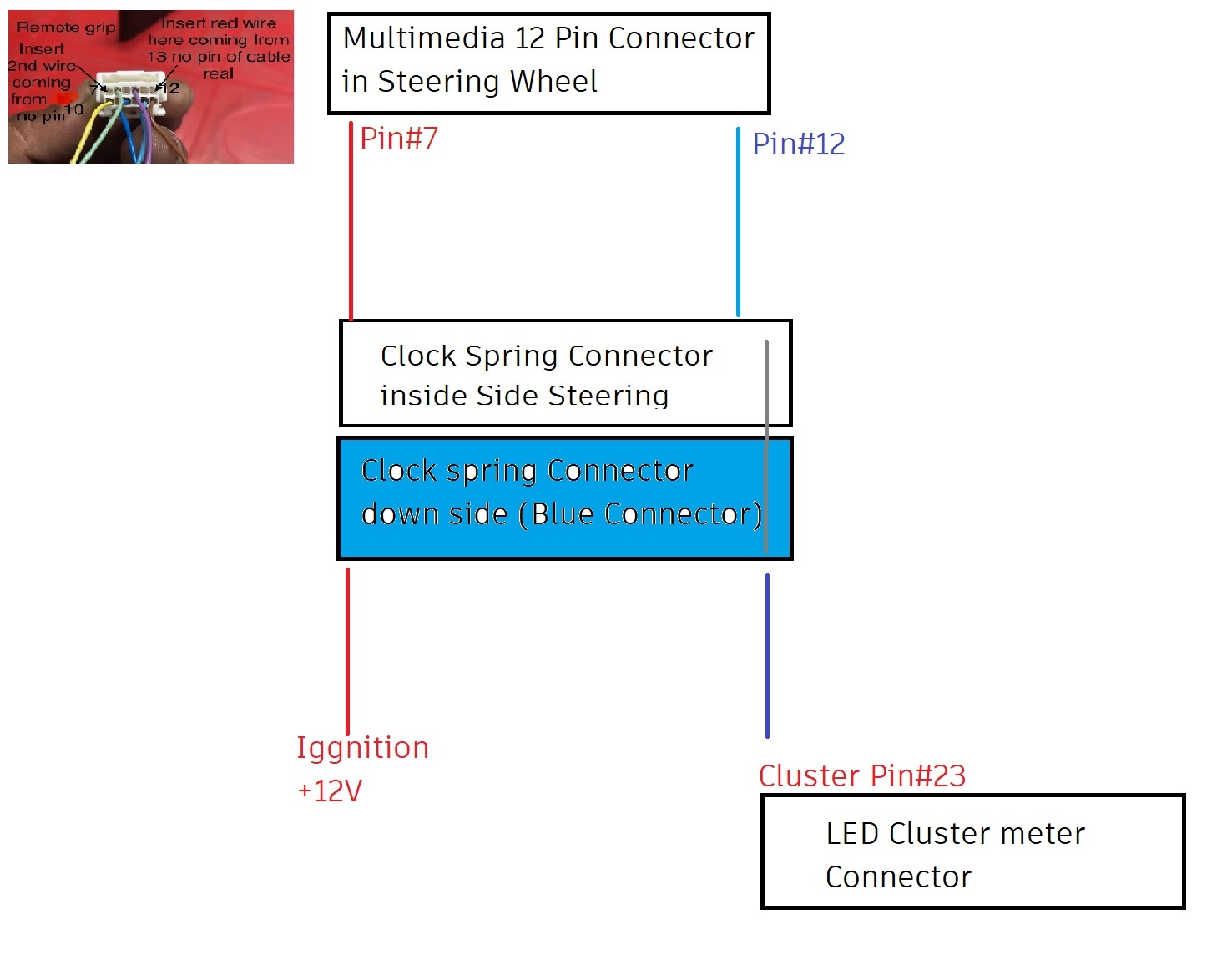

For reference, these are the connections
.
if anyone wants to do it, its pretty simple.
.

.

[Spano]

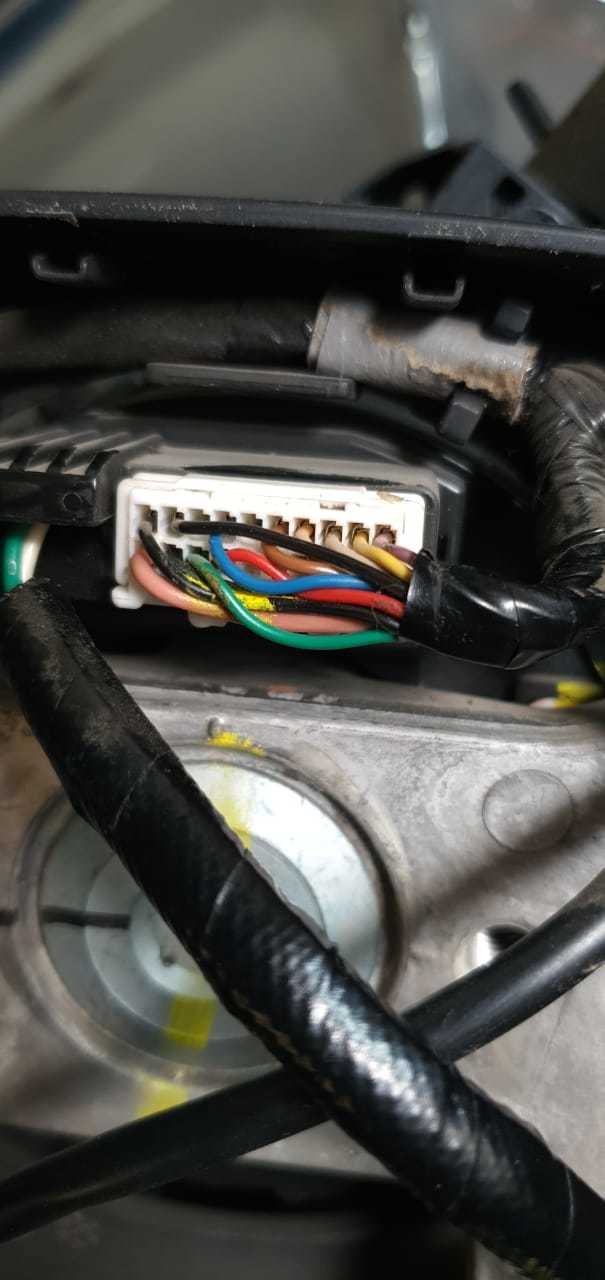

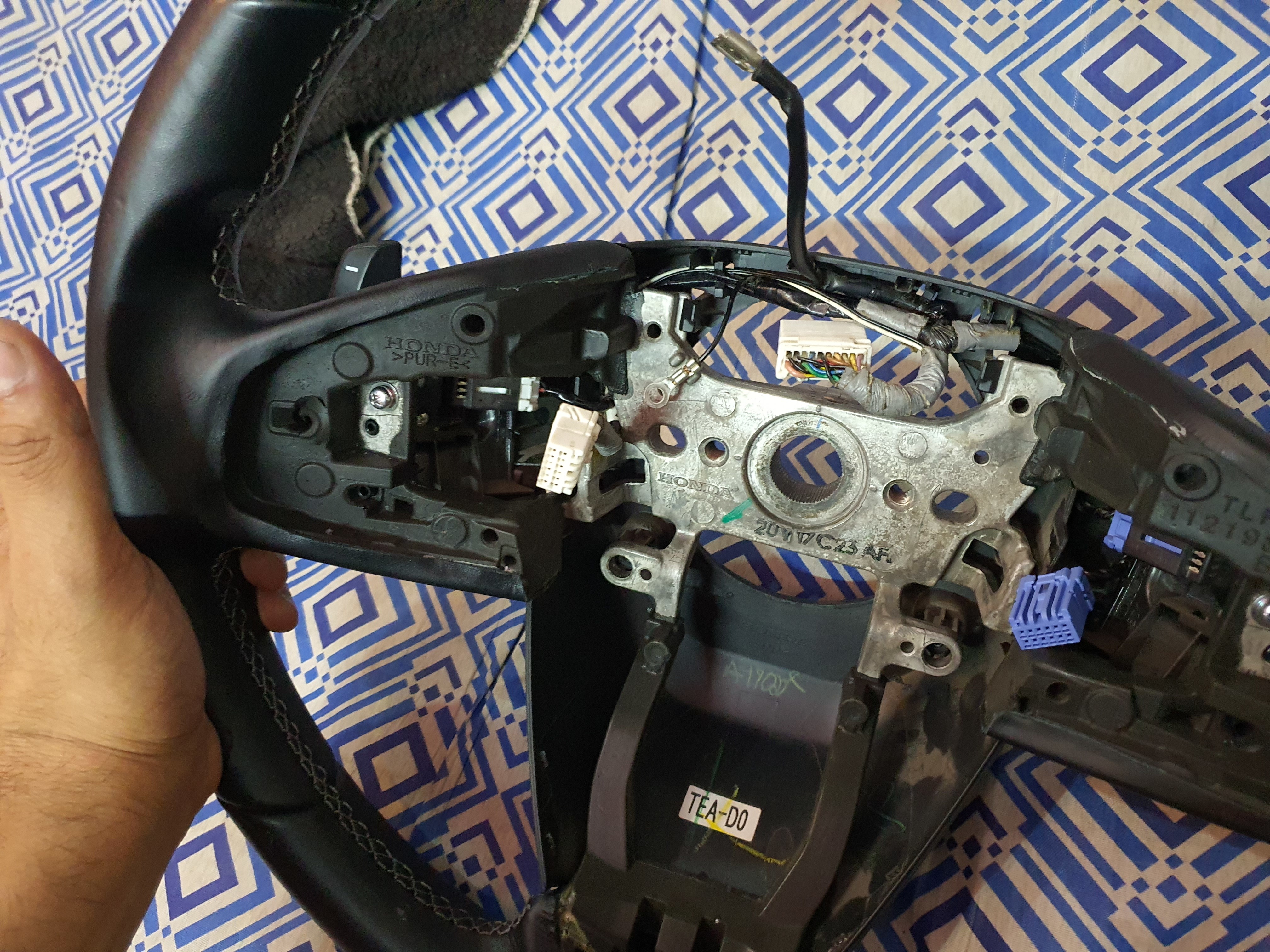

this is how clock spring white connector looks like from inside steering wheel.
.

.
.
.
