Spano CiviC X 1.5 Turbo and Add-ons (ما شاء الله)

[Spano]

This is rear trunk lining that reached me.
it included the clips that were required to install it.
.

[Spano]

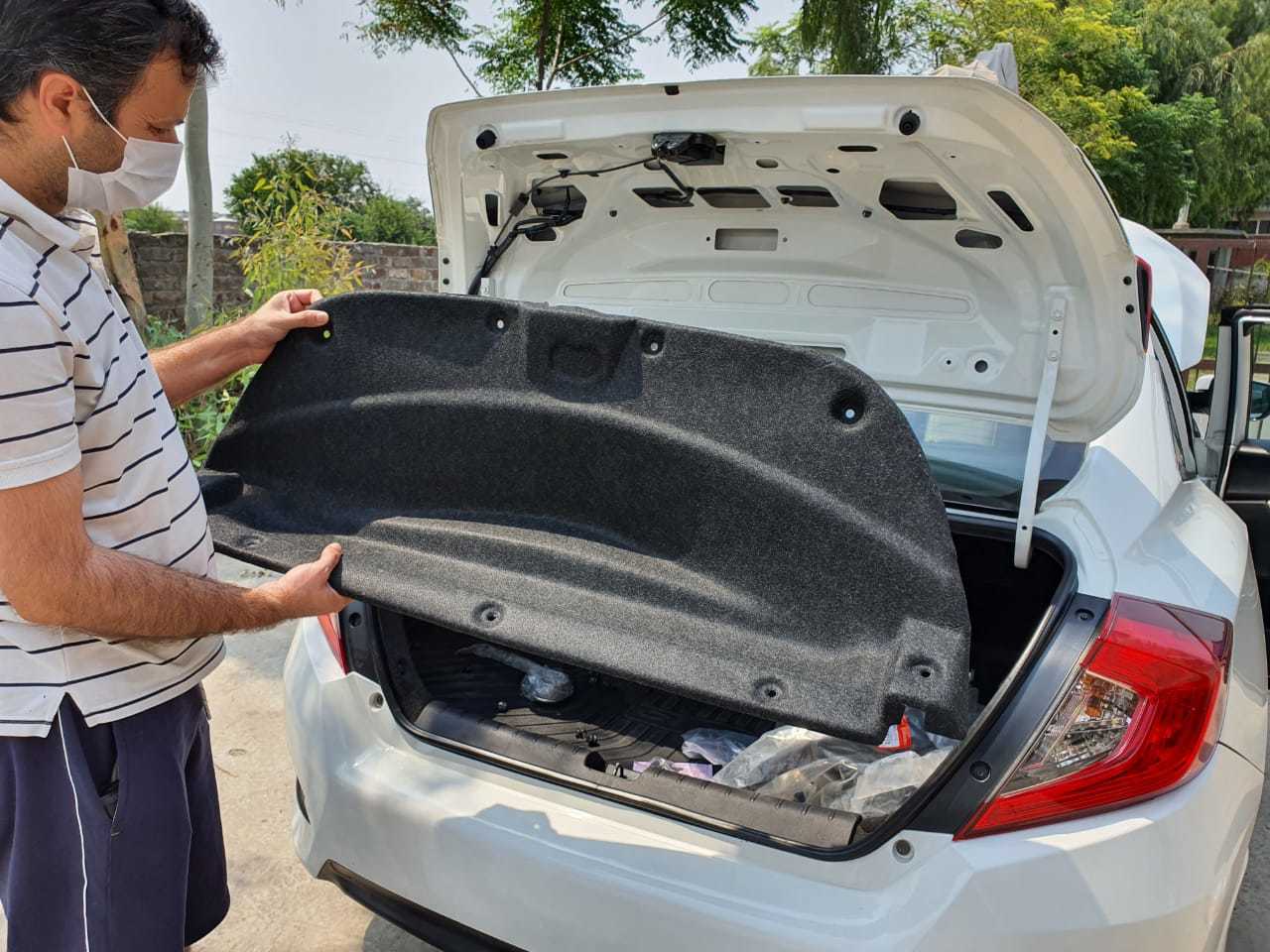

A friend (Qazi Abdullah) helped me in installing this trunk lining.
its pretty simple.
there are 9 clips and that's it.
.

[Spano]

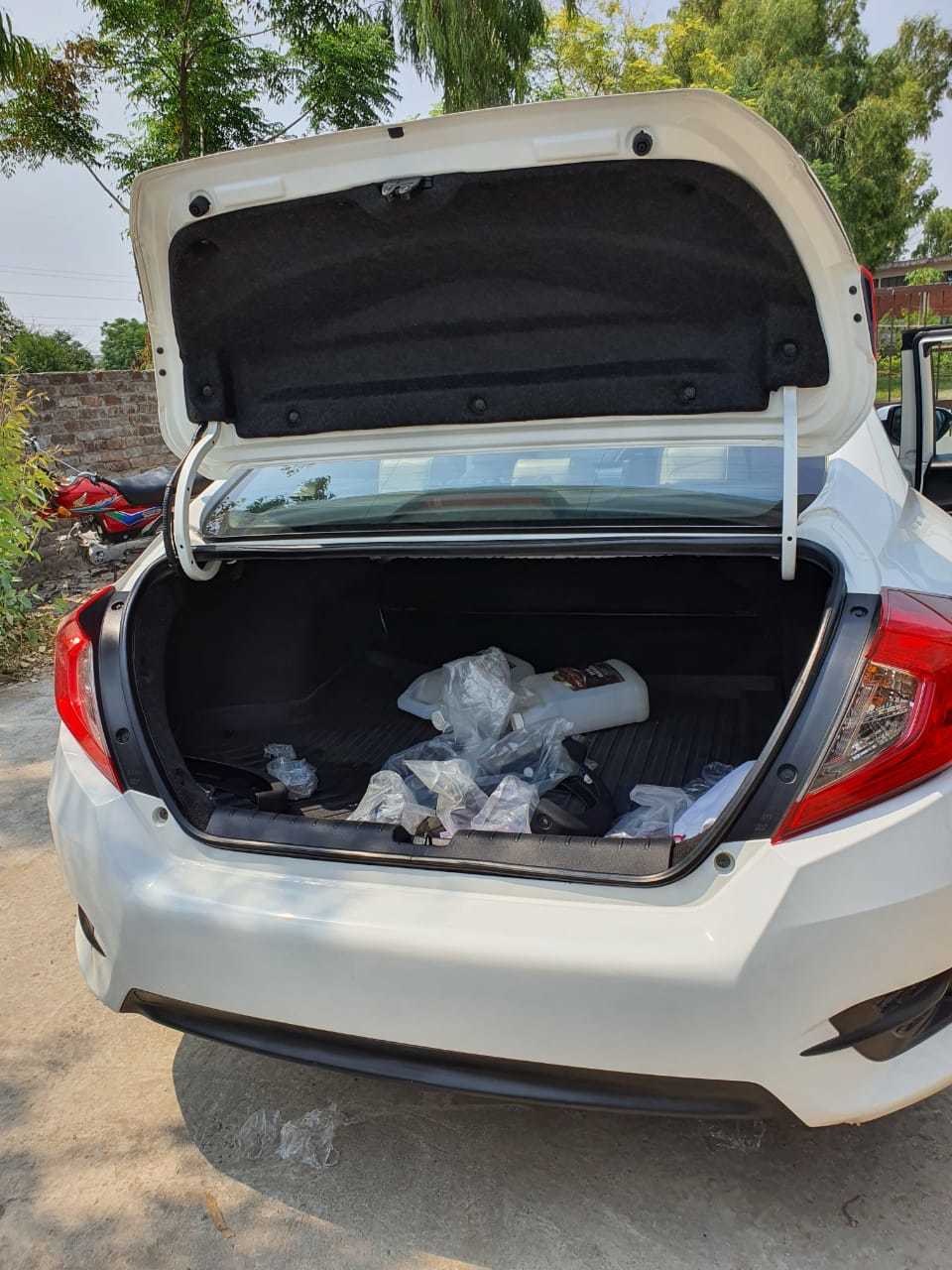

Thats how it looked like after installing trunk lining
.

[Spano]

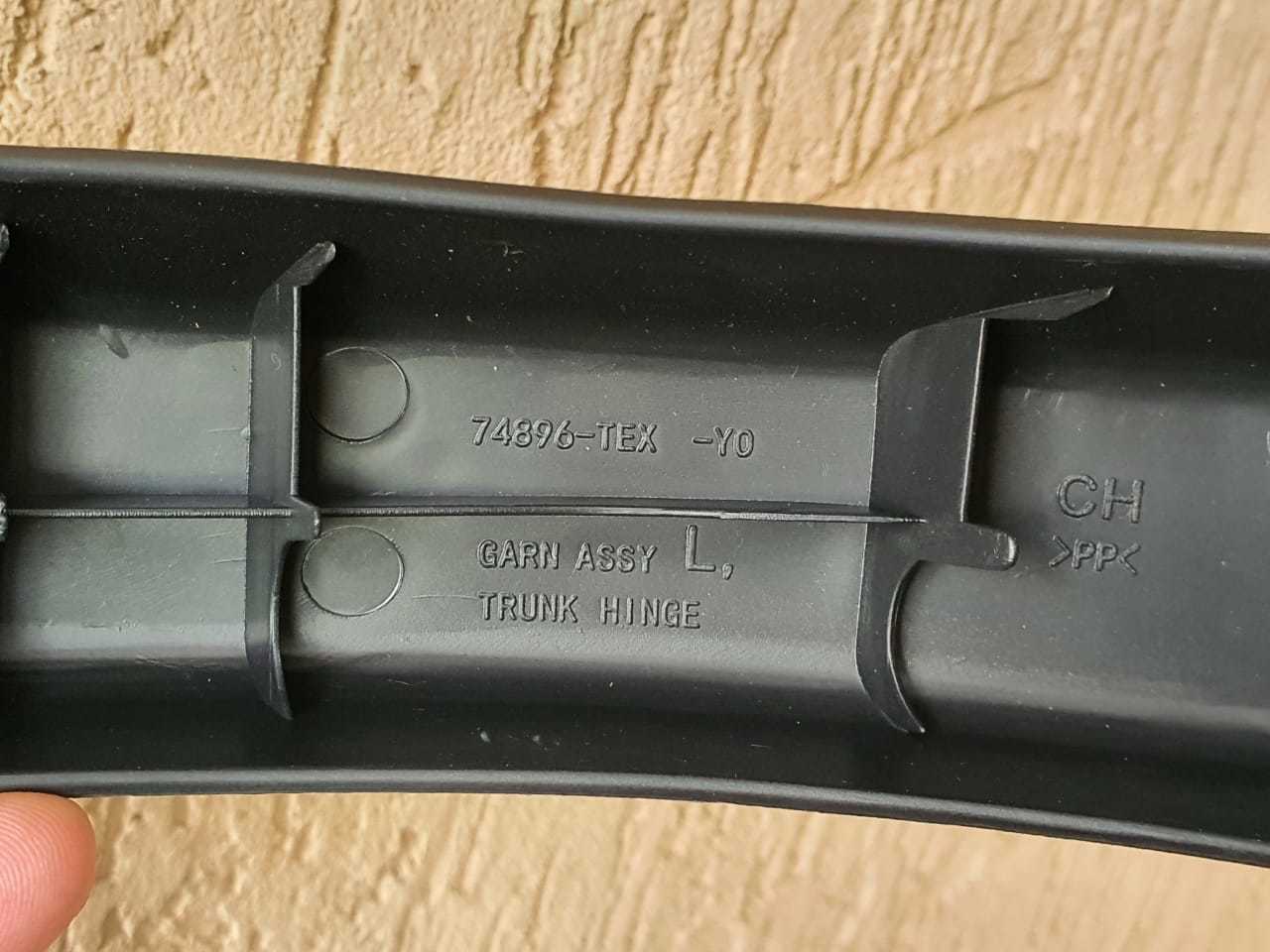

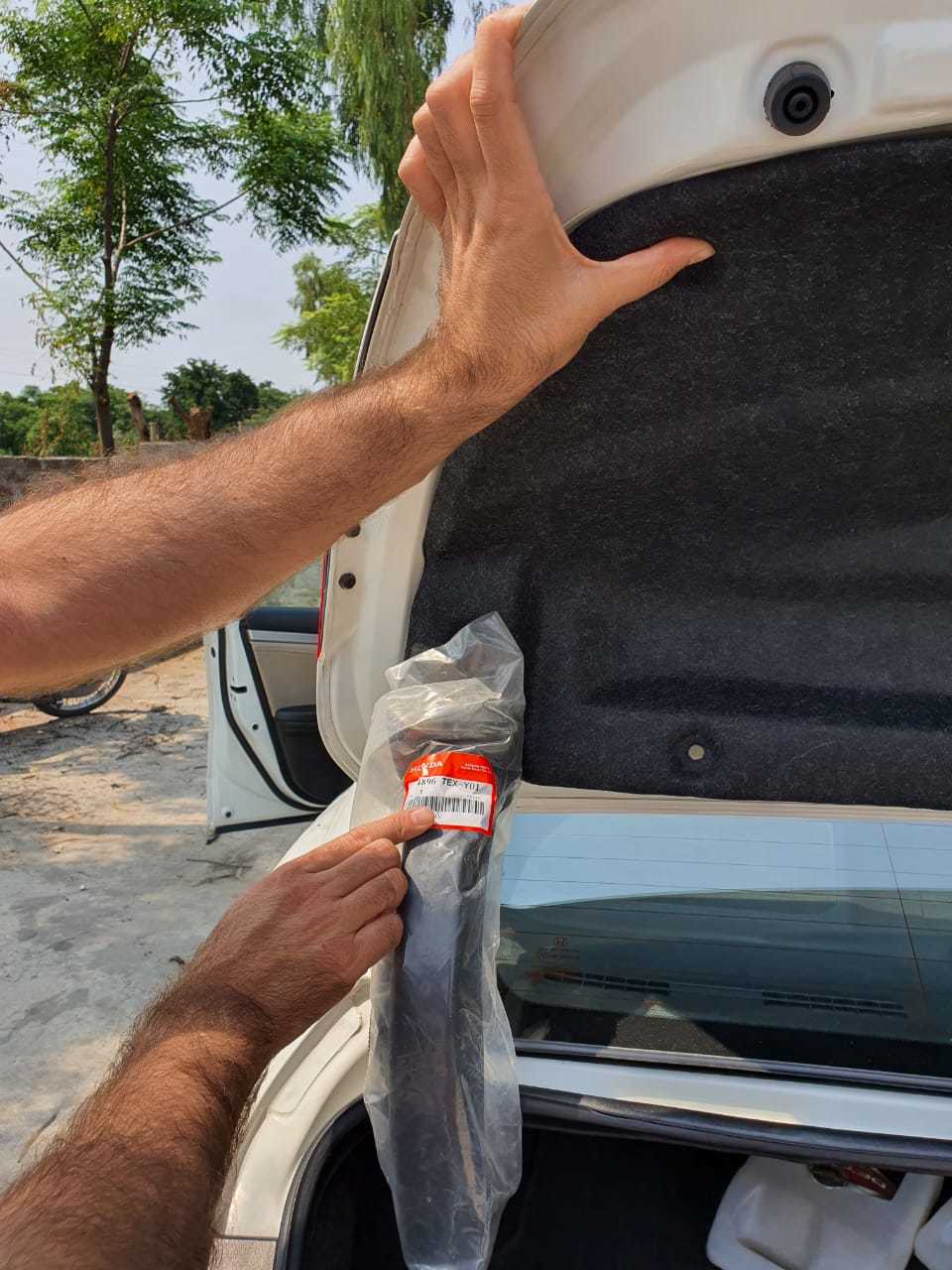

Next is Trunk Hinge Cover
.

[Spano]

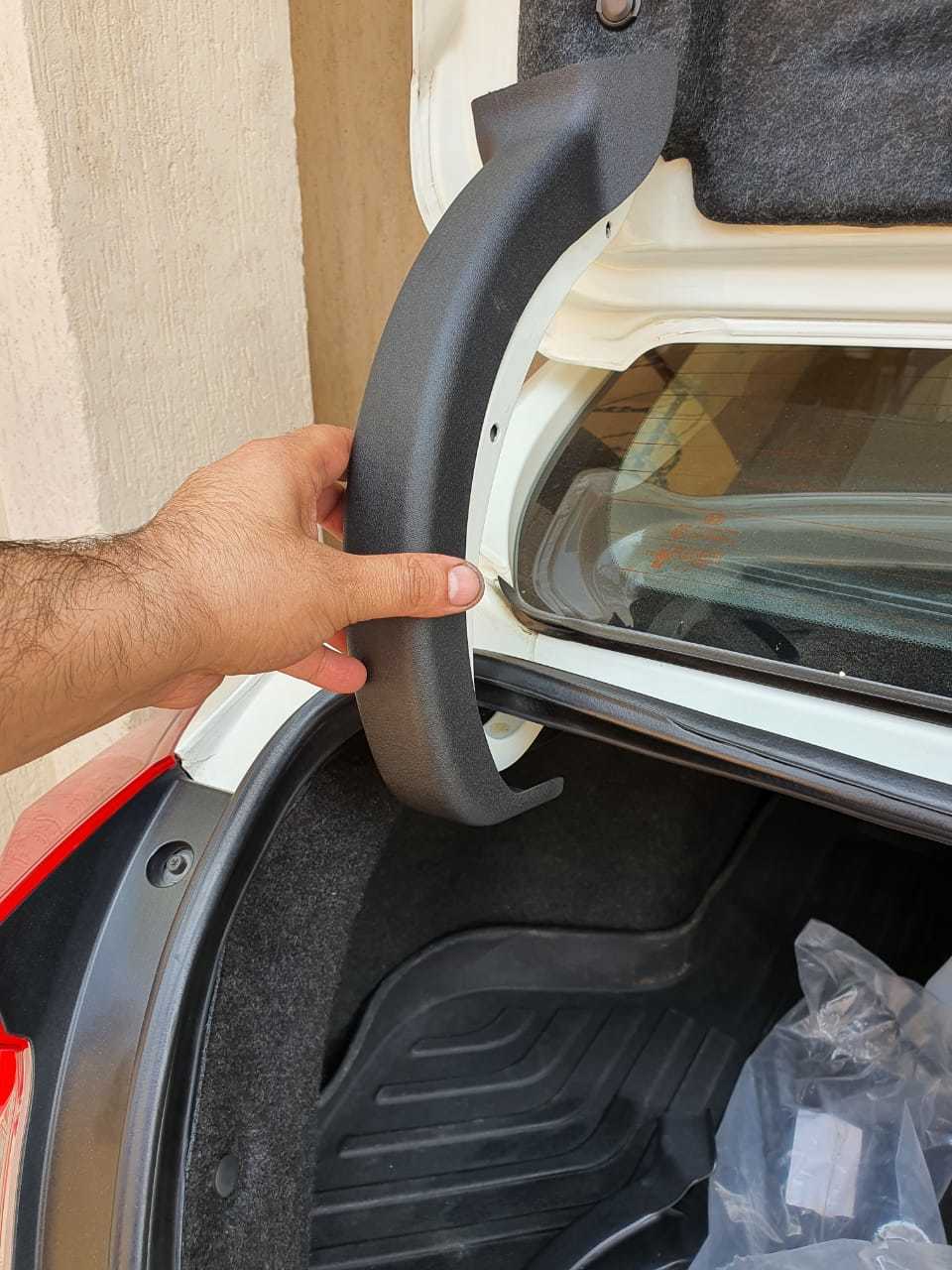

thats where it has to be installed.
.

[Spano]

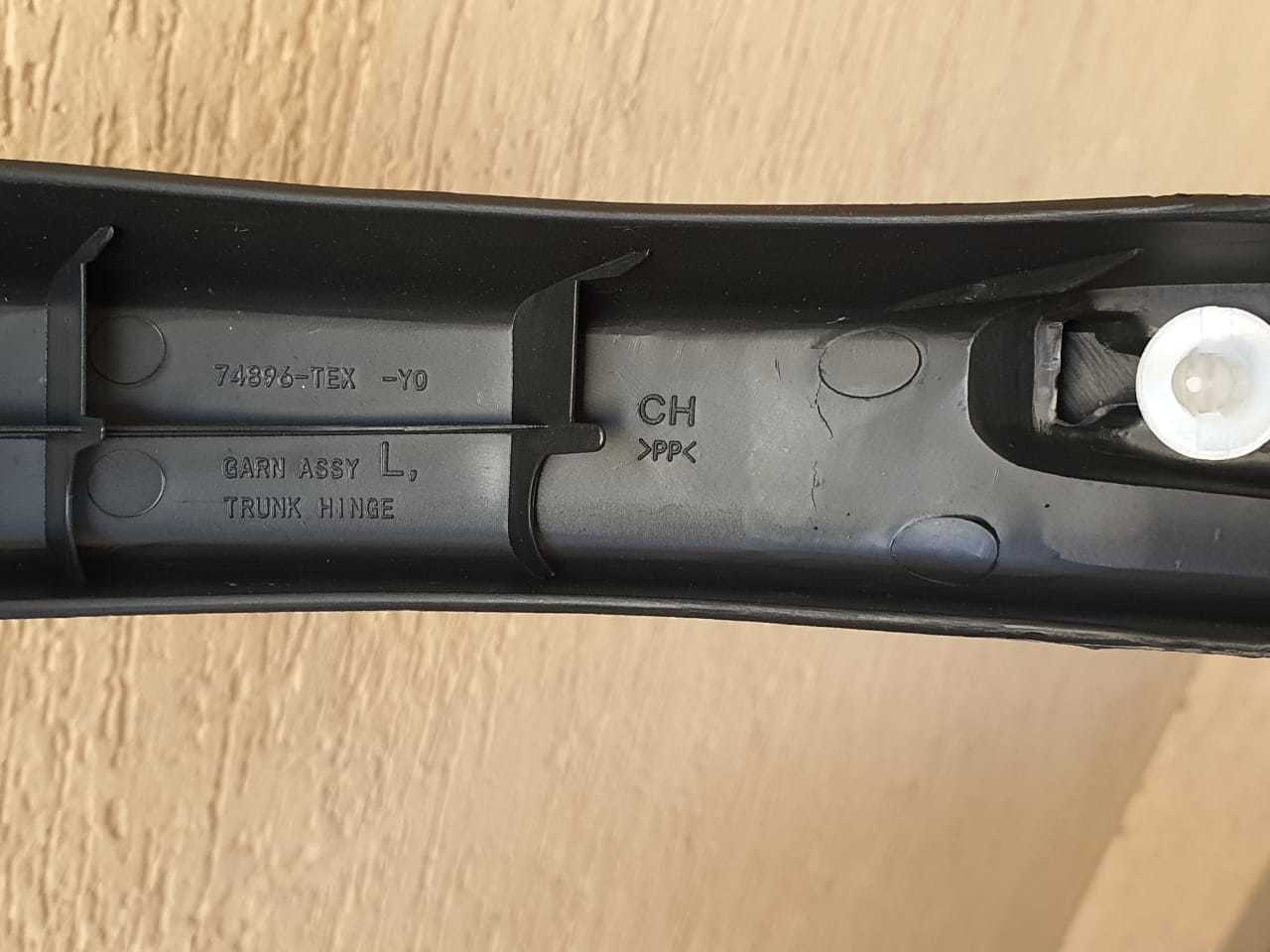

Thats how it will look like from inside
.

.

[Spano]

now there is a problem.

in PKDM civic, since hinge covers doesn't come from the factory, therefore there were no holes for the clips
so I couldn't install it there and then.
.
It became a DIY for me

[Spano]

For making holes, I had to drill the hinges.
I wanted to be extra cautious for its positioning because, there was no second chance if I make a mistake

I am sharing all the steps with pictures.
.
but believe me I repeated these steps ten times to make sure again after I made sure.
I wanted the perfect position to drill the hole.

[saqibhassan95]

Person who will buy this car in future will be lucky

[Spano]

o will buy that car in future will be lucky

why is that dear

[Spano]

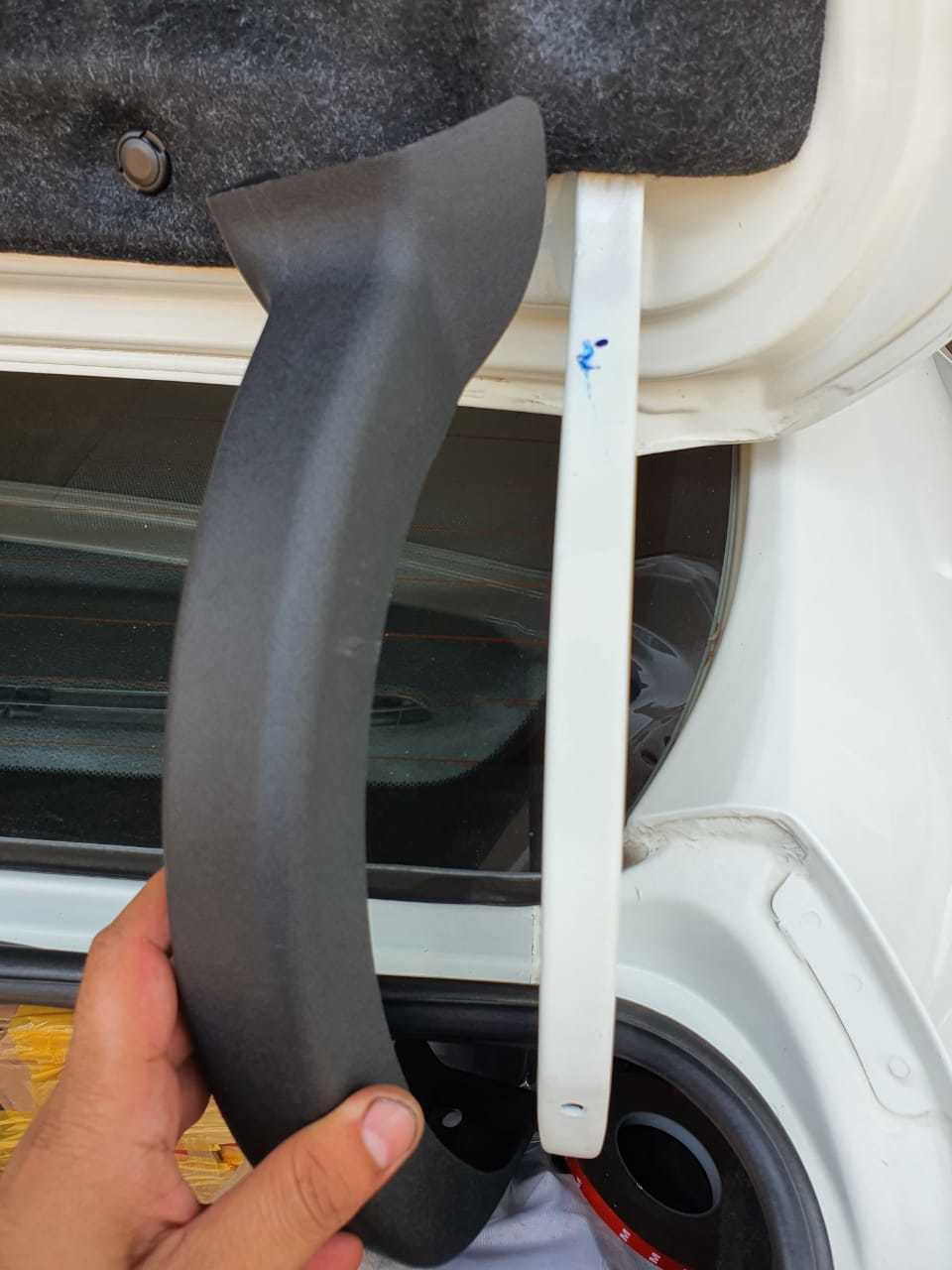

I placed the cover over the hinge.
this is left (passenger) side
.

.
I marked the position of the clip with a permanent marker.
on the left hinges, there are cables as well. these will also get a cover.
.

[Spano]

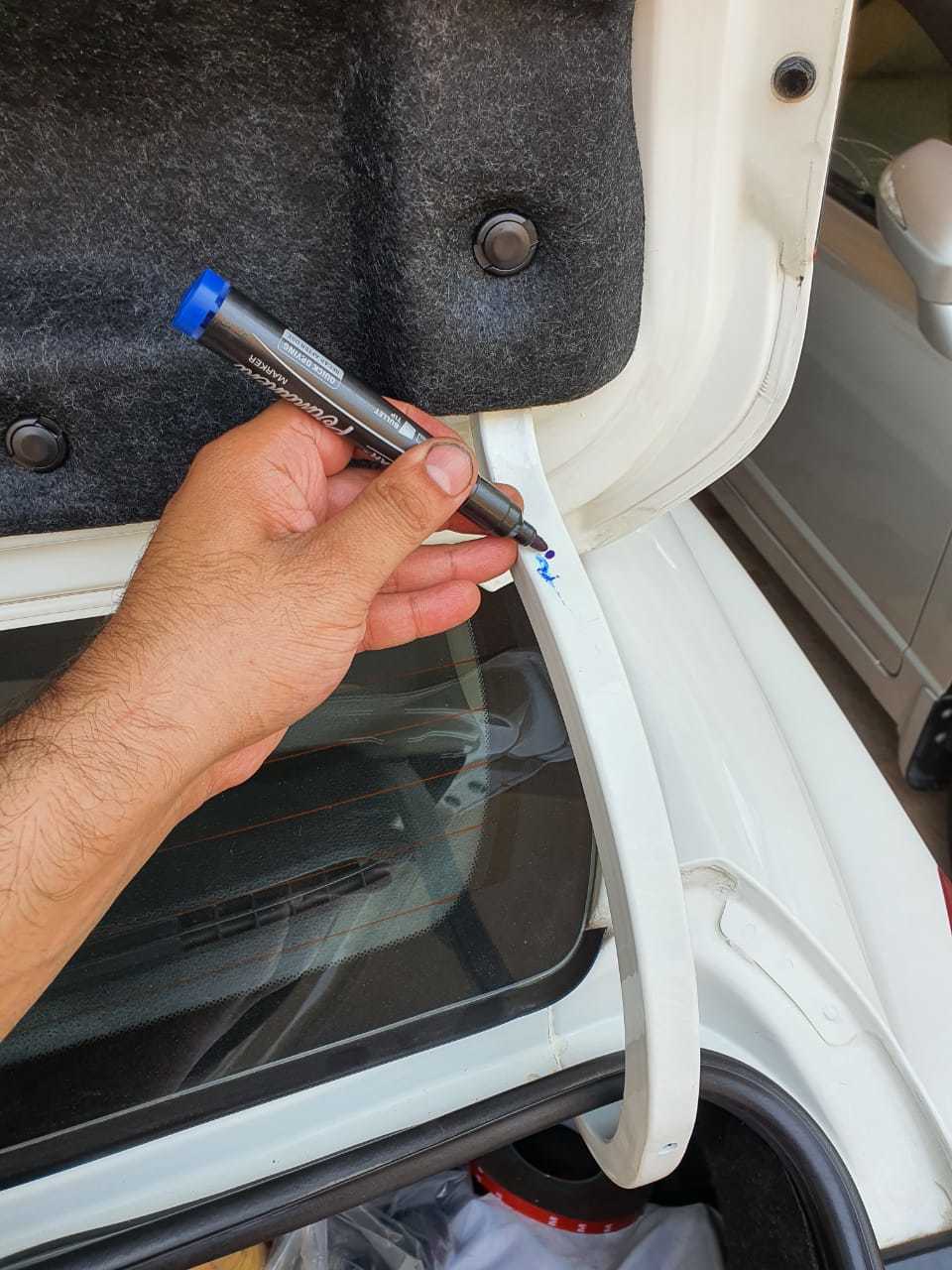

for right side.
.

.
using marker to mark the point.
.

.

[Spano]

each hinge cover will be held with two clips, one from upside and one from the bottom.
this is the picture of marking the lower clip position
.

[saqibhassan95]

why is that dear

This car has all Mods which everyone wants in a stock car

[Spano]

Now comes the third stage of the DIY
.
whats the diameter of the clip?
which drill bit should I use?
.

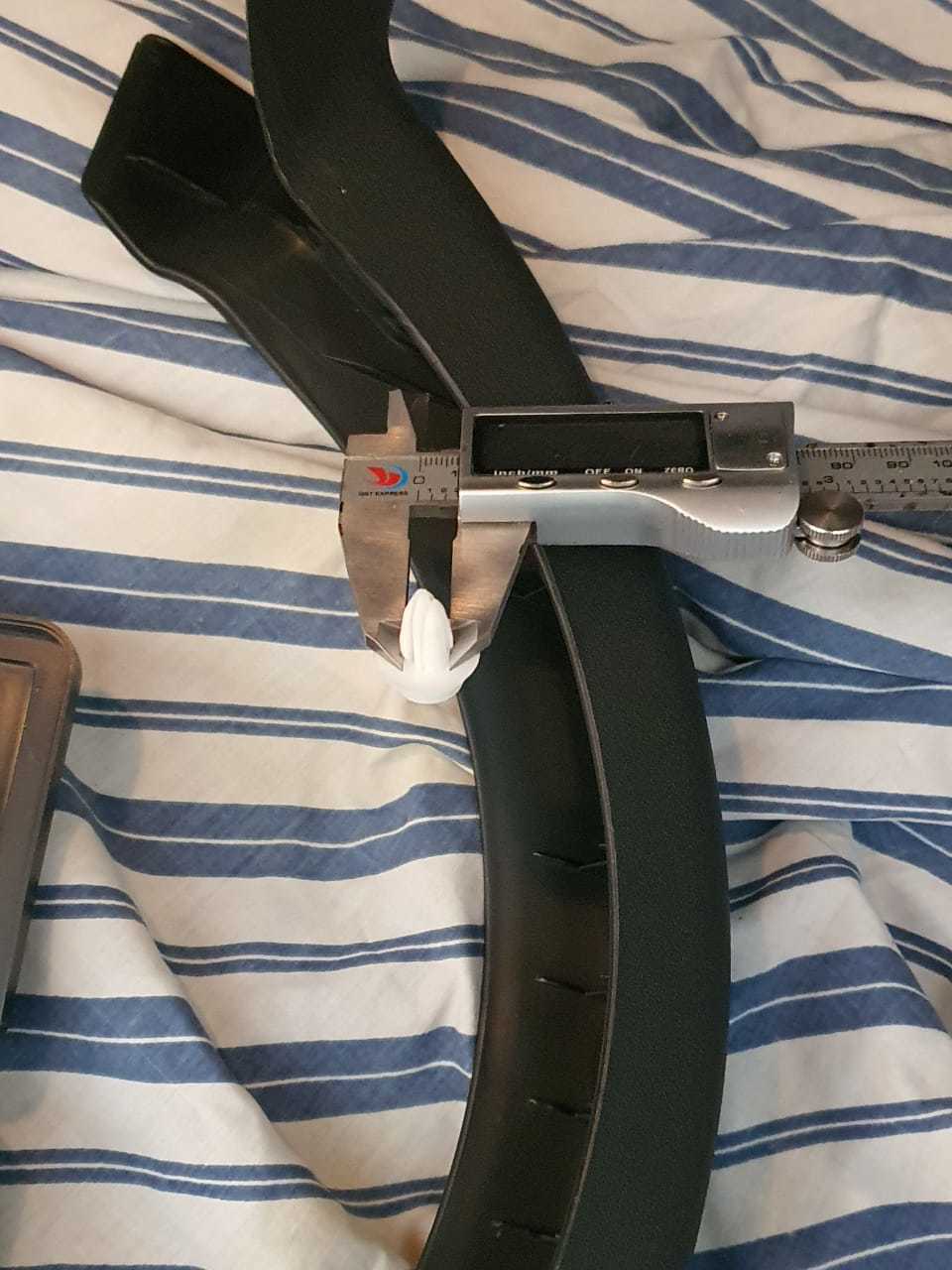

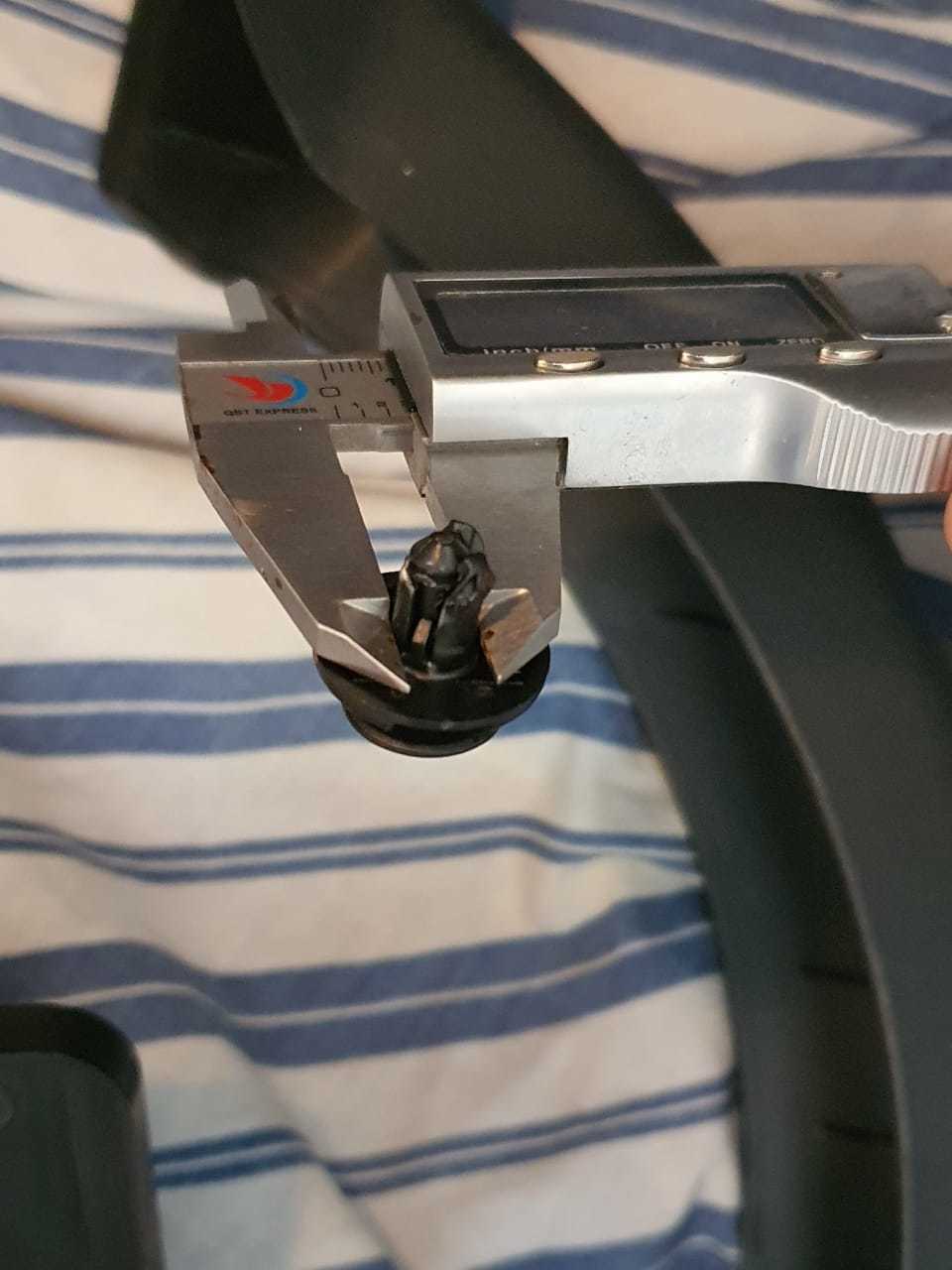

after measuring, I came to know that upper clip is 8 mm
..

.
lower clip measures slight less than upper one.
.

[Spano]

Always remember while drilling.
.
its good to start from the smaller size and gradually drill your required size in steps.
.

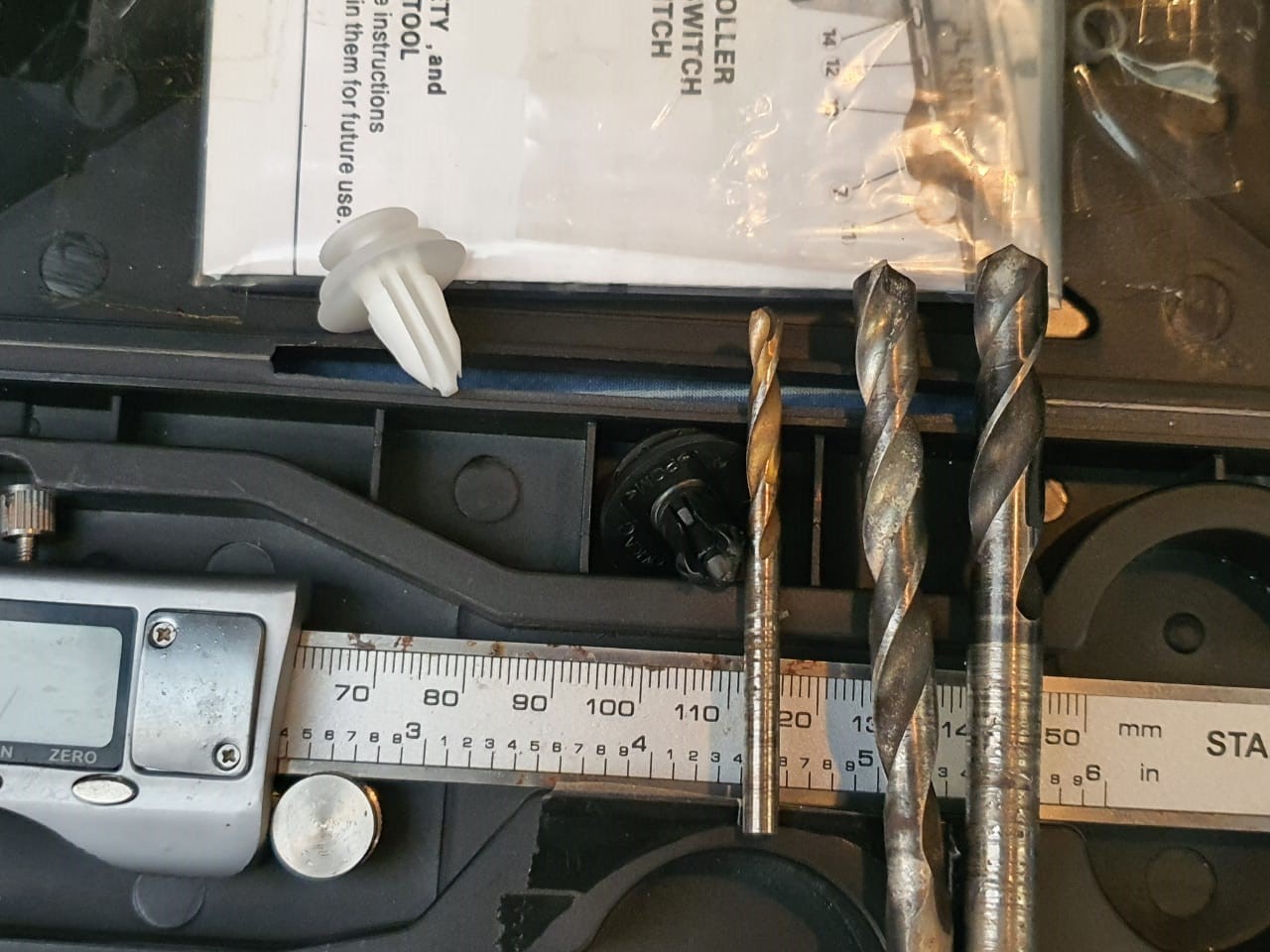

I used these three sizes.
.
First was to make a small hole.
.
Second size was done for opening the hole.
Third size was used on on the upper holes.
.

[Spano]

Its always good to sharpen your tools
I got sharpened these drill bits
.

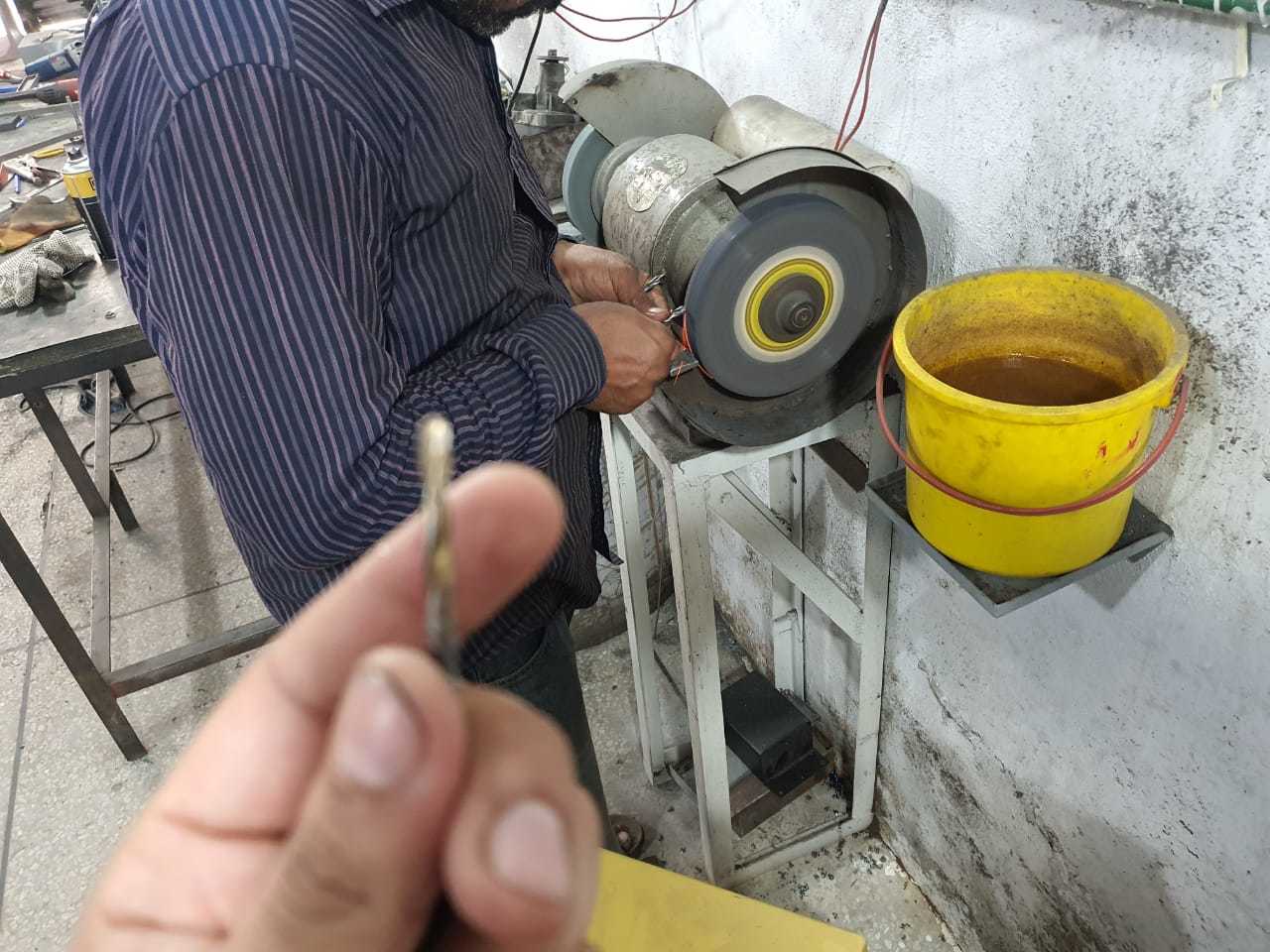

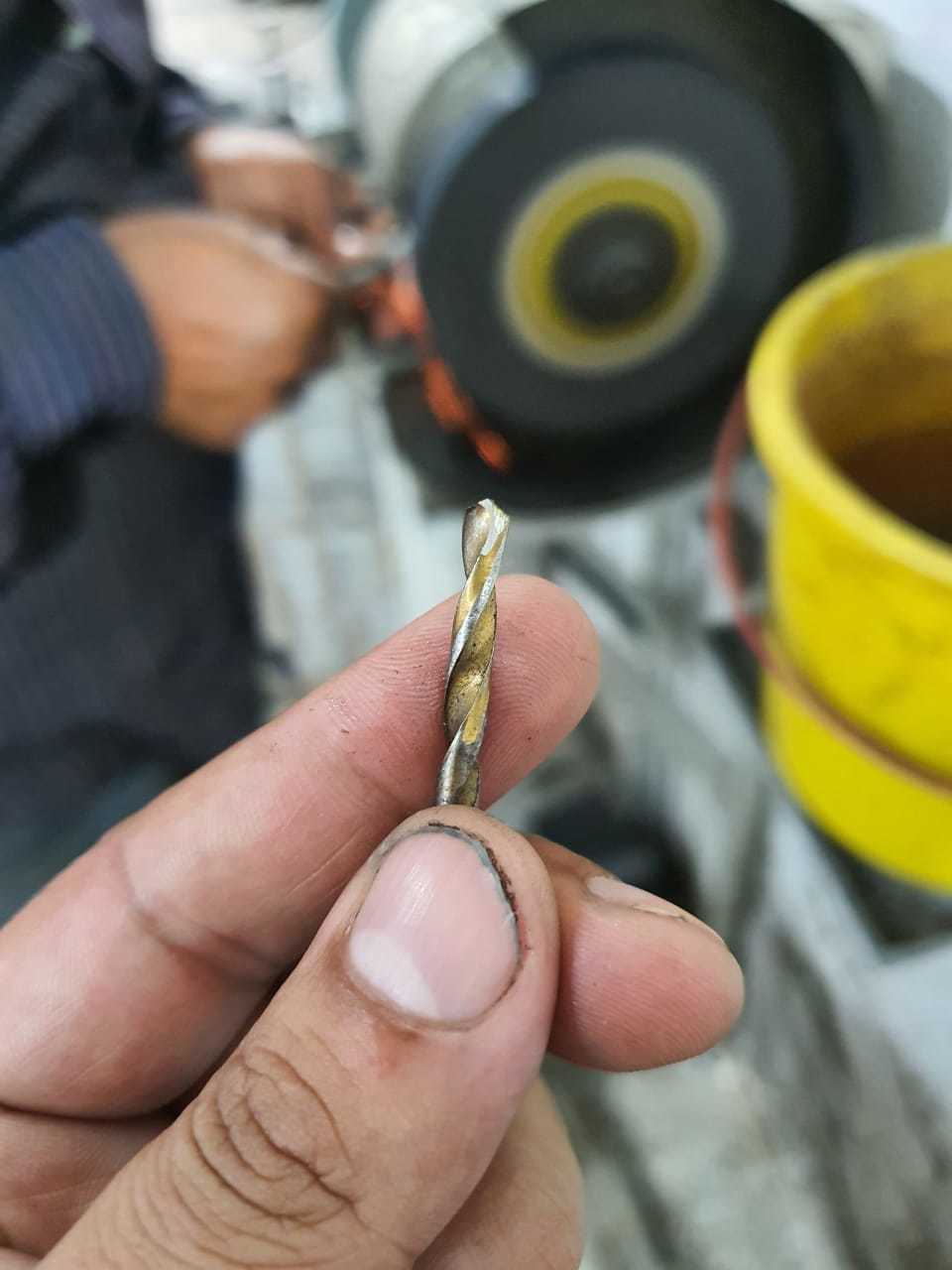

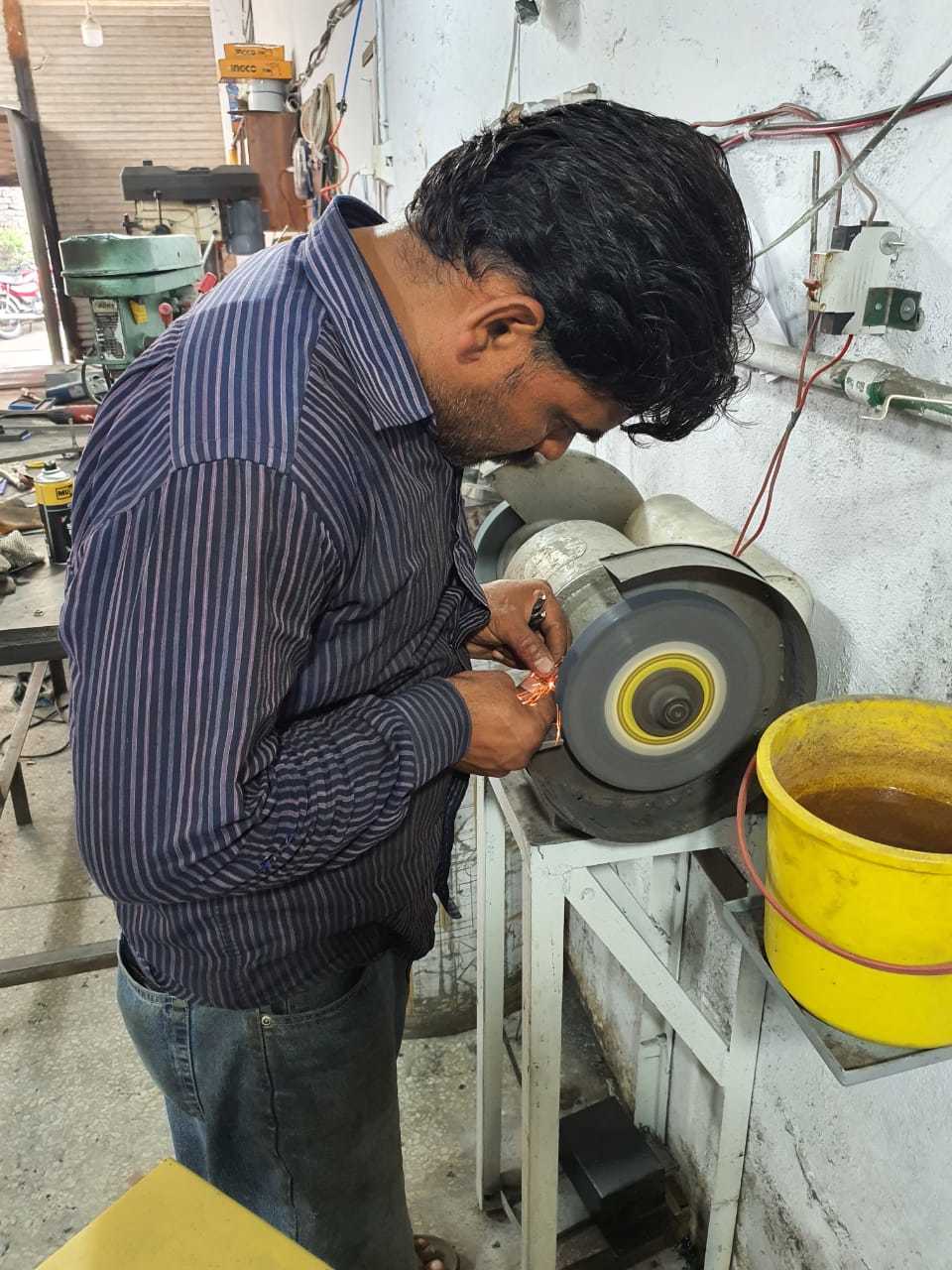

Here are some pictures of drill bits getting sharpened
.

.

.

[Spano]

There is an important thing to share.
when ever you are drilling. specially in metals.
always make a punch (depression)
.
Center Punch is the tool name that is used for this purpose.
.
a tool consisting of a metal rod with a conical point for making an indentation, to allow a drill to make a hole at the same spot without slipping.
.

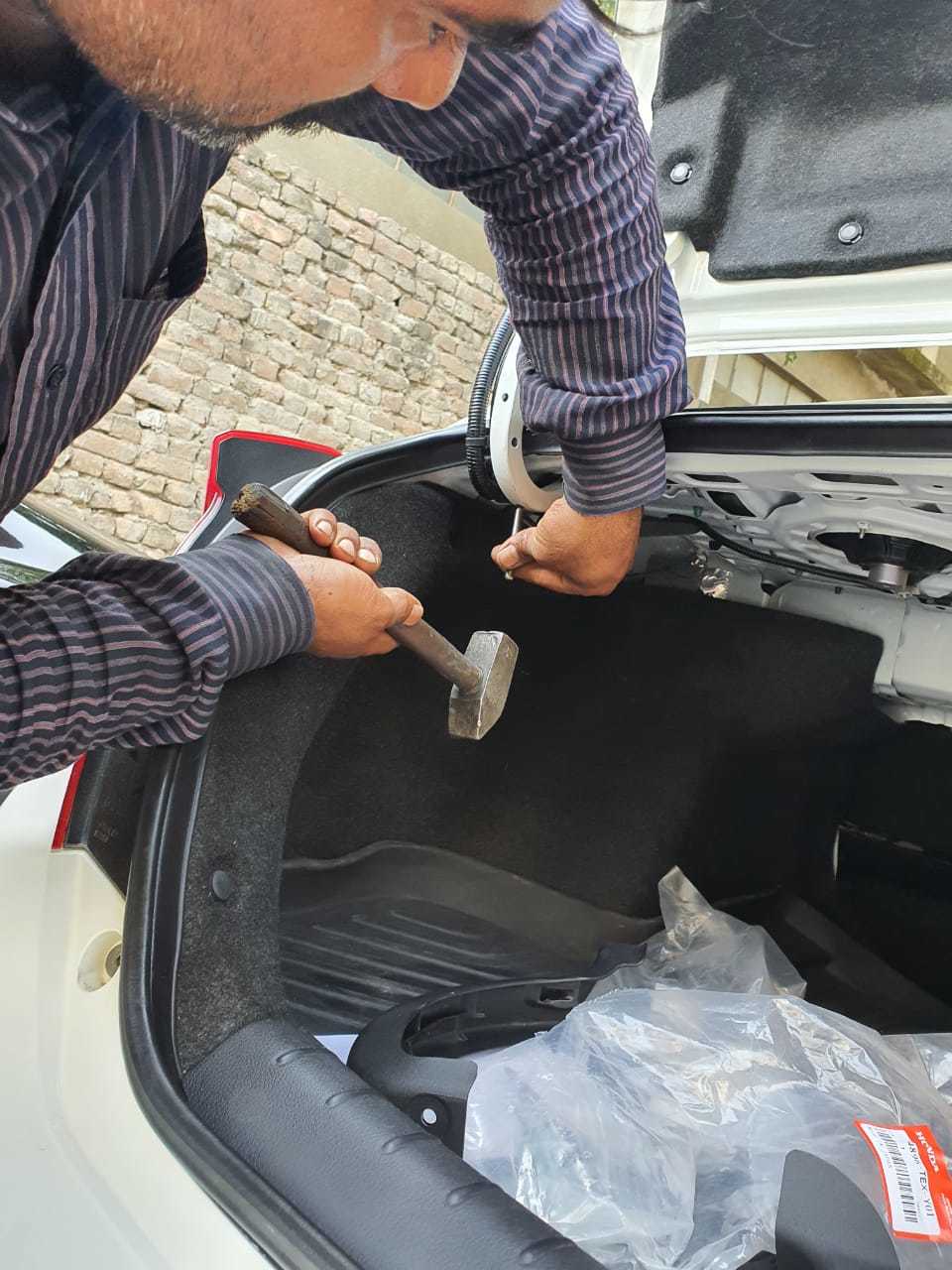

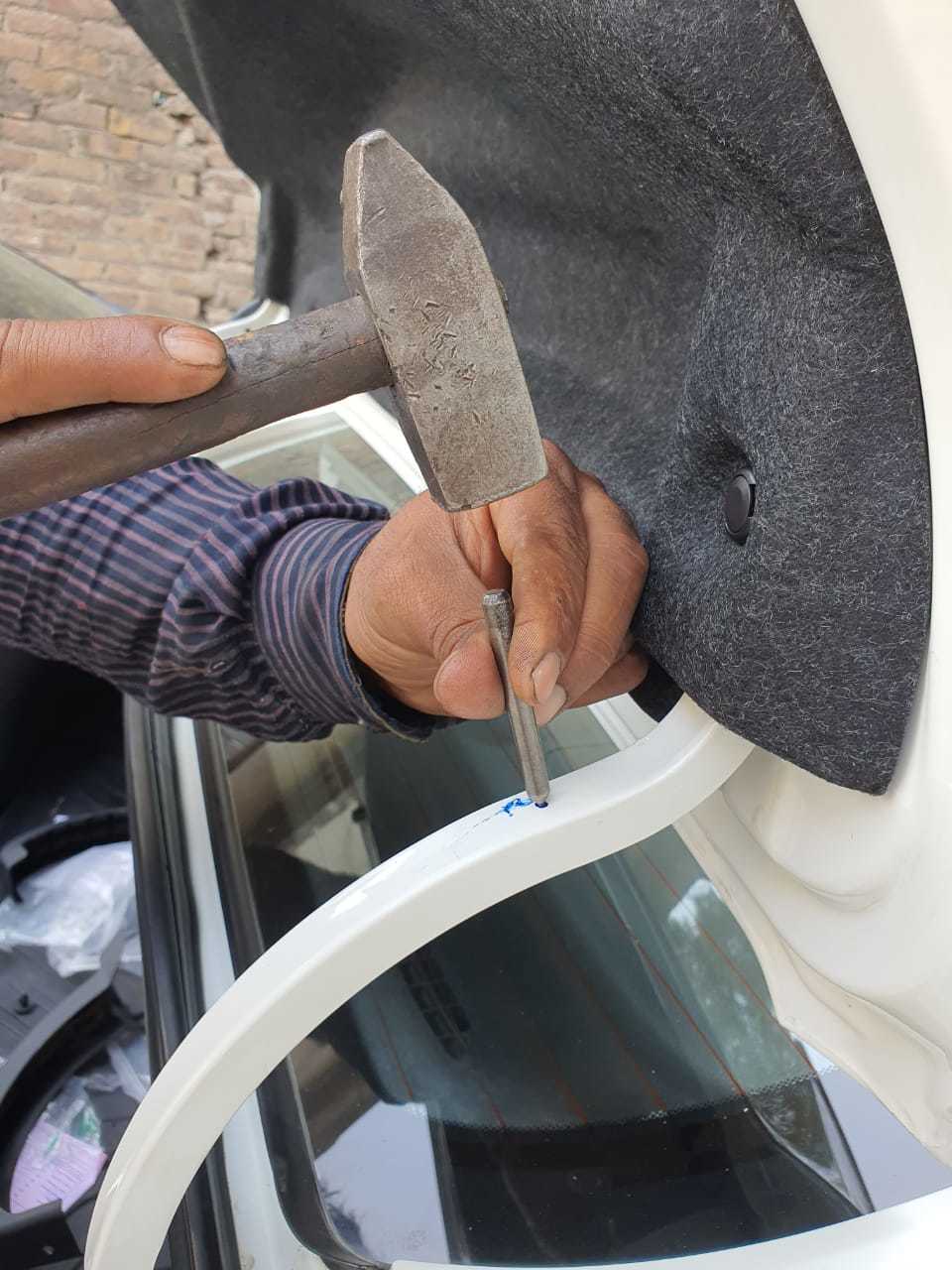

Center was Punched for all four markers for drilling.
.

.

.

[Spano]

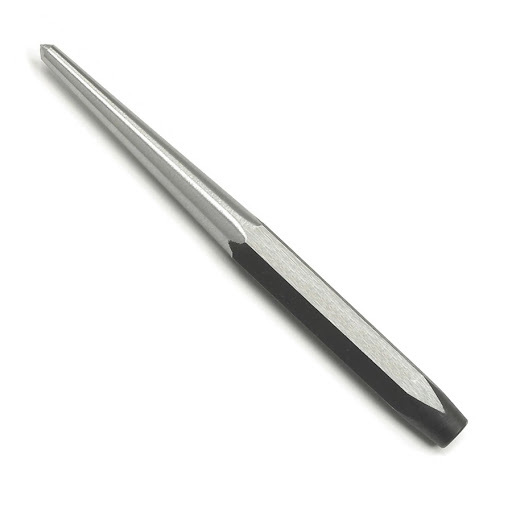

for reference, this is how a center punch looks like
.

[Spano]

here is my drill machine.
I had to use extension board to reach it to my porch
.
