So this is my final build with everything cleaned up made a new subwoofer enclosure that’s tuned for this subwoofer. Will fiberglass the tweeter pods once I get the city A pillars cover since I don’t want to ruin the original A pillar covers.
Huge thank you to Sherry bhai and Mustafa bhai for helping me out
The system is so musical and the bass slaps low down to 19Hz. Really happy with my current build now onto next and bigger things soon InshaAllah
Head Unit: Pioneer DMH-ZS8250BT

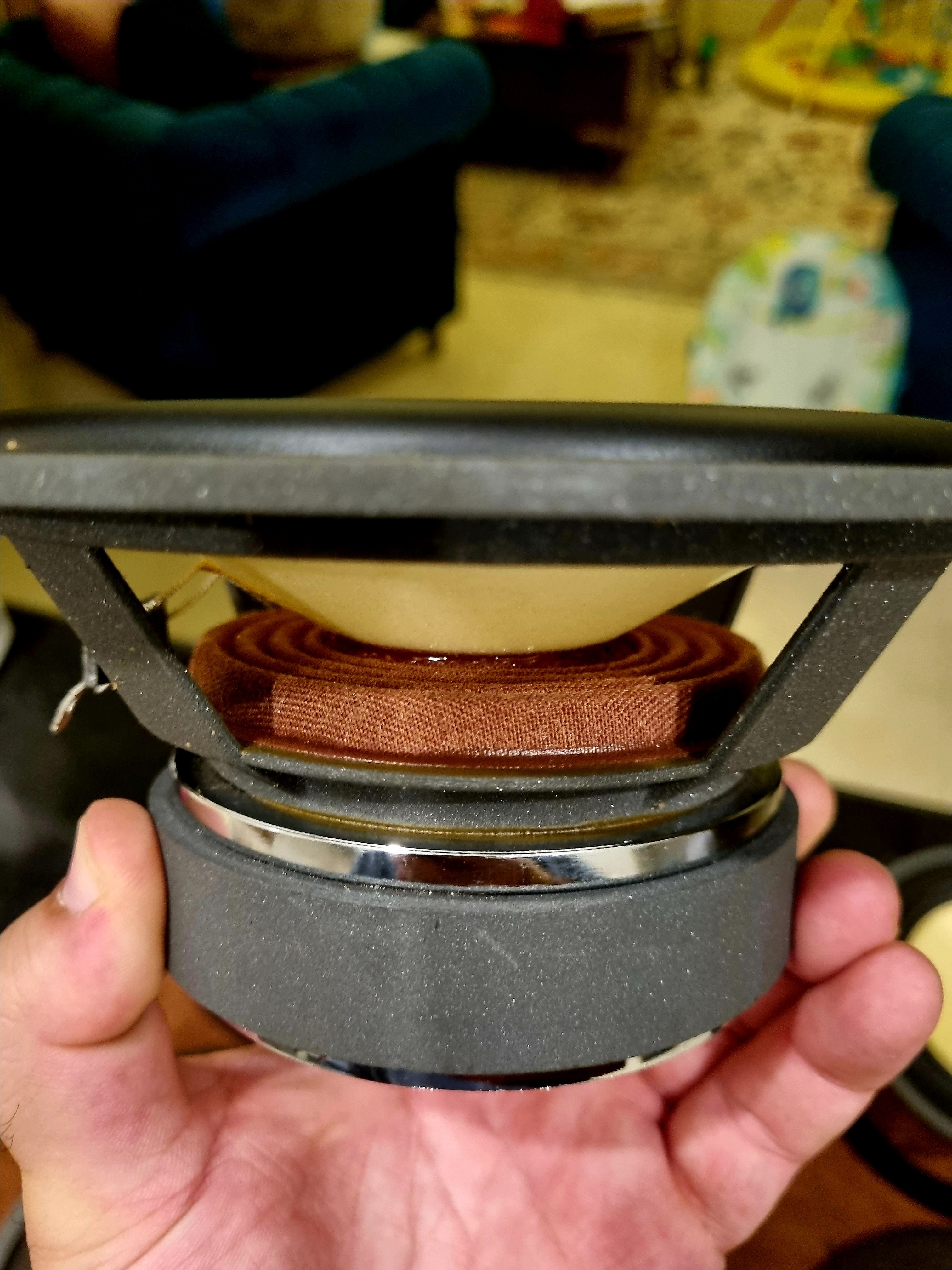

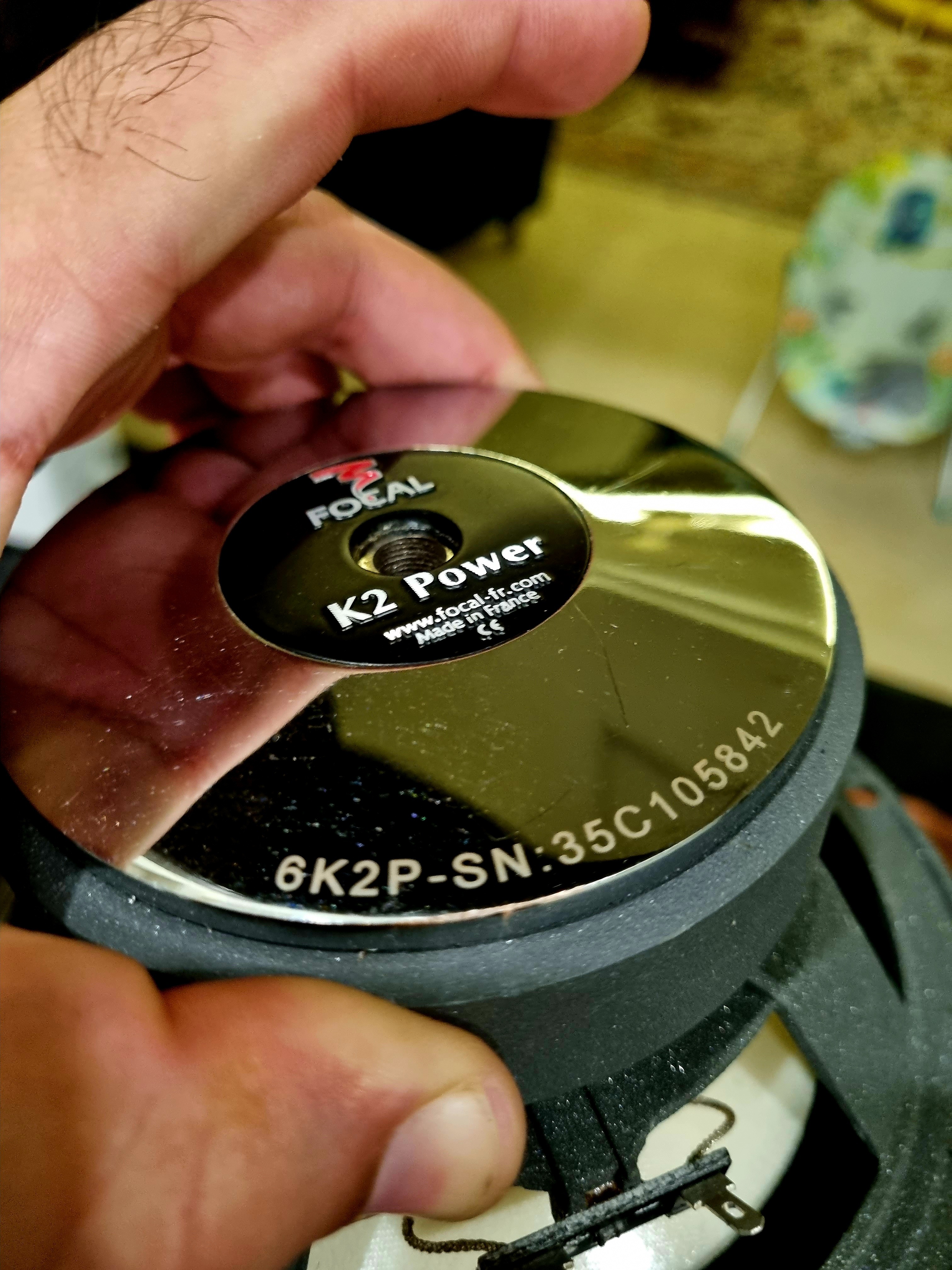

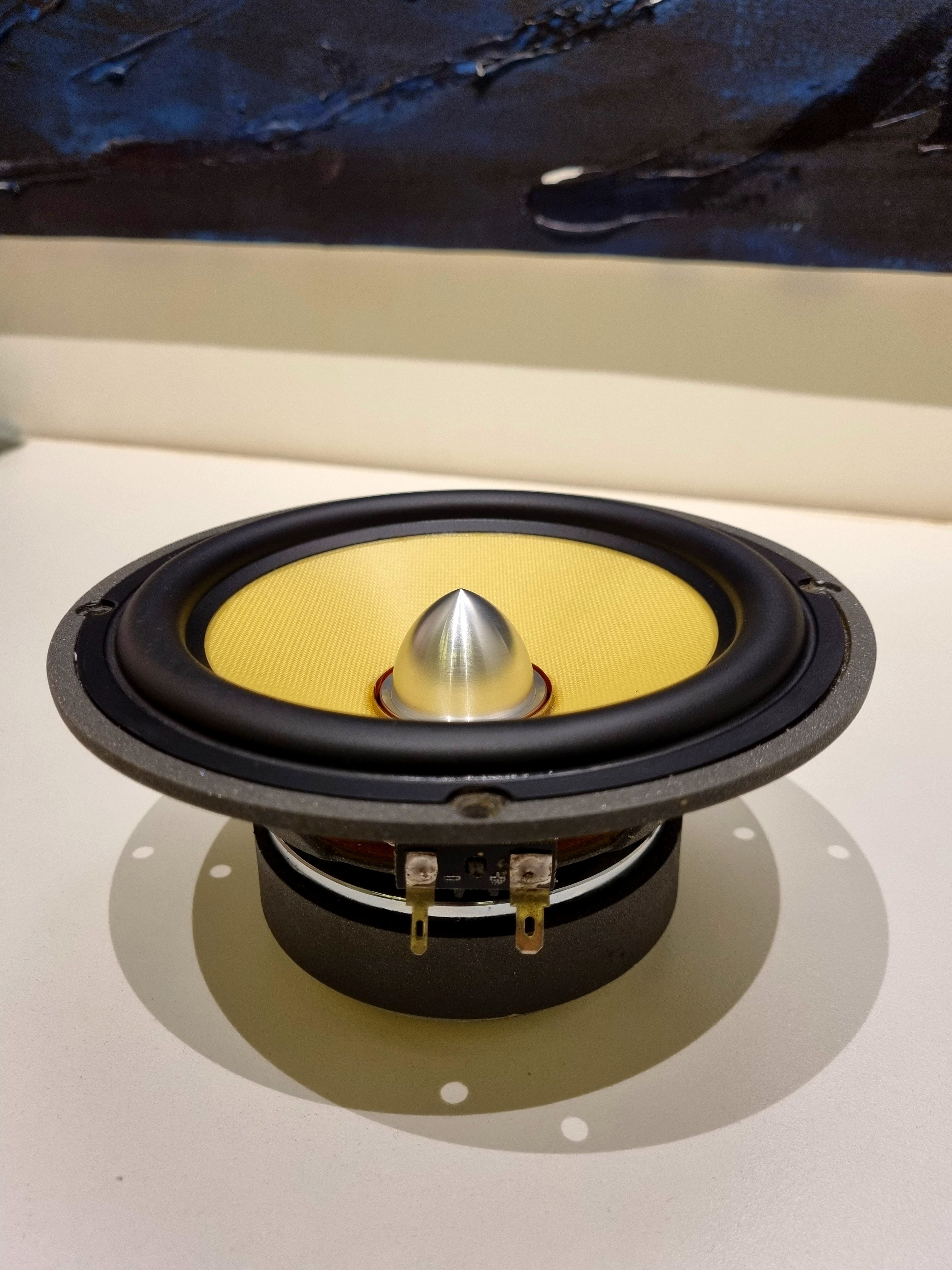

Front Stage: Focal K2 Power 165K2P
Rear Stage: JL Audio C5-650XO
Subwoofer: Phase Linear Aliante 12 Si in ported enclosure tuned at 18hz
Speaker Amplifier: Rainbow Germanium Four
Subwoofer Monoblock Amplifier: JL Audio XD600/1v2
Main Power and Ground wire: DB Link Maxkore MX0ANL 0 gauge
Amplifier Power and Ground: Kicker 4 gauge Silver Tinned OFC x1 and Alpine 4 gauge OFC x3
Speaker wire: 14 gauge ofc
Subwoofer wire: Oehlbach SP15 OFC
RCA Cable: Audio Technica AT-EA 1000 and other Audio Techinca RCAs
Fuse and Ground Distribution: Audison Connections Distribution Block SFD 41C
