Subwoofer Wiring DiagramS BIG 3 UPGRADE

[Spano]

thanks maggi.
this is very informative.

[scorpion80]

thankyou geforce (Y)

[geforce]

u got the point??

[FC]

@GFORCE
yar mujhy bhi kuch samjha do. mein POINTs nahein pakar pa raha hun. aur CROSSOVERS ka bhi kuch samjhao kay kya hoty hain kaam kya hota hai in ka. Gain ko kahn tak kholna chahyay aur OVER POWERNG the woofer wll effect the woofer???
Plz mujhy bata do.

[geforce]

@ fc
i will reply u in the night

[faizy207]

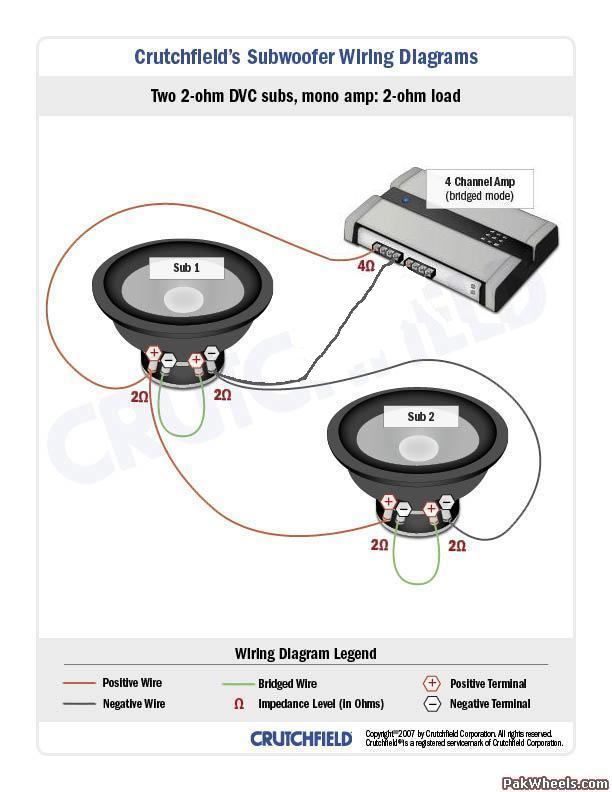

can any1 tell me can i run 2subs like this with 4 ch amp cuz i need to run 2 speakers as well with another bridge... cuz of sound quality cuz if i will install 2 subs on both bridges and speakers as well then sound quality will disturb....
guys help me out of this.....

[Maggi]

^^

aray bhai get a mono plz !

[Maggi]

Proper Power wire selection table

Provided by redbull_ar (Y)

[faizy207]

yaar but i already have 2 amps 1 2ch or 1 4ch 2 ch wala fader k liye or 4 channel pay rear n subs

[Maggi]

^^

maire pyare se bhai :d

4 channel amp pe 2 bridge hoty hain (some times 1) ap us ke aik bridge pe aik hi woofer chala lo ok

agar dono bridge use karnay hain to...

1) u have to get a divider becoz ur unit has 1 sub out so u have to give input to both the channels so that the bridge can work

2)by using divider u will be loosing ur signal strenght so i will say ke ap aik hi woofer ko bridge pe chalao ok bhai :d

[geforce]

Maggi , correct me
People say thay
4 ch amplifer can run 4 speaker and 2 woofer
at a time

i dont agree with these people cause
while hooking the subwoofer to the bridge , the Filter needs to be at LPF ,
lets suppose i hook 2 subwoofer on 2 bridges on 4 ch amplifier , then how will i hook hup?? the speakers
cause , on hooking woofer , the LPF will be use

but speaker cant be used on LPF ,SPKR need to be run at Full or High pass filter if tried to used , they will produce bass and on turning up volume , distortion will appear ,
so its means that ,
1 woofer to bridge , and 2 speaker to rest of 2 channel
or optional 2 speaker addition in order to give a load of 2 ohms to amplifer , by hooking both terminals of speaker each other

[geforce]

yaar u told me to hook up tweeter with your pre ,
if i hook up the tweeter to the pre , will they produce distortion , i cant go more then 35 volume , loud + slight distortion level increase as u told good pre on enabling option , filter and other produces distortion

so all i mean that 2 tweeter will run from my pre , while speaker n woofer from sub

[Maggi]

so far so good !

which tweeter u have ?? TS 20 or something else ?

[geforce]

yes ts20

[geforce]

yaar answer my all question ,m waiting for it
quick train leaving

[Maggi]

aray bhai that time u were using some local tweeter on ur amp u were suppose to use them from pre now u got ts 20 pioneer ...u are suppose to run them on amp and u r running them from pre gr8 ..

connect them wid ur amp ..or kuch ???

[geforce]

kuch nahi

[Maggi]

^^

acha

[geforce]

yaar waisey maray pass local bhi abhi paray huay hain , inko pre sae join karloun??

[faizy207]

@geforce send me ur contact number i want beam paas enclosure..
