Suzuki Baleno JXR 2005 model rpm drop issues

[tmujtaba78]

Hey... I bought a used Suzuki Baleno 2005 (jxr) model... It is in lush condition with original insides and outsides.... I bought I yesterday ... I got is tuned and everything is upto the point...... But it drops rpm and tends to switch off when taking the sharp turn and also same experience in reverse gear.... The rpms drop and car feels dead.... But on a normal occasion it works perfectly fine no rpm drop whatsoever.....

Kindly tell me the fix.

[anon35615524]

You may also try raising your concern in following thread to get better response:

Tips for Baleno

i have a lot of experience of using and maintaining baleno all types of balenos.its really a marvelous car of suzuki.but little diffferent to maintain from other cars.if u have some problems discuss with me on this forum.B-)

[moneebkhalid1]

ok Buddy, sounds very familiar issue to me. Let me share the solution of it.
Problem I Face
I have Baleno 2001 running on petrol. It works prefectly fine but some time the RPM suddenly dropped and car start vibrating alot on pressing break or taking u turn and then on pickup the car was not performing well even full throttle is pressed.
Things I have tried to resolve the issue but no success

• Throttle body service
• air filter change
• Fuel filter change
• Use high octane (so injectors will be cleaned)
• Computerized checkup
• TP sensor calibration
• Idle control sensor calibration

ACTUAL SOLUTION

Rpm fluctuation when you press brake or turns your car occurs when your battery ground wire is not correctly (connected/carbon in connection) with car body and car engine correctly.

Steps to clean ground wire

• disconnect the battery wires
• disconnect the negative wire from battery as well as disconnect it from body and engine as well.
• clean all the terminals with (regmal) Sandpaper.
• connect all terminals again and Enjoy Baleno drive.

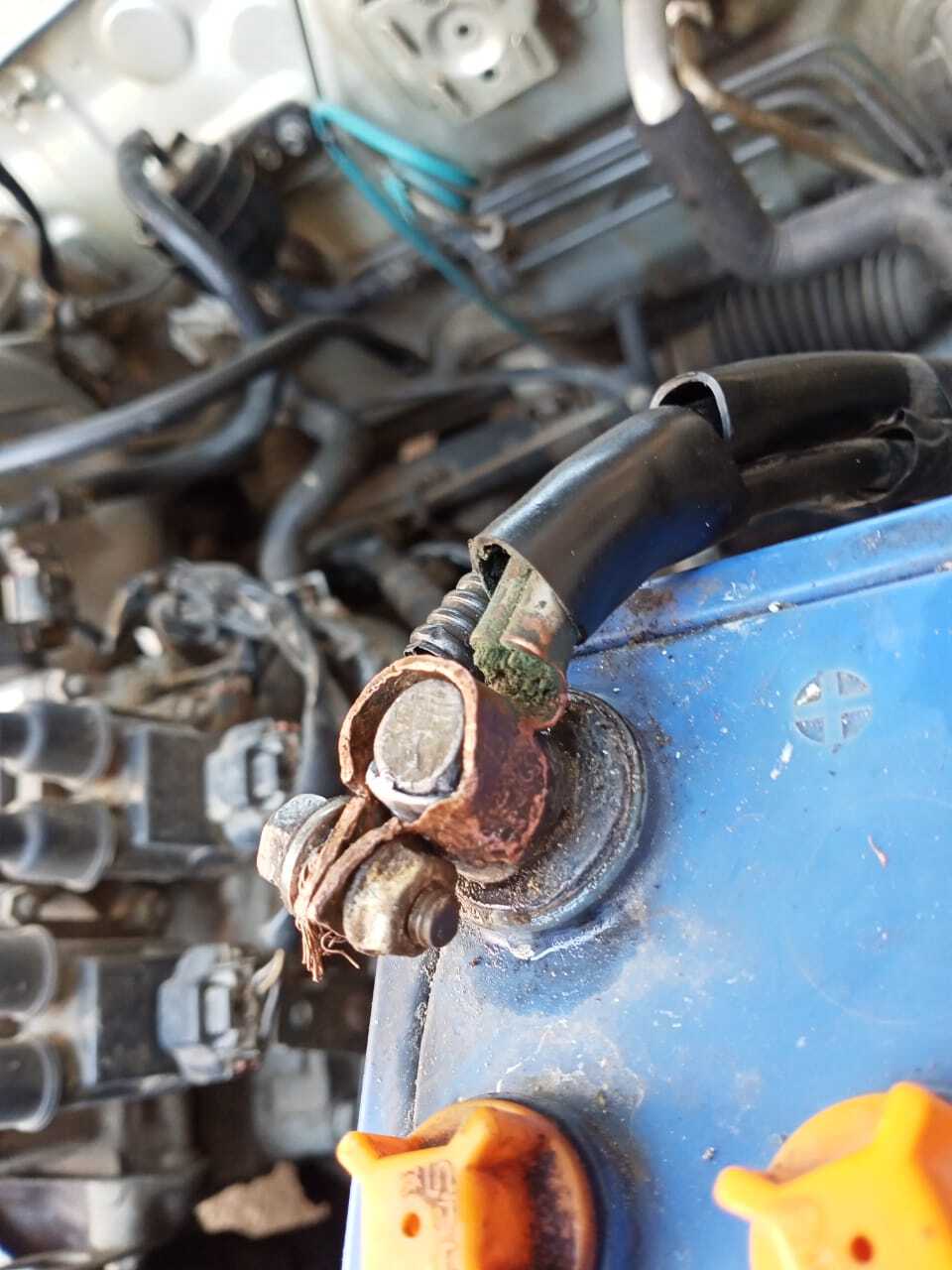

Picture of my car ground wire and my car positive terminal was also damaged

• Place where ground wire connected to body... now cleaned with sandpaper

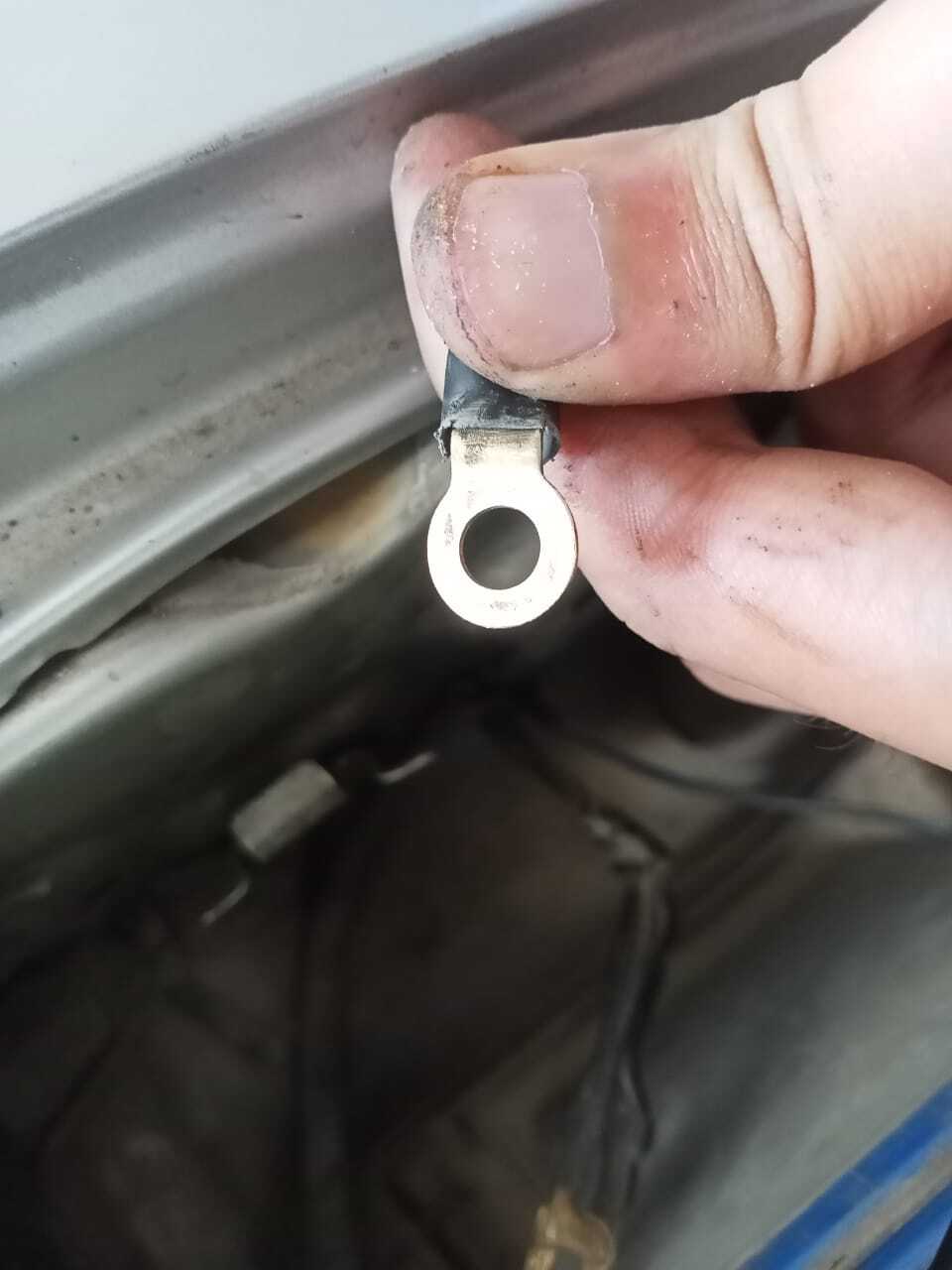

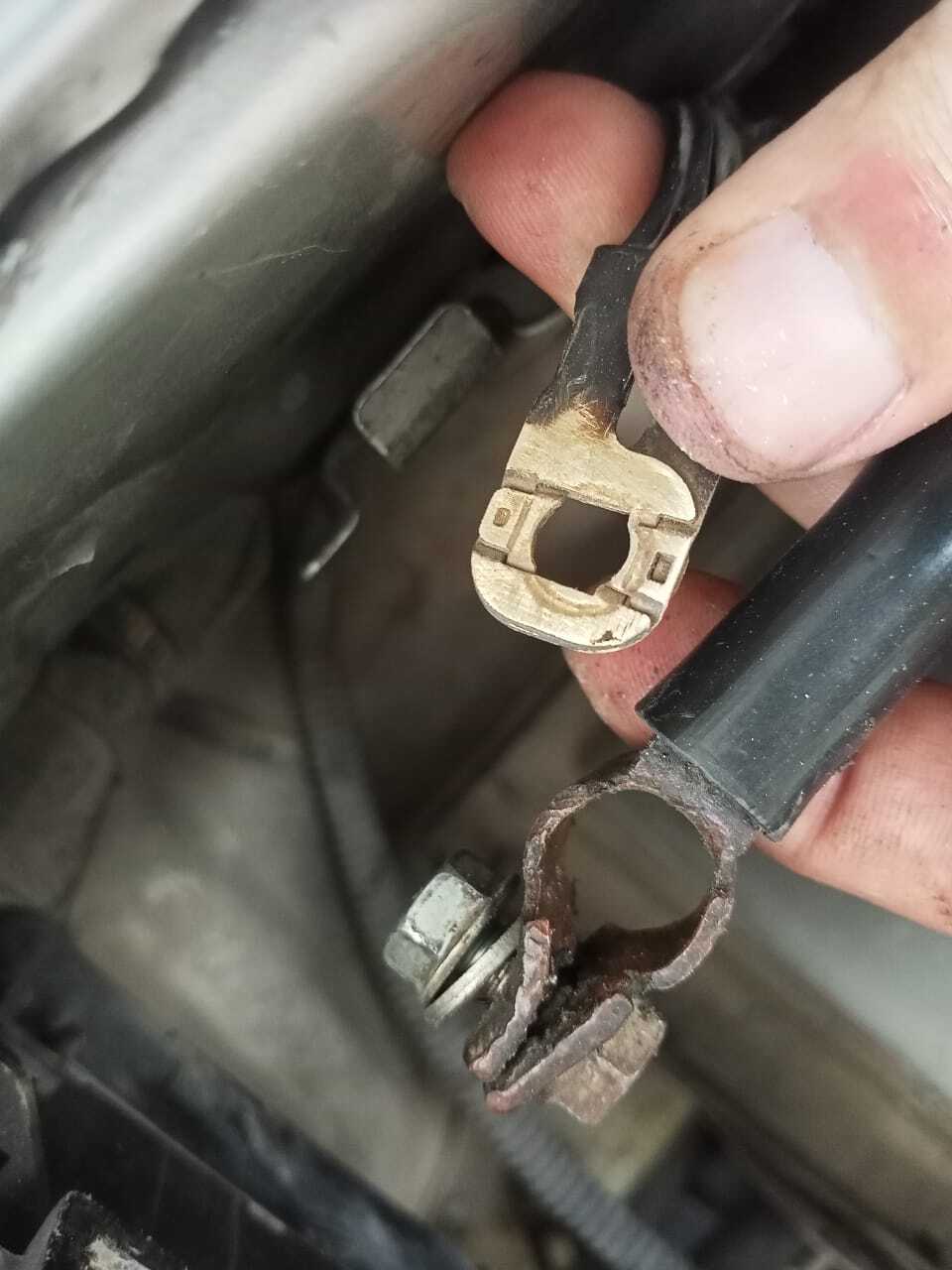

• Wire connector cleaned with sandpaper

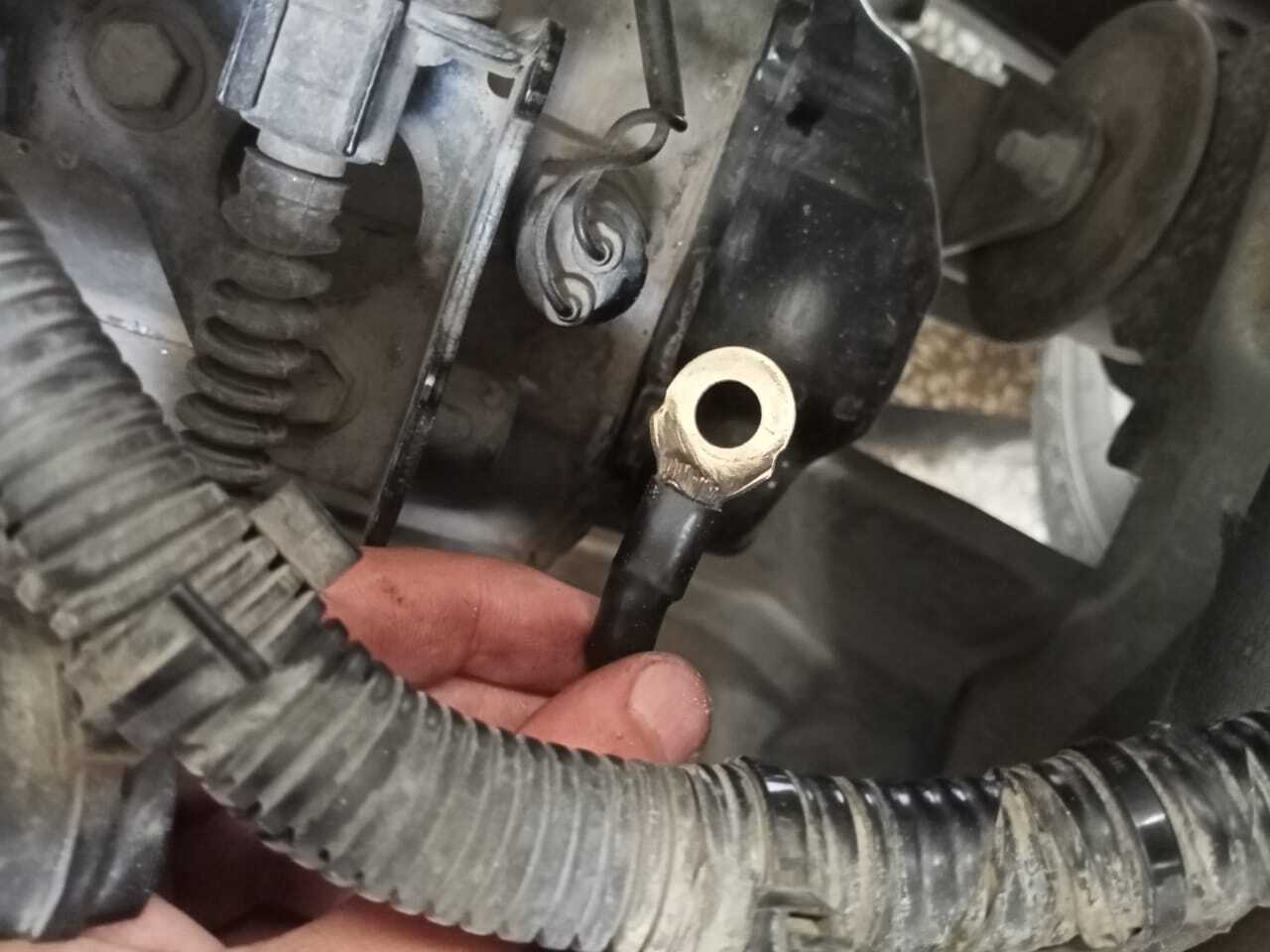

• wire which is attached to engine. cleaned with sandpaper

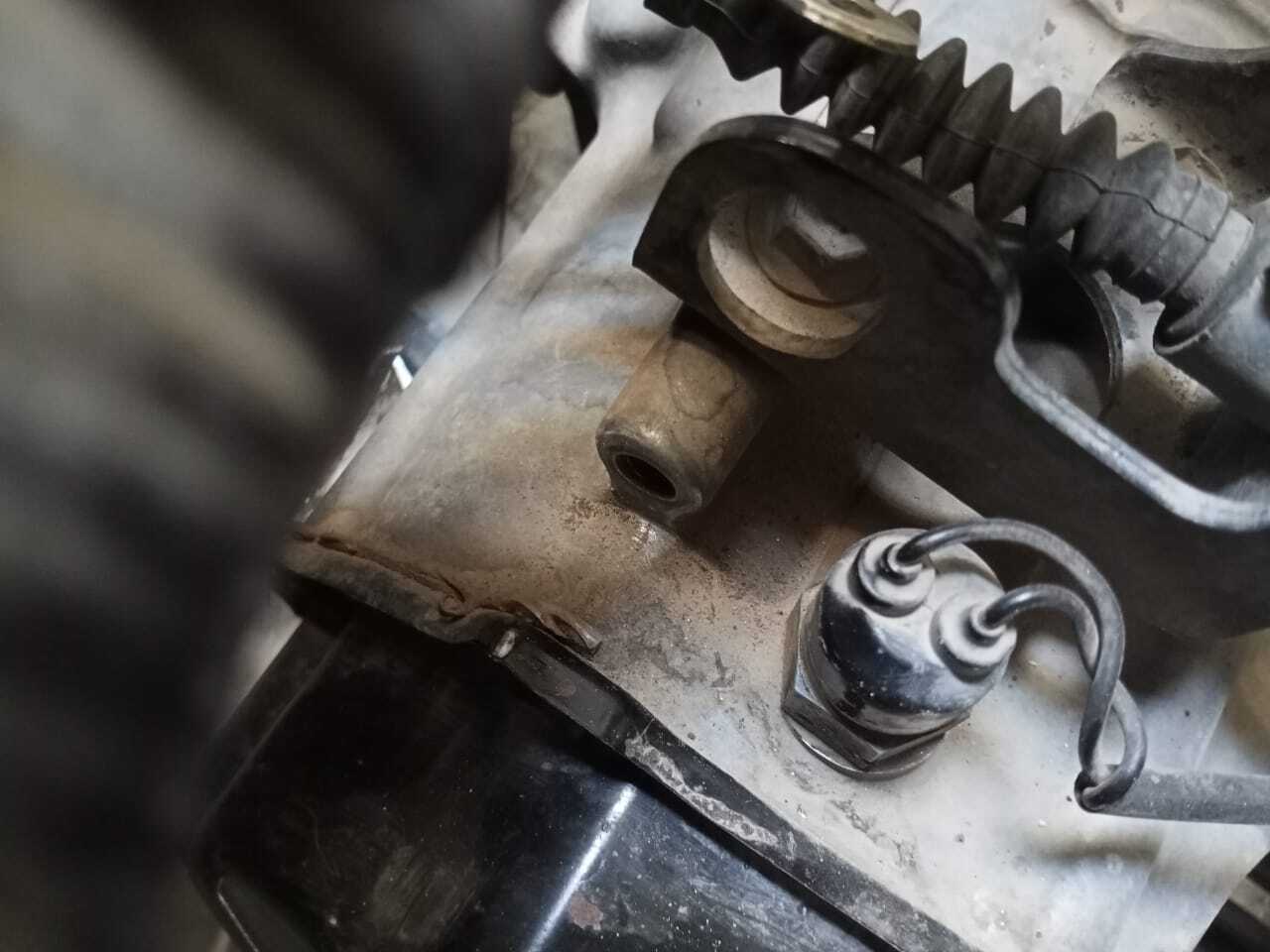

• place where ground wire attached with engine

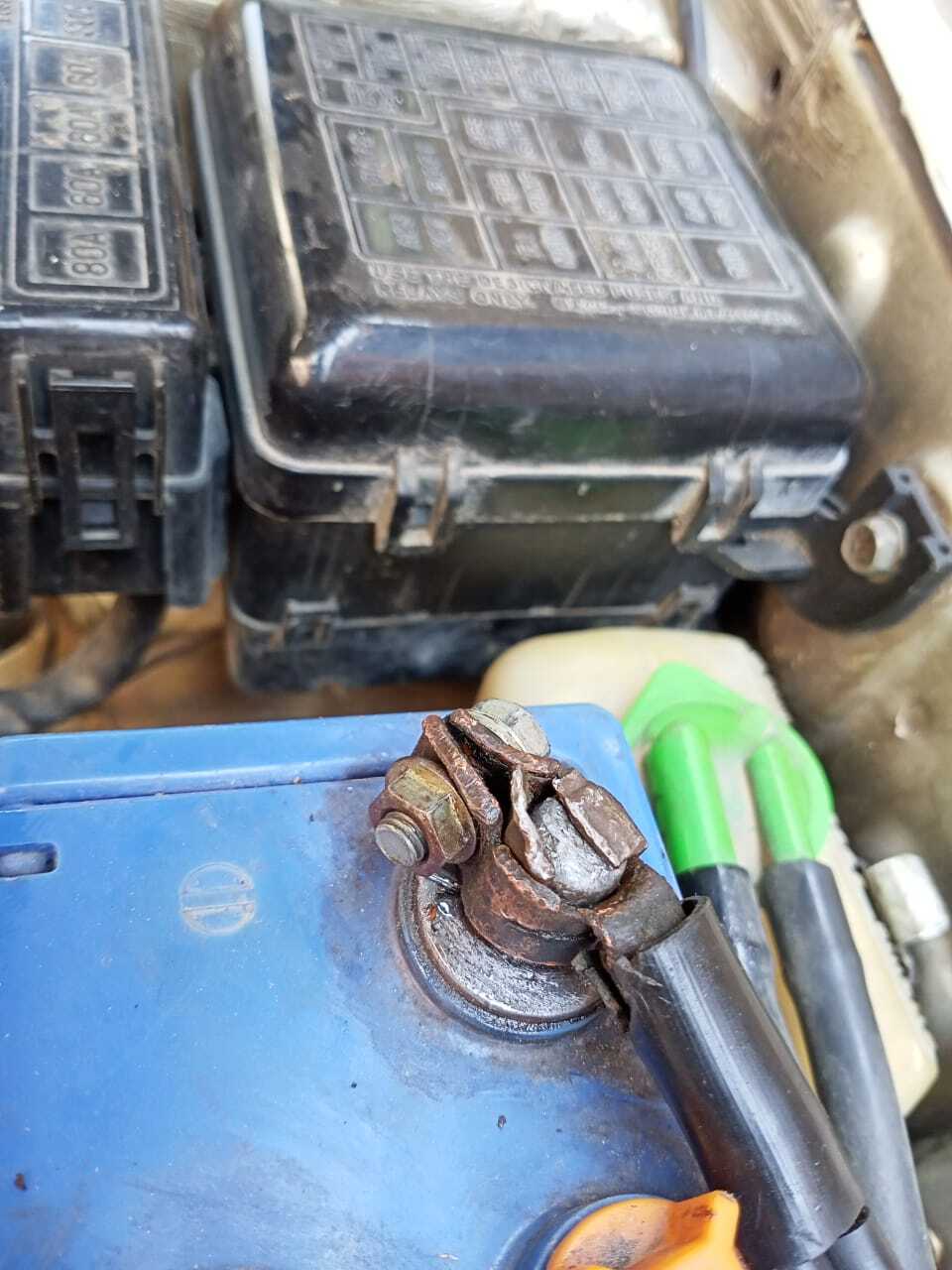

• negative terminal which should be cleaned
