Suzuki FX Mehran F8b Carburetor

Tags: #<Tag:0x0000000a623748>

ahsanonline (ahsanonline) 2014-11-21 17:18:26 +0500 #1

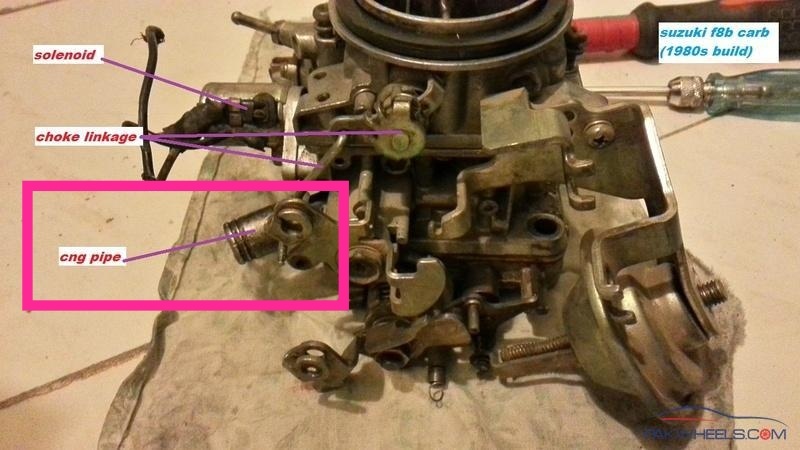

I did a little surgery on the fx carb we just took off. Thought I'd share a few pics and the little knowledge I have in this domain.

Pictures are somewhat labelled. Experienced people are welcome to make additions.

saboor73 (Saaboor A saad) 2015-01-02 10:38:57 +0500 #2

this picture helped me a lot in tunning my car

pwuser152026282928 (Khalid Ahmed Khan) 2018-03-26 12:54:07 +0500 #3

Usefull infoformation..

s15 2018-10-06 14:22:15 +0500 #4

@ahsanonline
@qazi_sajid

CNG connection pipe which is commonly drilled into carburettor. Should it have free play in it?

I tested mine and this metal pipe has 3-4mm free play in all sides.

Google search brought me here and it's indeed very useful info, even after years.

anon71378895 2018-10-06 14:39:00 +0500 #5

This post was flagged by the community and is temporarily hidden.

anon71378895 2018-10-06 14:48:33 +0500 #6

This post was flagged by the community and is temporarily hidden.

hassantahir2 (Hassan Tahir) 2018-10-06 15:14:21 +0500 #7

Qazi bhai i think using Magic Epoxy would be better..
I had my Generators Carburetor drilled for NG connection and the technician installed that pipe with Magic Epoxy and even after 3000 service hour's it's still holding strong.
Although that's not a car's Carburetor but working principal is pretty much same...
@s15

anon71378895 2018-10-06 15:44:24 +0500 #8

This post was flagged by the community and is temporarily hidden.

car.need.care (car.need.care) 2021-12-14 13:53:41 +0500 #9

I am doing full service/cleaning of carburetor, washing everything with carburetor cleaner.

What are these two for?

I pulled out #2, but #1 is not comming out of the hole. I do not try too hard bcz i dont want to damage it. Its not jamed or stuck its actually moving but i cannot hold it. I just spray over it and inside the little hole.

But I want it to get out and then wash it from inside. Is this possible?

@saboor73, @s15, @hassantahir2, @ahsanonline

pwuser154237431018 (ADEEL NASIR) 2023-12-05 18:56:06 +0500 #11

can any one suggested i can install suzuki mehran carburator in suzuki FX or not if not whr i can find a suzuki FX carburetor easly the one of mine is used alot on CNG and i tried my best in Quetta to re tune it but i consume alot fuel even new kit install
