Suzuki Swift Owners Club

[abid110]

the 2 CAMS are run by CHAIN and not BELT. 200% sure. and ac, powersteering etc are run through rubber belts in all cars.there is a difference btween nature of work of each belt

[ab6666]

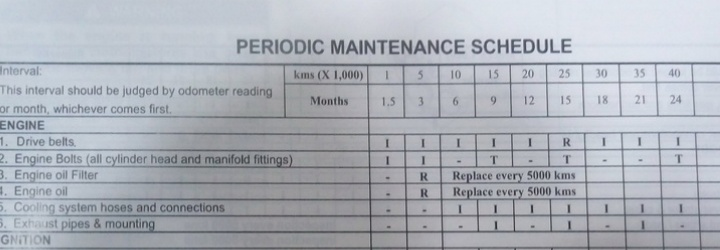

The picture you posted clearly says DRIVE BELT is to be replaced at 90k not the timing chain they both are two different thing..
drive belt is the serpentine belt that drives the accessories like water pump etc

[ab6666]

timing chain does not needs to be changed at all if oil changes are at regular intervals then the timing chain easily lasts the life time of engine.
even the mehran manual says to replace timing belt at 80k.

[speedster_101]

No one on this forum said that the cams are run by belts.
The simple thing which you fail to understand is that the DRIVE belt mentioned in the manual is the rubber belt running alternator and other accessories. That belt is to be changed at 90K.

[aliahmedkhan6]

that image is posted was out of Swift/Liana manual of M13 engine - and it doesnt have belt but Chain - and that 90k is for this chain! and belt have much shorter change interval and it further reduces in our stop and go traffic. i do not do hawai firing until i know what i am saying. do your research on this

You're false.
Bhaio iss ne nahii man'na

[vickytulla]

Hold on guys hold on.. no one is correct no one is wrong... and no one here is to prove he is the medallion of knowledge... this is open thread every one has its own "Veiws" according to there experience with there own rides....

[vickytulla]

sportster, abid, wrangler... I have deleted bunch of chain reaction replies here.. hath hola rakho...

I do believe replacing a Timing belt earlier then its service period is always good.... I faced a broken timing belt like 100kms away from lahore near Okara in middle of the night in my cultus...

Had to tow it to nears settlement with a qinqi rickshaw..

My car was on 78thousand on meter... Tab I thought I should have replced it way earlier... Just My thoughts on this..

[abid110]

same my point which i wanted to state here and ended up attracting 'misunderstood' posts. i myself faced a broken timing belt in the middle of nowhere in darkest hours of night of my Baleno and came up the conclusion that this thing costs peanuts but can actually make your life miserable anytime and all of a sudden. and this broken belt can actually cost you a huge repair amount in case you drive a car with interference engines -

early change is always recommended. peace

[wrangler79]

Hold on guys hold on.. no one is correct no one is wrong... and no one here is to prove he is the medallion of knowledge... this is open thread every one has its own "Veiws" according to there experience with there own rides....

How can you say that?
This is not a poetry club, we are talking about cars. There is right and wrong. You can not install timing chain in place of drive belt.
This is Suzuki Swift owners' club so definitely, the manfacturer's manual hold a position above personal beliefs.
Please mind that this is a public forum and a piece of wrong information can land many in trouble, so if someone has written something wrong, others must correct it with supporting data.
Also you have deleted comments from other members as well which contained useful data.

[mohsan87]

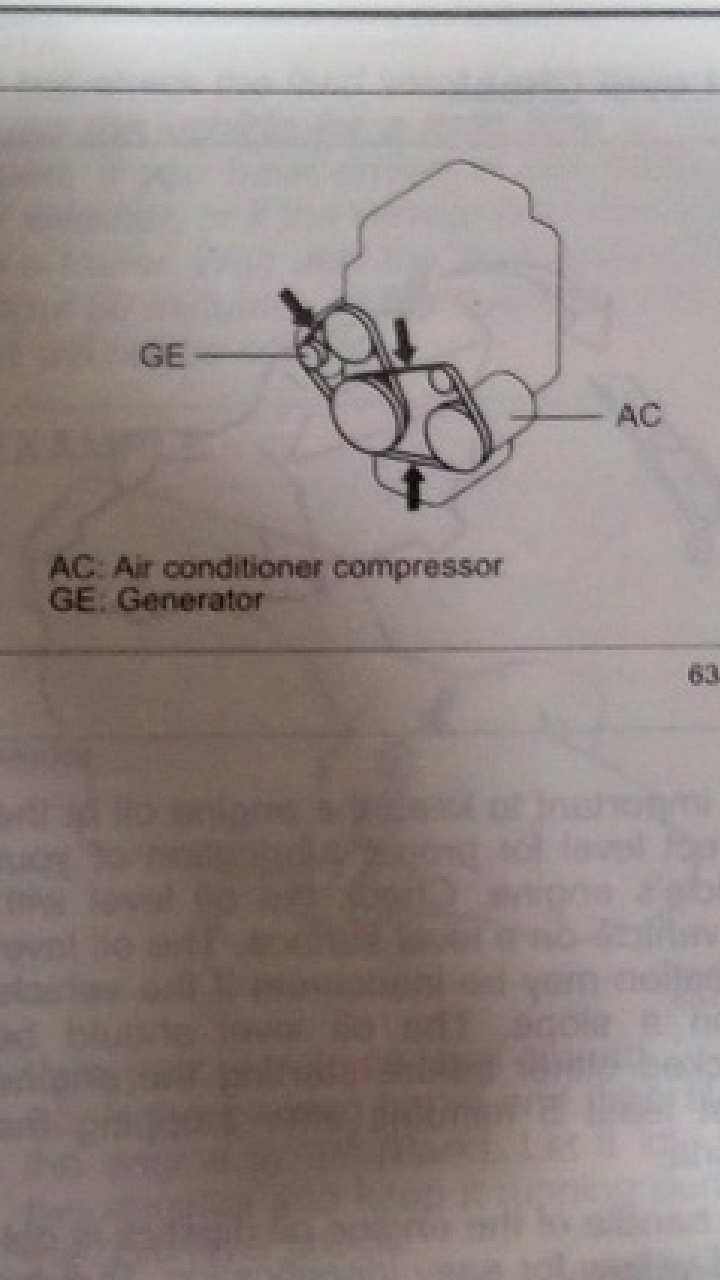

Following is the picture from swift owner's manual.
It says to replace Driver Belt after 25K

[mohsan87]

Please don't spam swift thread.
Go sell in relevant thread.

[carfreak3]

25k is nothing. Is it the question of quality then? Usually the life time of drive belts is 100k.

[fahadzz95]

Hello. Any idea when new model is going to be launched? I heard start of 2018

[Proverbial_Slang]

Apart from all the discussion, "Drive Belts" don't include "Timing Chains or Belts"

[ab6666]

Thats what we all have been trying to tell a single person but he is not willing to accept it .. peace

[vickytulla]

Yes its a public automotive forum, any comment with flaming comments, sarcasm and pun would be handled and may be deleted its strongly advised to every one not only wrangler to try posting material without those ...

wrangler; Thank you for letting us know about chain and belt, your knowledge is helpful, Its my humble advise not to fight and flame each other, you have knowldge of any thing with ref document/manuals please feel free to share, no need to dictate others..they will read your reference and understand them self.

Regards.

How can you say that?This is not a poetry club, we are talking about cars. There is right and wrong. You can not install timing chain in place of drive belt.This is Suzuki Swift owners' club so definitely, the manfacturer's manual hold a position above personal beliefs.Please mind that this is a public forum and a piece of wrong information can land many in trouble, so if someone has written something wrong, others must correct it with supporting data. Also you have deleted comments from other members as well which contained useful data

[Sdogar]

There is no timing belt in swift i think, there is alternator belt and it can be inspected for wear/cracks to see if it needs replacement, i never replaced any sort of belt in my drive of 165000 Kms of swift,

[pwuser151221509438]

Salam everyone

Can someone please share the owners manual for swift 1.3 dlx manual 2012

thanks

[mohsan87]

https://www.dropbox.com/s/688hj3congcct0w/Suzuki%20Swift%20DLX%20Manual%20Low%20Res.pdf?dl=0

[jawadsaeed14]

Any one knows the inside measurement of swift including boot?
