Swaping 1sz-fe assembly with 2sz-fe

Toyota

Vitz/Yaris

asghar1075.dev (devasghar) 2022-11-16 11:33:13 +0500 #21

It needs proper diagnostic.

nasarunexports (M Fahim Shaikh) 2023-01-02 20:37:07 +0500 #22

I just swap 1sz to 2sz engine and used 1sz fe wiring and computer only

suzukialtomehran (Muhammad Zaeem Ashraf) 2023-01-04 16:04:53 +0500 #23

did you change its transmission while swapping? 2sz-fe comes with CVT i think, Can we use 1sz-fe gearbox with 2sz-fe?

asghar1075.dev (devasghar) 2023-01-04 16:30:42 +0500 #24

no need to change transmission, only assembly will be changed and V-Belt. up till now used 5800 KMs alkhmdulilh without any issue.

suzukialtomehran (Muhammad Zaeem Ashraf) 2023-01-04 19:32:40 +0500 #25

ok so i have to buy only Engine Block with Valve head assembly and mate it to existing transmission and i am good to go? do i have to change the ECU or any wiring?

asghar1075.dev (devasghar) 2023-01-05 16:42:09 +0500 #26

Yeh you have only buy the following part and

u can use old transmission, wiring, ecu, air filter box, intake manifold, exhaust manifold, injectors, coils of same 1sz-fe. and if 2sz-fe is from 2005 -2010 model then timing side cover will be changed to accommodate power steering pump.

Hassan1991 (Electrical Engineer ) 2023-01-05 18:12:30 +0500 #27

You expectit to work perfectly after doing as you suggested?

asghar1075.dev (devasghar) 2023-01-05 18:54:43 +0500 #28

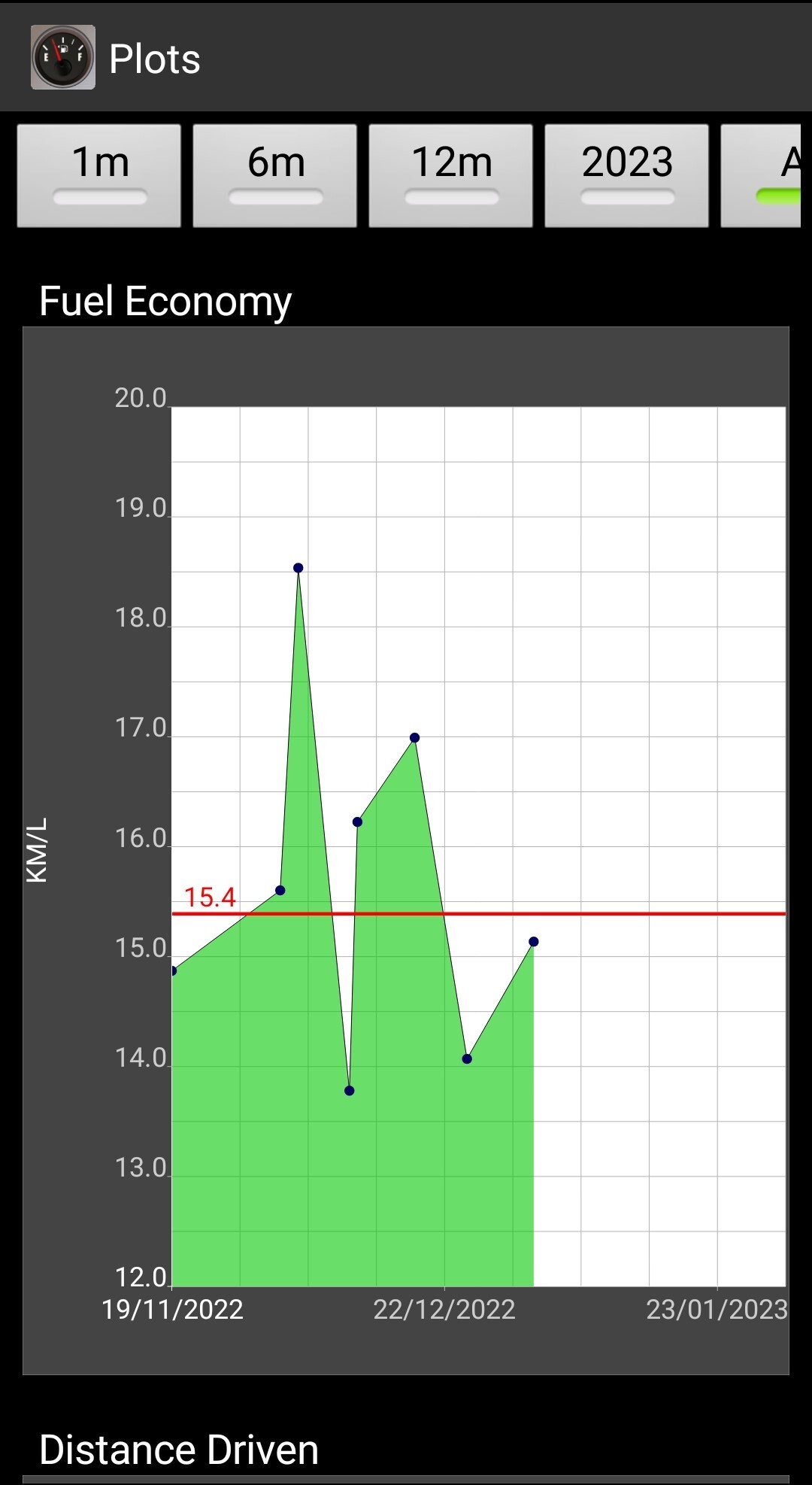

Yes its working fine from last 3 months, During this time I drove it on motorway up to 130 km/h easily, in hilly areas and city drive. following is the overall fuel milage.

Hassan1991 (Electrical Engineer ) 2023-01-05 19:36:57 +0500 #29

What ignition timing 1szfe run at 5k rpm at xx g/s vs 2szfe at 5k?

asghar1075.dev (devasghar) 2023-01-05 19:46:16 +0500 #30

sorry! dont know im not that technical please.

pwuser148051000248 (pwuser148051000248) 2023-01-13 23:50:30 +0500 #31

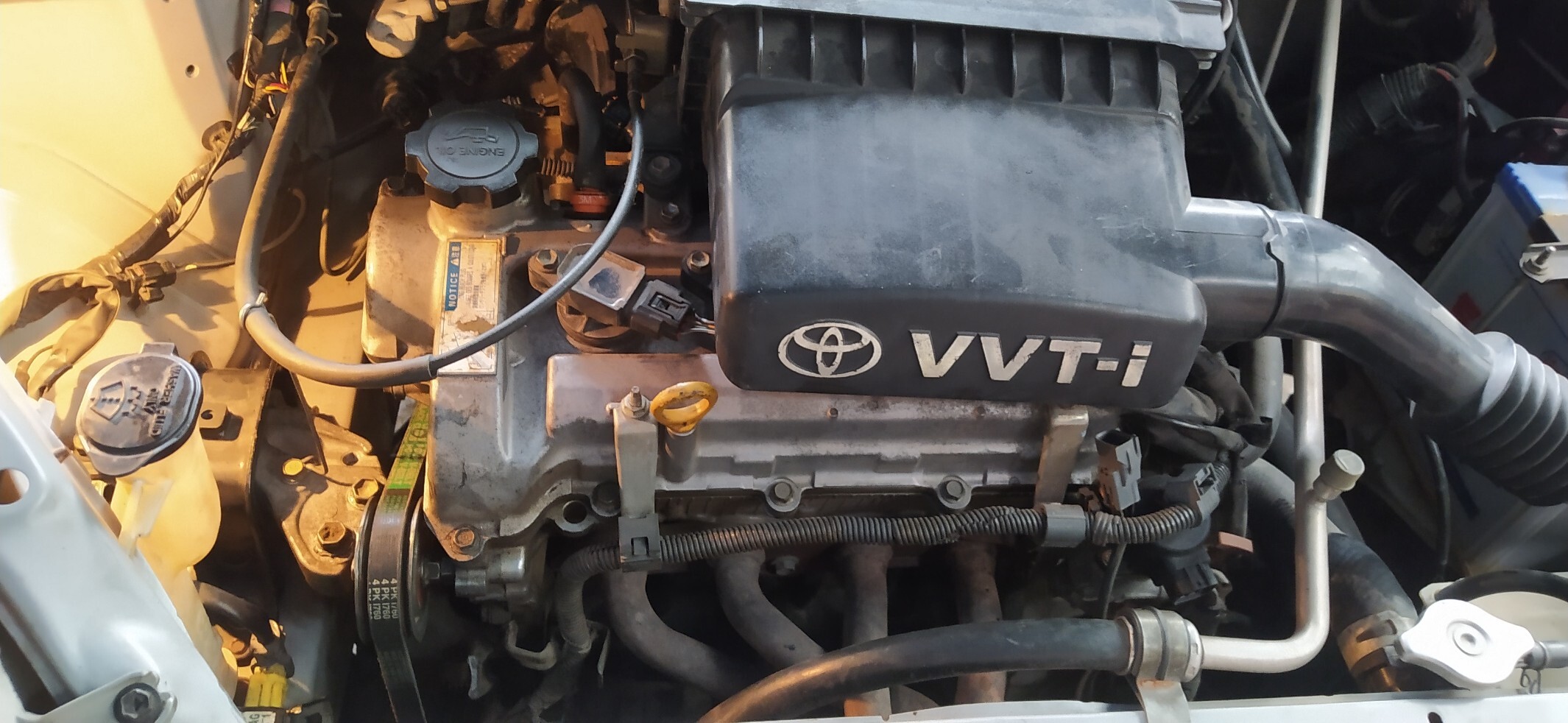

I am using 2szfe in 2001 vitz for last 2 years and totally satisfied. Gear and ecu is of 1szfe as 2szfe is with cvt only. Recently i removed hydraulic steering and added EPS got orignal EPS for this model from Sultan da kho Rawalpindi. Bolt on fitting. Removal of hydraulic pump added a lil more power to engine.

pwuser148051000248 (pwuser148051000248) 2023-01-13 23:52:27 +0500 #32

asghar1075.dev (devasghar) 2023-01-19 14:32:08 +0500 #33

how much it costed you does it needs any alternation in wiring.

asghar1075.dev (devasghar) 2023-05-21 16:46:26 +0500 #34

Mash Allah after almost 6 months of swap and 12K millage its running flawless. Al hamdulillah

saadshaukat (saadshaukat) 2023-06-06 23:57:16 +0500 #35

its Alhamdulillah brother

asghar1075.dev (devasghar) 2023-06-07 09:54:29 +0500 #36

Thank you brother for the correction. Jaza Ka Allah

wills (wills) 2025-04-14 00:56:30 +0500 #37

Aoa. From where did you get the engine swapping done.... The workshop, mechanic contact and from where did you get the engine assembly?
