Tips for Baleno

[bonfire2006]

Both gutkas changed by myself. But the same problem exists.

[pwuser148923659513]

U sure they are properly adjusted and tightened? Sometime a loose nut may cause it? Or may be ur wipers aret of the right size.

[bonfire2006]

I dont know the right size. However wiper blades are 20.5 and 19 inches. Length of wiper arms 21 and 23.5 inches. First figure is for dirving side.

[pwuser148923659513]

brother one that i buy kabli are bit shorter then what u stated up there wipers are driver side just shy or 20 19.5 inches and other side is just shy of 17 inches.
And this is the right size

[moizadil]

Yaar I had exactly the same problem since I got the car 1.5 years ago and parso I found the solution on youtube. Wiper arm ko plas sey panel aur thora sa marooro tou sahi hojaye ga. Thori jaan lagani parray gee lakin. Agar bohat ziada difference hai tou nut khol kay adjust karna parray ga lakin agar ziada nahi hai tou iss method sey hojaye ga

[bonfire2006]

I interchanged the wiper blades with eachother now 19 inch on driving side and install 20.5 inch on the passenger side. Still same problem. What is the stock arms length ?
I have recently purchase baleno 2005 model. This problem was revelead during first rain. Wipers are going beyond their limits from both sides. No loose fitting or adjustment found fruitful. May be arms length is not accurate?

[pwuser148923659513]

Yes the arms and wiper blade installed on ur baleno are outsized. I just measured mines and on d.s almost19.5 and on pasenger side 21.3 inches so its better u reolace yhem with original tgey arent expensive u can get both kabli in 1000 to 1200 rupees.

[bonfire2006]

Thanks for efforts and quick replies.
19.5 and 21.3 inches is length of arms of your baleno?
From where i can get these in Rawalpindi (shop name if exists)?
Kia kisi aur gari ky arm fit ho sakty hain like cultus etc.
Arms and blades saath milty hain ya only arms ?
Baleno kay rubber parts (hoses) kahan sy milti hain.

[moizadil]

Check Gariparts.com, I haven't used them personally but will order in the next week or so

[pwuser148923659513]

Brother i orderd them from shoba pishawar and soon we will be opening in islambad spare parts store kabli. Pindi ma u can get from any pathan old parts dealer. And they provide japaneese ruber parts aswell ... if u can name wat u need i will ask my guy to ship it to you.

[Harrisazam]

Where can I get the bumper fog lamps and any idea about the price?

[Harrisazam]

I tried to get the radiator fan automatic as it is direct and first the mechanic said it was the radiator switch and then He said it was related to the ECU.
Now Javed (Tipu road rwp) gave me a estimate of around 18-20k for genuine fan wiring, tuning etc etc.
Any suggestions if it really is the Ecu or just the radiator switch?
I'm very confused.

[bonfire2006]

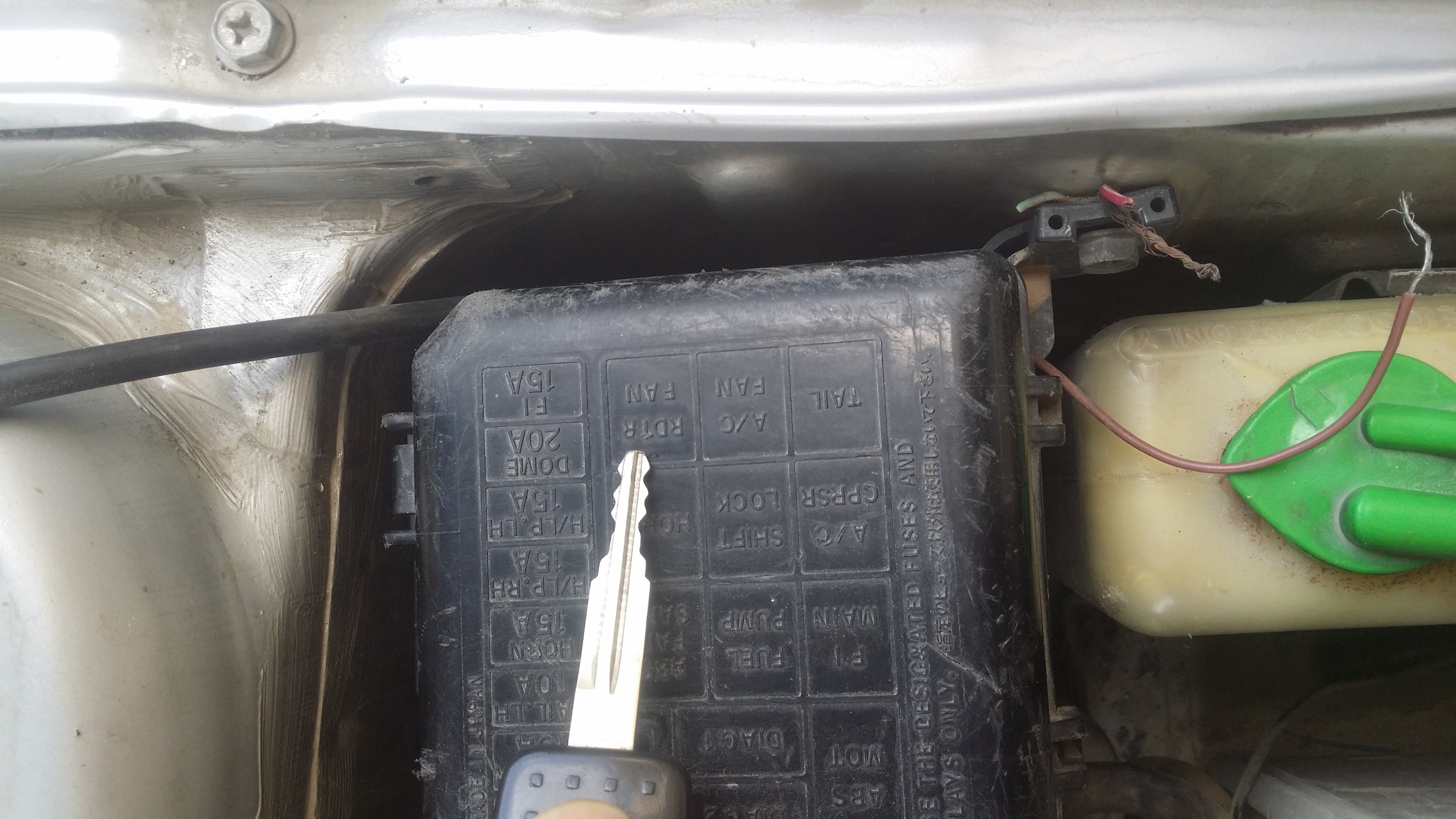

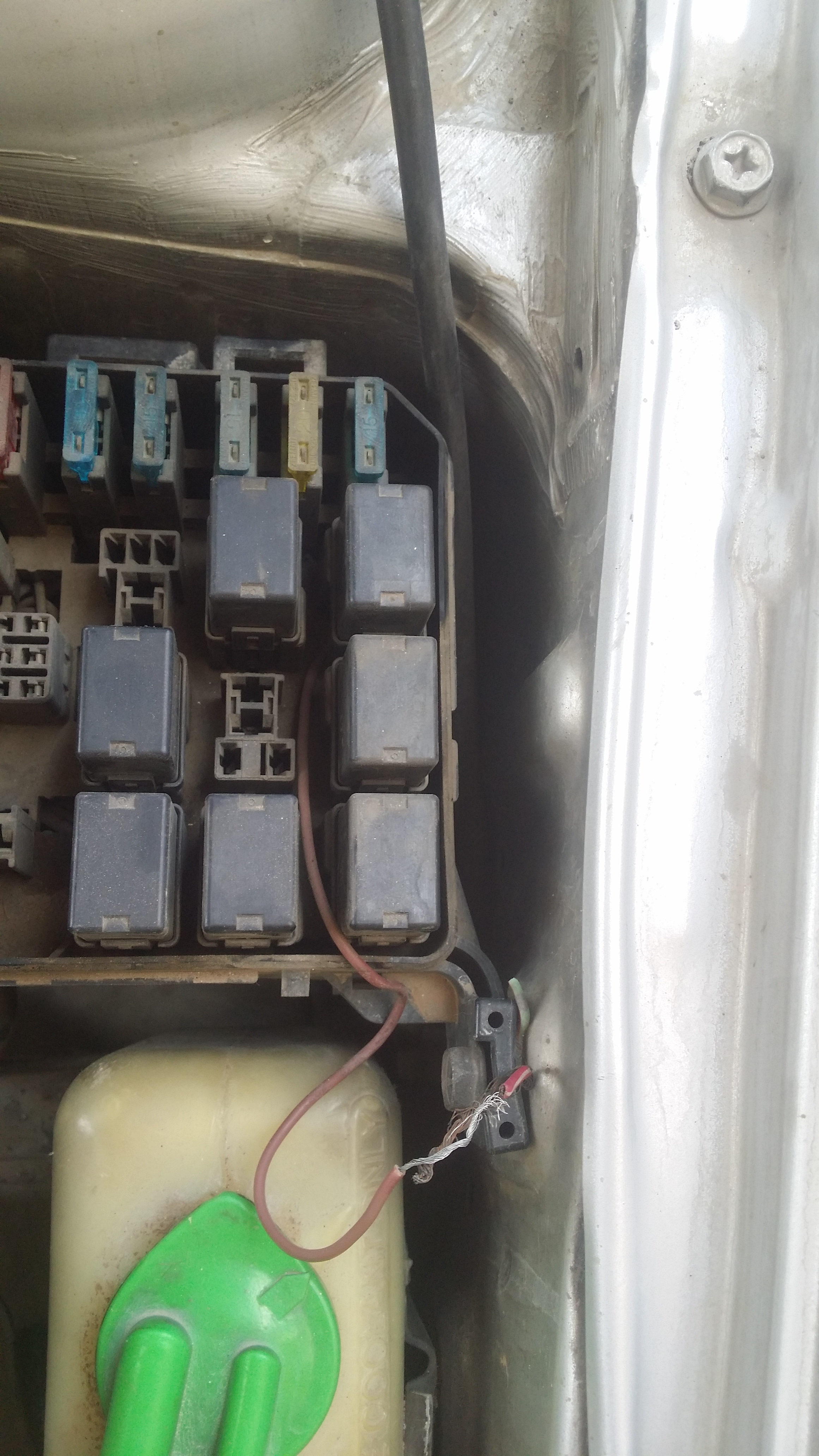

Yes there a Temperature switch and located at the upper raditor hose joint on the engine side. It sends the signal to the ECU, then ECU switch on the raditor fan through a RELAY, located in the fuse box. Normaly mechanic take one wire fron car body (-ve) to the switch on the relay all time, which makes the radiator fan direct. You can easly found the mark of raditor fan on the fuse box and a wandring wire connected to the ground. Disconnect it from ground(car body)

. Now It should only be on when temperature guage is in center.

[Harrisazam]

Thank you brother.
Nice of you.
Any idea from where can I get the fog lamps for my 04 Baleno?

[pwuser148923659513]

Square fog lamo chinese wil cost you 1000 rupees and availble on every shop i suppose and for oem ones u have look from old halfcut dealers it will cost u arroubd 3500 4000 ihata mitho khan saddar and chah e sultan

[ahmed_pak]

https://www.pakwheels.com/forums/t/is-there-any-2004-baleno-kabli-parts-available-in-karachi/571177

[moizadil]

Any idea how much does the genuine air and oil filter cost for baleno?

[Ch.majid]

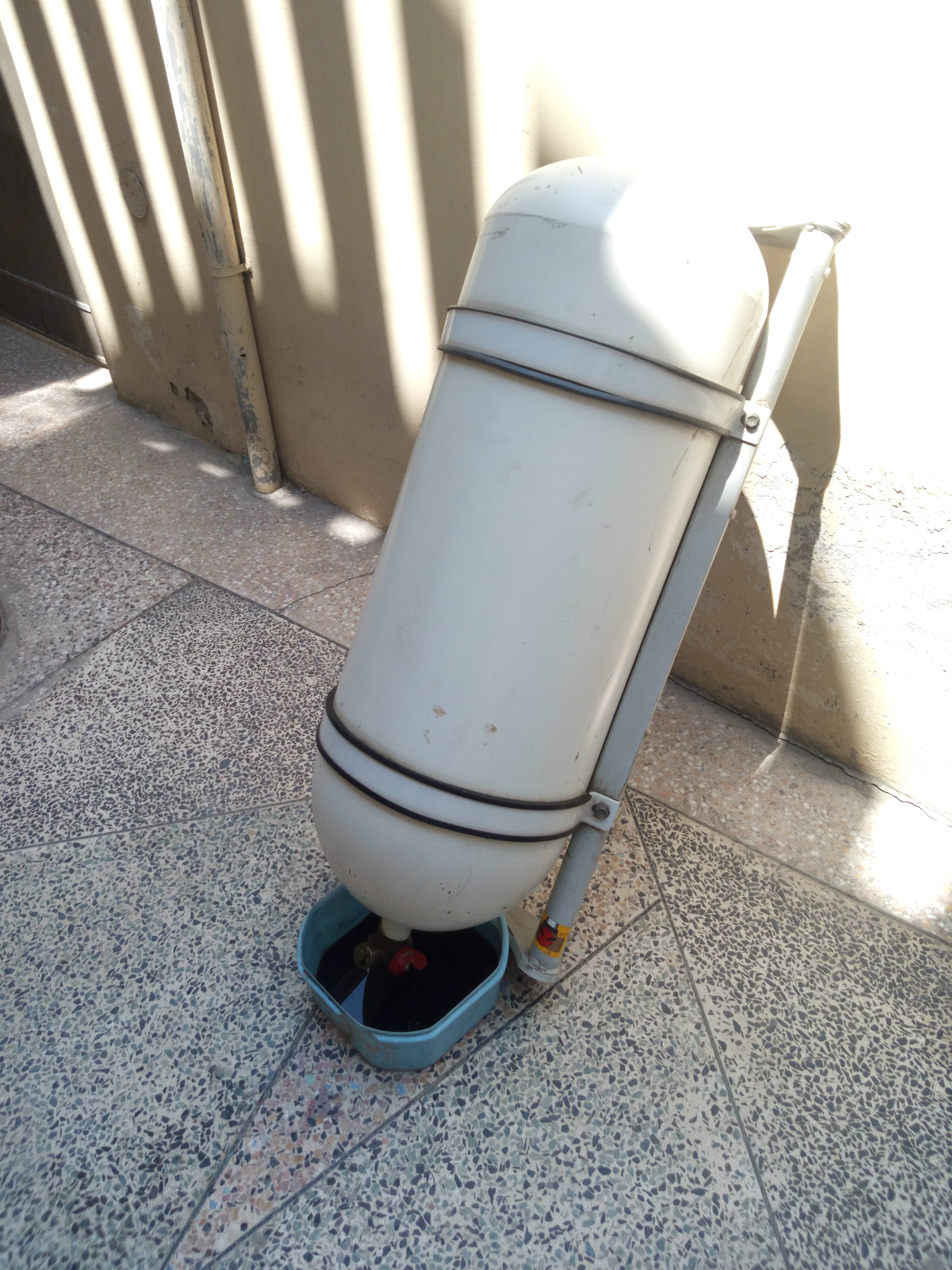

Aaj hum ny bhee ye nek kaam Kar Diya, baleno cng cylinder k chungal se Azad ho gai

[Haider_Akbari]

Haha Mubarak ho bro ab apki gaari se ek banday ka wazan kam hogya

[moizadil]

Kamar toot gaye hai cylinder nikalta huay. Felt like 100 kgs. Car handling pey kitna faraq parra hai? I haven't had the chance to drive the car, seedha ghar aya cylinder utar kay
