Toyota Corolla 1986 (e80) Owners' & Fans' Club

[pwuser149164361145]

i dont have camera etc. using simple phone. i will arrange cam then will post the pics of engine bay and engine. just i know that it is 16 valve engine. the head cover is in silver color and marked with Toyota

[Hassan1991]

Don't mention bhai.
Bhai it's 1.3,1.5,1.6 or 1.8?? If 1.3 then it's 4efe,5efe,4afe or 7afe respectively.
Muja jitna pta hai obd connect ho jata hai still did you have smoke or oil reduction issue?

[hassantahir2]

It took hole day just to fit single parking light and still it's not perfect

Looks like the denter was unprofessional.!
Or it was due to some other problem?

[Hassan1991]

Bhai muja nae samaj aa rahi ma uski izat ma kea ilfaz istemal karon he is professional but the problem is he's "denter"
If she's not paint it's nothing for me to bring things back to shape...now I have to work with extreme care.
Actually both headlights goes away from the parking lights making a hollow space in between.

[hassantahir2]

Well yup before paint you could have done some jugaar easily but with paint it's a bit difficult.
Aur denters ki to kyaa hi baat ha jo zara professional ho jatay hain wo dusray ko bnda hi nahi samajhtay.

[Hassan1991]

Han gii .
Bilkul sae he's took me as a kid...hahaha he said that I can't even fit outer doors handle zeyada hi kuch easy la gya tha.

[pwuser149164361145]

assalam! its 1.3 , what term is used for OBD in mechanics language so that i may ask for it. yup mobil oil decreases. it consume 1 litre mobil oil for 1000 km, i have to do ring piece service. but for that i have to do savings

[pwuser149164361145]

from where i can find out about the generation of engine?

[Hassan1991]

Bhai aadat dal lo savings ki you don't know what you bought.
1.3 means you car have 4efe. 4efe had 3 generations each with slight changes eg. hp rating and throttle body.
Bhai if oil is decreasing then mechanic is right engine needs rings and valves seals replaced.
@rockstar.mij bhai recently done such job with his 4efe he can guide you about cost.
Bhai ask him to wire up obd2 with engine. (not sure it's 1 or 2 shyid obd2 hi lagti hai) still you didn't need right know as its valves and rings fault.

[pwuser149164361145]

copied from wikipedia, mine car's engine has also such shape, The second generation had a higher profile cam design in the head, a cam cover with ribs throughout its length, and fuel injectors in the intake manifold runners.

[pwuser149164361145]

[pwuser149164361145]

[pwuser149164361145]

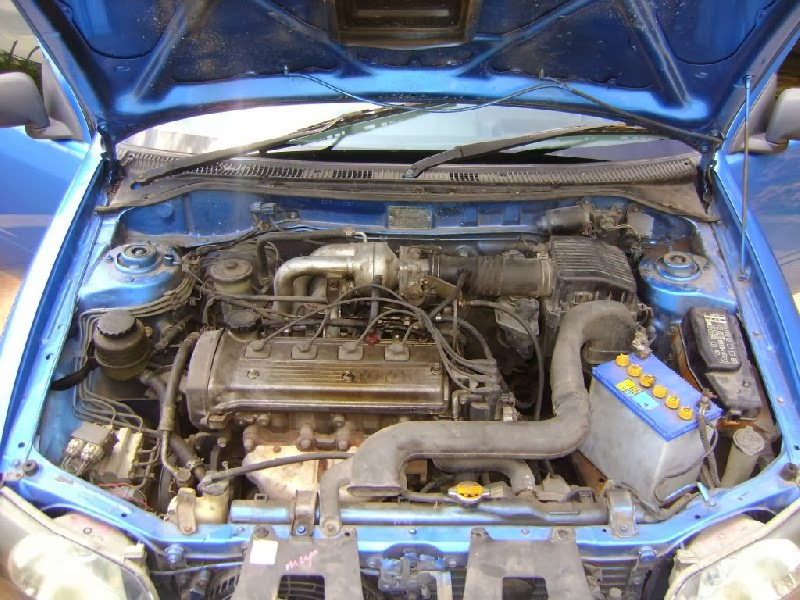

blue color car engine bay is matching mine car's engine bay, the shape of engine's top and round shape air intake is there in my car

[Hassan1991]

1st is 3rd gen
Means your car has 2nd gen 4efe rated about ~70 hp

[pwuser149164361145]

another important issue! there is 4 forward gears in the car, there is no TOP gear or 5th gear, mechanic said you have to replace the gear box, any suggestions regarding another gear box, type? quality? price? model? if i want to put automatic?

[Hassan1991]

It's may be c40 transmission you can swap c50 transmission which is 5 forward also can swap auto transmission that came in ae101 not sure about auto but it should fit.

[pwuser149164361145]

while talking about the interior, there are two buttons near with the AC vents for the driver, what are they for? one button is at left of the speedmeter and other at the right.
there is also a green button labelled as "eco" what is it for?
there is a engine warning symbol in the speed meter area, how can it be activated?
the wiper works only at one speed position, i checked the wiper machine under the hood, i found that both the "gucha" are different so only one wire is connected mannually, any solution?
can the back defroster be recovered?

[Hassan1991]

One of the button on meter is for defogger.
For wiper there are three wires that are connected to motor with the socket
Eco? There's no economical button in 86 someone had installed that button for something else.
Bhai you have to choice either to buy new wiring or to make a custom one like I did.Bhai isi wiring ki repairing pe jao ga to apko jugar lagana para ga.
For warning light you have to take that wire from engines ecu and connect it with the meter.

[pwuser149164361145]

Can you upload the pics of your car's engine bay from different angles please!
and also pics of whole dashboard from different angles!

[Hassan1991]

Sure bhai no problem. But remember it's not even close to original
