Toyota corolla ee90 2e engine swap to 4age blacktop

[pwuser155914476827]

hello guys.
i have swap my 2e engine to 4age.
all mechanics work is done.
the only issue is the wiring.
im looking for the 4age wiring diagram, which is very difficult to find on the net.
can some1 help ?

[Hassan1991]

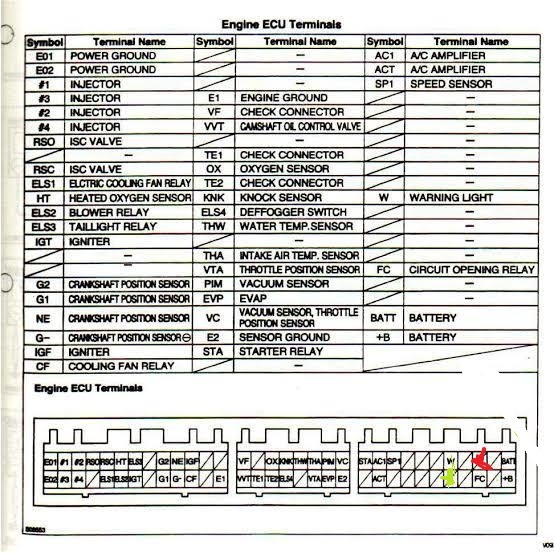

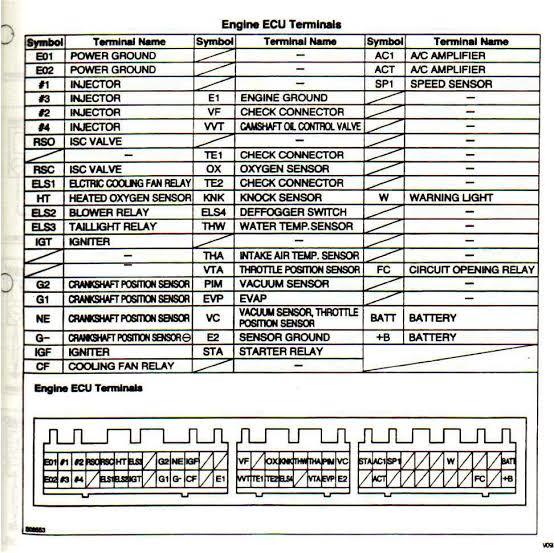

open the ecu, all pins were use to be labelled.
Blacktop wiring is available on internet. Search for 4age blacktop ecu pinouts.

[pwuser155914476827]

thanks for replying bro.

Open the ecu ? O.o
i got some pinouts. but while im comparing to mine, its not same.
only the 22 pins connector is not the same and its not well labeled.
(for example: on net im having 8 wire but mine it has 10 wire and when comparing to mine some wire colors is not same.

hey btw bro do u have pinouts for toyota corolla ee90 >?? i meant the dash pinout ?

[Hassan1991]

here

no don't car wiring diagram.

[pwuser155914476827]

[Hassan1991]

no use of them that's why not labelled.
these engines are very very easy to wire up.

[pwuser155914476827]

yeah i think so.

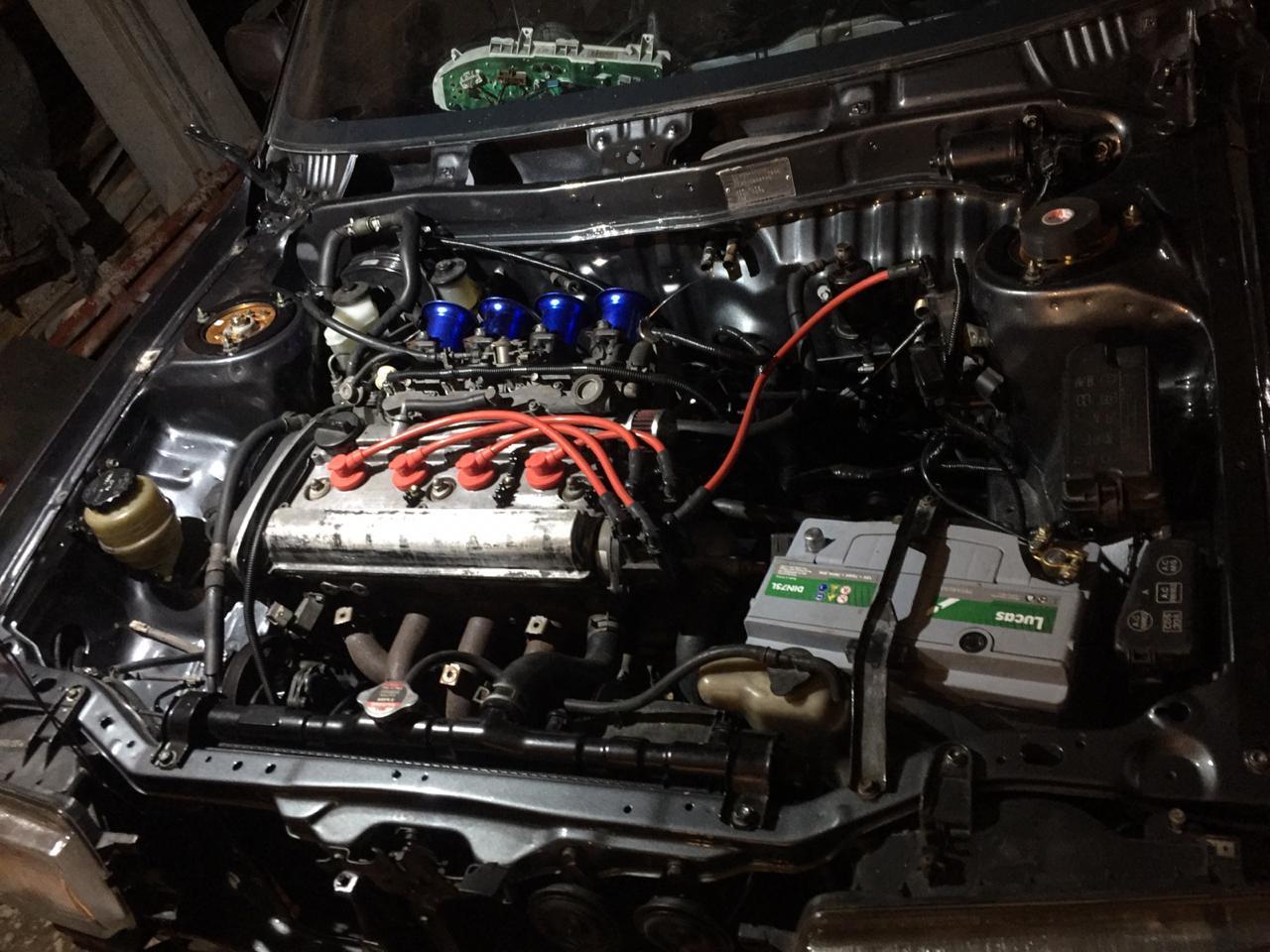

ive been able to put the engine on _
lol. i want to upload the video but its too large.
hey bro i need some information.
can you help me?. as i told you that i had a 2e carburetor engine
now i have some wire to connect and i dont know their location
1) speed signal from ee90 dash. ( from ecu its purple/wht)
2)tachometer wire.

i need the wire's color and their location ?

[Hassan1991]

connect it with the cluster.
single wire for speed and single for rpm signal.
and do connect the check light.

[pwuser155914476827]

do you know the color of the cluster wire ?
i need to know where do the wires situate on the ee90.

yup i connect the check light to the choke

i would post the pictures. buts its too heavy.

[Hassan1991]

rpm wire is green i think.
don't know about speed signal wire.
there is a connector behind the cluster in wiring. these wires goes in them.
you can trace it from cluster.
wait does it had rpm cluster originally? if not then you have to add a wire like i said.

[Hassan1991]

you can share the pictures even if they are heavy.

[dani_kk]

Purple white hi hoti hai in Toyota

[Hassan1991]

vo ecu ki side sy. original carby tha isma change honi hai.

[pwuser155914476827]

hey bros.
i finally put the engine on. thanks for your helps. and soon i will post the work and connections i've made.
btw for the speed signal i used the 2e cable that is mechanical sensor and the great thing that happened is that the ECU didn't gave any fault. the VVT all were great.
thanks once again

[Hassan1991]

ecu still needs VSS signal.
which cluster do you have? in these cars speedometer came for clusters. then cluster provides vss signal to ecu.

[adeshchummun65]

Yes bro..
The ecu still needs the vehicule speed sensor signal..
And im still not been able to find the signal...

Originally the 2e engine have mechanic speed sensor.. and so do my speed cluster...
So accord to some research i found that even we use a mechanical speed sensor connected to the speed clusters, there is a wire which send the speed signal to the ecu...
Im not able to find the wire...

According to some people in the long cluster gt one.. the wire is a purple and white wire..
But in the standard cluster there is not purple/white wire....

Anybody can help please ???

[adeshchummun65]

[adeshchummun65]

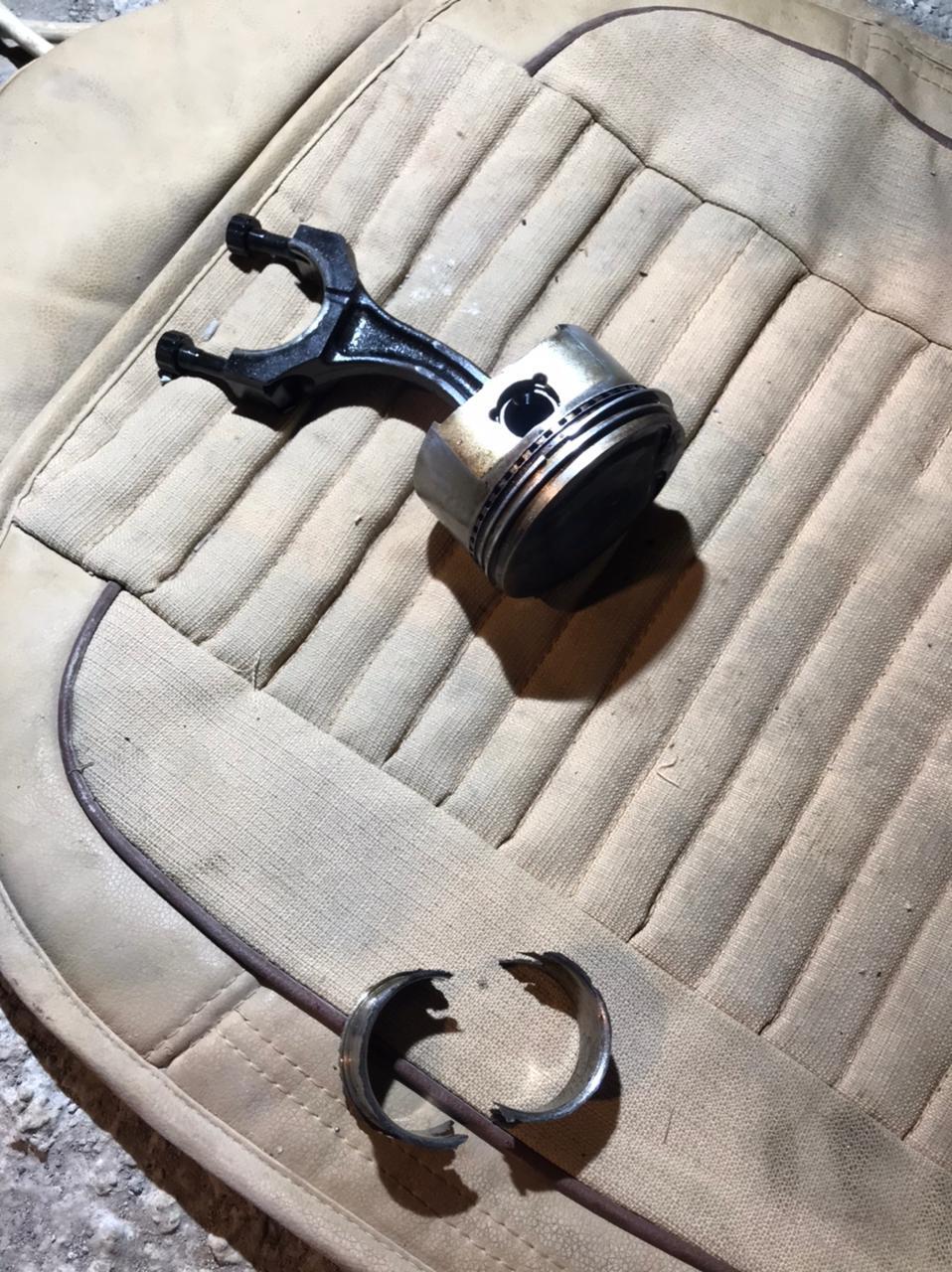

After 8 month of building see what happened to my con rod....
Then i've done another modification... and its a 7age 20v blackt0p... soon going to upload some videos when im really finish

[Hassan1991]

That wire will be only in efi variants not in all variants as cluster got a component to produce pulse.

[Hassan1991]

7age is a very nice setup. You can make 200+ horses.
