Undeadking0001 (Ameer Shah) 2021-06-28 21:21:11 +0500 #2916

Yes sorry i rechecked my average figures on my set up atm it is a solid 10 kmpl

chinyoti (Murtaza Shahid) 2021-06-28 22:21:16 +0500 #2917

chinyoti (Murtaza Shahid) 2021-06-28 22:22:29 +0500 #2918

Nops.

Only duplicates can be issued. For fresh look either copies can be made or repaint is the only solution.

hasankhurshid29 (Hasan Khurshid) 2021-06-28 22:30:11 +0500 #2919

Yours missing too
Means pkdm don't have these relays and fuses here.

hasankhurshid29 (Hasan Khurshid) 2021-06-28 22:31:08 +0500 #2920

What model year and variant it is?

Undeadking0001 (Ameer Shah) 2021-06-28 22:58:07 +0500 #2921

Guys my 1zz runs on the original 3zz ecu atm with some wire voodoo done. I wanna know how much is a 1zz ecu plus is it just a sinple ecu swap with some wire connector swaps or is the rabbit hole deeper

hasankhurshid29 (Hasan Khurshid) 2021-06-29 01:19:24 +0500 #2922

I think japanese 1zz has different connectors because I have seen 1zz pinouts which are totally different than our 3zz. They are close to there counter part 1nz in Japan. Even the connector on 1nz corolla and 1zz corolla of those years are same

hasankhurshid29 (Hasan Khurshid) 2021-06-29 01:24:42 +0500 #2923

Next Question:
Do you know where headlights fuses and relays are present in PKDM models?

Please also post your model year/variant

chinyoti (Murtaza Shahid) 2021-06-29 01:42:09 +0500 #2924

Mines 2006
1800cc ALTIS AT
Model as on chasis plate (ZZE122R-GEPNKP)

Fuses should be behind the passenger side dashboard.

Their are some fuses behind the ash tray in 10th Generation (2008-2014) Corolla aswell. Not sure about this model.

hasankhurshid29 (Hasan Khurshid) 2021-06-29 01:56:34 +0500 #2925

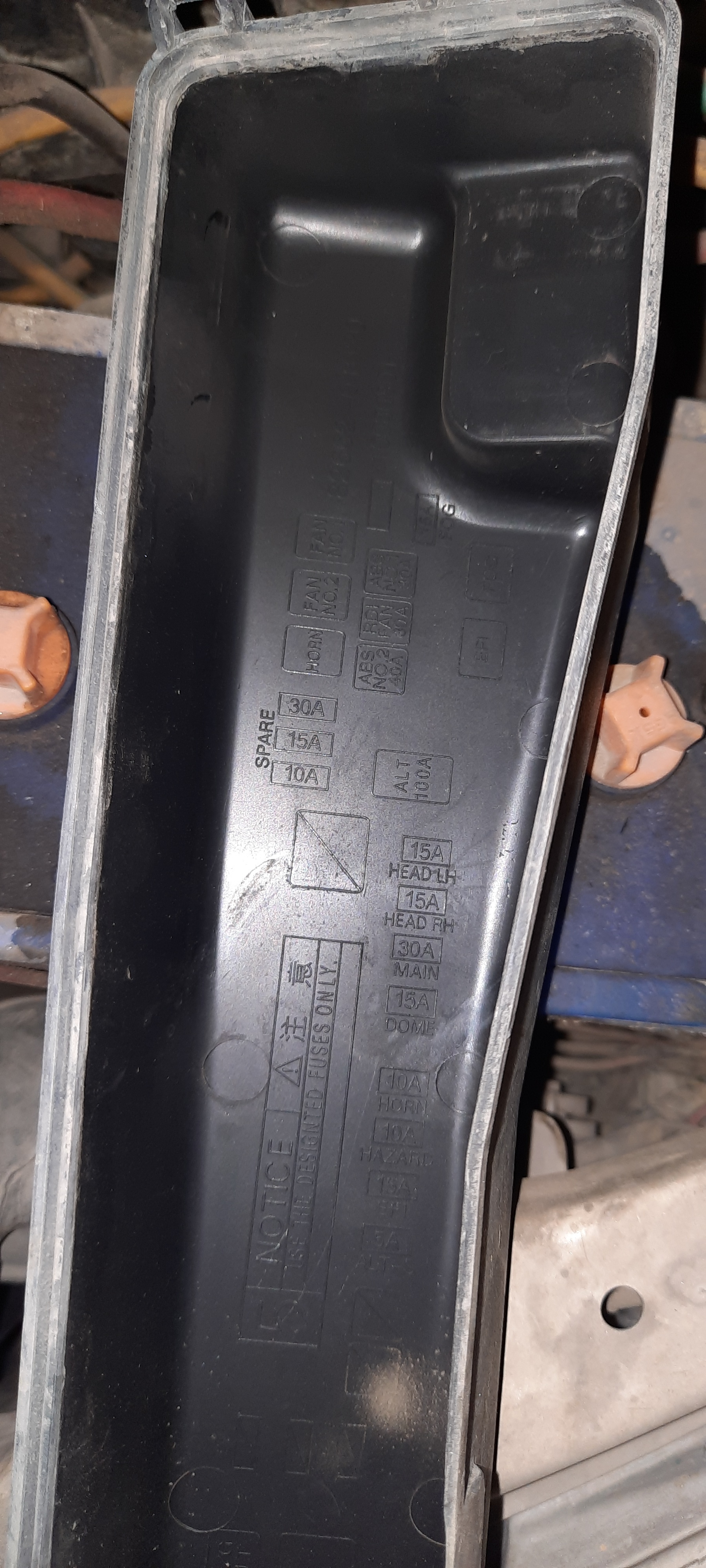

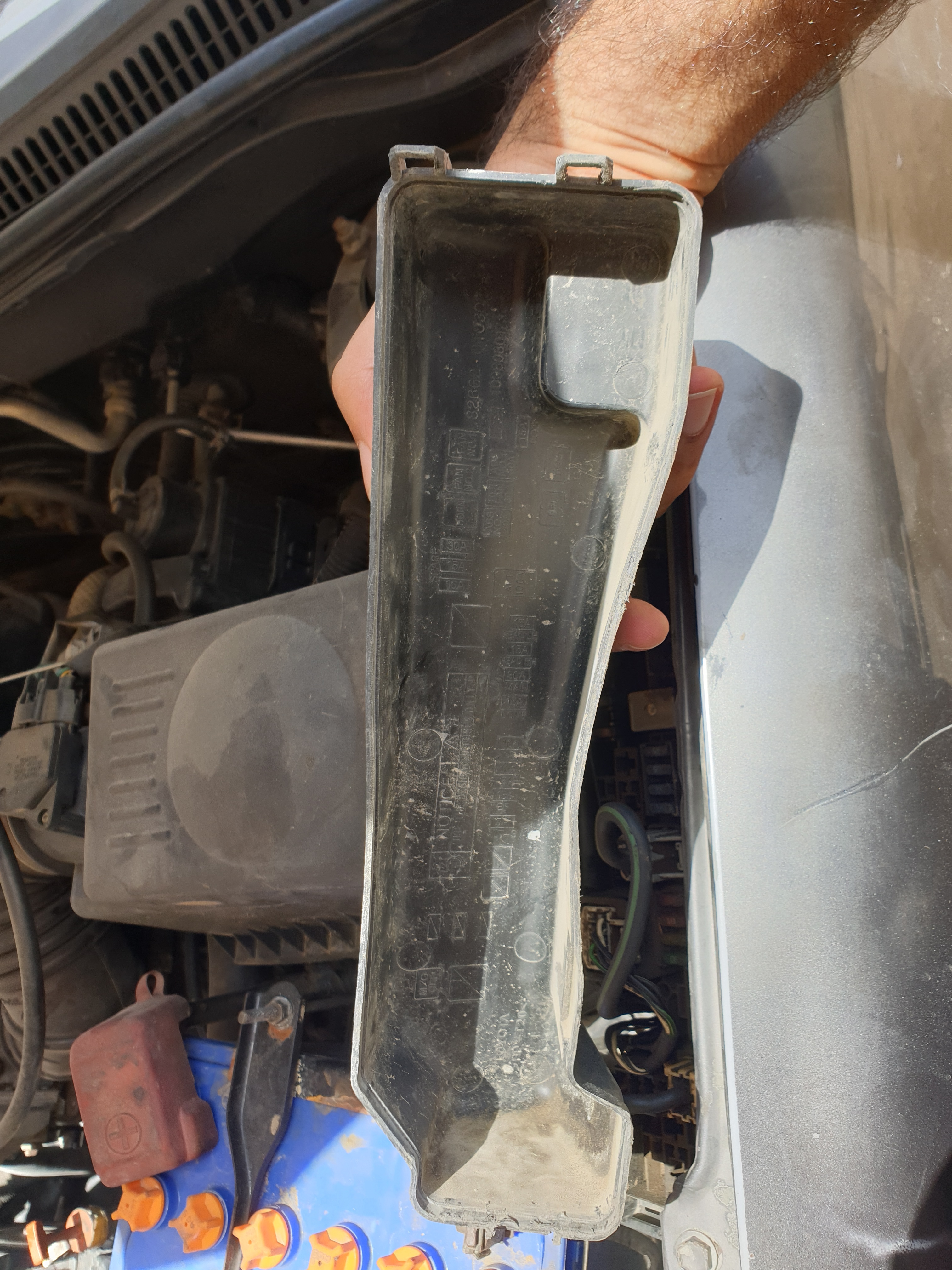

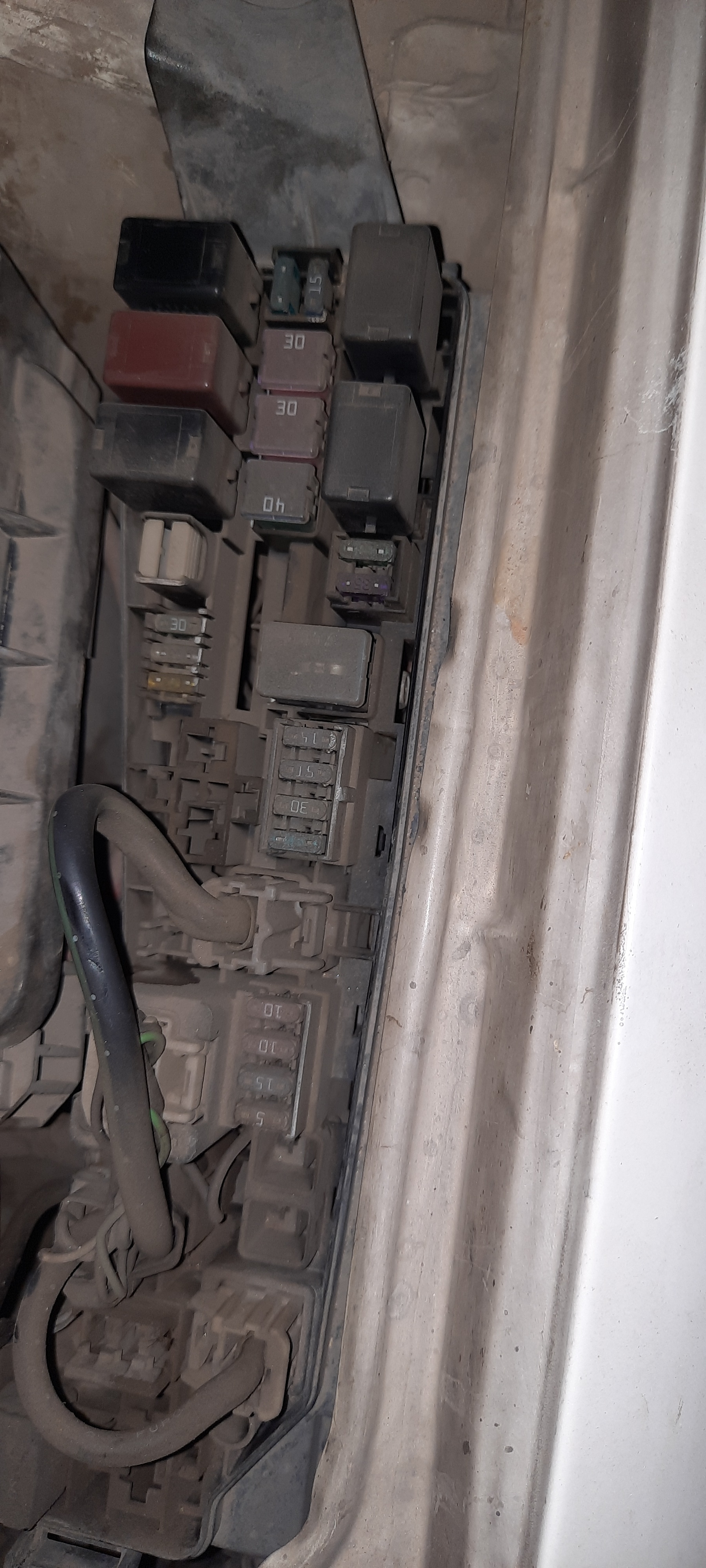

Don't understand why they don't even bother to change the fuse box cover. My cover also shows all the headlight fuses and relays locations like yours. But they are not present there.
Yes A second fuse box can be seen by removing glove box and looking under the dashboard. But there are relays which are almost unreachable.

brownrose78 (brownrose78) 2021-06-29 02:38:06 +0500 #2926

I have 1 dumba in my house, we are the 1st owner so it came to me from showroom on Day 1 till today and from day 1, I found that some fuses and relays were intentionally not there so no need to worry.

PKDM version has not filled /utilized complete fusebox

Undeadking0001 (Ameer Shah) 2021-06-29 08:28:42 +0500 #2927

Really wanna know the thought process of the first guy that looked at this car and went "dumba"

mustafa.sjah1 (Mustafa Saqib) 2021-06-29 18:28:25 +0500 #2928

Don't we all haha

xenerking (xenerking) 2021-06-29 20:55:06 +0500 #2929

xenerking (xenerking) 2021-06-29 20:56:54 +0500 #2930

nawan885 (nawan885) 2021-07-03 12:34:06 +0500 #2931

@chinyoti @Xulfiqar

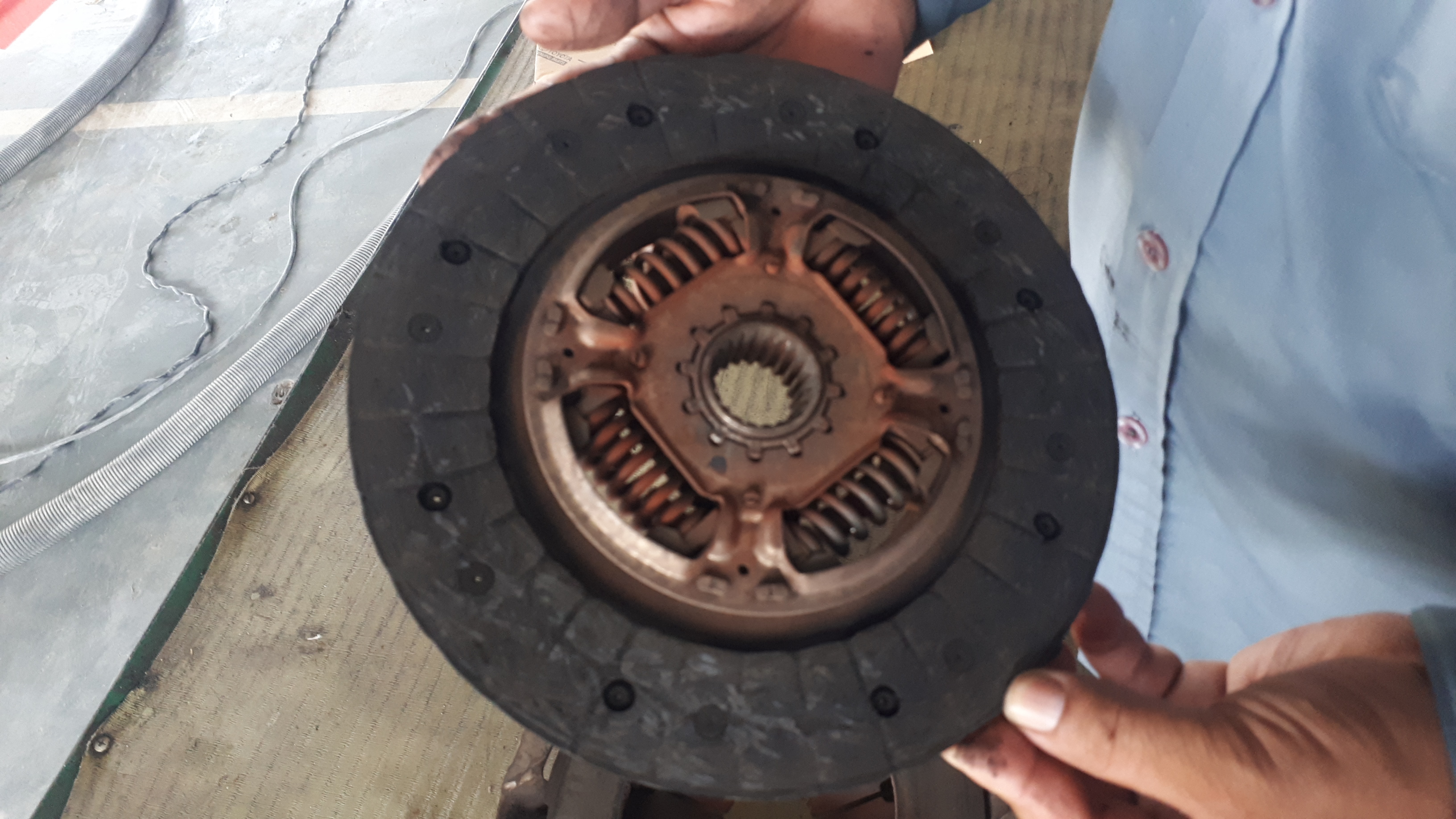

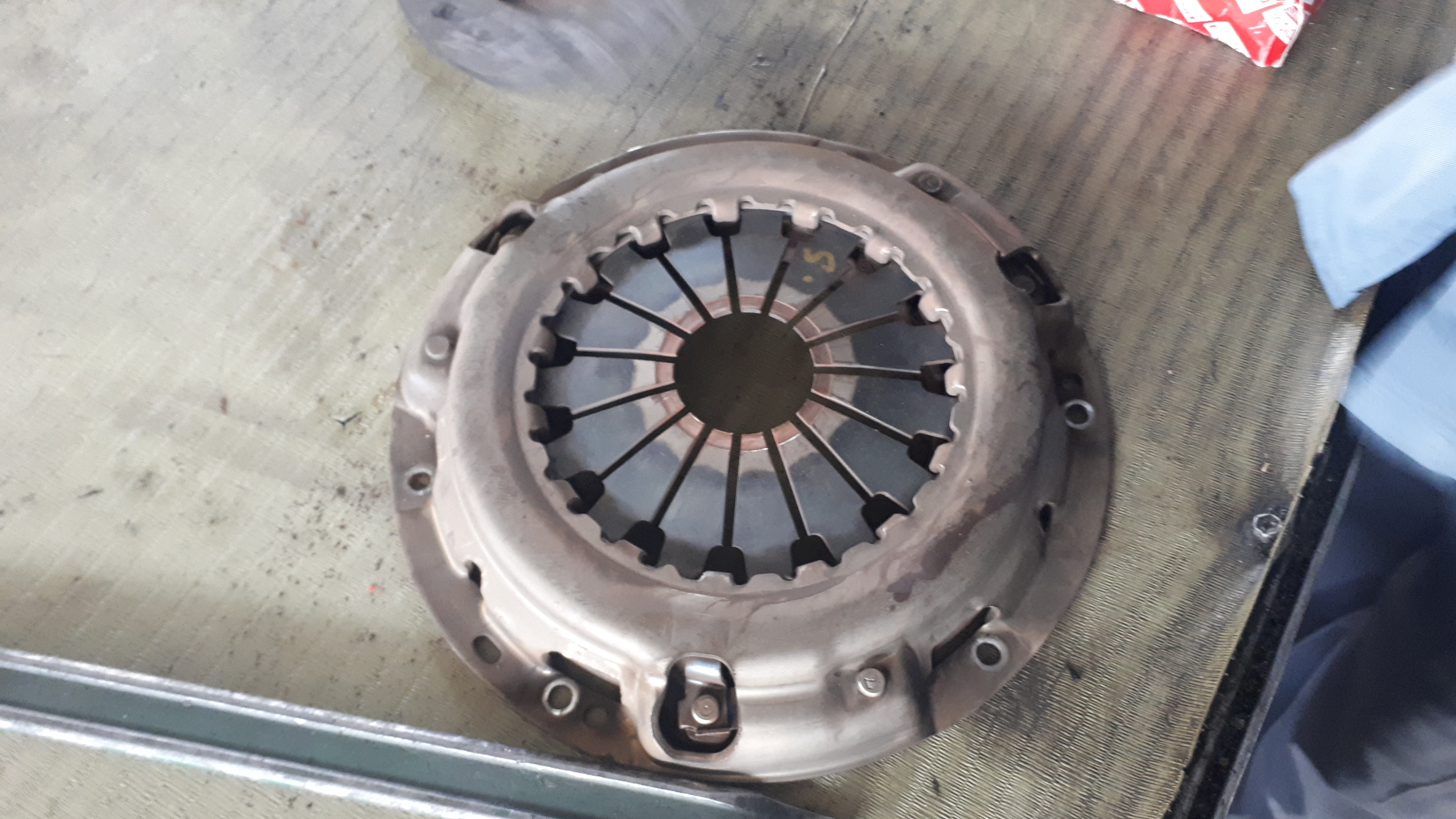

As I discussed earlier about whistling sound while pressing clutch.. I got gear served by 3S ...pressure plate bearing was faulty...clutch plate was worn out aswell...So replaced both as well as got new genuine pressure plate..

So issue resolved also became smooth like makhan

chinyoti (Murtaza Shahid) 2021-07-03 12:58:42 +0500 #2932

Althou when the bearing fails, mechanics usually suggest to replace the bearing before it causes more damage.

With me in WagonRs case i also prolonged changing the bearing unless the clutch plate / Pressure plate had started failing.

this way had to leave the car once as both things required equal labour.

Glad your problem is resolved.

Undeadking0001 (Ameer Shah) 2021-07-03 13:09:40 +0500 #2933

Could someone confirm if the clutch pedal assembly ( where the pedal rod is connected to the spring) is independent of the brake pedal's. The parts seller said it's different for the Brake and the clutch. My mechanic says they have the same assembly where both the pedals are atrached. Note: my engine was a auto to manual convert which is why i suspect it is joined. Could some manual owner confirm please.

chinyoti (Murtaza Shahid) 2021-07-03 13:10:04 +0500 #2934

updates on my Corolla.

after the rings changed and valve seals replacement, The car had been doing rough idle at cold starts. would get normal as tempreture rose.

tried fiddling around with the throttle body, coolant temperature sensor, other small things, vacuum leaks nothing fixed it, day before yesterday i left the car with the mechanic to let him see what happens. Because it started dyeing.

He told me the VVT (VTEC) was faulty they couldnt find one, repaired the old one, still on the look out for the new one, Till then the car is okay.

Drove the car on some rough patches, Rear left has started squeeqing again, And the wheel bearing / Gear bearing sound wont go away.

for now

Rough idle at cold start is temporarily fixed
Rear suspension Sqeeqing
and some bearing noise from the front left.

Besides that the car is smooth gave me 9.5 kmpl on the last full tank.

smartdevil_striker (smartdevil_striker) 2021-07-03 13:17:39 +0500 #2935

VVTI sensor also disturbs idling and drops RPM.
