Toyota E100 Corolla Indus (1994-2002) fan club

[aziz.rehan]

Another issue is with headlights that Low beams are on. The high beam indicator on meter comes on dimly and low beams stop working.Only high beam works. Both low and high operate on single H4 bulb.
And the indicators also freezes sometimes instead of blinking.

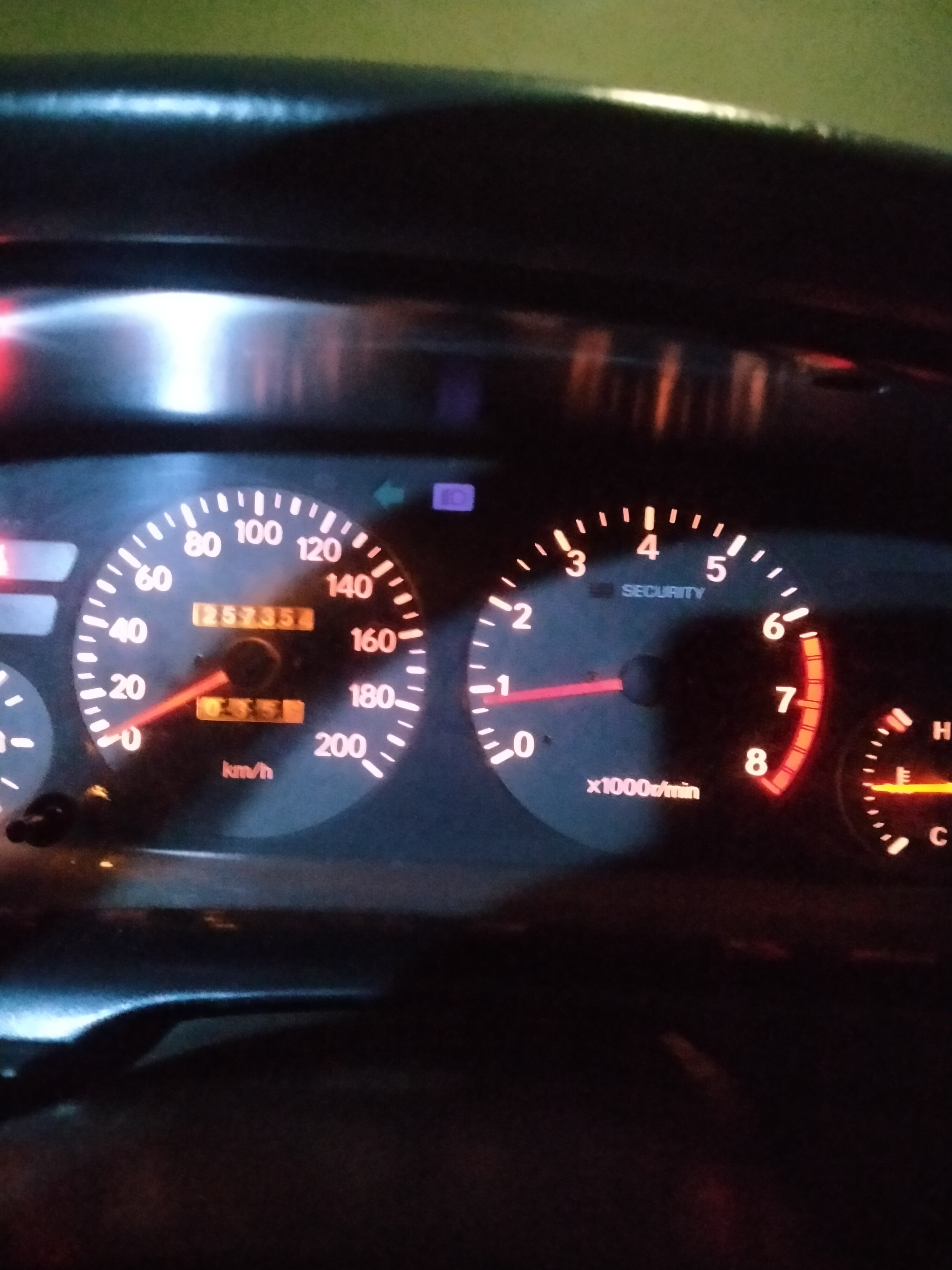

In the first pic indicators even freeze on hazard on.

[Hassan1991]

That looks like grounding issue. Or the switch.

[aziz.rehan]

What about indicators getting stuck even with hazard switch on without using stick

[Hassan1991]

Getting stuck?

[aziz.rehan]

The headlights issue seems to be resolved. It was due to electricians bad doings.He connected and extra wire between two wires behind dashboard wiring due to car getting off with indicator which was due to loose alternator grip I removed the extra wire and it seems to be resolved.
He also messed with wiring in bonnet for indicators which I think is causing issue

[aziz.rehan]

It doesn't blink and is continuously running like parking lights

[Hassan1991]

You have to check the wiring of flasher relay.

[aziz.rehan]

Wiring seems fine.Can a bad flasher relay itself cause this issue

[Hassan1991]

Gii and missing ground to flasher also.

[aziz.rehan]

Ok thanks will check both

[aziz.rehan]

Fixed both headlights and indicator issue. Both were due to faulty relays.

[aziz.rehan]

Assalamualaikum bro how are you doing?
Does distributor need cleaning?

[Hassan1991]

Wailaikum Assalam
ALLAH ka shukr how are you?
Not really....,or until it's been sitting for too long or the cap is broken.

[aziz.rehan]

Alhamdulilah
Yeah bro I recently noticed cap had small hole.
Will try cleaning it.

[aziz.rehan]

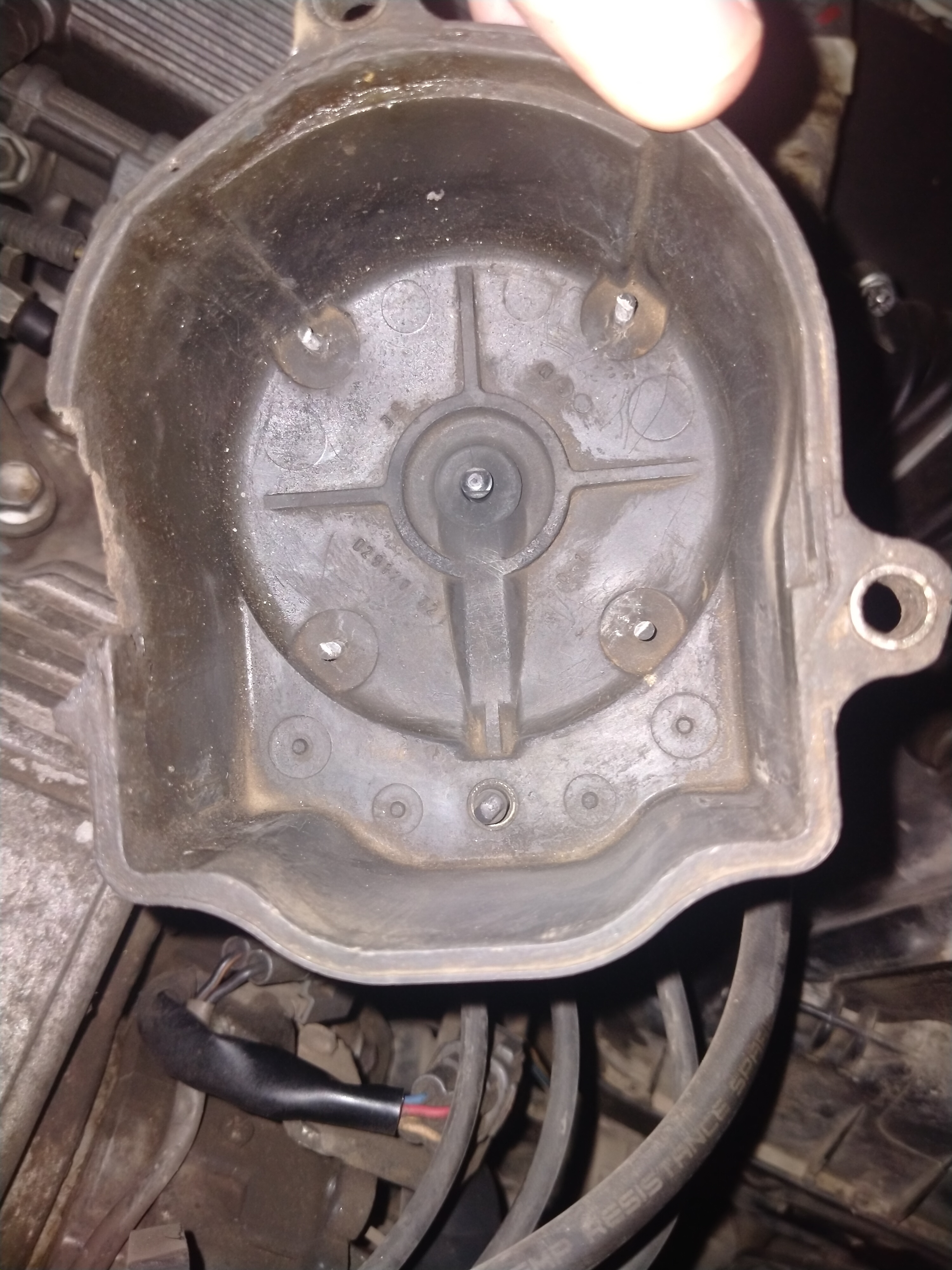

It looked like this. On the left of cap, it is little broken which I covered with duct tape.
And got it cleaned a little. Although it seemed cleaned.

[Hassan1991]

Yes looks okay.
Repair the cap using magic bond.

[syedbasitalishah001]

Assalamualaikum. Hello to everyone! I have bought a 1995 Indus with a 4AFE A/T. It had an engine and transmission swap by the previous owner with a Japanese Auto Tranny and 4AFE. It is giving me 6 kmpl average along with a check engine light. Though it had Vitz injectors at first and I replaced them with the original 4AFE ones. It has Iridium spark plugs but have some yellowing on the ceramic sides of it. Could it be the sign of current leakage and can it be a contributing factor to bad fuel economy? Is 6kmpl in city normal consumption or can it be improved?
Secondly, could anybody please share the vacuum hoses setting of the engine? I believe it might also contribute to a better fuel efficiency. Please guide me as it is my first comment in this group. Thank you.
Jazaka Allah khair

[aziz.rehan]

Walikum salam
Check ecu if it's the correct one.
Post pics of spark plugs.
Get map sensor and wiring checked.(Post pic of map sensor).
Also oxygen sensor and wiring checked.

[syedbasitalishah001]

Yes, bro at first the ecu of a 5AFE was installed jisme check engine light connect nahi thi blink karti thi. Mene 4AFE ka original ecu change kiya aur check engine abhi on hogayi. Yes scanner lagwana hai so that MAF sensor aur baki O2 sensor and cat ka pata chal sakay.
Jazaka Allah khair for the feedback. Will post pic of MAF tomorrow, in shaa Allah

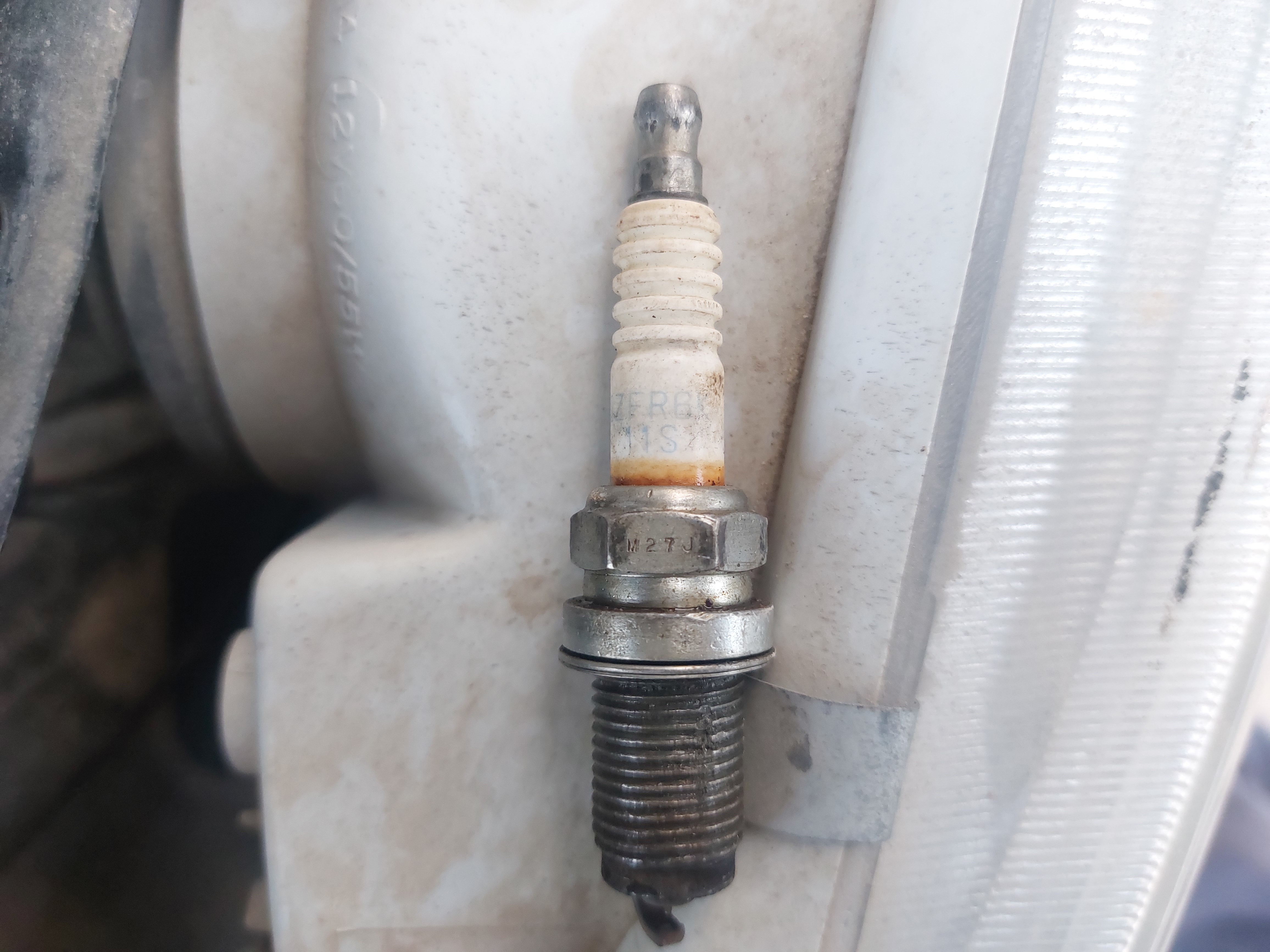

Spark plug

[aziz.rehan]

Oxygen sensor kitne wire wala hai?
