Toyota ECU/Other Connector Pins

[saad.ikram.5688]

Aoa,

I would like to know where can i get connectors pins of various connectors of Toyota.
I would like to repin some connectors to add wires for some accessories. Repin some connector of Audio/Video system. Repin some connectors of headlight stalk, door sensors. Additionally add some wires to the ECU connector.

These are readily available on AliExpress but due to COVID-19 and even after than a month shipping i was wondering if i can get these anywhere in Pakistan

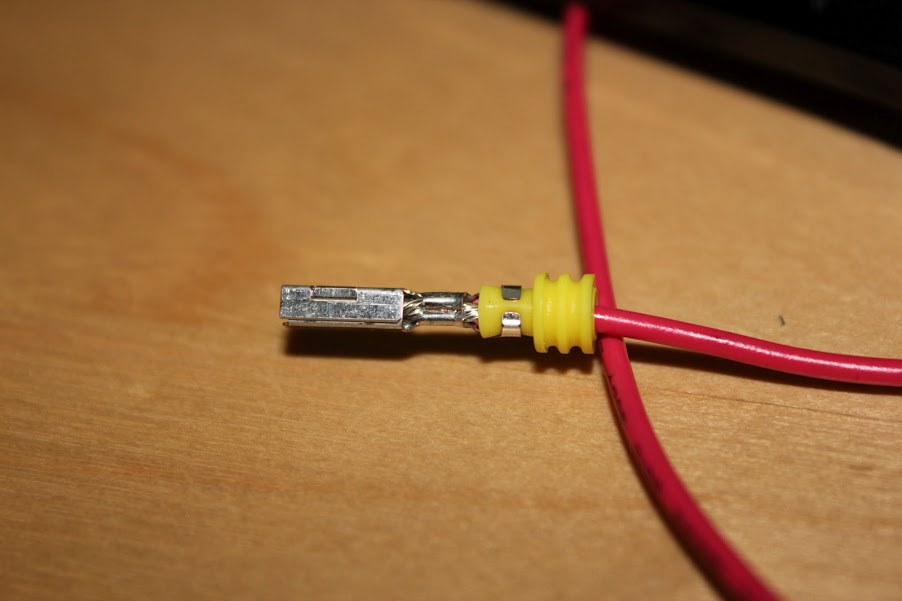

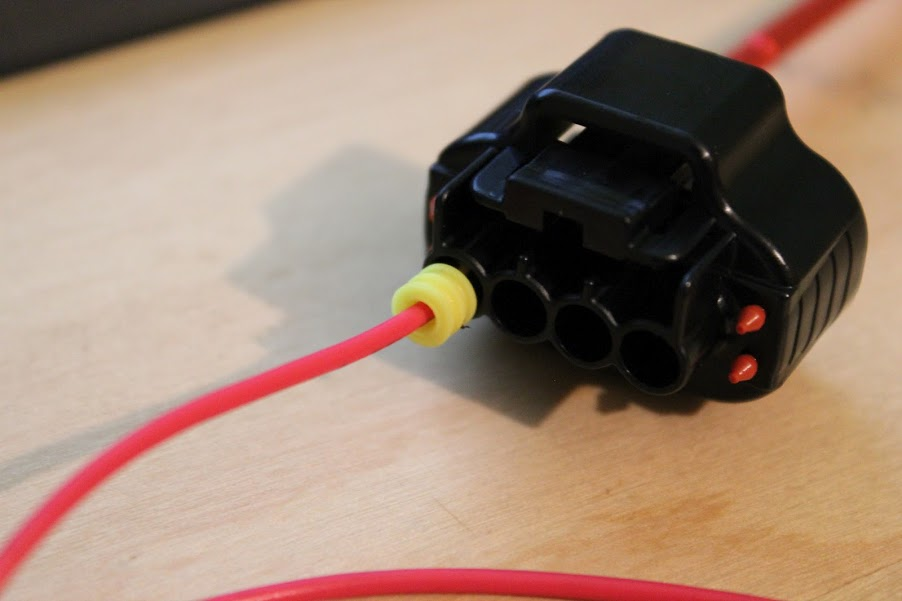

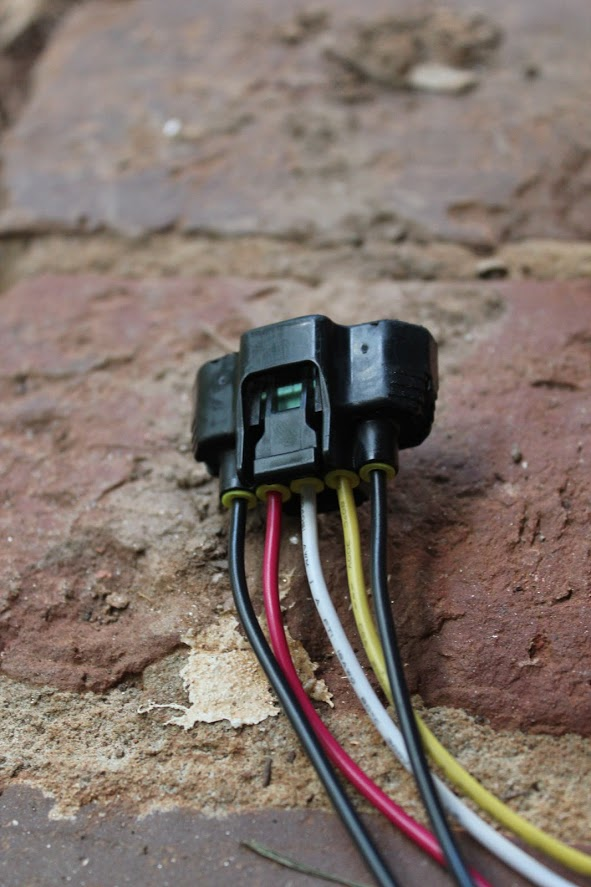

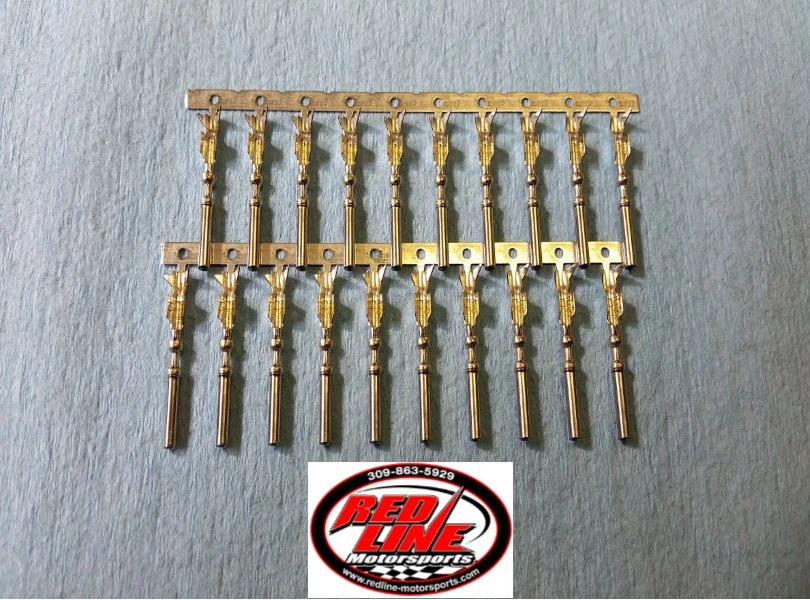

Some of the connector pins look like below images

[margallar]

not available here............

[saad.ikram.5688]

What about people who install multimedia steering wheels. Where do they source them from as the connector on the back end of the spiral cable has no extra wires and they add them.
Any Idea

[capsat]

All such items plugs pins are available with fair deal autos in karachi plaza market, you need to have patience for lock down to be over. As & when business resumes, they can ship against order & online transfer

Sales outlet: 021-2722680 / 2722994
Cell: 0321-8250197 (11am to 5 pm
Mr. Tariq Mohsin

@ahsontariq

[saad.ikram.5688]

I am so glad to hear that they ship because i live in Islamabad.
Yes i can definitely wait till the lock down ends.

I need so many pins of different connectors (maybe all toyota connectors use same pins or maybe they are different) because of my ambitious projects and trying to do any modification upto OEM standards.

[saad.ikram.5688]

@capsat
I checked with them and they said they have nothing of the sort. They only deal with spark plug filters etc etc

Anyone else that you know of ?

[capsat]

it is very strange, am sorry if they said so.

However please try jawed saheb at paramount store 0333 3927741 - make sure to share the image of item you are looking for. pings plugs, lugs, harness, slots etc etc Sometimes when we use actual tech term for an item looking right at it in the glass box the vendor does not know about it. He know it by desi ustad term they deal 100 a day.

[shabbir.1]

If you are not able to find these new then I would recommend you to buy used toyota specific connectors in bulk with pigtails, depin them and put them in your use as and when required.
You can use soldering and heat shrinkable tubes to extend the lenght of wires as per your requirements.

I am not very familiar of pindi market but in peshawar/shoba bazar there used to be an aged person (baba g) who sits near the mosque area (he doesn't own a shop) and has got plenty and plenty of all sort of connectors and also loose automotive wires. His rates are very reasonable, connectors were 10 to 50 rupees and wires are sold 700 rupees per kg.
Any diyer with a little knowledge of different sort of connectors used in his car can locate connectors of his interest in no time, all you need to do is to put your hand in the heap of connectors or show him the sample on your phone.

[saad.ikram.5688]

I did share them the image on whatsapp. Maybe they dont stock these anymore since i dont think anyone buys these. Koi bhi plug/connector ka masla ho moslty buy a cut kabli plug/connector and cut the original wires and desi electrical tape them instead of re pining them properly.

I had to do the same with MAF sensor one wire got cut. I couldn't find pins for that since JDM car . Got a kabli plug lekin i couldnt de pin it due to not having de pining tool and needed the car to work in an emergency so had to cut and solder wires to new connector and properly wrap them in head shrink tube and then tesa tape over that.

Yup each and every item/part in Pakistan has its own name by desi ustad. Recently i learned desi ustads call Clock Spring/Spiral Cable a Chakri.

I'll try Paramount store. I'll update if available and i'm successful

[saad.ikram.5688]

Bro the price you are saying is extremely reasonable like dirt cheap. I went to sultan ka khoo and each connector with max 5-8 wires is being sold for 350-500. I do a lot of experiments and DIY's so i need a lot and for 5 pin 350 lgau jo k meray aik din k liye bhi puri nai honi. Roz ka 1000 rupee ka kharcha hai is liye kabli connector nai liay Sultan ka Khoo se.

Agar 700 per kg hai 2 KG kay utha lu ga kissi tarah Shoba Bazar pohanch k if i am not able to source them before lockdown ends

[car_bus2008]

Bro have you got the connectors pins as i am also in search for my idsi ignition coils as the lock on them broken now need to buy the new connectors.From where i can source the connectors.

[saad.ikram.5688]

Never found them. Had to buy kabli grips and take them out from them.

[Hassan1991]

You used the old pins? No chance finding new one?

[saad.ikram.5688]

Yes took some pins out of kabli grips
Finding the part number of the pins is almost near impossible unless you have paid manuals
Even if you have the part number finding them on aliexpress is very difficult and on amazon and other sites it is like 2-3 dollar for a pin then shipping so impossible hi keh dain

[Hassan1991]

Damn i was thinking to make own harness for my swap. But looks like soldiering is the only option.
Last time i used old pins but that doesn't work really well.

[saad.ikram.5688]

Meray paas yehi option bachi hai to use old.
New pins aliexpress pe mil jaati hain lekin you dont know the part number then no solution.
Common grips mil jatay hain by name searching on aliexpress and they come with pins as well.

Search on aliexpress like Honda 28 Pin or Honda 20 pin etc etc you may be able to find that grip.
I have been buying some new grips on aliexpress as well like parking light grips and LCD grips
Khawari hai lekin kuch mil jatay hain kuch nai miltay.

Another example Yaris rear parking light grip is the same shape/number of pins as the ABS sensor grip of an old camry so randomly search mein i found it ordered it.

[saad.ikram.5688]

Left two are without pins right two are with pins. Search a little and compare thoroughly with your own ignition coil grip and you'll find one surely

[Hassan1991]

I can find the part number. I need for k series so that wouldn't be a problem and all sensors came with similar connectors.
Thanks for the info

[saad.ikram.5688]

Yup hondas have similar style connectors for other engines and other parts sometimes too.
Good Luck

[pwuser162431712167]

Aoa brothers..meray pass toyota belta 1.3 2sz fe engine installed hay. Iski computer or ecu ka jo main connector hota hay puray engine ki jo complete wirring ikhatte ho k main connector ya grip jo ecu ko lagta hay toot gaya hay aik electrition nay kharab ker dia hay ab woh loose rehta hay...to sub say bara masla woh yeh hay k auto fan kabhi on ho jata hay aur kabhi chalta he nahi jab woh grip ko zor say dabaou to phir bilkul ok hota hay jab woh loos ho jata hay phir wohee maslaa... Aik request hay k rawalpindi yaa peshawar may koi aisa sahi banda jo yeh connector ya drip change kerwa k dey yaa iska koi hal plzz....
