Toyota ee90 2e to 4efe engine swap

Toyota

Hassan1991 (Electrical Engineer ) 2018-02-11 18:12:11 +0500 #101

Never mention
Yes only these use to power the ecu.

pwuser151220154381 (Kanishka Prasad) 2018-02-11 18:14:25 +0500 #102

oh man i shud thank you !!! it took quite some time since i have have nerver done nay conversion like this before !!

thank you and the rest people who supported !!

Hassan1991 (Electrical Engineer ) 2018-02-11 19:19:25 +0500 #103

Never mention sir
Glad to know you have done it.

pwuser151220154381 (Kanishka Prasad) 2018-02-14 13:30:12 +0500 #104

hey bro a problem !!

i only get spark on coil pack 1 and 4 !! 2 and 3 i dont get any !! my engine is not distributor ignition !!
what seems to be the problem ?

pwuser151220154381 (Kanishka Prasad) 2018-02-14 15:35:37 +0500 #105

even the fuel pump doesnt prime !! when wired for the diagram you supplied

pwuser151220154381 (Kanishka Prasad) 2018-02-14 15:59:12 +0500 #106

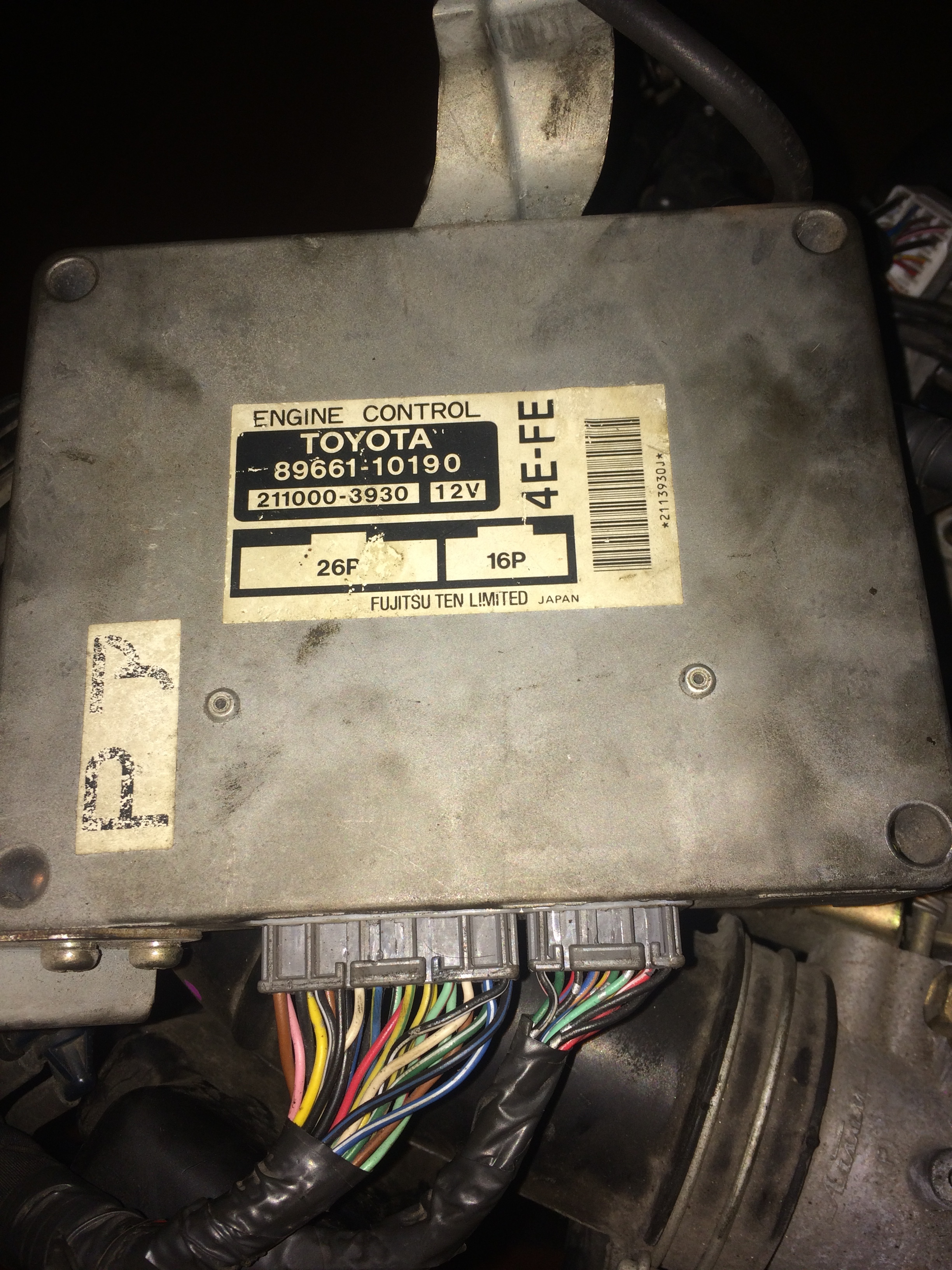

is it problem with the ecu ? my ecu code is 89661 !!

i connected one end of relay coil to fc pin and other to positive 12 coming from efi relay !! i have all three pins +12v at BATT +B1 and +B !!

i have grounded my fuel pump properly !!

confused with this !!

Hassan1991 (Electrical Engineer ) 2018-02-14 16:23:33 +0500 #107

Check the wiring.
Did pump trip itself if you doesn't start the car?
Your gen 4efe came with distributor. You had done modification?

pwuser151220154381 (Kanishka Prasad) 2018-02-14 16:28:22 +0500 #108

pump doesnt show any sign of working when ignition is on or while cranking !!

my engine came with coil packs not distributors i didnt do any modifications !!

i have check the wiring nothing seems to be the problem !!

pwuser151220154381 (Kanishka Prasad) 2018-02-14 16:37:03 +0500 #109

omg bro ur damn right !! i rechecked the wiring !!! i was soo dumb and i connected the fc pin into the 3 rd pin on ecu connector 2 !! fuel pump works after cranking the engine !!

but still one issue left !!

i only get ignition on cylinder 1 and 4 !! which mean only one coil pack is working !! but ive tested both pack both sees to work fine !!

pwuser151220154381 (Kanishka Prasad) 2018-02-14 16:41:24 +0500 #110

and for the ignition coil packs i didnt even touch the wiring its factory wiring loom

Hassan1991 (Electrical Engineer ) 2018-02-14 16:53:45 +0500 #111

Yes only one pack is working
You have last gen 4efe.
But i think still it's wiring. Any wire is missing.

Hassan1991 (Electrical Engineer ) 2018-02-14 16:54:21 +0500 #112

Ecu got distributor pinouts.

Hassan1991 (Electrical Engineer ) 2018-02-14 16:57:41 +0500 #113

Between firing order is 1~3, 4~2

pwuser151220154381 (Kanishka Prasad) 2018-02-14 17:27:11 +0500 #114

no bro there are two packs !!! this is not distributor ignition !!! my engine is with crank sensor !!

Hassan1991 (Electrical Engineer ) 2018-02-14 17:29:11 +0500 #115

That's the conventional firing order of 4 cylinder engine.
Between try swapping both coils together.

pwuser151220154381 (Kanishka Prasad) 2018-02-14 17:31:01 +0500 #116

no wiring is missing i didnt even touch the factory harness !!

Hassan1991 (Electrical Engineer ) 2018-02-14 17:32:30 +0500 #117

Where you connected distribution and cranking signal wires of ecu?

pwuser151220154381 (Kanishka Prasad) 2018-02-14 17:35:55 +0500 #118

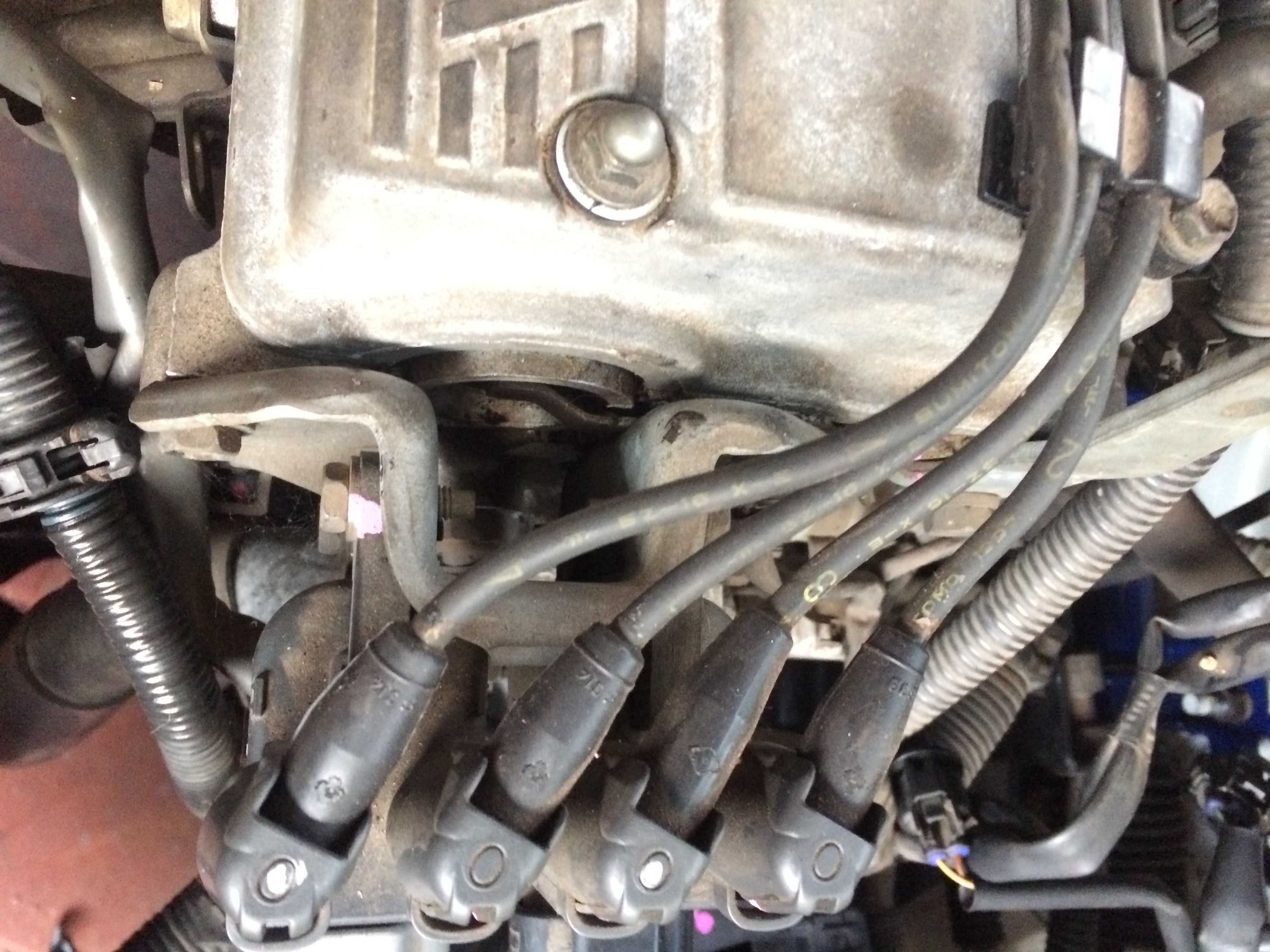

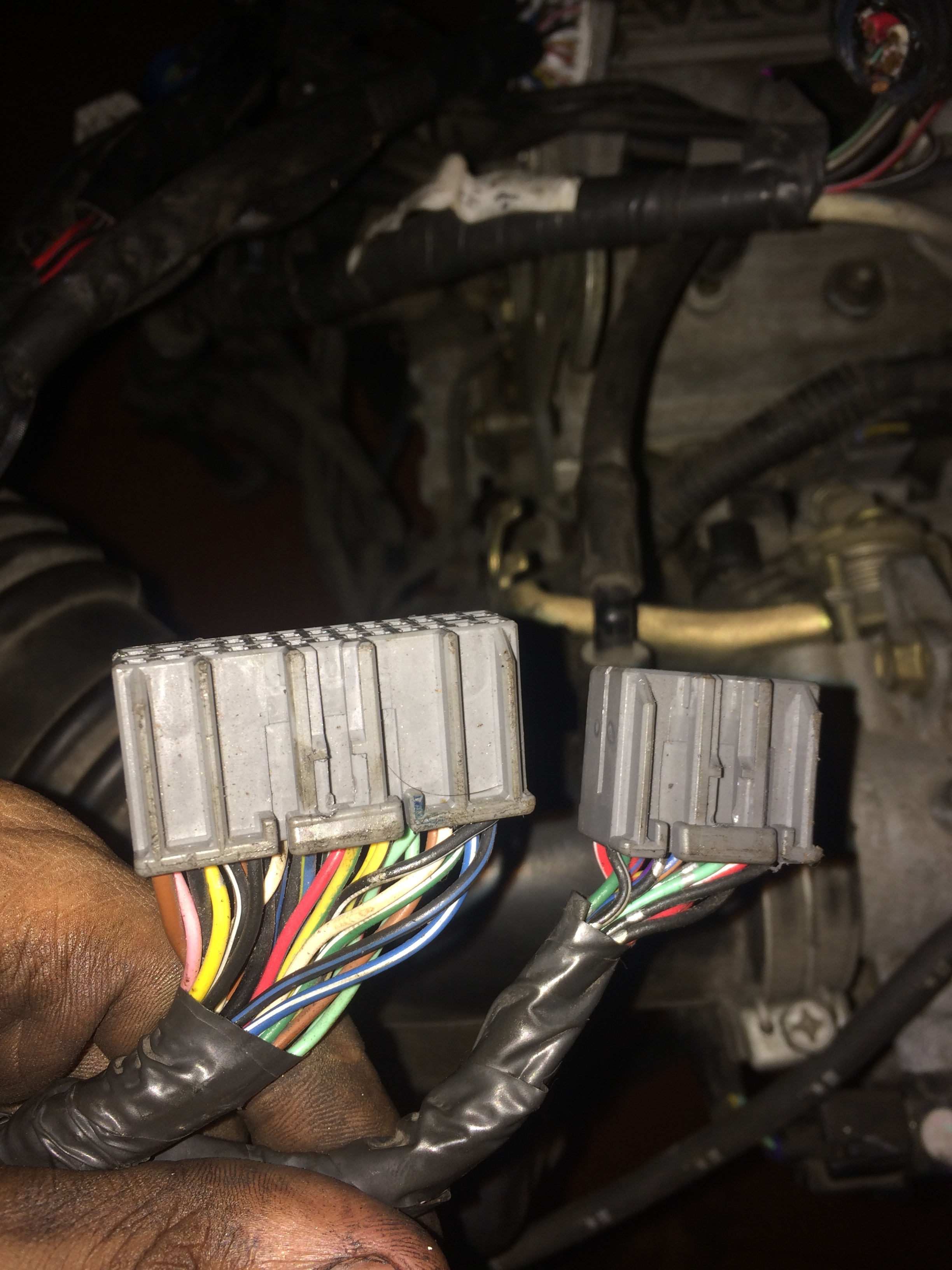

i have a uncut harness coming from coil packs and crank sensors !! to ecu !!

Hassan1991 (Electrical Engineer ) 2018-02-14 17:48:30 +0500 #119

My friend got same ecu with dishwasher variant.
Try swapping coils together. And also use multimeter to check the continuity of the wires.

pwuser151220154381 (Kanishka Prasad) 2018-02-14 17:51:51 +0500 #120

i check continuity and i tries swapping coils also !! when connected the coil 1,4 socket to coil 2,3 then cylinder 2 n 3 gets spark !! both packs are working !!
