Toyota Indus Corolla 1994 Engine Swap

[pwuser158860589957]

Humayun bhai. I am looking to buy an indus corolla. Reading about discussions and your suggestions are really informative.
Kindly inform, how can one see the difference between 2nd gen and 3rd gen in 5A engines?

[humayun.chughtai.7]

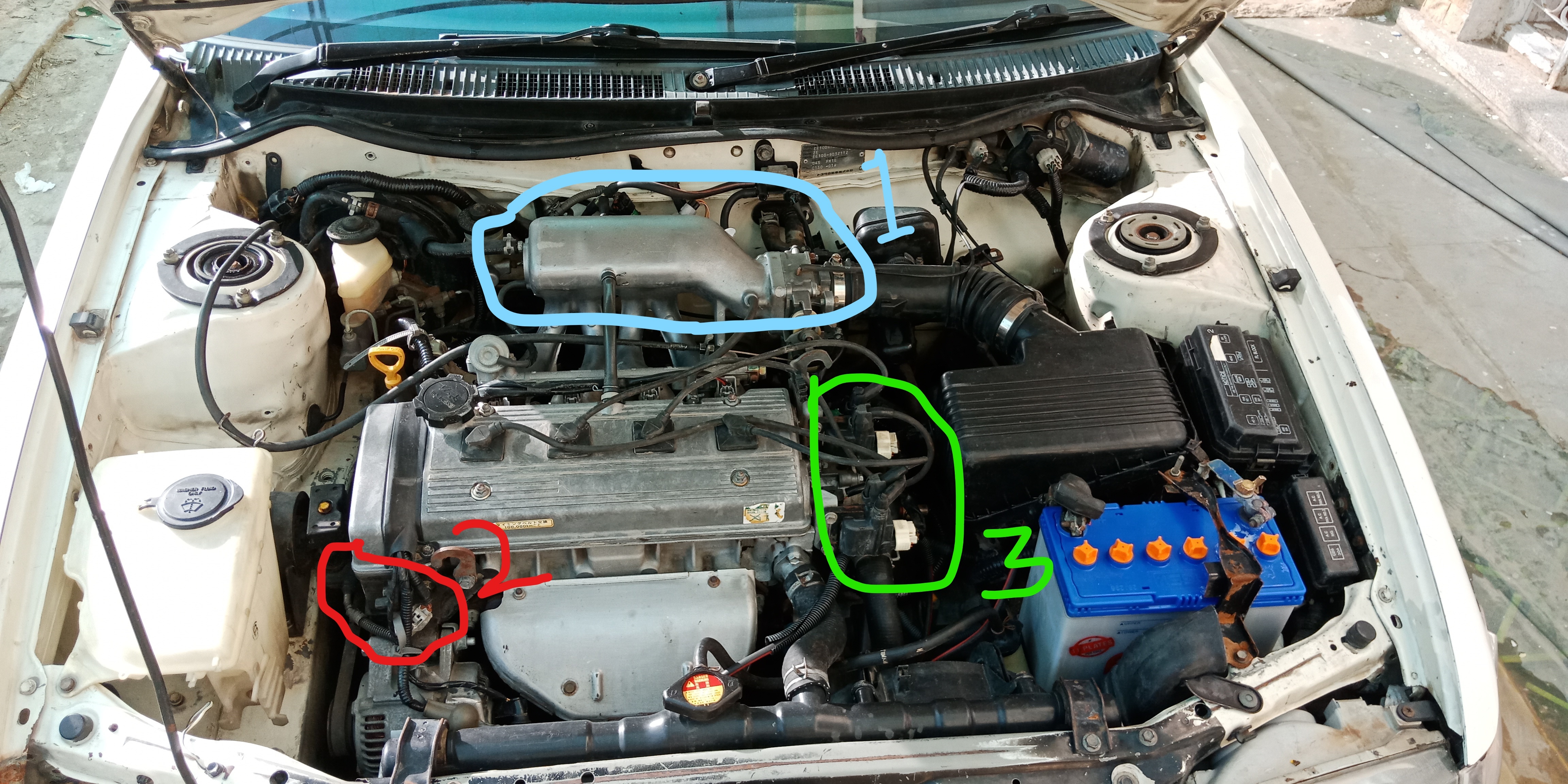

3rd gen has :-
1- Different style of intake manifold
2- has CKP sensor inside the timing belt cover (although you can see its wiring harness coming out of the timing belt cover, just above the alternator)
3- has coils mostly, some models also have distributors but they are not adjustable & the distributor has single wiring harness (same in mine 7a), whereas older ones were adjustable and had 2 wiring harnesses.

Re-uploaded the above pic.

These are some main things, which will help you differentiate between different gens.

[axd.axd7890]

Humayun bhi . Is 4afe engine also have the same differences for 2nd and 3rd generation ?

Which generation i choose for indus having 2E engine
2nd or 3rd gen 4afe ?

[humayun.chughtai.7]

Is 4afe engine also have the same differences for 2nd and 3rd generation ?

yes, these differences are same for all the A series engines.

Try to get the latest gen, as it will be less driven as compared to older ones.

[axd.axd7890]

Which engine i prefer distributor one or coils one ?

[humayun.chughtai.7]

If you are willing to run it on petrol, then go for coils version ...

distributor one works fine on CNG

[farrukh1247]

Bro I installed 4afe a month ago , I think it's down piping is for 2e engine which was previously installed so which size 4afe has
