Dear all,
Need a technical advice, with regards to the Brake Issue Iam facing in my Vigo Champ which still remains unidentified
It started when the brake cylinder of the rear tyre got leaked and I took it to a mechanic to replace it. Front discs were also replaced as they were due. After this work once I left with the vehicle front wheels were jammed just after a few kms, the mechanic was callled, he checked and found that master cylinder is damaged (seals of piston were swollen / damaged). He replaced the master cylinder, the vehicle drove okay but next morning same issue was faced and wheels were jammed
Again took it to mechanic, he did minor adjustments with master cyclinder but problem persist. He then told that fault is probably with ABS..
We took vehicle to toyota motors multan,
They opened each and every thing starting from booster till brake pads, flushed brake oil, put in new master cylinder,
Brakes were ok for sometime, but as I parked the vehicle and started after couple of hours same issue surfaced
As of now the brakes are totally free, i have consulted many mechanics in multan and surrounding but fault remains un solved

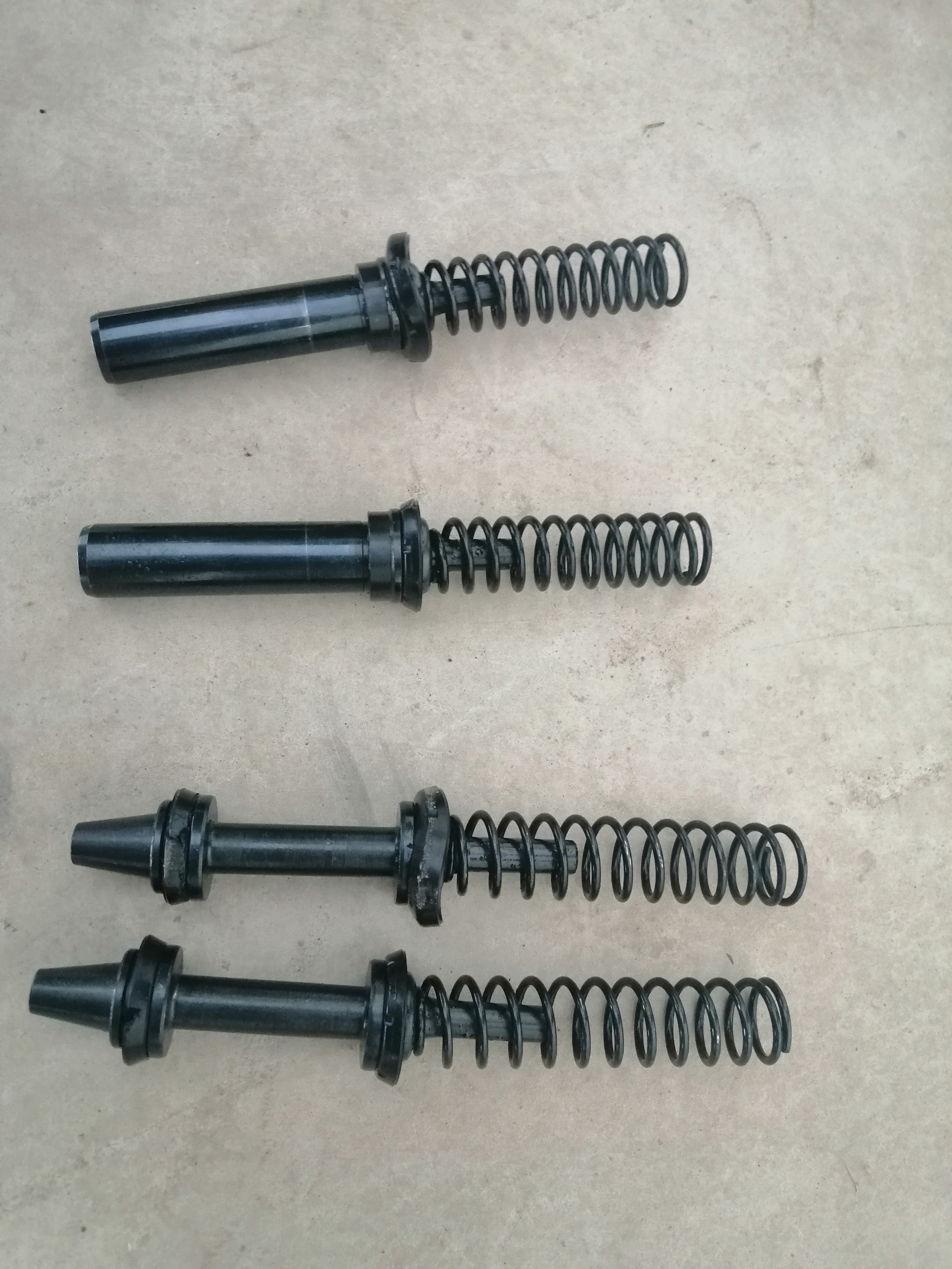

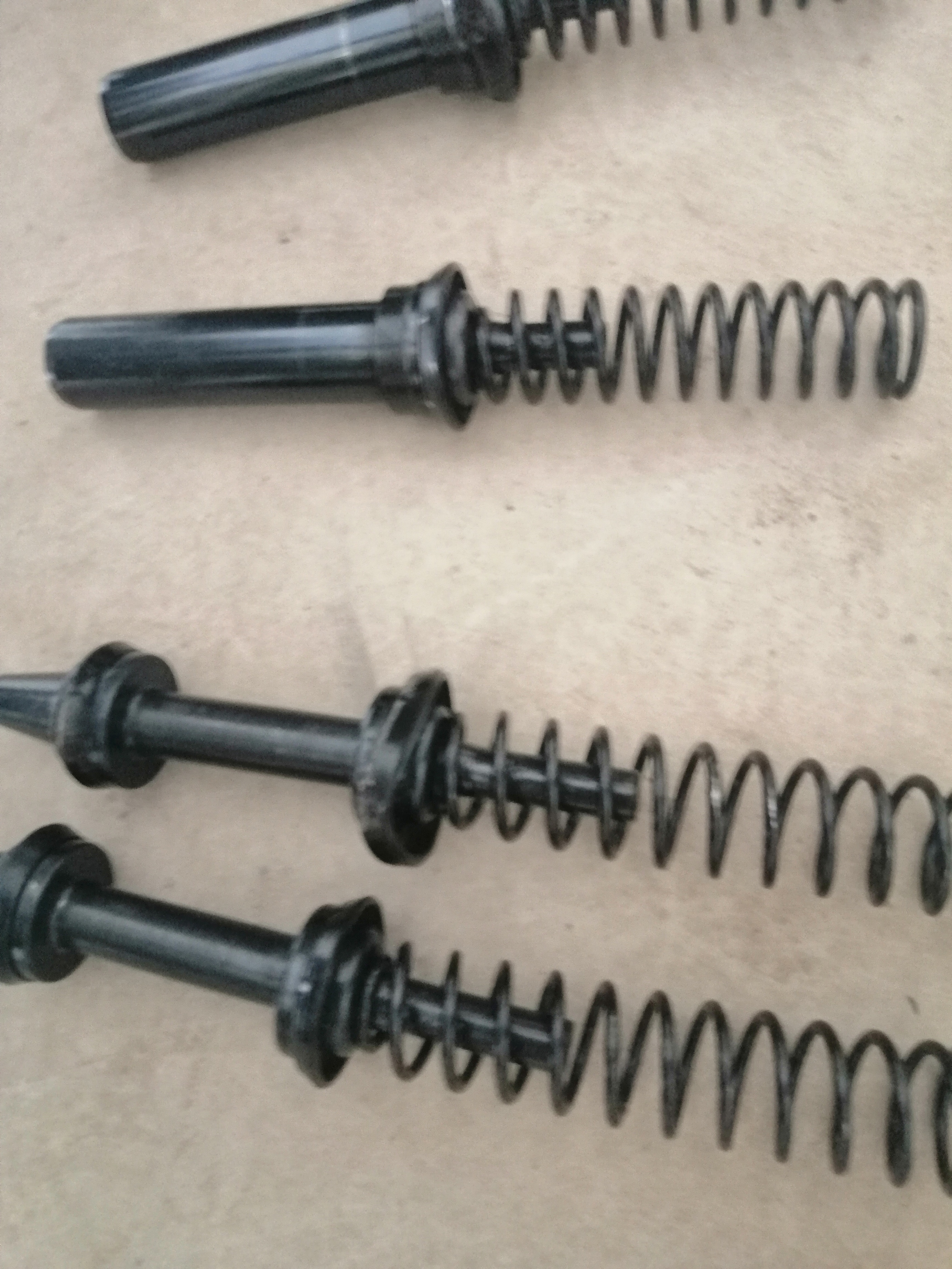

Pics of swollen/ damaged seal are also attacehd
