Vitz wheel not centralized

luckycar (Muhammad) 2018-10-14 20:46:40 +0500 #1

Dear folks.
I visited for wheel alignment and balancing today. They told me the front right wheel is not centralized As compare to the left one. Please see attached image. there is no issue in driving. Please advise if it needs

attention ...thanks.

sayedgulhassan (Syed Hassan Bukhari) 2018-10-14 20:53:26 +0500 #2

Is this vehicle accidented?

luckycar (Muhammad) 2018-10-14 20:58:32 +0500 #3

Dentor checked and havent found any sign of accident...

mistarshahzaib (Shah Xaib) 2018-10-14 21:30:09 +0500 #4

Is this the original size of rim n tyre as per recommend for vitz

luckycar (Muhammad) 2018-10-14 21:50:47 +0500 #5

No....i think the recommended size is 175x65 14
and installed ones are 175x65 15

haseeb.basharat 2018-10-14 22:17:20 +0500 #6

Go to a suspension guy, and ask him to check what’s causing this

luckycar (Muhammad) 2018-10-14 22:28:27 +0500 #7

This matter could be solved .? I am so much concerned.....alignment guy said not to be worried. it happens in many cars because of many potholes and manholes on the street and sometimes deivers have no choice but have to pass through....

omersiddiqui5482 (omersiddiqui5482) 2018-10-14 23:56:58 +0500 #8

Do try one thing jack up the car and try to shake the wheel forwards in backwards by hand. If the wheel shakes then you might have some bushes that are damaged aur the "kainchi" in Pakistani terms is bent.

And this is something serious

zia1288 (Rao Zia Ur Rehman) 2018-10-15 00:27:58 +0500 #9

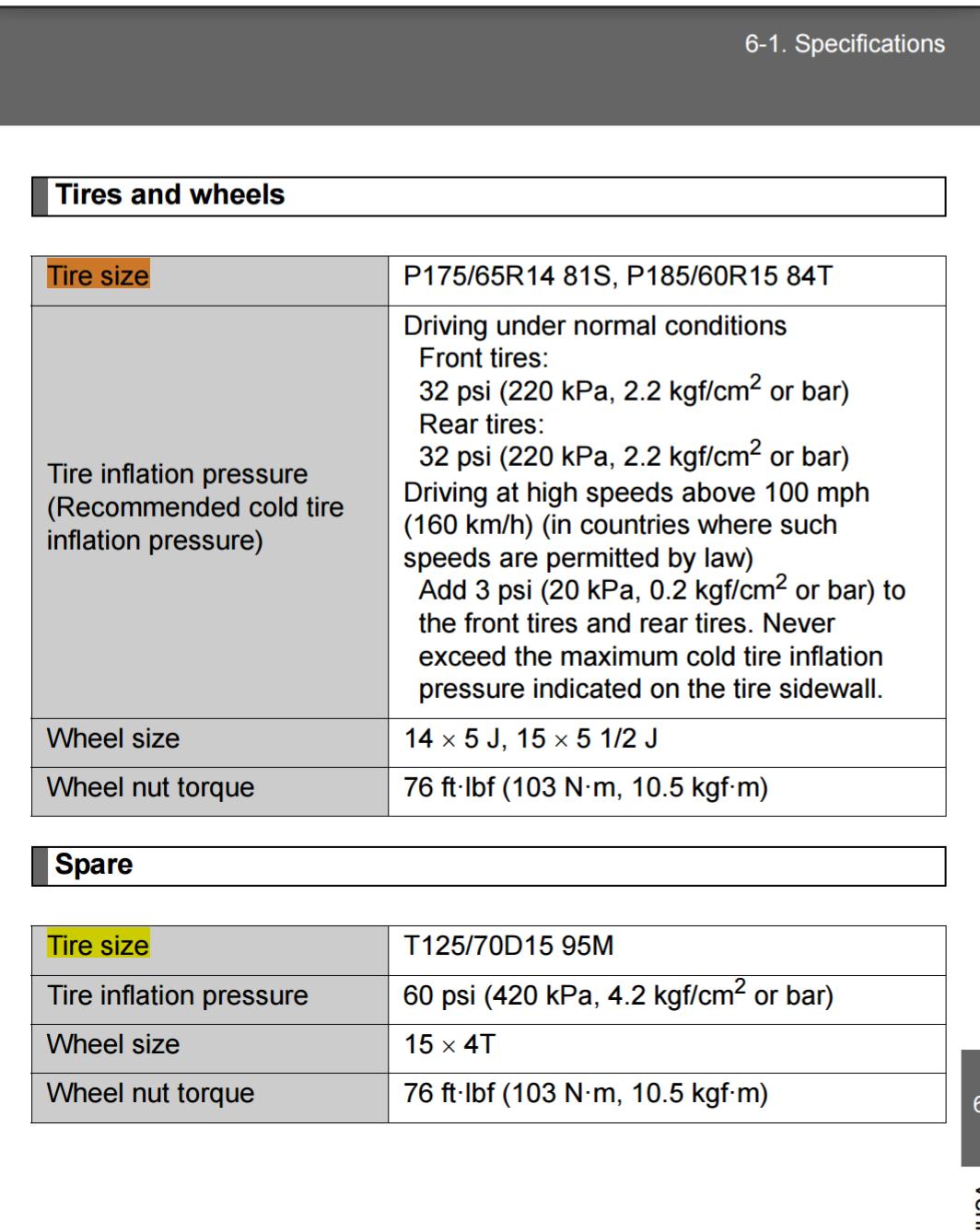

Original size is 165-70-R14

saboor73 (Saaboor A saad) 2018-10-15 00:46:52 +0500 #10

this usually happens when front cross member (gadri) gets bad

luckycar (Muhammad) 2018-10-15 07:22:47 +0500 #11

So gadri can be replaced...

luckycar (Muhammad) 2018-10-15 07:23:12 +0500 #12

Is it good to change kainchi.

luckycar (Muhammad) 2018-10-15 08:18:46 +0500 #14

omersiddiqui5482 (omersiddiqui5482) 2018-10-15 09:08:04 +0500 #15

Yes, It is not bad. If your original has gone bad, it is readily available at good suspension repair guy or he will arrange it for you. It might not be that the whole Kainchi or gadri (Cross Member) is damaged it might be that any bushes are damaged or they need adjustments.

In which city are you residing?

luckycar (Muhammad) 2018-10-15 09:33:59 +0500 #16

I was so concerned ao i parked the car and not driving it. The alignment guy said not to be worried we have seen many cars in the bad condition and there is no issue in driving it . Even he tested my car on express way without holding steering wheel and it was running perfectly.
i am in karachi..

omersiddiqui5482 (omersiddiqui5482) 2018-10-15 09:37:06 +0500 #17

I have driven a car with a broken Kainchi it was just turning to one side a bit and i was hearing a knocking sound of the wheel. you need not to worry you can drive it but it is utmost necessary to get it checked first.

If you have seen Lucky One Mall, There is one shop just opposite to it called M.K Auto those guys are good at suspension work

luckycar (Muhammad) 2018-10-15 09:49:53 +0500 #18

Luckyone is too far and even not my route....but if its necessary i will get it checked at jamshed road as i heard good suspension people are there.
secondly...if i get the bushes replaced...what would be the cost. ....give me a vague idea...
as i want to solve the issue as car is OK so dint want to sell it...

luckycar (Muhammad) 2018-10-15 10:31:02 +0500 #19

honestly i have seen many cars in my vicinity and most of the cars have that issue ...and the owners dont know abt that issue.....

zia1288 (Rao Zia Ur Rehman) 2018-10-15 10:33:58 +0500 #20

luckycar (Muhammad) 2018-10-15 10:34:55 +0500 #21

which model do u have?
