Where is the VSS located in Cultus 2016?

abuhafss (abuhafss) 2019-12-24 01:14:08 +0500 #1

Ussalaam-o-alaikum

Can anybody guide me where is the VSS (Vehicle Speed Sensor) is located?
What are the pin-outs of the Fan Switch?
I want to build a digital Speed-o-meter + Temperature display unit.

Also any price idea of the Fan Switch? Is new unit available?
The original one has gone bad, I need to change it.

Jazaak Allah o khairan

omersiddiqui5482 (omersiddiqui5482) 2019-12-24 10:48:14 +0500 #2

Your 2016 Cultus has a cable attached to the Transmission which mechanically check on speed and the mileage!

If you need to install a Digital Speedo you will require an Electronic Speed Sensor attached instead of the Speedo Cable to the Transmission. Similarly The Car has a Temperature Sensor near the T-Stat Valve Sending readings to the Gauge that will be changed to a newer electronic temperature sensor connected.

What exactly do you want to do?

abuhafss (abuhafss) 2019-12-24 21:15:45 +0500 #3

Thanks for your input.

I have read somewhere that the Cultus' ECU has input from the VSS via green/yellow or violet wire. The VSS issues signal pulses which the ECU converts into speed. I wanted to access those pulses to display speed on a digital display.

Similarly, I want to access the output from the temperature switch to display the temperature.

omersiddiqui5482 (omersiddiqui5482) 2019-12-24 21:37:37 +0500 #4

Do you want to change the cluster or install a secondary one? Because some digital HUD Units are available that directly connect to the ECU and give you the required reading and much more.

abuhafss (abuhafss) 2019-12-24 22:17:40 +0500 #5

I want to design my own secondary unit.

omersiddiqui5482 (omersiddiqui5482) 2019-12-25 01:20:32 +0500 #6

@margallar sir !

margallar (margallar) 2019-12-25 06:34:08 +0500 #7

I think desi electricians had some converter to install on the gearbox of cars to get vss

For temperature, use your own thermocouple

abuhafss (abuhafss) 2019-12-25 10:56:47 +0500 #8

I could arrange my own VSS setup on the car but that needs lot of effort to secure it against harsh running conditions. Hence I prefer to access the car's VSS to make the things simple and neat.

Similarly, I don't need to install my own thermocouple the temperature switch can easily do the job.

pwuser152821058035 (Sufyan Farooqui) 2019-12-25 23:10:06 +0500 #9

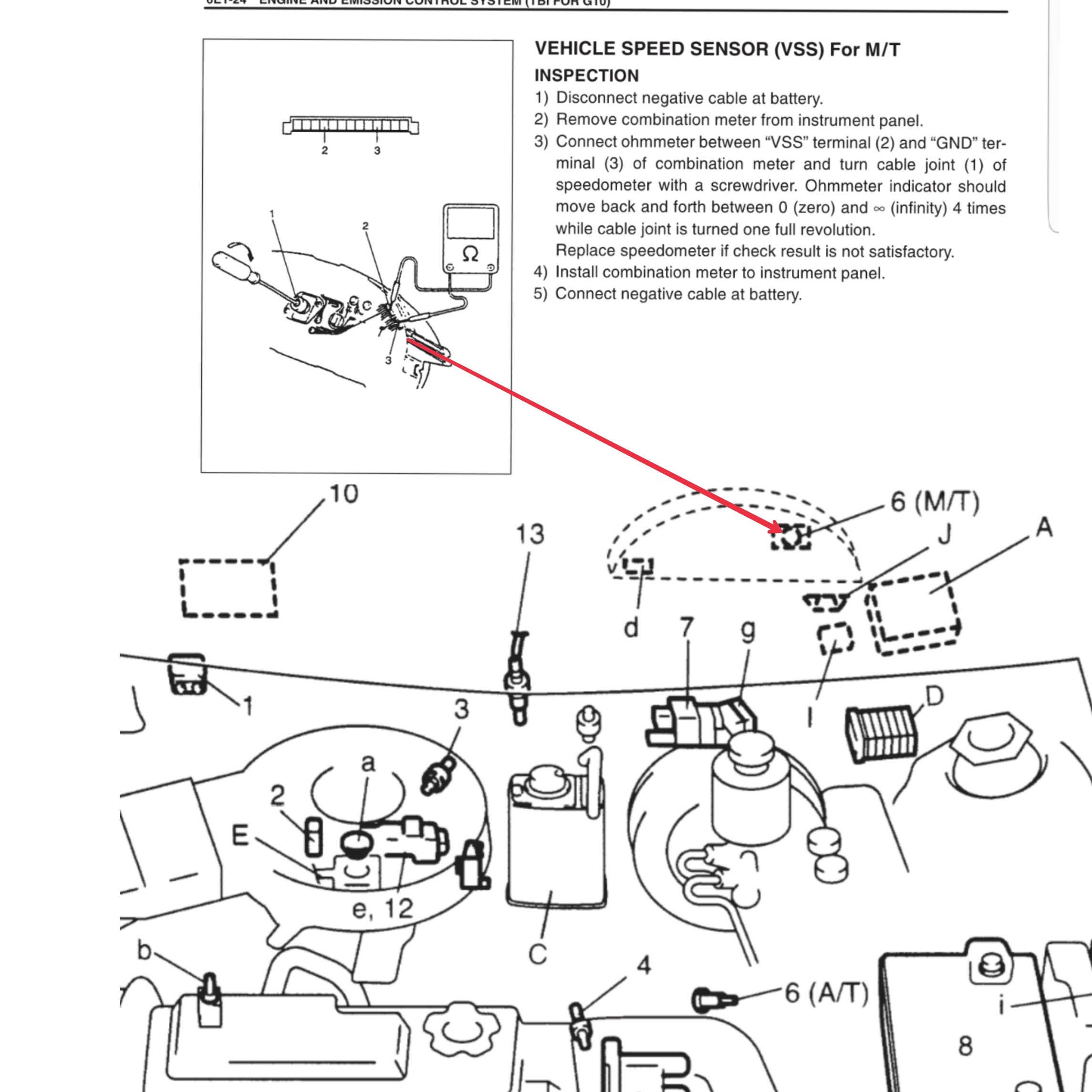

Assalam o Alaikum brother , The VSS you are finding is located inside the Cluster

abuhafss (abuhafss) 2019-12-28 22:56:53 +0500 #10

Wa'alaikumusSalaam bhai

Jazaak Allah o khairan

pwuser152821058035 (Sufyan Farooqui) 2019-12-28 22:59:33 +0500 #11

I am Intrested in your DIY project , please share when done.

abuhafss (abuhafss) 2019-12-28 23:58:36 +0500 #12

Sure, bhai.

But, right now I am over committed. It would take fairly long time to start.
