Which ECU Protocol is supported by Vitz 2001, 1sz-fe, model scp10-ahpnk

[asgharpwr]

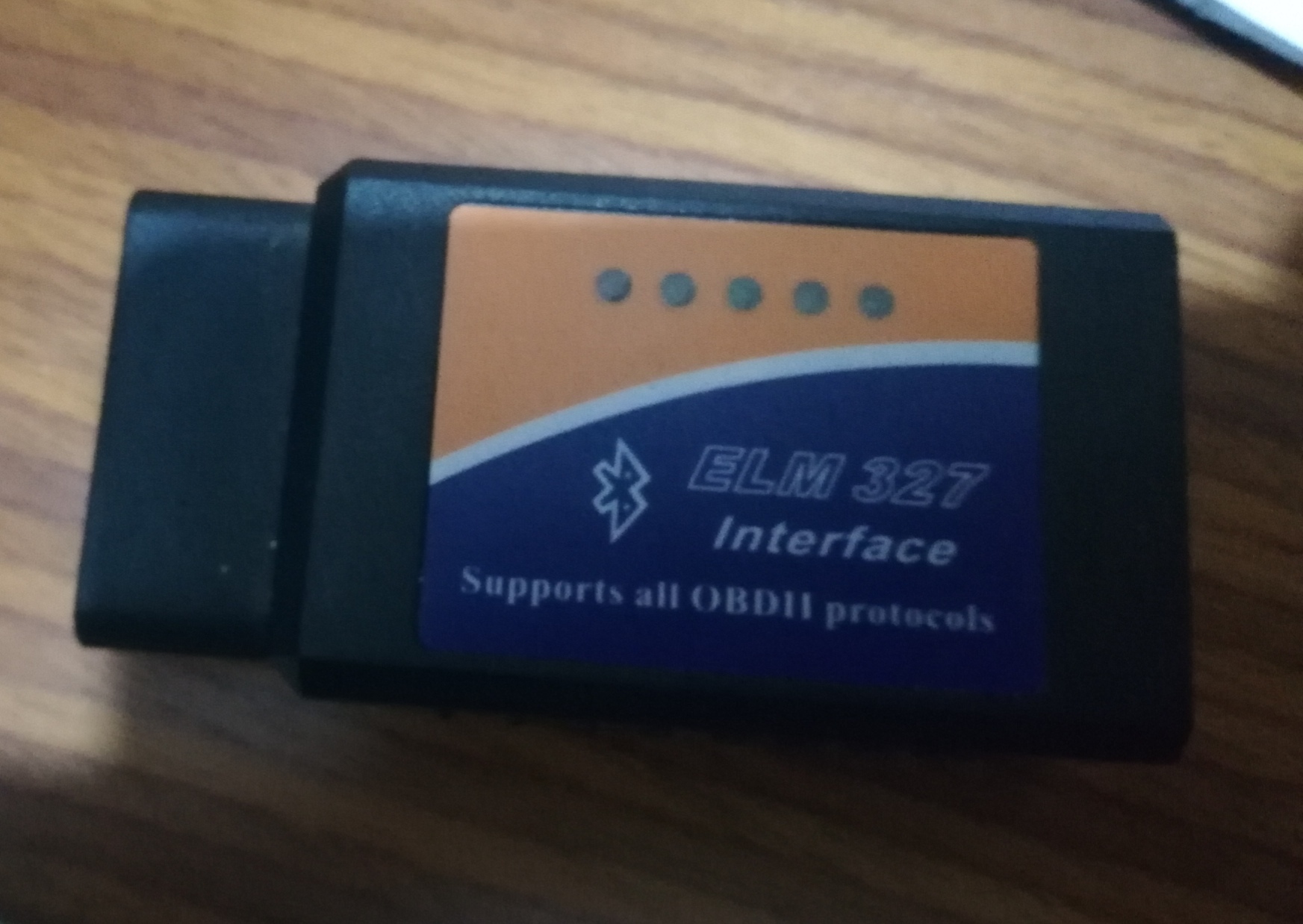

Any please help me, i have this OBD2 adapter

,
it connects on Bluetooth but fail to connect ECU due to unknown protocol error. I tried almost 10 diff apps from playstore.

Searched the forum but couldn't find answer.

[anon35615524]

It may also be due to the fact that the tool which you are using is not % OEM original and genuine, and may just be a pirate Clone. Following link may help you in understanding it:

https://en.m.wikipedia.org/wiki/ELM327#Pirate_clones

[asgharpwr]

Thx bro its vry helpful.

[asgharpwr]

Found tht vitz 2001 ecu uses K-Line - ISO 9141protocol which is not supported by these new OBD2 adaptors..

Now i need to find smthng having support for ths protocol...

[asgharpwr]

so the final tools i need to use for accessing ECU are TOYOTA TIS Techstream MINI-VCI FT232RL OBD to USB cable and techstream software.

[ZUKI.AKBAR]

Main ny b yahi device li thi nai chali phir main ny aik or device perchase ki wifi super obd2 mini wo ios k 7 work karti hai

[asgharpwr]

Did u also used it with vitz 2001 1000cc?

[ZUKI.AKBAR]

I have vitz 2008 1000 cc or main ny b bht c devices try ki per wifi wali device iOS main car scanners k name say app hai os k 7 connect ho gai or kisi b app say nai hoi

[asgharpwr]

Ok

[abwqur]

Salam... Bhai can u suggest me obdII device for Vitz 2001 1nzfe engine.

[asgharpwr]

no bro im still in search for 1sz-fe

[abwqur]

Protocol is confirm iso 9141 k-line?

[asgharpwr]

its for 1sz-fe ... it would be different for 1nzfe.

[asgharpwr]

Please check it here

http://www.obddriver.com/irdn_enable.html

[abwqur]

It says toyota K line... So OBDII readers dont have written like this toyota K-line.. they have iso can bla bla

[asgharpwr]

K-line communication is also known ISO 14230-4 (KWP 5BUD)

[abwqur]

I consulted very knowledgeable person he said...
You need to create a Vehicle profile in Torque once created select the profile go edit that. And add the following line to Very advanced ELM327 custom configuration: ATSH8213F1\nATIB96\nATIIA13

You need a ELM 327 dongle Do make sure your scanner is v1.5 and has the 25K80 chip or it won't work. And you need to edit a setting in Torque

For my brothers who are using Vitz 1999-2004 models... Thank me later.

[abwqur]

ATSH8213F1\nATIB96\nATIIA13

This line.

[asgharpwr]

The following adapter with torque work for me with 1sz-fe engin.

[abwqur]

Yes, but u never knew whats inside.. i am sure its v1.5.. u can check in torque app... Adapter info... If u have still let us all know
