A Toyota LN107 is Born: Hilux Pick-up, 1991 Restoration Project

[luvizlif]

Please do share the places you get the parts from. I have a manual 5L hilux 2.8. its isi version and japan import. Now i am also thinking to change its dashboard and meter cluster. Only fuel guage and temp guages work in my meter cluster. rest i hope by seeing your project i will also get the comfidence to start restoring my horse

[luvizlif]

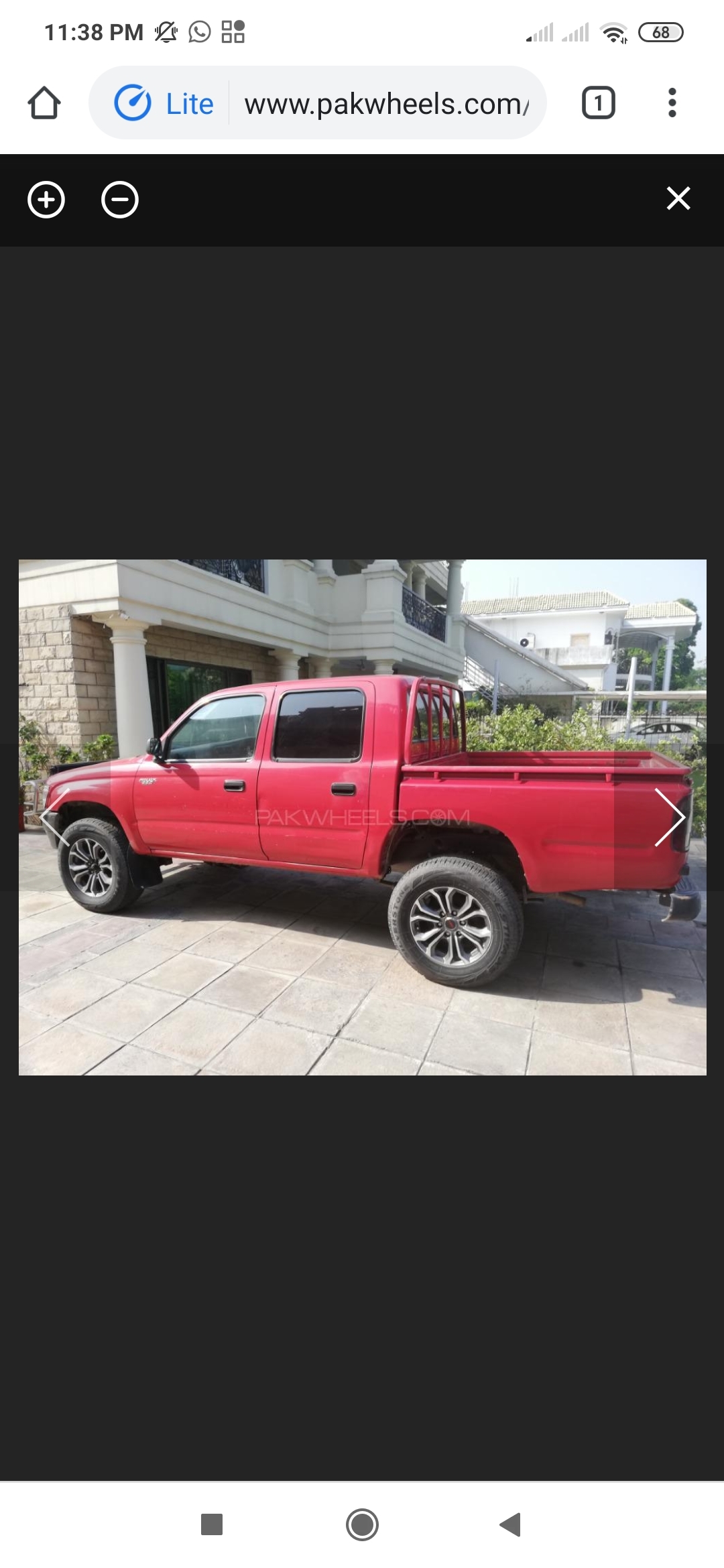

<img src="//live-pw-import.s3.amazonaws.com/original/4X/8/e/b/8eb5631f11c149a3708bf68af069e006f5186edc.jpg" width="230" height="500" this is my hilux

[zanagra]

Dear friend I am sure you are but let's do it once in for all, this strip tease is leading to frustration, especially for the studs who are into 4x4 rigs! Hope you are not offended.

sir gee thoora suprise rahay ga to aap aatay rahien gey! else its just another thread, we bough a gone case and we restored it to its glory. thoora to Star+ bananay dein na!

@znagar sir ji baas kar dayo. start sharing pictorial progress please hun tay lock down bhi tight hoya. test na karyn sir

Sir Noted ---- Tabiadaar

bhai jan saber ka paimana labraiz na kre...

ek dafa mei pori kahani lik daale

Stay tuned Arslan bhai! the best is yet to come!

[zanagra]

so next day I took it for the first day to workshop, this is where the restoration process officially begins.

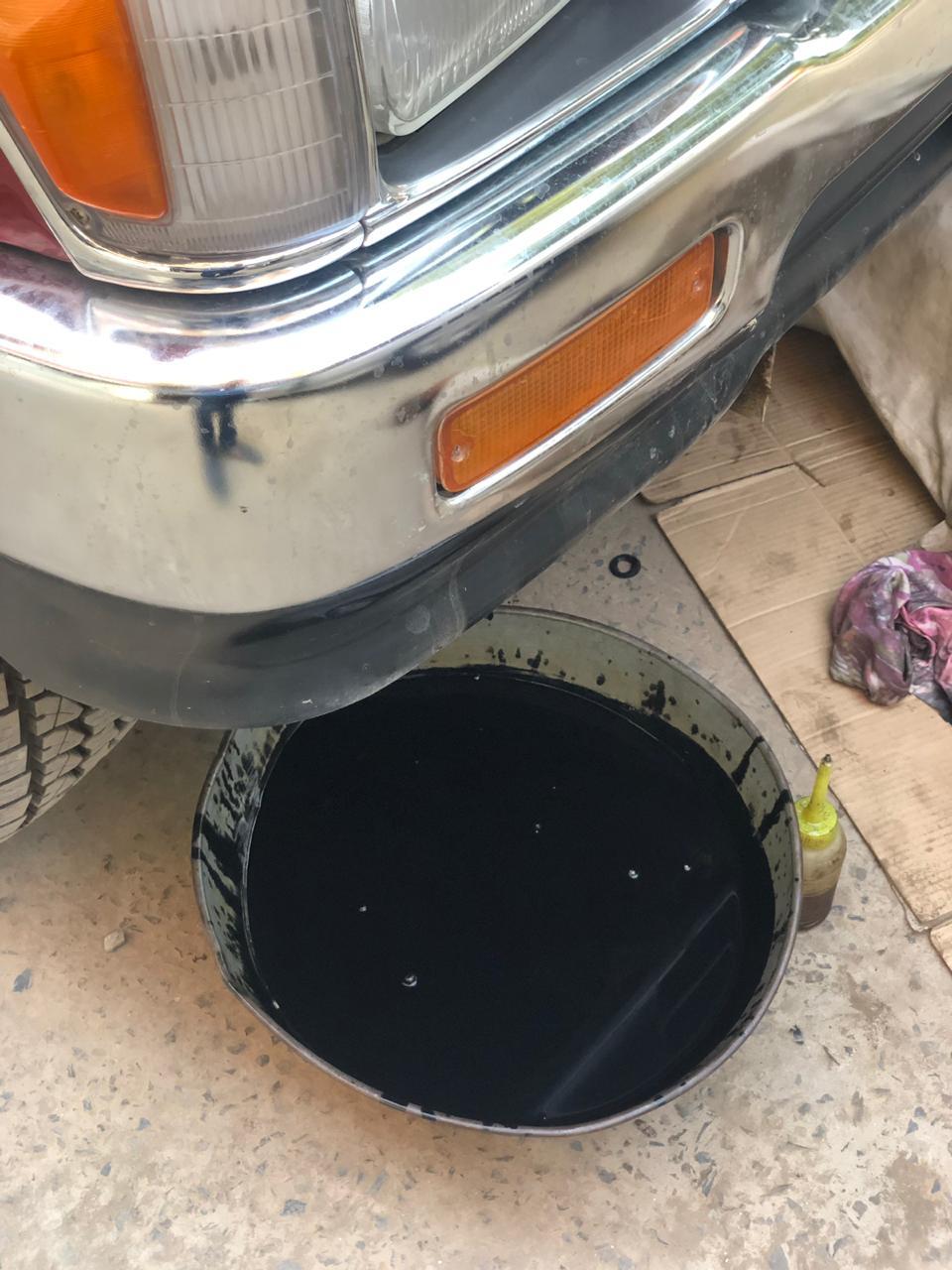

to begin with I changed the oil, used Delo Silver. With Filter change, it has a capacity of 7.5 liters and 7 Liters without filter change. Changed the diesel filter as well, Air filter was replaced as well.

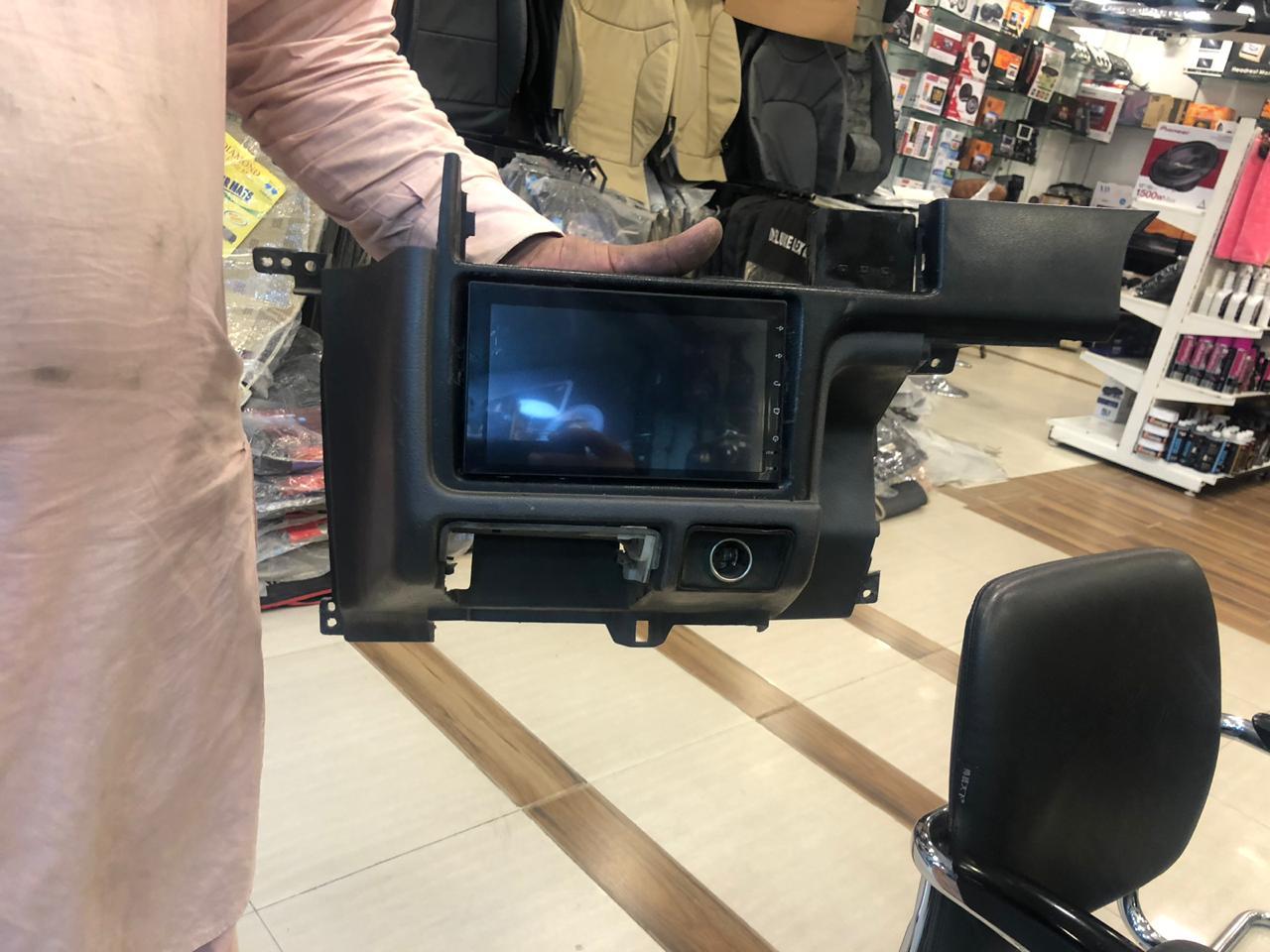

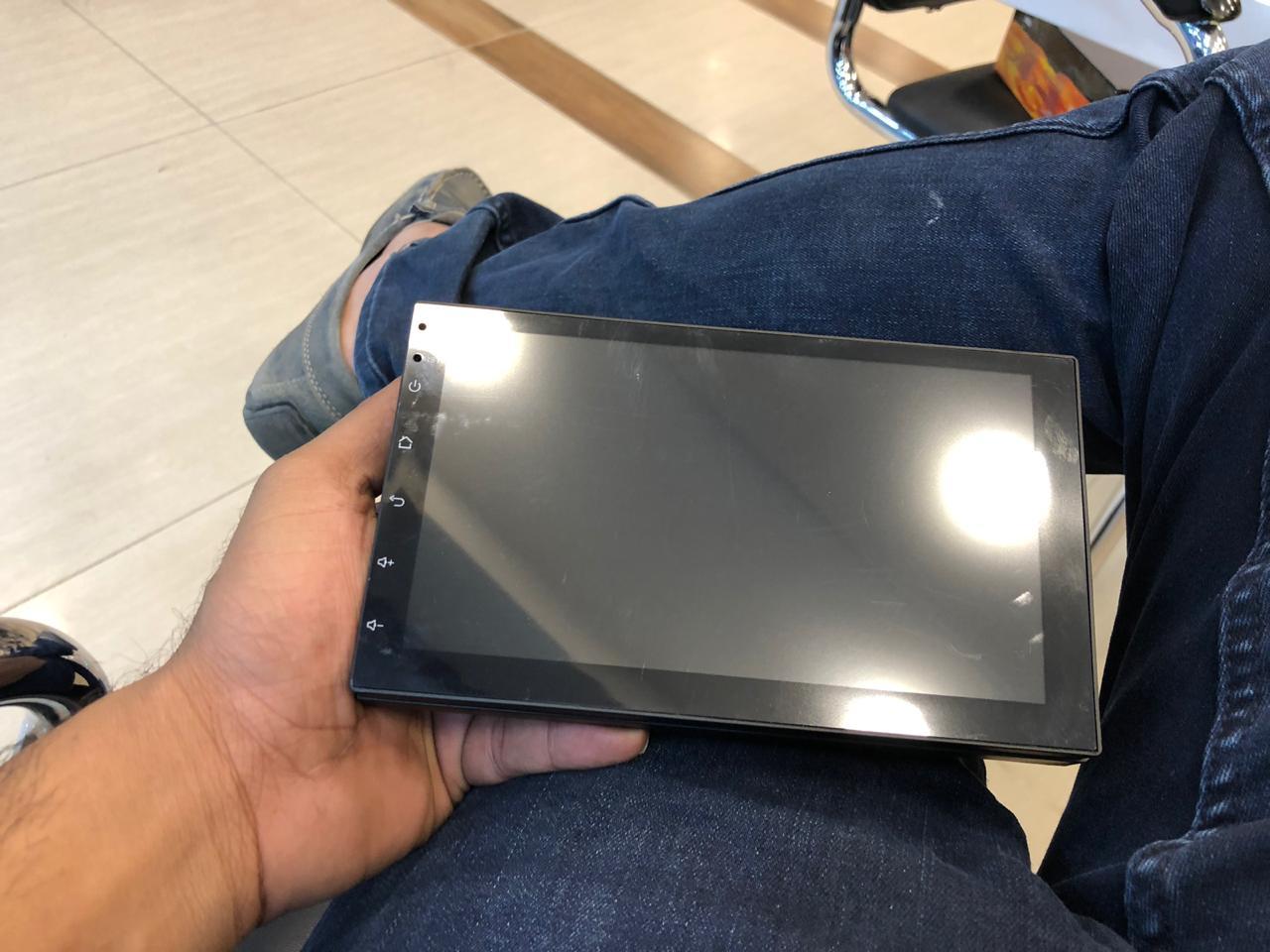

From here I took the vehicle to a car decoration shop, which is owned by a friend and we got an Android Powered, disc-less screen installed to it, a condensed bass tube was also installed under the seat (good music hurts none you see). LED tubes were installed to both headlights (i am not a very big fan of Xenon Lamps).

[zanagra]

Now came the second stage, the vehicle must have never required an air-conditioner in Chitral, but in Lahore, it gets quite unforgiving in the summers and driving a vehicle without air conditioner is next to impossible. following parts list was identified for AC Operations:

1. Internal kit (AC ducts, Evap with Blower Motor, Heating Coil)
2. Compressor
3. Condensor
4. Related Wiring, Thermostat Switch, Refrigerant Pipes etc.

Since i had the chance before to work along @hotice819 (Bilal Sb) on his LC80, I had some basic level of knowledge and connections to source parts from various parts of Pakistan. After all my research work, I have identified Rawalpindi (Ahata Mithu Khan / IJP Road) to be the best solution for pre-owned parts of these old gas guzzlers. I ordered the following parts:

1. Complete AC unit (Including internal ducts, evap, condensor, compressor).

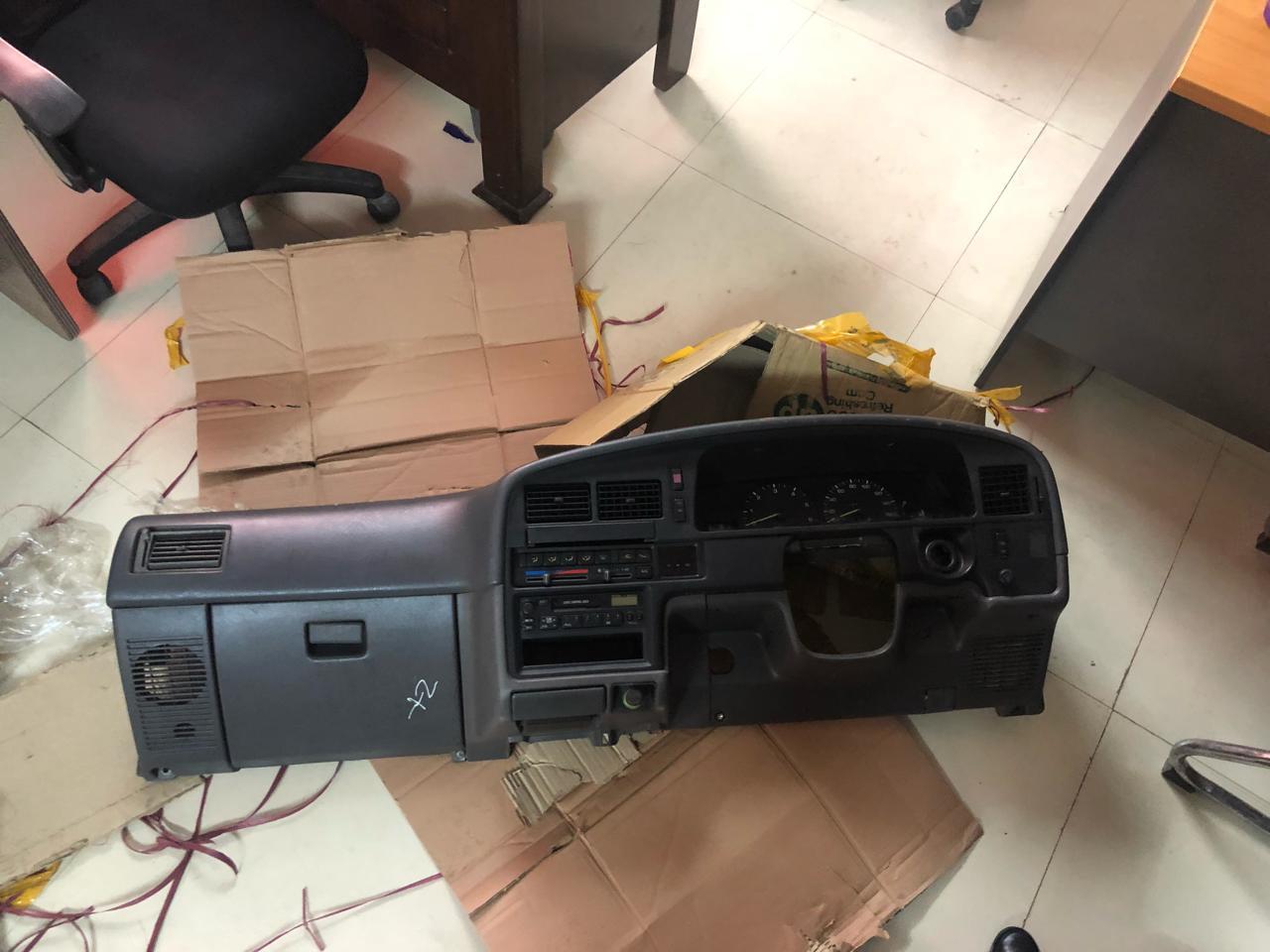

2. Complete Dashboard (It had a small crack on one side, maybe ignorable for some friends, but broken plastics is a big no for me) .
3. Cluster

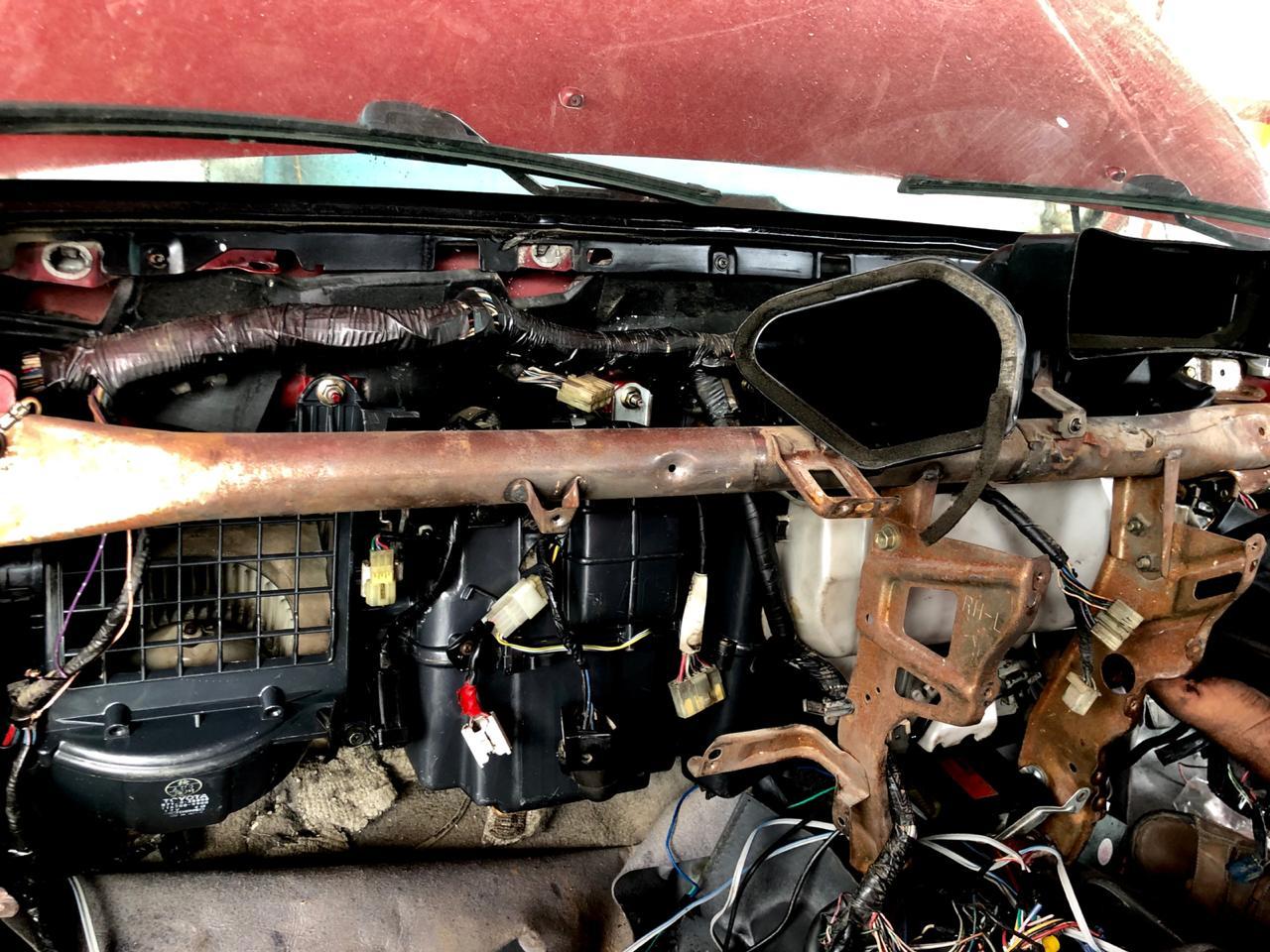

We stripped out the entire dashboard and started off with the AC Installation. It took us about 2 days in total to get the AC up and running.

[zanagra]

lets try some multi tasking...

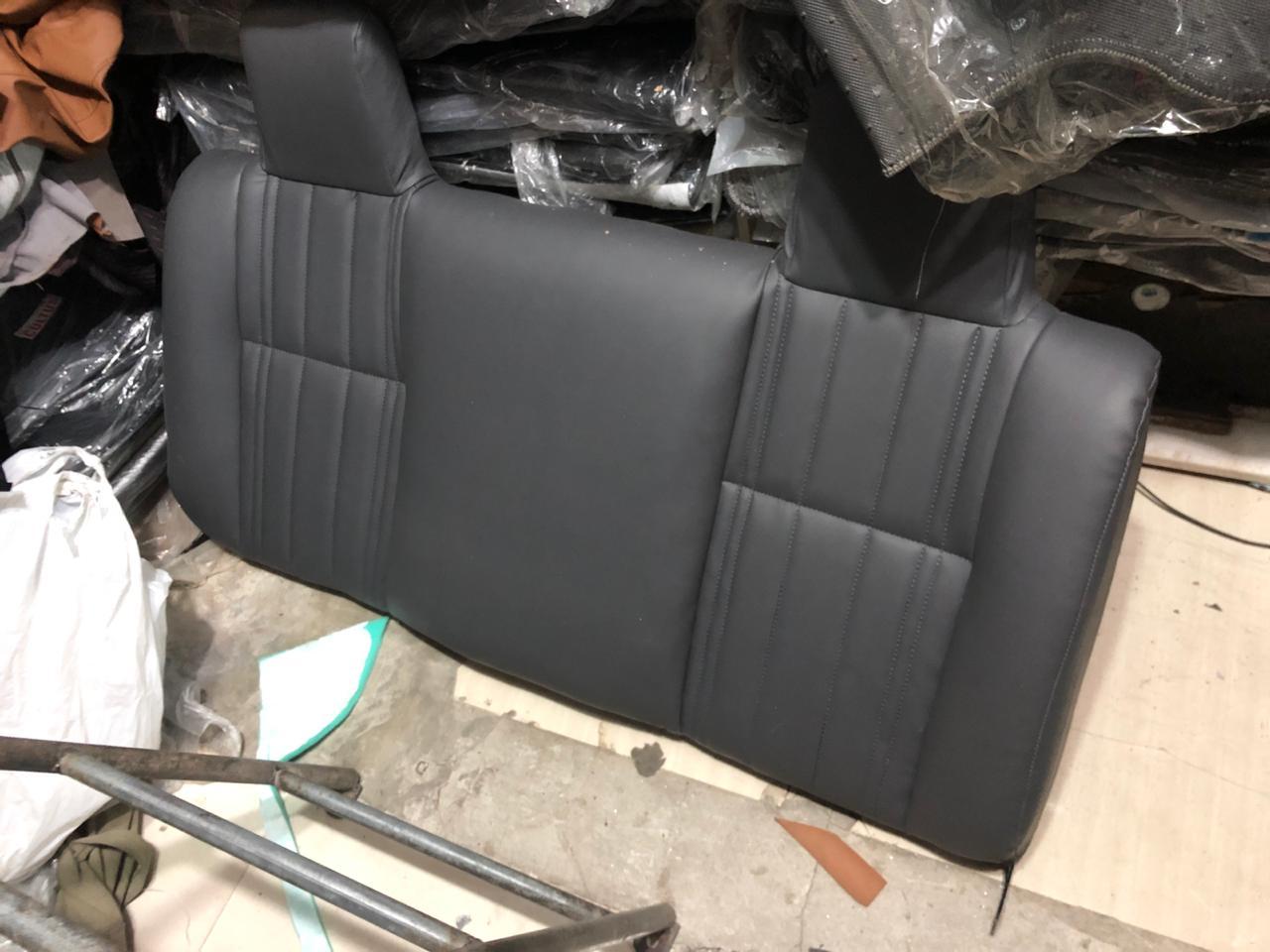

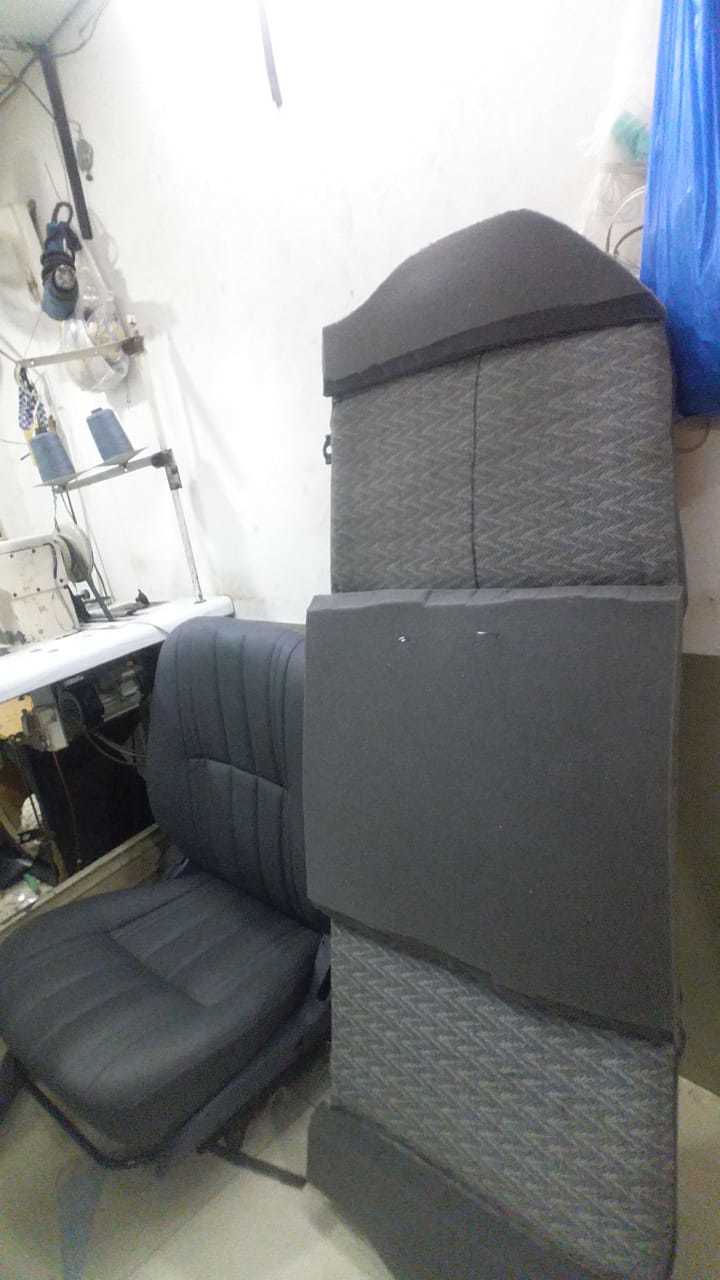

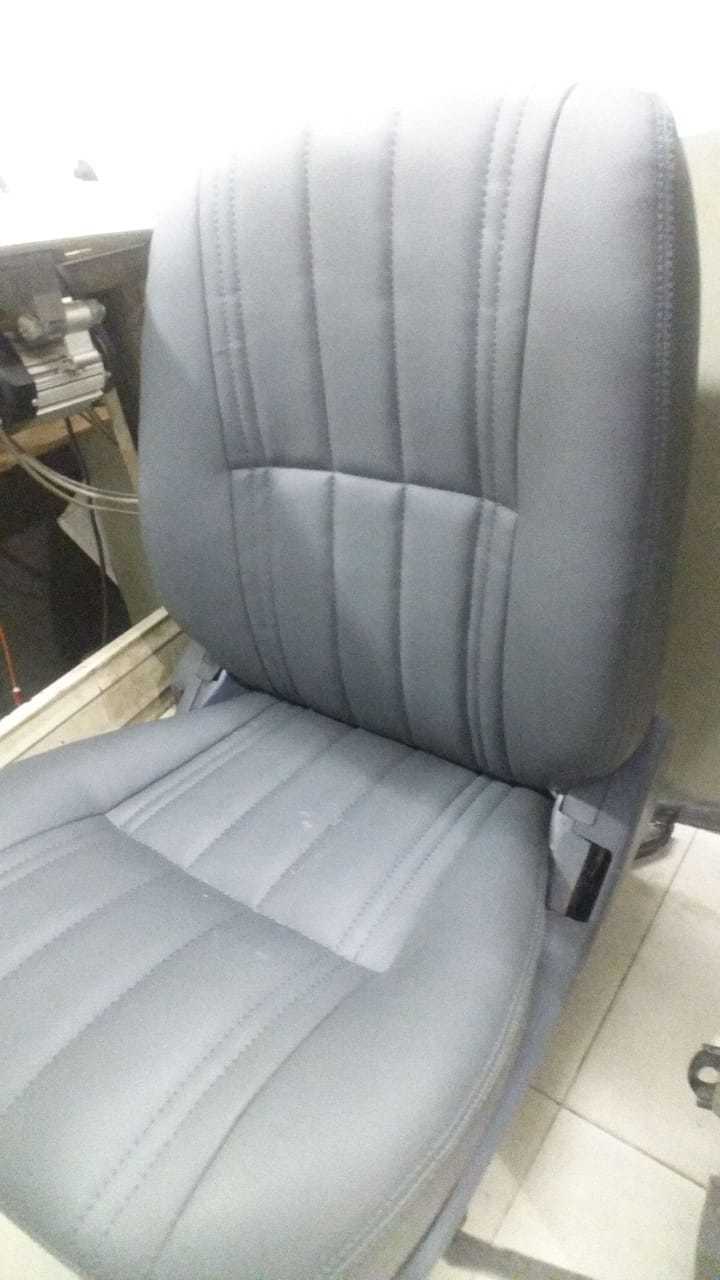

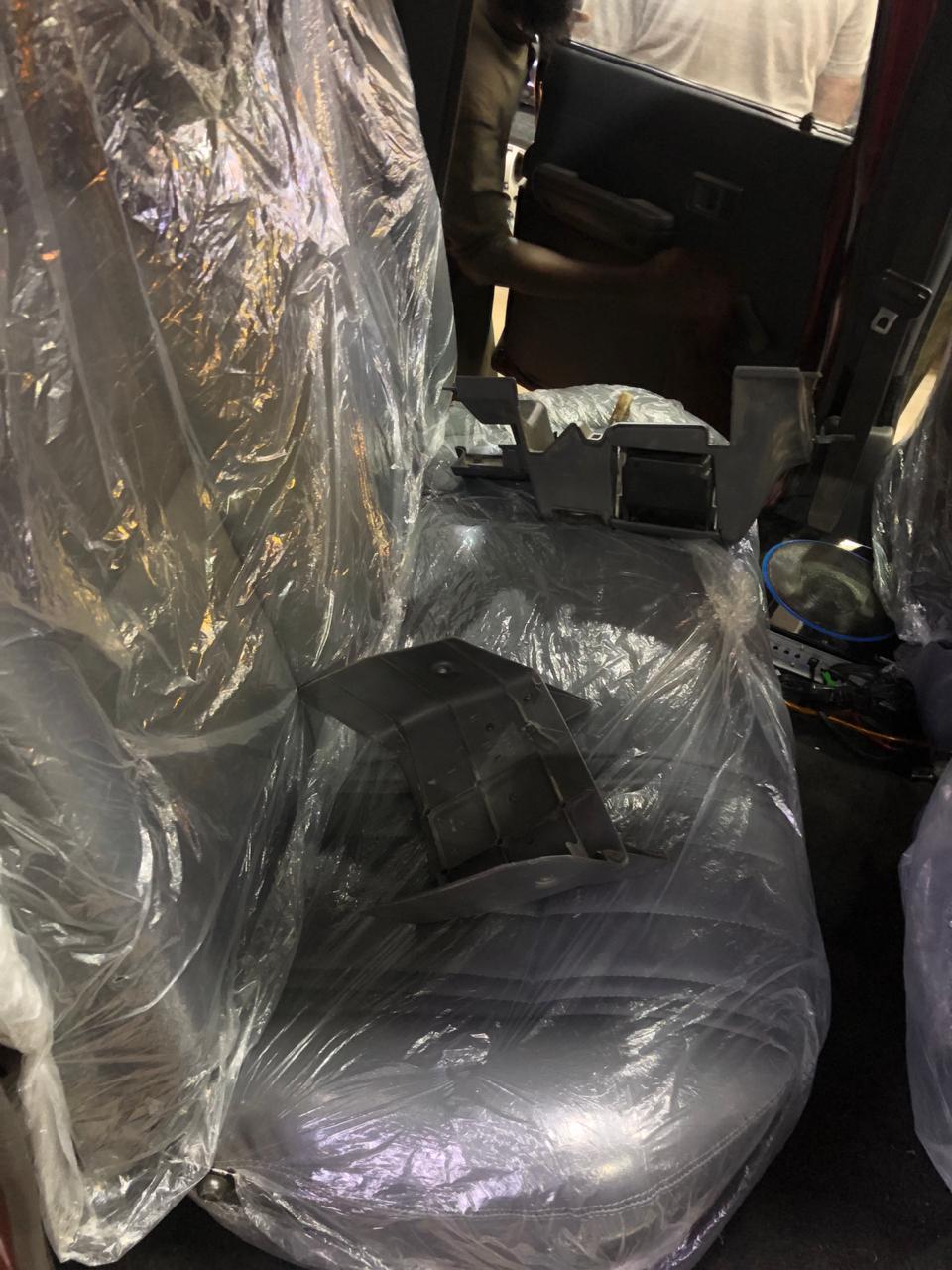

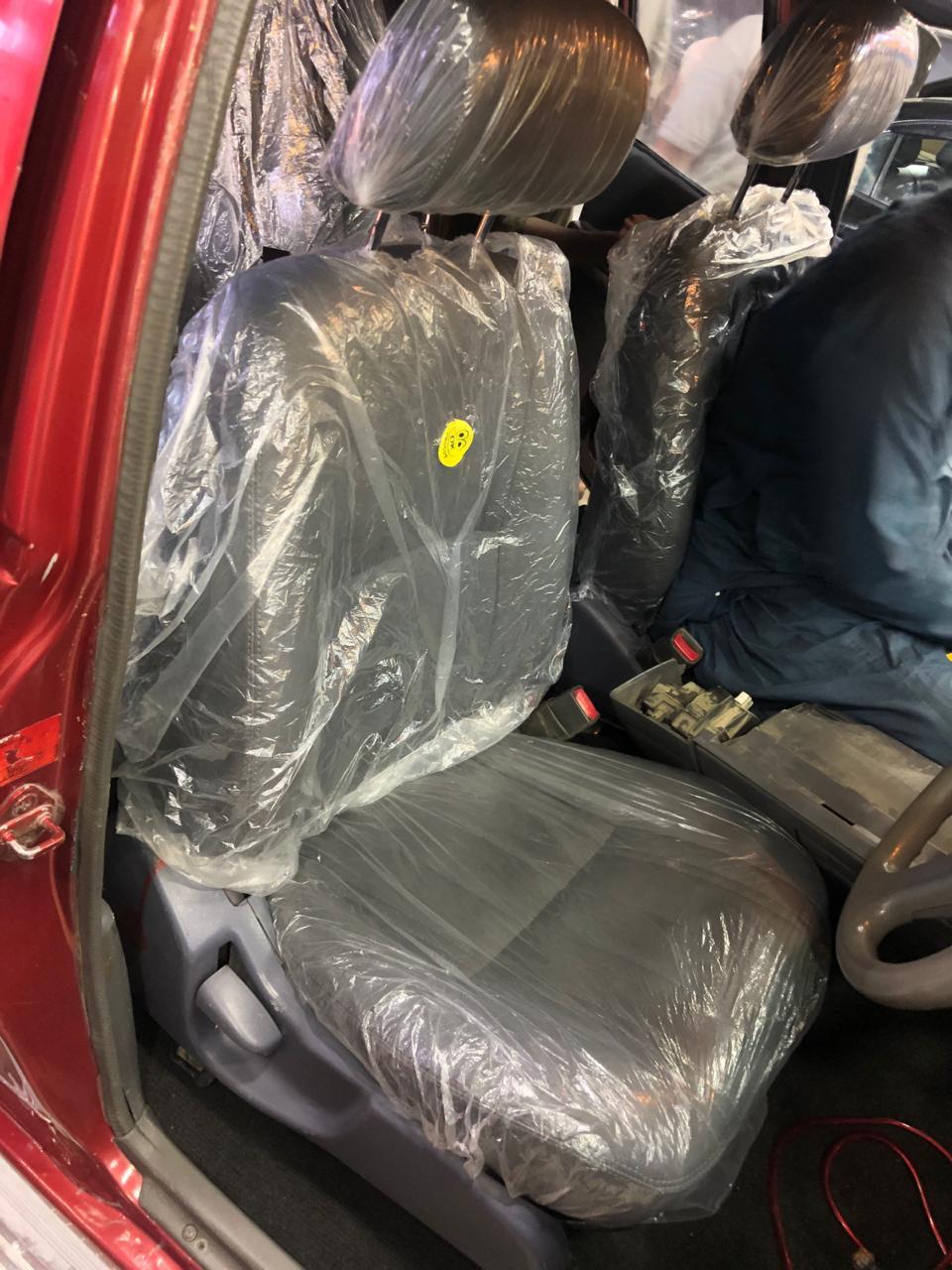

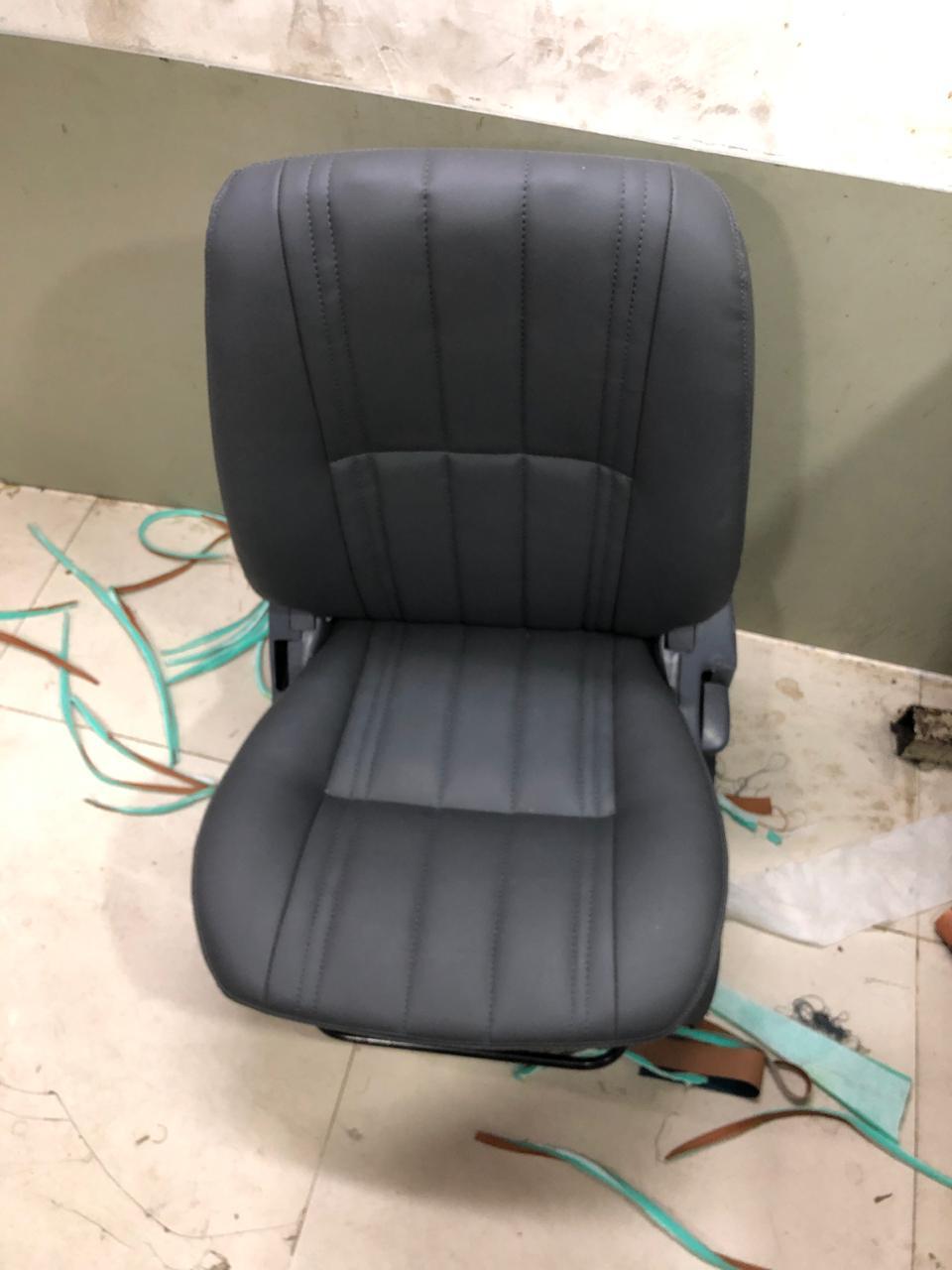

parallel to this AC job, i dropped the seats and the door cards for make over to the "Poshish Maker". Seats were re-built with additional foam insertion to make them as much comfortable as we can.

[haroon47]

Subscribed for some nice modification/restoration pictures.
How is the AC performance. Did you install stock AC setup or some alterations were being made.

[zanagra]

Subscribed for some nice modification/restoration pictures.How is the AC performance. Did you install stock AC setup or some alterations were being made.

sir through out this thread, we will stick to as much stock stuff as we can. The AC is working awesome, and yes its stock setup.

[zanagra]

coming back to the workshop, we stripped down the entire suspension. Changed bearings, disc pads, all bushings etc. performed a detailed oiling and greasing on all parts. All parts were procured and put new --- that too Toyota OEM. A little hard to find, but where there is a will there is a way.

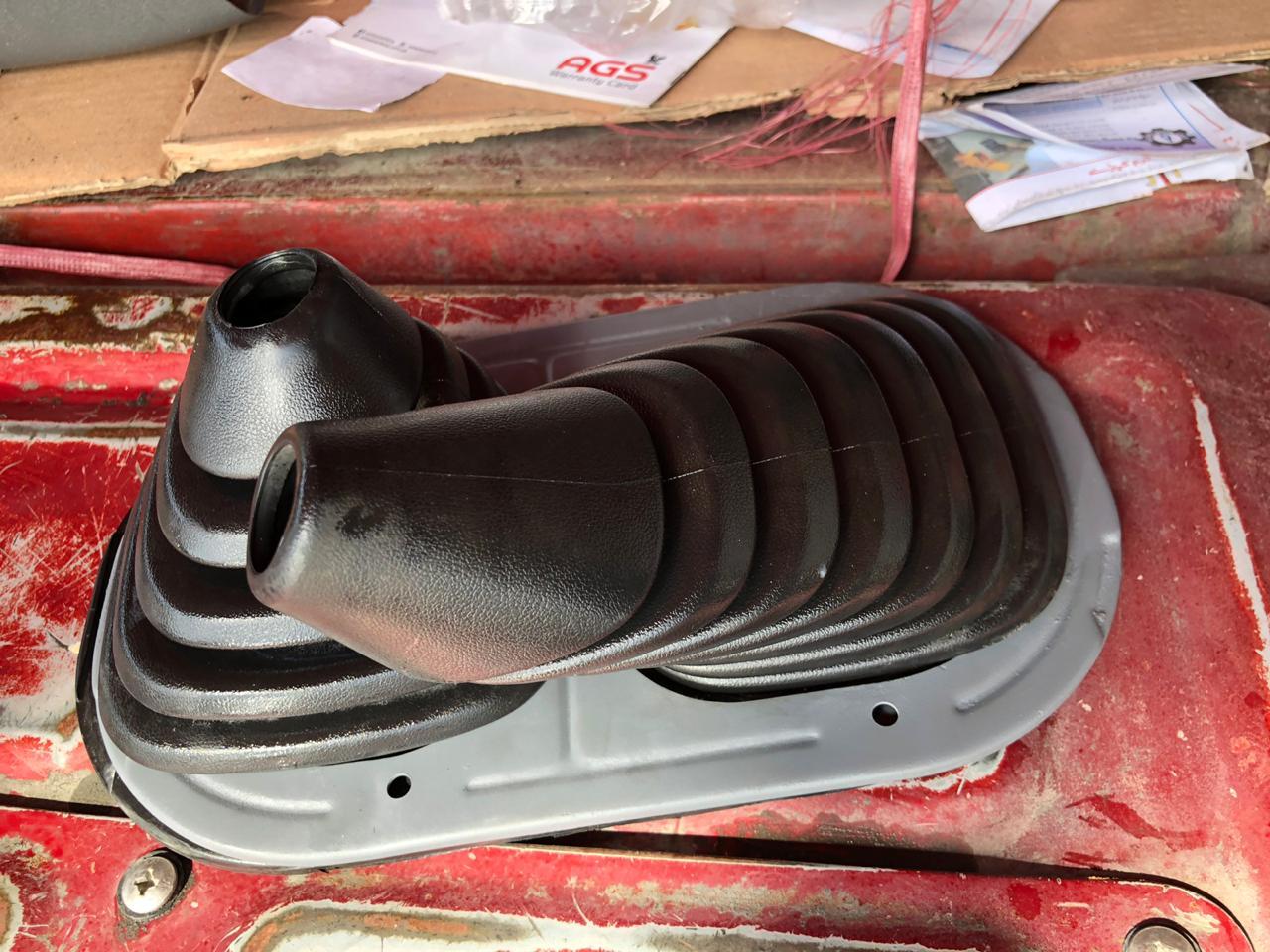

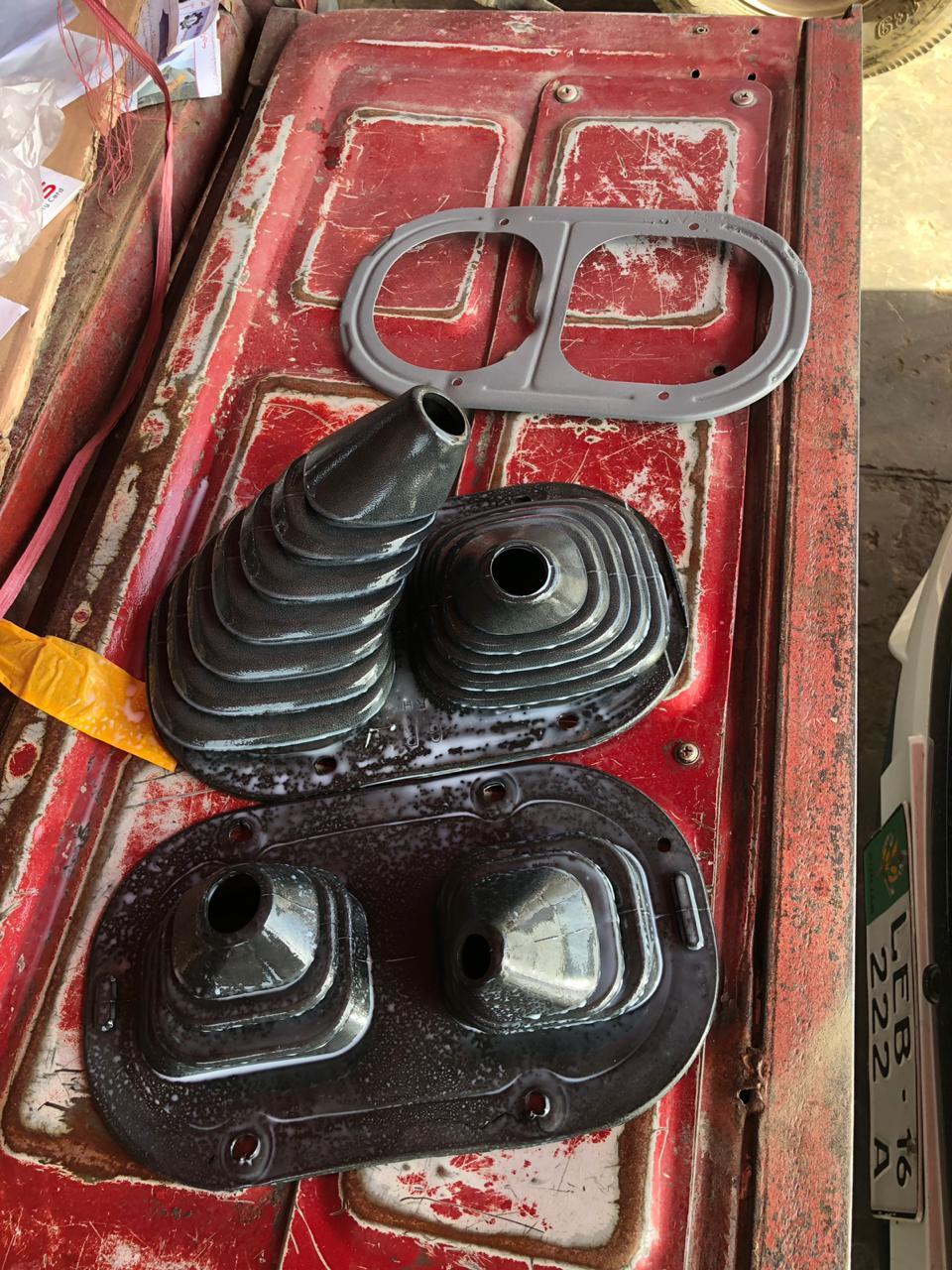

As quoted above during the initial posts, the gear lever had missing sealing rings due to which a lot of noise and hot air was coming into the cabin. For this I did a quick trip to bilal ganj and finally found all required parts.

[haroon47]

That is nice to hear.. you bought new stuff or the qabli one.

[adeel85]

Subscribed....

[capsat]

@nnabeel @omersiddiqui5482 another interesting restoration thread for BOYs

[omersiddiqui5482]

I must say one thing... You guys are doing what a Hilux was supposed to do Off Road... You are not blinging it up and are driving itbhow it should be... Best of luck and definitely subscribe.. do mention what are you plans for the engine and suspension upgrade or overhauls.

[zanagra]

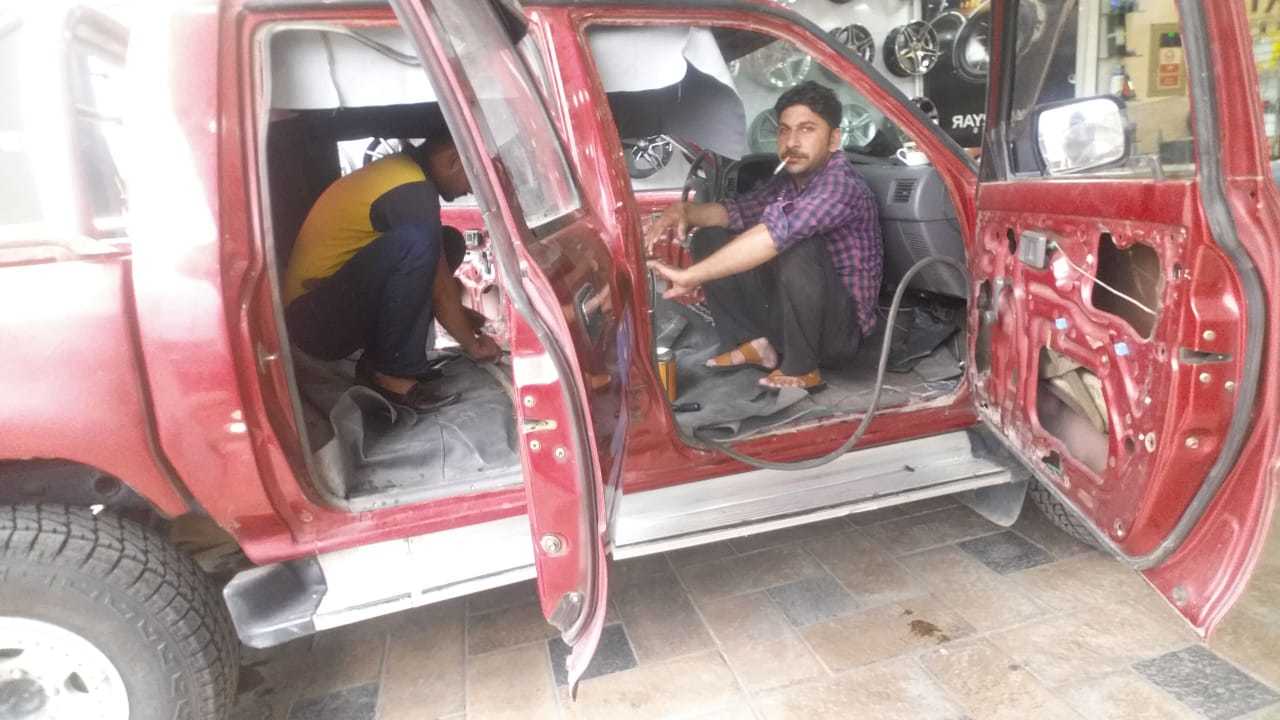

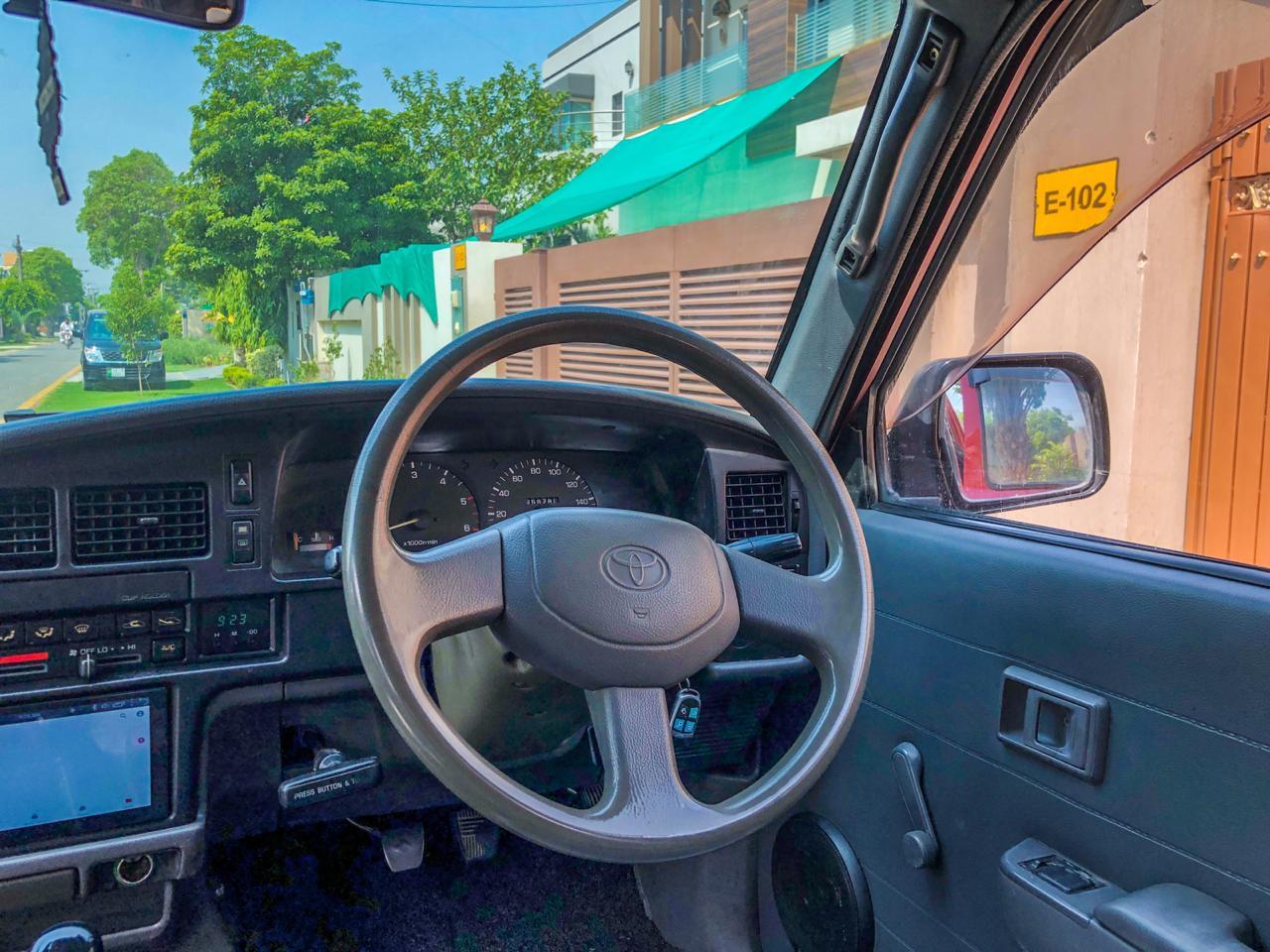

After getting the suspension work, compression test and general electrical work done, we took the vehicle to the car decoration shop again for the interior make over. Work Done included:

1. Installation of 4 speakers
2. Installation of reversing camera
3. Installation of new floor carpet

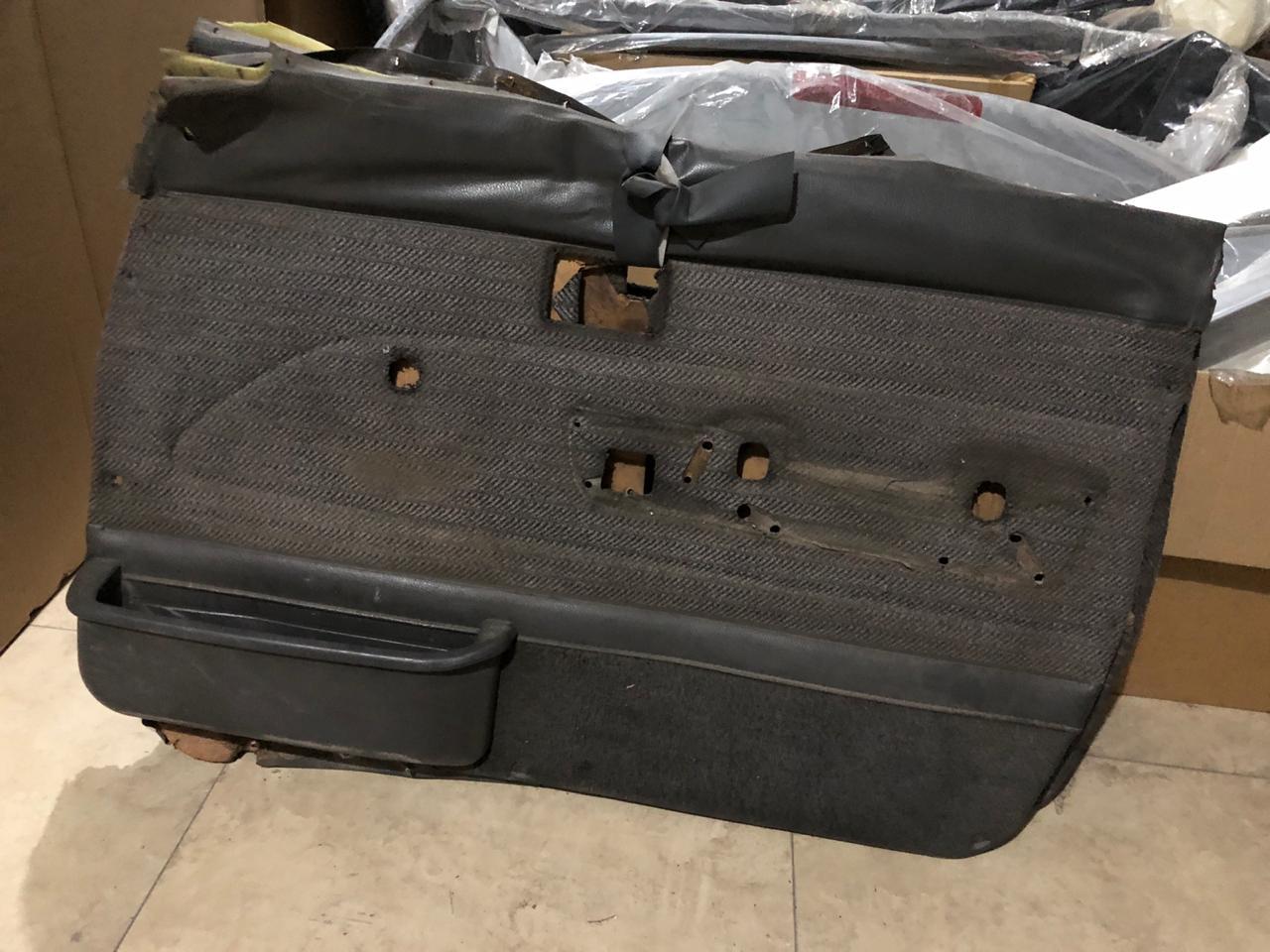

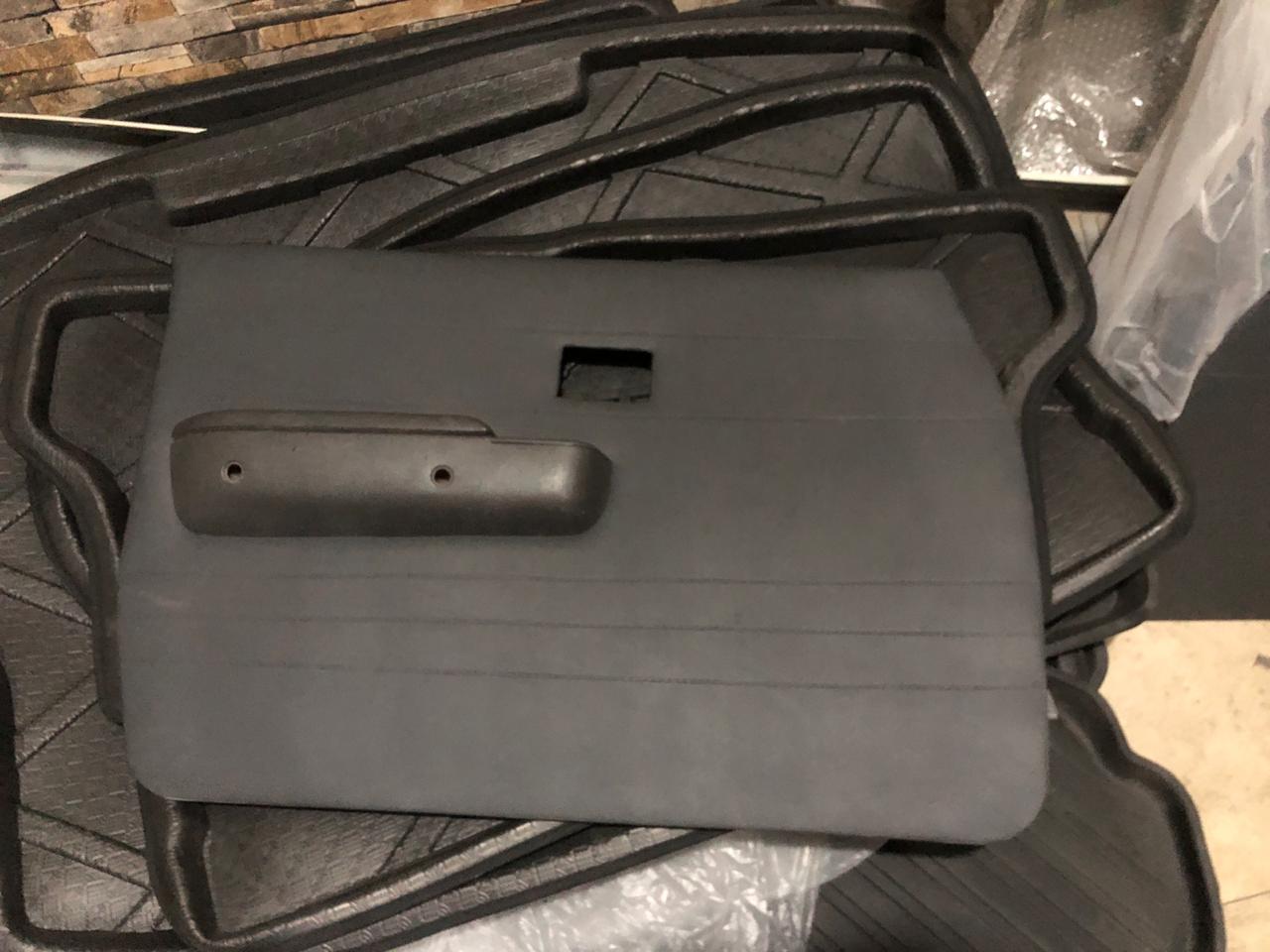

4. Installation of new built door cards

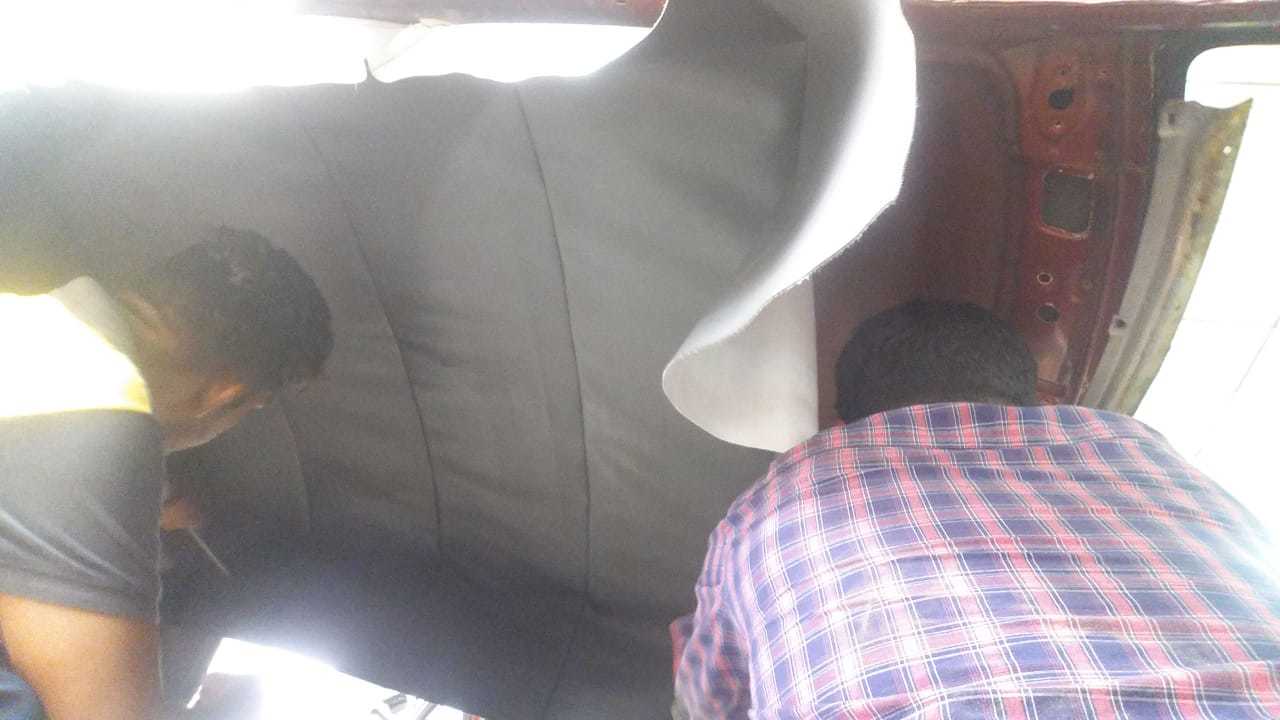

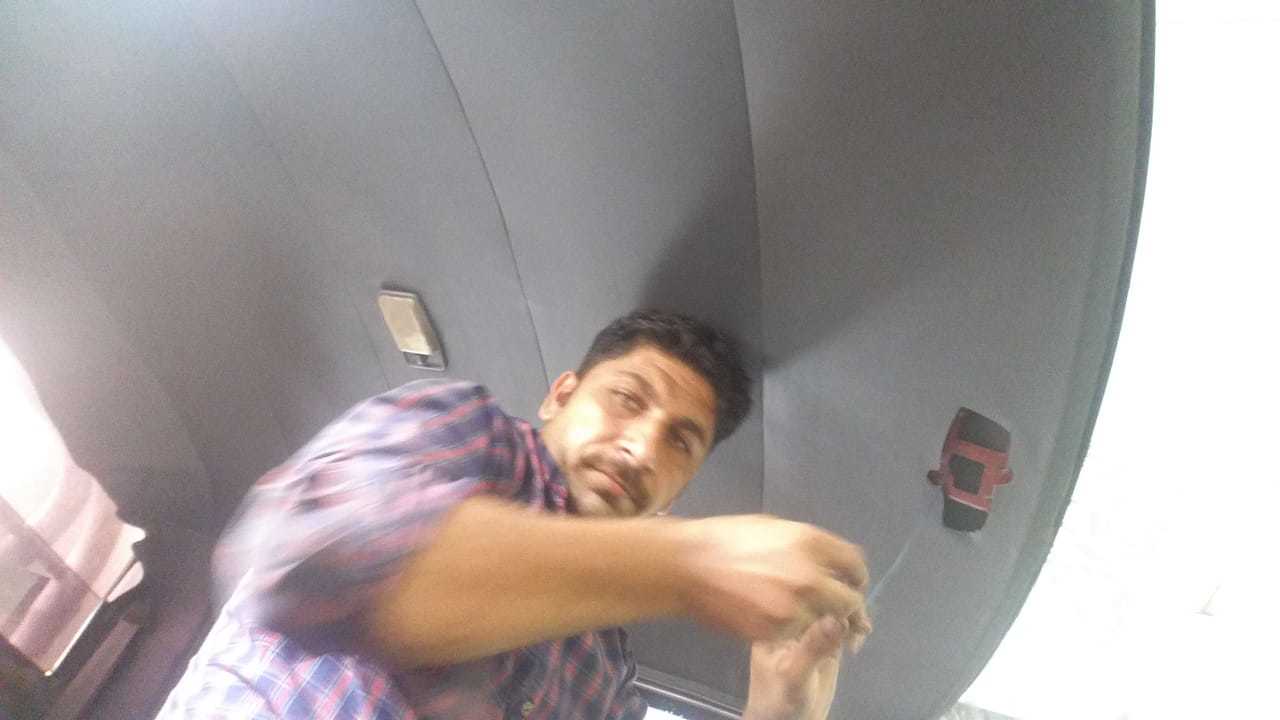

5. Installation of New ceiling (poshish).

Pictures attached herewith

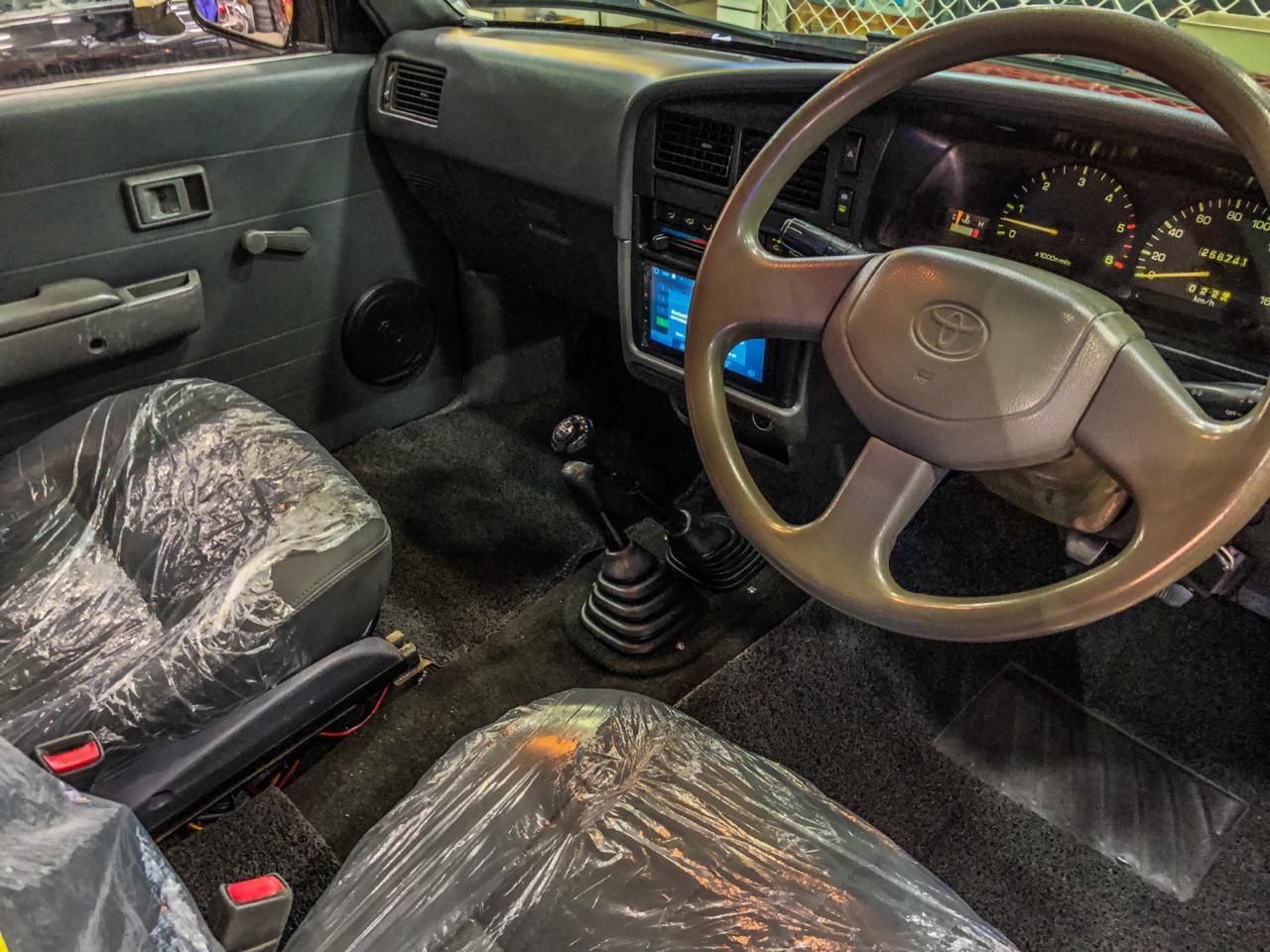

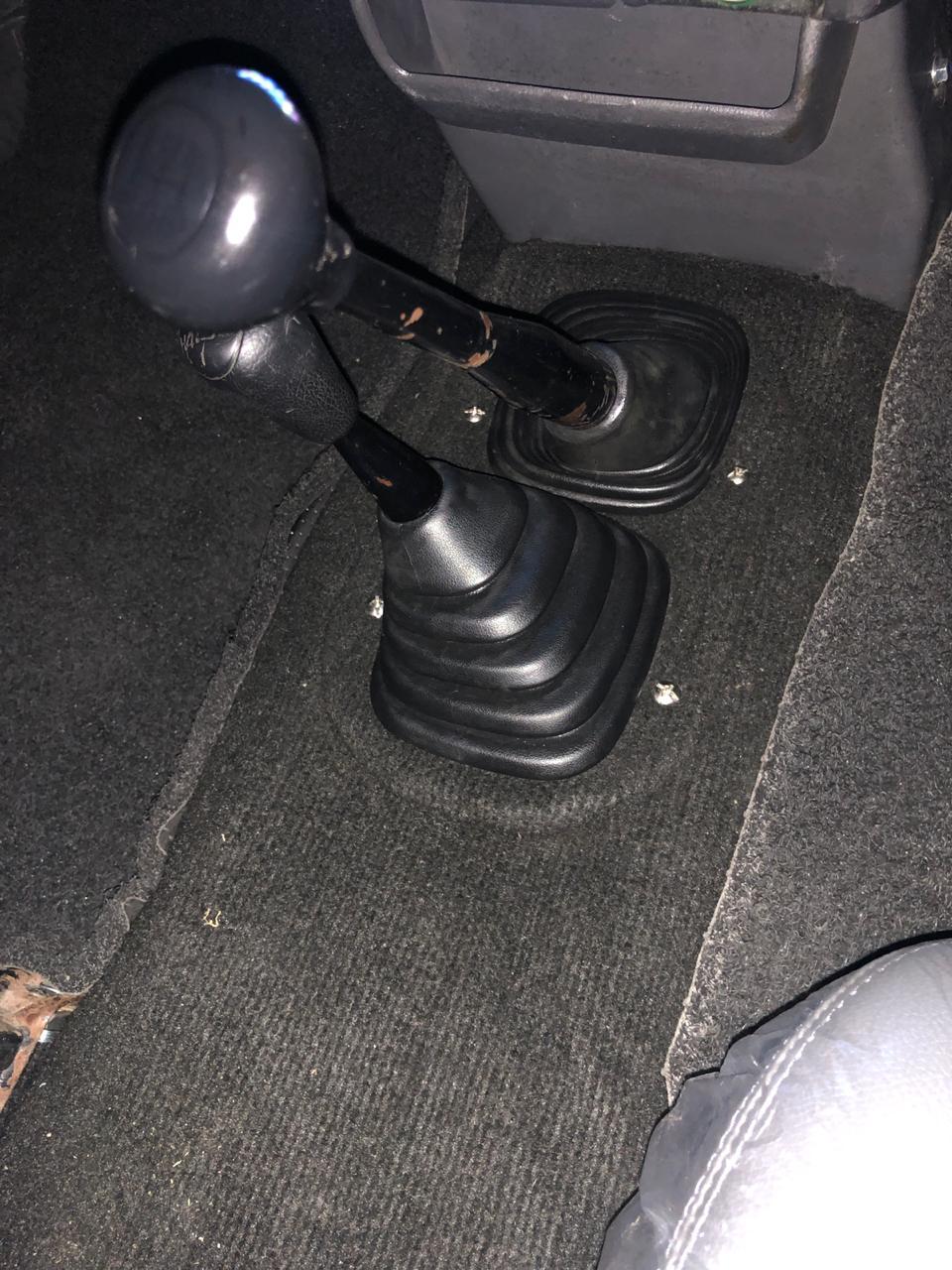

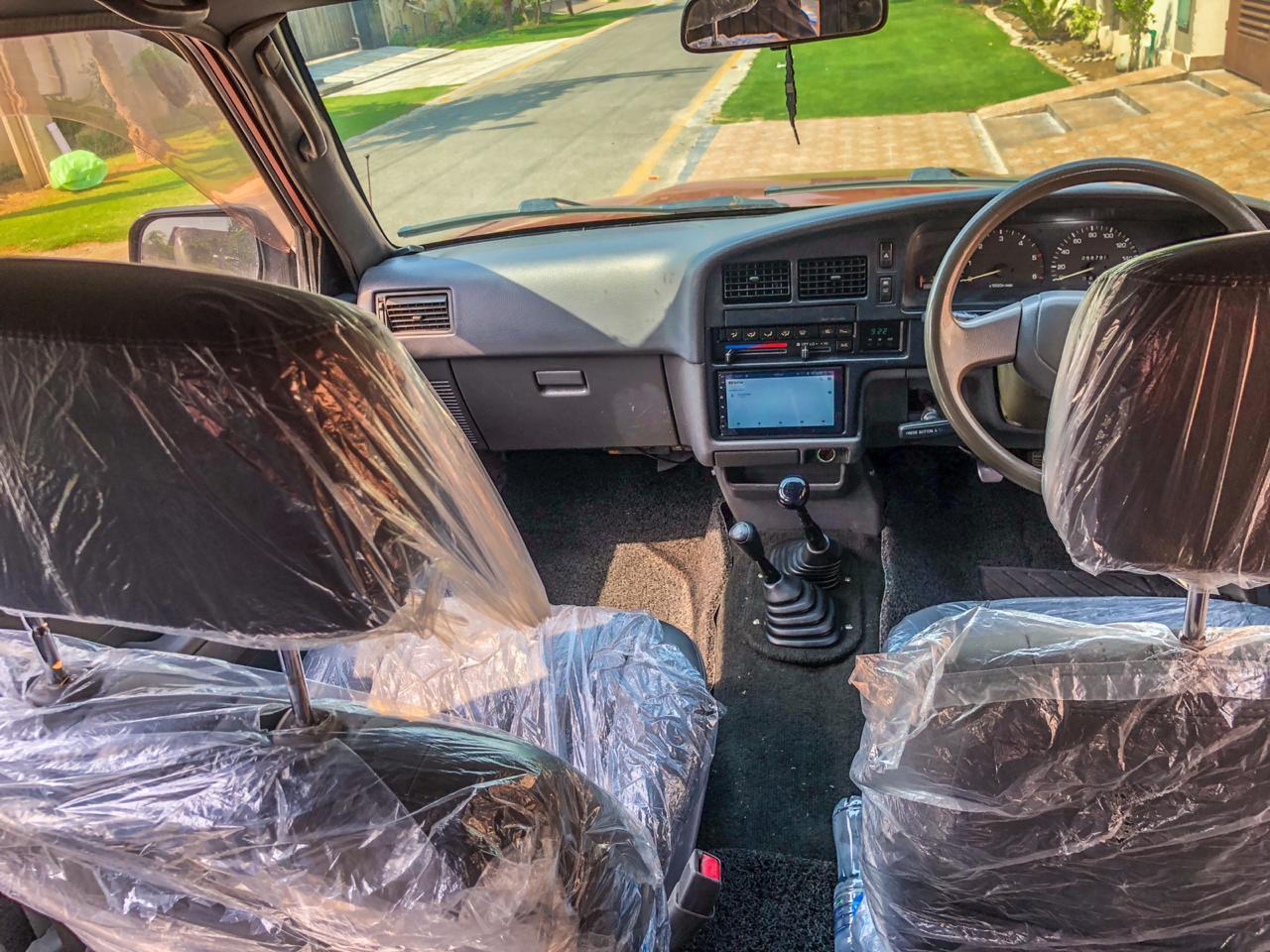

Kindly notice the gear lever once we were done with giving it a make over

[zanagra]

Where was all this work done?

I am intentionally not sharing any price / facility name. Not that I dont want to keep anything hidden, but I dont want anyone to think its a MARKETING effort done for anyone specific.

Although, if you think they did a good job, they have every right to be given a shout out. Open to suggestions from you guys!

[capsat]

@zanagra sir, when the truck is ready and up, at end of built up - before you start its NEW on / off road deployment thread, please consider sharing a list of names & places for the people who did jobs. Under your guide lines and to your required standards.

it will not be a marketing promo but an acknowledgement to their at par work level. IF & When any other PW member approach those workers with the reference to the thread or by your name they will know the quality of job they shall disburse.

2 cents

[zanagra]

@zanagra sir, when the truck is ready and up, at end of built up - before you start its NEW on / off road deployment thread, please consider sharing a list of names & places for the people who did jobs. Under your guide lines and to your required standards.

it will not be a marketing promo but an acknowledgement to their at par work level. IF & When any other PW member approach those workers with the reference to the thread or by your name they will know the quality of job they shall disburse.

2 cents

Sure thing sir, here is the list of service providers:

1. Mechanical / Body Shop Services
Auto Care Experts
Contact Person: Mr. Zeeshan Hashmi (0321-8404525)
Google Map Link: https://goo.gl/maps/V27qmyWNo8JzC9fP7

This a structured workshop, has a facility of body shop, mechanical shop, paint booth, fabrication and latest standard diagnostic tools (compression, scanners etc.)

2. Interior Work
Sheharyar Traders
Contact Person: Mr. Hassan Baloch (0321-4638665)
Google map Link: https://g.page/online-car-accessories?share

Dealing in car accessories, seat covers, Electrical (Lighting / Sound), Facelifts, Body Kits, Detailing Equipment, Detailing, Installations and Repairs

3. Pre-Owned Parts
Sourcing them from "Ahata Mithu Khan" Rawalpindi
Contact Person: Mr. Tariq (0300-5686009)

Specialised in all SUV (Which ever brand) Pre-Owned parts (Kabli), Using Daewoo Cargo services for dispatch.

[capsat]

Drive carefully, exercise caution we are under wrath of nature. Allah (swt) keep us all safe.
Thank you for your kind consideration sir , stay safe stay blessed.

[arsal396]

bhai dash fitting se pehle ac ka bhi kaam krwa lete..

[arsal396]

or dashboard k p che k holes ki isolation bhi kerlete.
