Download the data sheet of mosfets to check the specific resistance between terminals
Check shortages before and after them. They would be the last one to blow up.

[horticulturalist]

@helper_learner
Bad news, fb3306g is not available in Peshawar any where. An alternative 85T16 is also not available.

Should I check the mosfet in the board or removed from the board?

I heard from the youtube that the corresponding IC 3525 must be replaced, or else all the 3306 will blow again. So first I need to check 3525.

[horticulturalist]

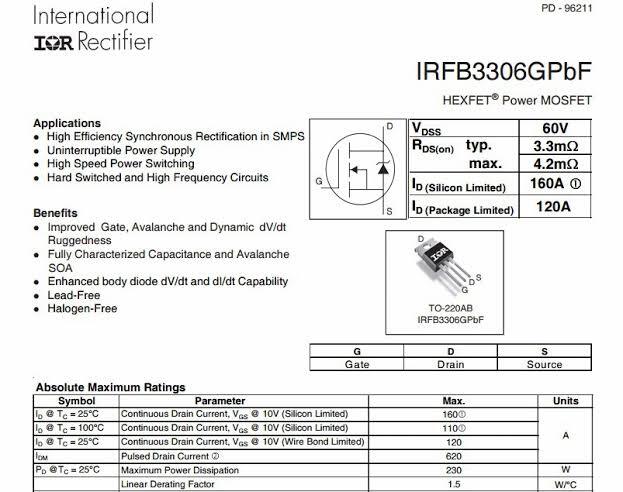

@Hassan1991 bro, are these the data sheet for 3306 and 3525?


Please guide me, I am not very expert in it.

[helper_learner]

Bad news, fb3306g is not available in Peshawar any where. An alternative 85T16 is also not available.

@Hassan1991

Is this ic replacable with https://www.majju.pk/product/irfb3307-fb3307-n-channel-mosfet-transistor-75v-130a/

?

@horticulturalist

Wait for confirmation from @Hassan1991...

I believe you can buy the one i have pasted as link...

[helper_learner]

or else all the 3306 will blow again. So first I need to check 3525.

All of them are not blown at first place... only 2 of them are... so i don't think it will cause trouble...

[horticulturalist]

Yes I will wait for hasan brother to confirm the alternate.

Btw, I asked from a ups technicians, and some videos on the youtube, they said if one mosfet is blown, all will be blown. The problem is that I don't have correct idea of how to test them. There are all different methods and I don't know which to follow. 2ndly, should I test them in the board or out of the board. Once I repaired a ups in which the mosfets were giving incorrect reading, but corrected after I checked them soldered out. So thats confusing.

For now I have to wait for someone to arrange the mosfets. On daraz I found them and it will take 20-30 days to reach me .

What has happened to our country that electronic parts are scarce now?

[Hassan1991]

Rds means drain to source resistance. You can check that.
No you need to check them before placing on the board.
You can buy mosfets in markets or can find alternatives. Find the complete list of IRF mosfets online. Will be easy to find alternative.
@helper_learner let me check.

[Hassan1991]

Here.
https://www.futurlec.com/TransMosIRF.shtml

[horticulturalist]

Ok thats helpful. I will check them by removing from the board.

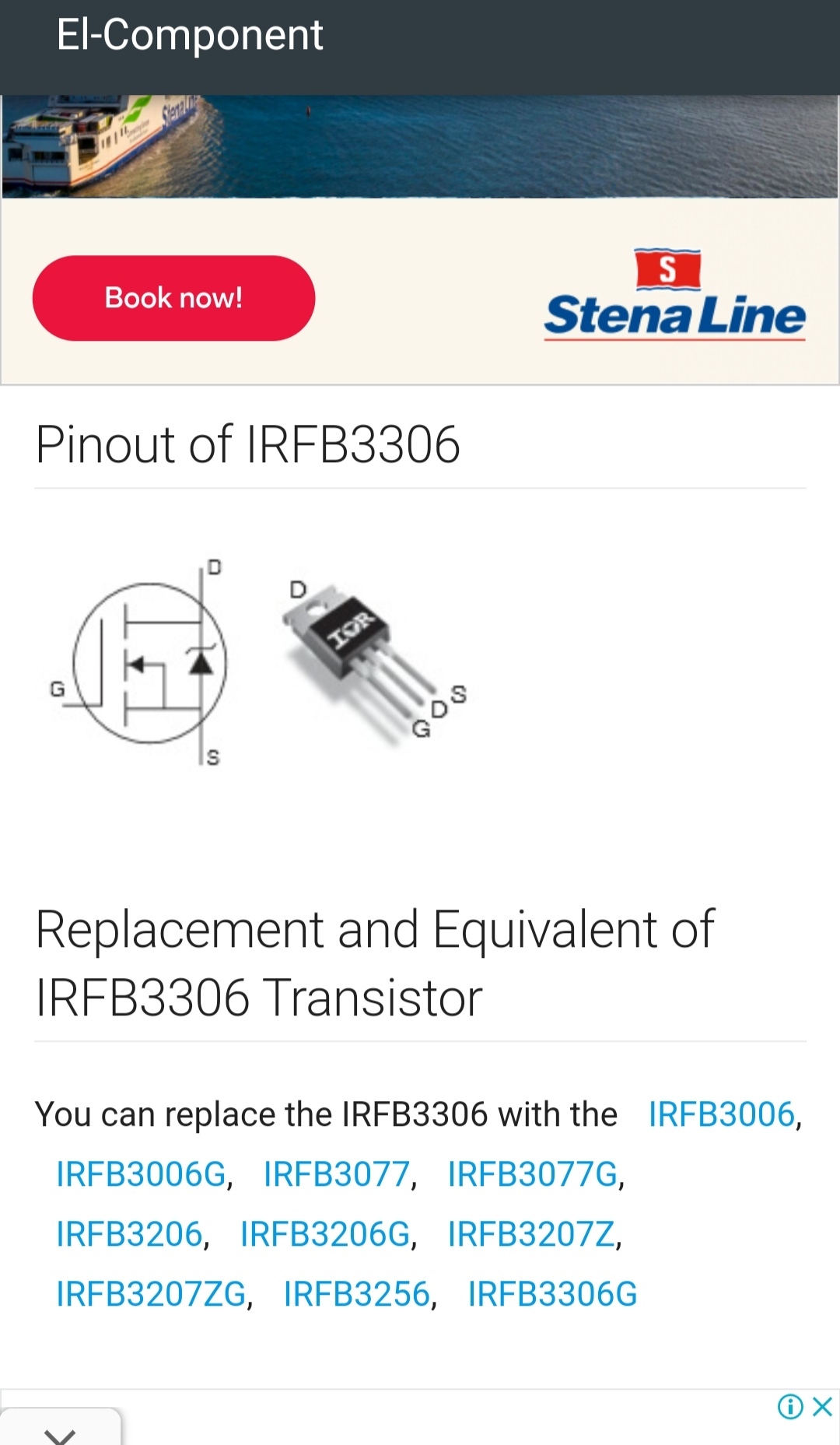

The link you provided doesn't have 3306, how can I find its alternative? Is there any other link?

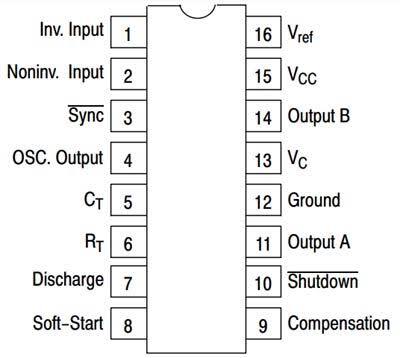

For IC 3525, in continuity mode, if I touch the negative lead with ground (12th pin) and positive with all other pins one by one, will it give me a beep if there is a short? Is this the correct method of checking an IC?

[horticulturalist]

Ok I found something. Seems ok. Am I right?

[Hassan1991]

Mosfets are rated as Drain current and drain/source voltages. Rest gate trigger voltages are usually ~20V.
No you cannot check IC like that you need internal schematic of IC.
Yes these are the alternator. Look for similar voltage and current rating. For example. IRF1405.
Trigger sensitivity matter as well.

[Hassan1991]

@helper_learner new is better.
not sure about price of this specific model but i recently bought one for my grinder for ~900.

[Hassan1991]

Couldn't found any alternative to 3525 IC.
But found online.

[Hassan1991]

[helper_learner]

Will Search for it today IA

[horticulturalist]

New is better? Is that reply regarding my issue?

[helper_learner]

No, my issue...
