Civic 1999-2000 conversion from manual to cvt multimatic gear

[adilraza]

I had been thinking of doing civic 1999- 2000 manual to cvt multimatic tranny conversion for a while. So Recently after having an accident when the car was in the workshop I decided to go ahead with the mini project.

Existing setup
Car pkdm 1999 civic
D15b dual VTEC engine manual tranny with p2j-j11 obd2b ecu (jdm)

Targeted setup
D15B dual VTEC cvt m4va tranny with p2j-j71 obd2b pcm (jdm) along with engine wiring.

After consulting alot of people i.e mikanek, Efi wiring wale famed cocky dudes at pindi islu and peshor and kabarhie from shoba and sultan ku I came to conclusion that I had to do the wiring part my self as every tom dick Harry was of the view k ye setup nahi ho sakta or hm ne pehle bhi koshish ki ha or nakami hui ha and that I should give up on this project. Some were of the view that the gear wouldn't start even if the whole wiring was swapped from the jdm of similar model.
I went ahead with the project and installed the gear with all its modes running successfully. It was all a game of 10 wires from pcm.

[shoaib657]

Well done sir
How is the result

[adilraza]

Well so far no issues except for a whining noise from the gear in reverse and slightly less whining in forward drive. Will replace it with a good one as was the original deal. By the way the gear is cheap costs around 8 to 10k. Even if disposed of to kabarhie sells off for around 6k on weight base. So I think replacement at any time is not a big deal.

[farrukhzeeshan]

اعلئ

[humayun.chughtai.7]

Zabardast ... Do post some pics of the project & some wiring details for the help of others in future.

[adilraza]

Any person with a little knowhow can do it. I will post the ecu pinouts that are related to E and S mode selection switch and the differences from a manual for North American Honda Civic manual available for free online. Also the econo light indicator pins In-sha-Allah. Any one interested should Go for 1999-2000 civic setup as the pcm does everything and less hassle involved.

[pwuser150565469533]

Hi adil bhai. I am going for a d15b 3stage vtec setup with multimatic transmission, i would like to have your help as you are already running this setup. Cn you plz inbox me ur phone number on huryz_17@hotmail.com JazakAllah

[adilraza]

Sorry bro I didn't visited the site for a while. Saw Ur post two days back. I can help you out let me know what r Ur goals?

[Assassinzz]

Salam. Do you have that P2j-J11 ECU with you?

I being a novice, swapped D15B dual vtec in my civic 1999 D16y8. Only assembly. Mechanic didn't informed me that for Vtec to kick in I need a matching ecu and wiring. Currently, I'm running my car with stock ECU of D16Y8 and fuel average is not that good. Can you please help me in this. I'm based in Lahore. Thanks.

[adilraza]

Yes I do have the ECU along with uncut complete wiring. But I m not sure how much is it gonna improve the fuel economy. When I was running this setup my car used to give between 10.5 to 12 kmpl in urban driving with Ac on all the time and casually without focusing on the goal of achieving economy. On long route m1 and m2 or gt road14 to 18 depending upon the speeds and The Tyre configuration. 18 could only be achieved running without Ac and with stock Tyre width and speed of 90-100.
So I wonder what economy goals do you have in mind? You can also pm me for further assistance.

[pwuser158919963435]

hello adil raza yaar bro thri help chye apki yeh bta skte hain i have d15z7(jdm) engine assembly in my car with 3780-P2M-N91 pakistani ecu and fuel average is 5 with ac kuch bhi karlo map sesnor bilkul set he bht sare tom dick herry (Electrician) k pass se hukar agya card change karne ka bol rhye hain ready to change card because vtech is not kicking in and average as bad as i said..help me out

[pwuser159440026123]

Aoa baie as gaer ka diagram ki zarort ha gaer shifting ,S,E and P,R,N,,D,L sy TCM tak waiting diagram ,garei main d15y5 eng aor M4va gaer ecu j62 ha plz jetni jaldi ho sakey

[adilraza]

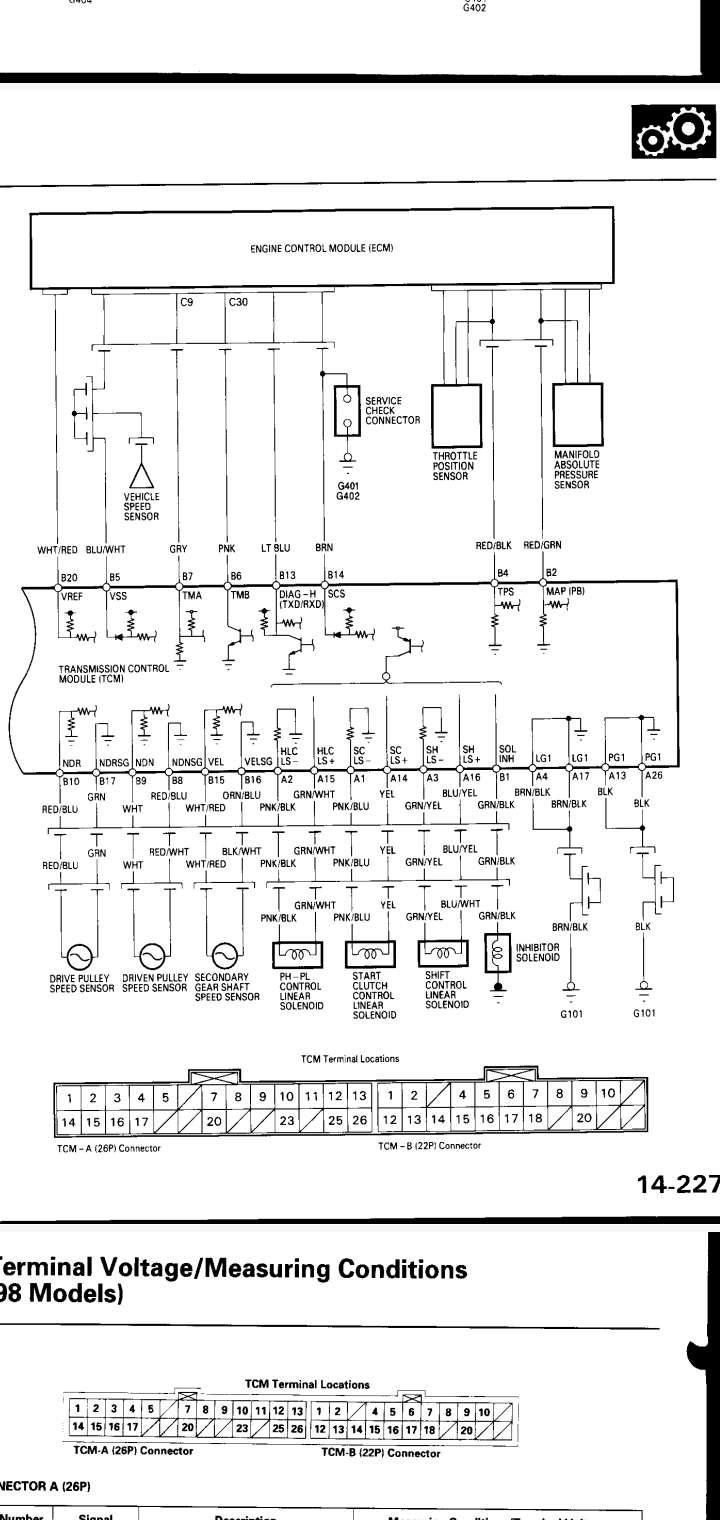

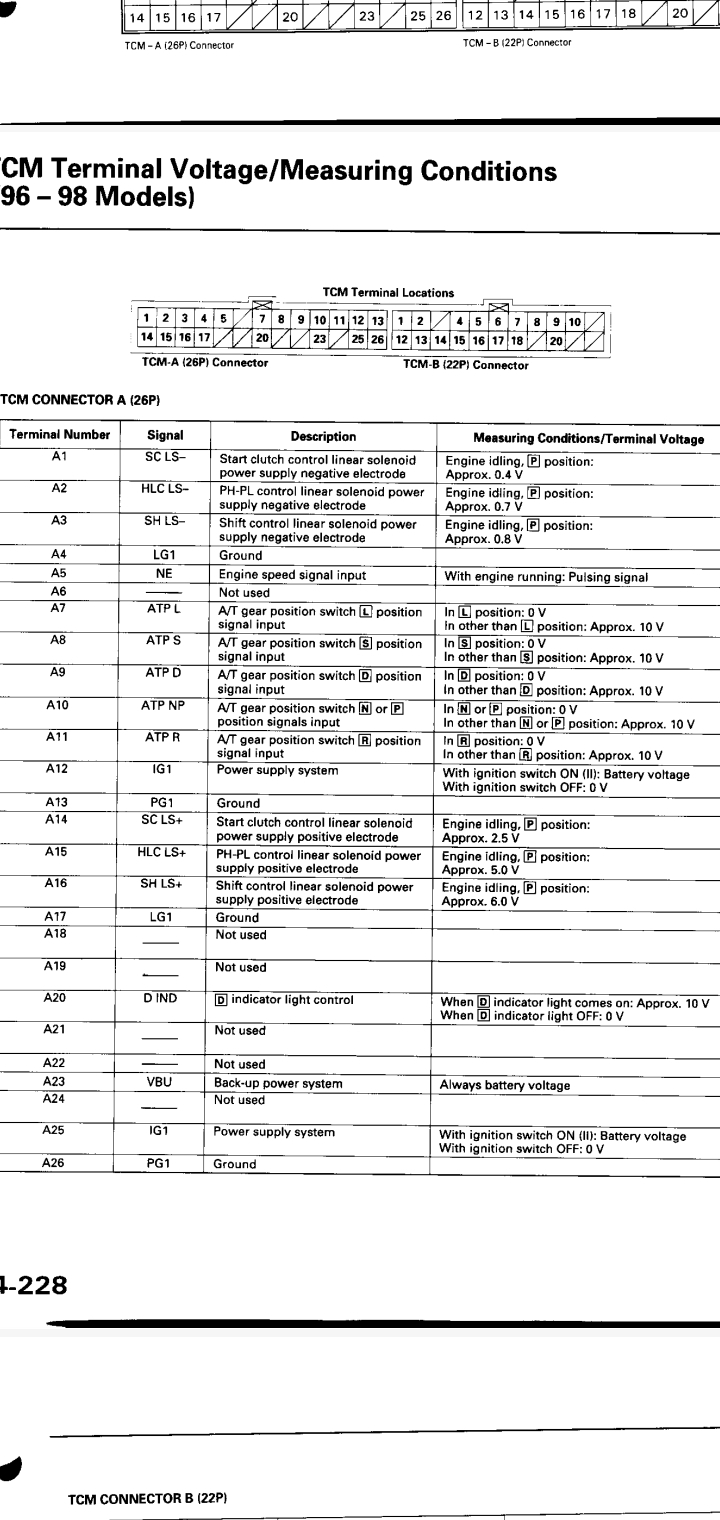

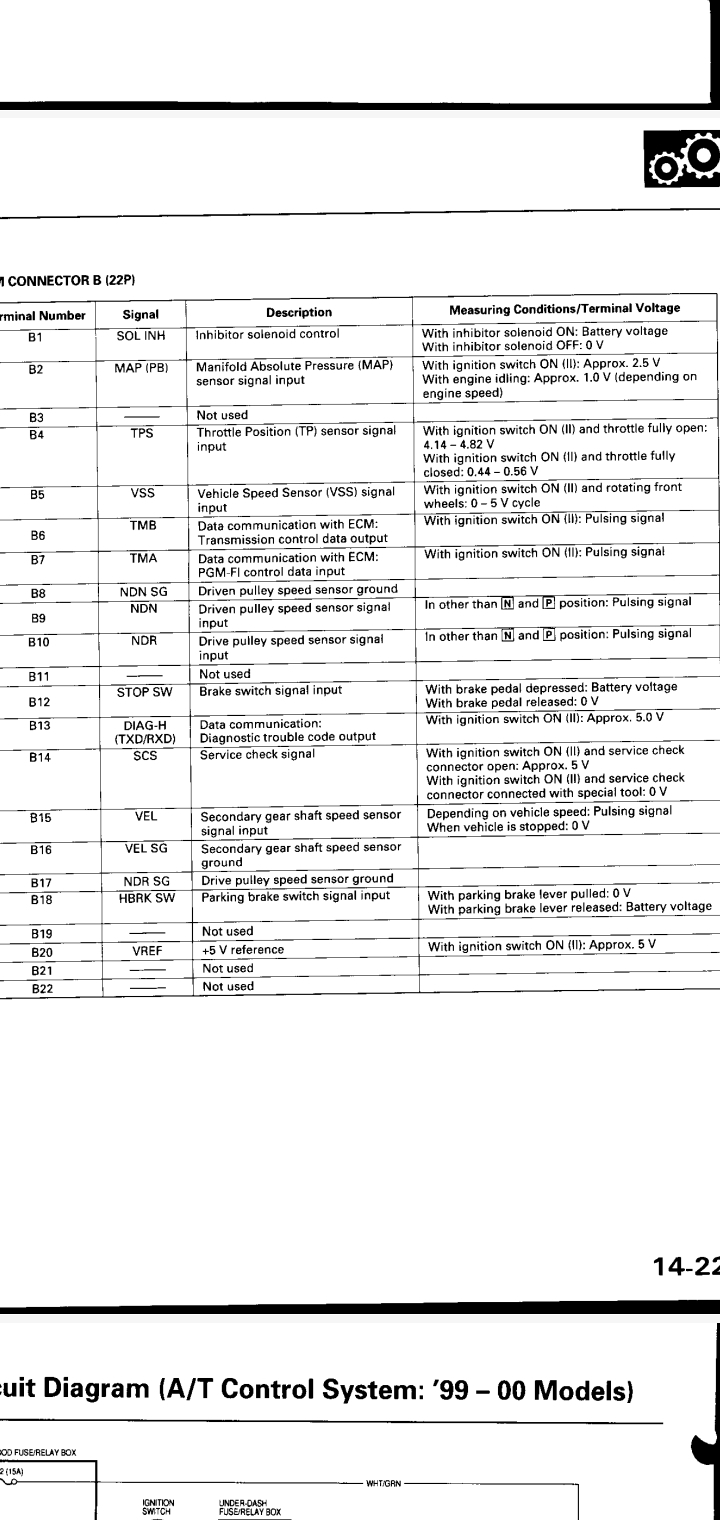

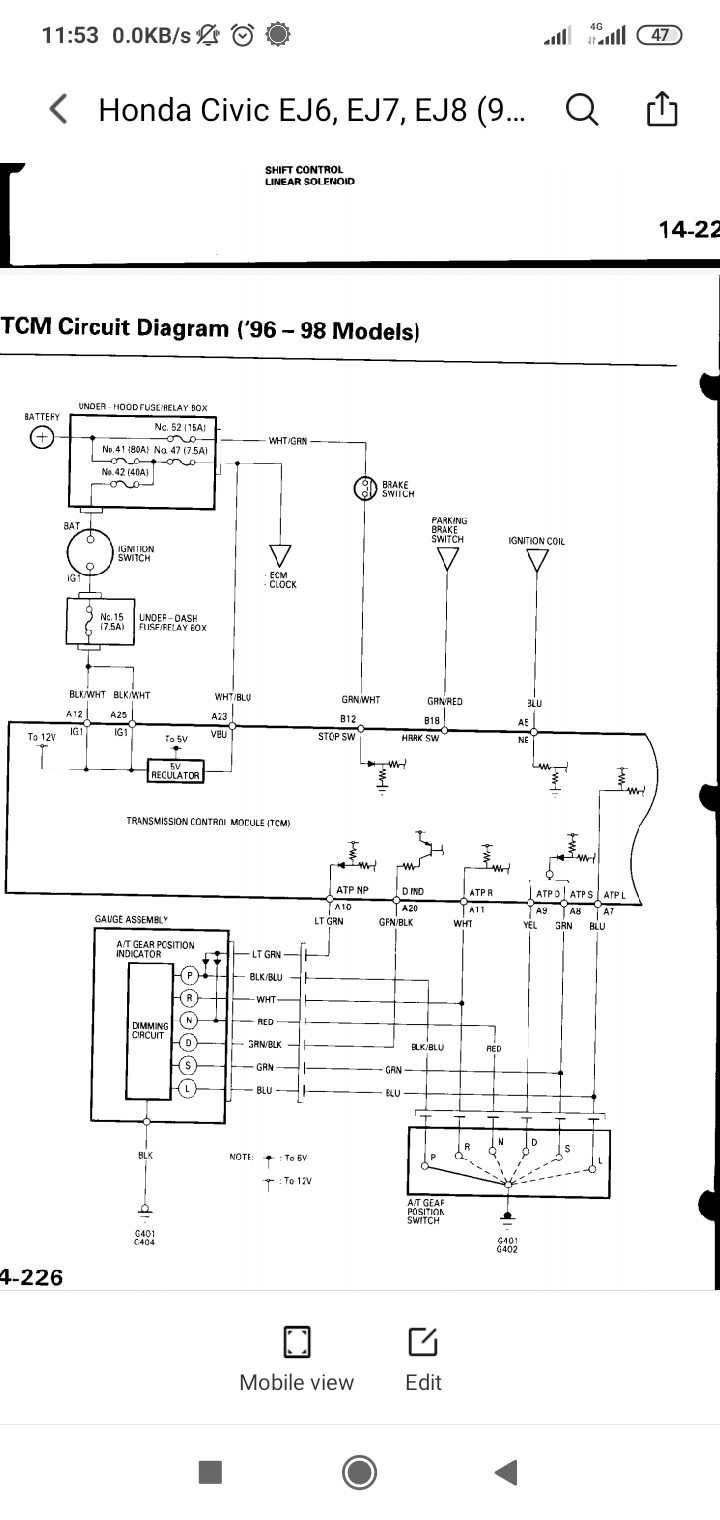

I know nothing about d15y5. J62 is a jdm ecu for dual vtec needs tcm. I.e obd2a setup. I m attaching the pinouts and wiring scheme of m4va for usdm. It has Mode S but no E. You have to sort out urself the E it will be there on the tcm of jdm or southeast asian models. U can just match the colours of wires on both the tcm, mode selection connector and speedo connector for e and s

[pwuser159440026123]

Thanks baei ya digram meray pass ha aor askey mutabek ha but garei main aek masla ha jo 4 sal say aa RHA ha cod 1655 (D) cod 37 d light blink aor multi matic s and e position desh board light bi on nahi hoti aor ager resat karou to koch daer tak d blink bi khatam hoti ha aor s and e light bi position Chang krnay per ati ha mager Jo hi d blink shouro to sat s aor e multi matic switch ko s ya e per krnay say nahi ati ,Ab Jo main NY daek js main apki help chaey o ya ky TCM ki pin Jo A21 A22 not of use ha jb ky as gaeri main ya donu waire multi matic switch per lgi ha aor Jo TCM ki pin A8 ha Jo gaer position per lagni ha o pin as gaeri main hali ha not use ha ,as gaeri ko Lahore main her jaga lay ker geya ho mager p 1655 cod nahi ja RHA ,TCM say ECm ki Jo Garey and pink waire na open ha aor na short aor na ko conter. Loz plz ap ya Multi matric aor gaer shifting ka ager digram send krday apka ehsan zendagi yad rahy ga gaer position main gareen / yallow waire bi hali chora howa. Ha jsko main nay TCM ki pin 8 Kay sat laga kr bi chaek keya ha mager p1655 nahi ja RHA ab ager ya waja ho ky TCM per pen A8 per s position ki waire lagni ho to ap plz s position ka colure bi bta day

[pwuser159440026123]

Raza baei apki zarorat ha plz ap wait kr RHA ho

[pwuser159440026123]

Baei p1655 ka masla ha

[adilraza]

Once d starts blinking the tcm switches to fail safe mode. E and s stops functioning

[pwuser159440026123]

E and s practical worke krta ha but desh board light not show .when I resat TCM then worke fevo menut ofter fevo menat D light blink and S ,E position not show in deshbourd ,

[pwuser159440026123]

As maslay ka hal keya ha , baie as gaeri main ya fault pehlay ka ha meray pas abi aei ha p1655 aor TCM ki pin A8 use nahi howa ha jb ky pin A21 and A22 use hoey ha .hounda civic ek3 ferio vi d15b vect 3 stage main TCM pin A8 Not use hota ha keya ? Ager pin A8 use hota ha to pleas baei ya batou Kay oder konci waire lagou diagram main to green waire gaer position s ka bata ha jska main nahi samjta o waire (S) position wali konci tar ha multi matrec switch main ya gaer shifting main

[hasankhurshid29]

@shabbir.1
