Gli 1.3 2012 alternator's part number

[galant1]

I want know the exact part number of alternator of the Toyota Corolla GLI 1.3 2012.

Owners of said model may share the pics of the part number of their installed alternator so that I can purchase new one. Thanks

[capsat]

email your vehicle chassis number to THAL engineering they will provide you details and place to buy genuine parts.

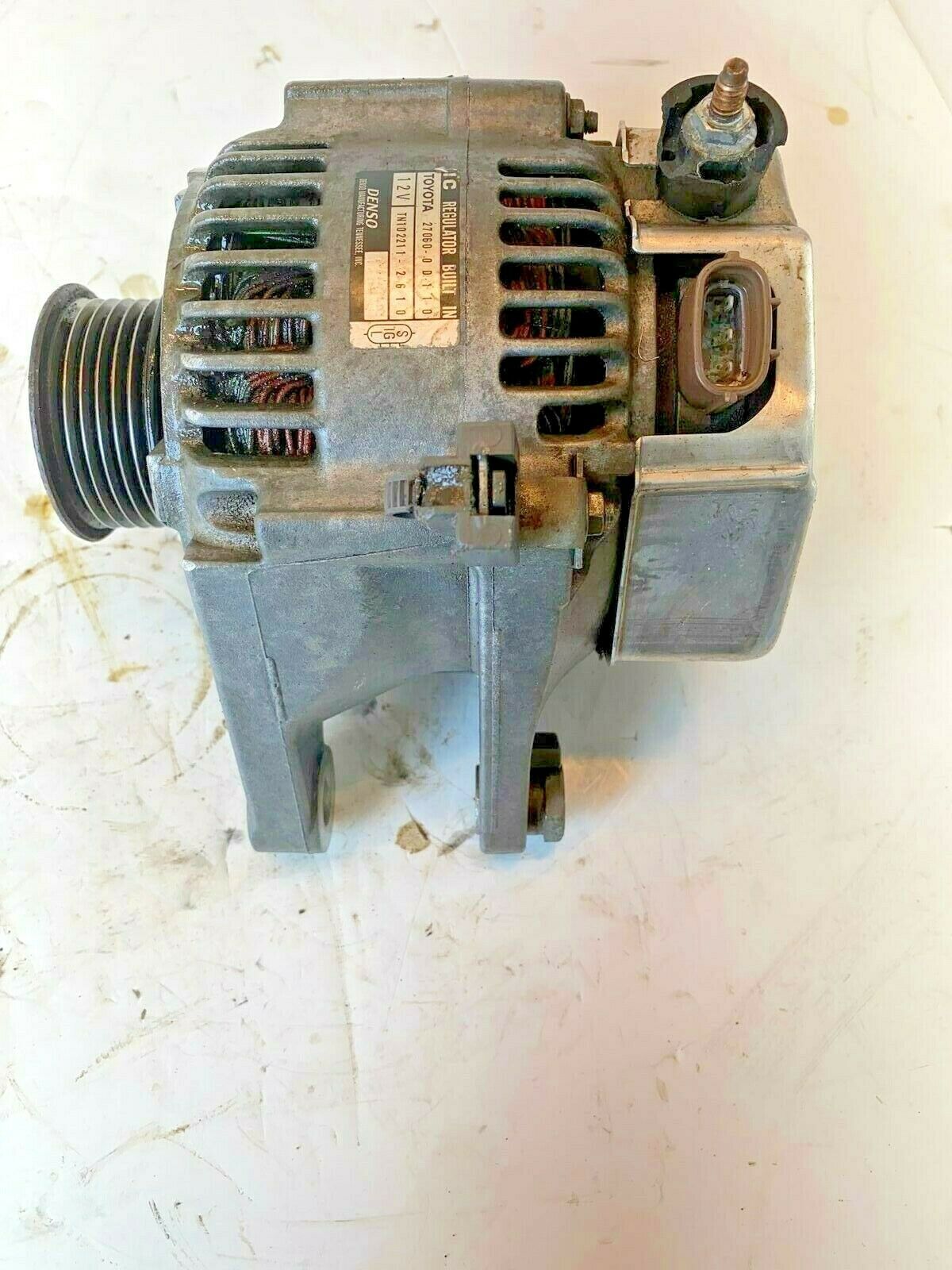

Genuine Toyota OEM part Alternator Assy 27060-11270

[galant1]

They don't have alternator for my car. The only solution is to purchase new from Toyota, but Toyota don't have too. Toyota is not telling exact part number, don't know why.
Now, the final solution is to check alternator in junkyard if I know the exact part number.

[capsat]

perphaps you missed the last line of post #2

[capsat]

the alternator is a serviceable item, why don't you approach a pro-level electrician to over haul the unit.
in Karachi Abid 0333 2201002 at Plaza, Faraz 0333 4991645 at Mukka Chowk FB area

[galant1]

The part number you told me is of some othee model in which 70amp is installed. However, in GLI 2012 1.3, OEM is of 80amp.

[galant1]

Sir, I'm in Islamabad. I found voltage drop issue at the battery while everything is on. On full load, alternator is giving 13.3v on it's terminal, and on battery it is showing 13v.
Another point to note that voltage drop, on 2k rpm, between postive terminal of alternator and postive terminal of battery is 0.22v, which must be less then 0.2v.
Car has new fujika 48ah battery which is installed yesterday.

Where is the issue? Pls expert may show their input to help me. Thanks

[uzeemujeeb]

0.22v, which must be less then 0.2v

sir
0.2 = 0.2
0.2x = 0.2x
what is the precise 2 digit in your voltage drop test after 0.2?
there is a thread for sir @xulfiqar you tube he has explained the battery charging & amp draw.

[galant1]

Voltage drop between postive terminal of alternator and battery is showing on 0.2-0.3v while everything is on, charging voltage on the battery is 13.0v.

I need expert views on my issue so that exact issue can be identified.

Sir, which YouTube channel you are discussing pls share the link.

[pwuser161228146379]

Check Alternator with Hamza Younas Autos, Mehran Autos, Ejaz Autos or Yousaf Autos in Rawalpindi.

[smartdevil_striker]

Buy kaabli alternator from any fresh engine... Geniune and cheap solution.

[capsat]

@sameerulhaq064 @autophile may be able to help you guide to a pro electrician in Islamabad

or click

it appears that the rectifier unit has given up

[brownrose78]

Please share the link here

[galant1]

Not available in fresh stock. They all have repaired alternator selling on the name of genuine. Still using kabli one which is under testing in this thread.

[galant1]

It might be. Where rectifier unit is installed in my car? Whether inside alternator or somewhere else?

[haseeb.basharat]

Contact partscentral: https://www.facebook.com/PartsCentralPK/

They might be able to import it for you.

[galant1]

@Xulfiqar pls look into this thread and share your valuable input in this regard. Moreover, pls describe the difference between RLO & S pins of the alternator. How these two work?
Another question is that can we use Denso RLO Alternator in place of S pin denso alternator as junkyard contain RLO pin alternator for my engine no S pin model available?

[uzeemujeeb]

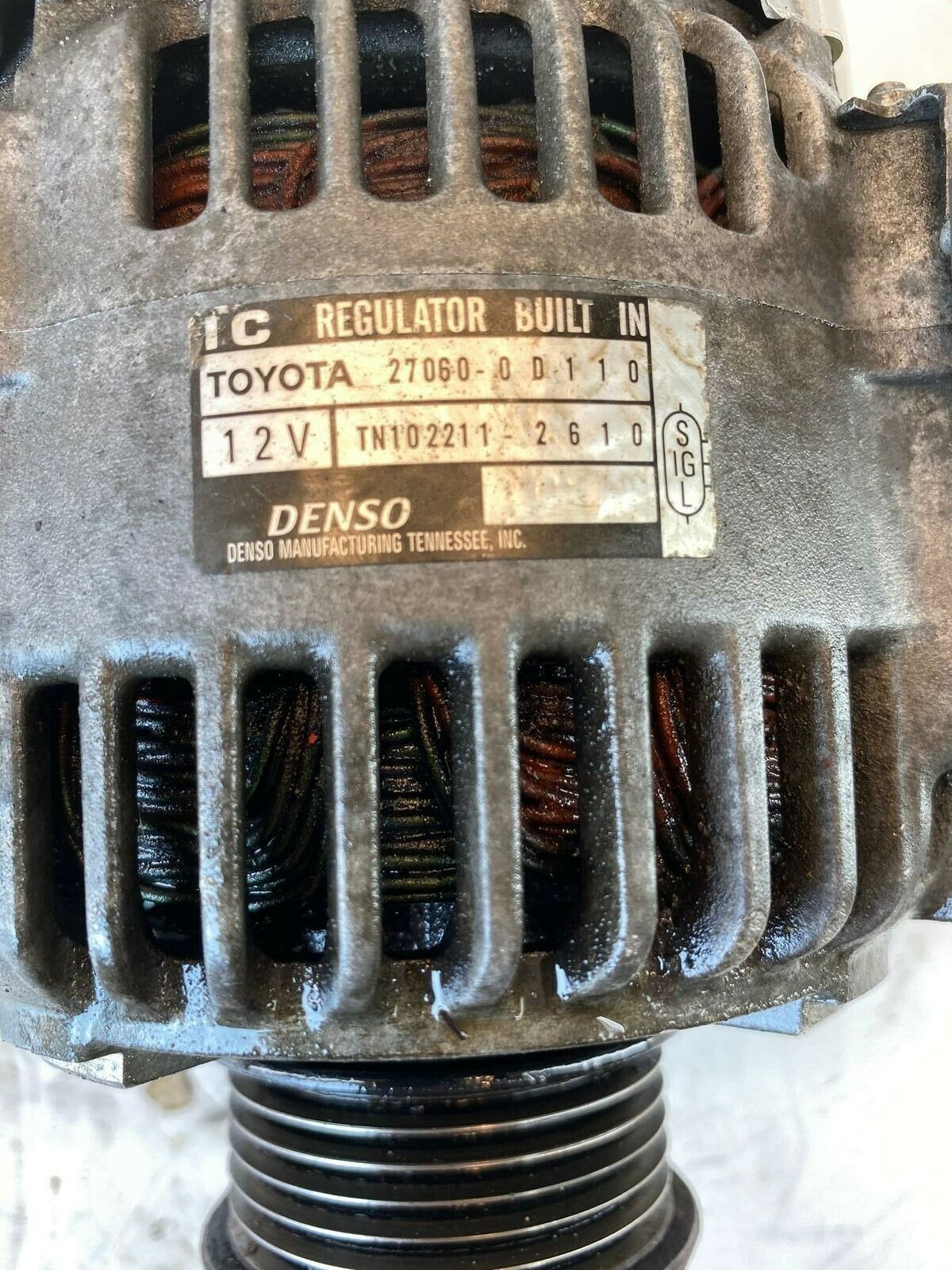

Toyota OEM part Alternator Assy 27060-11270

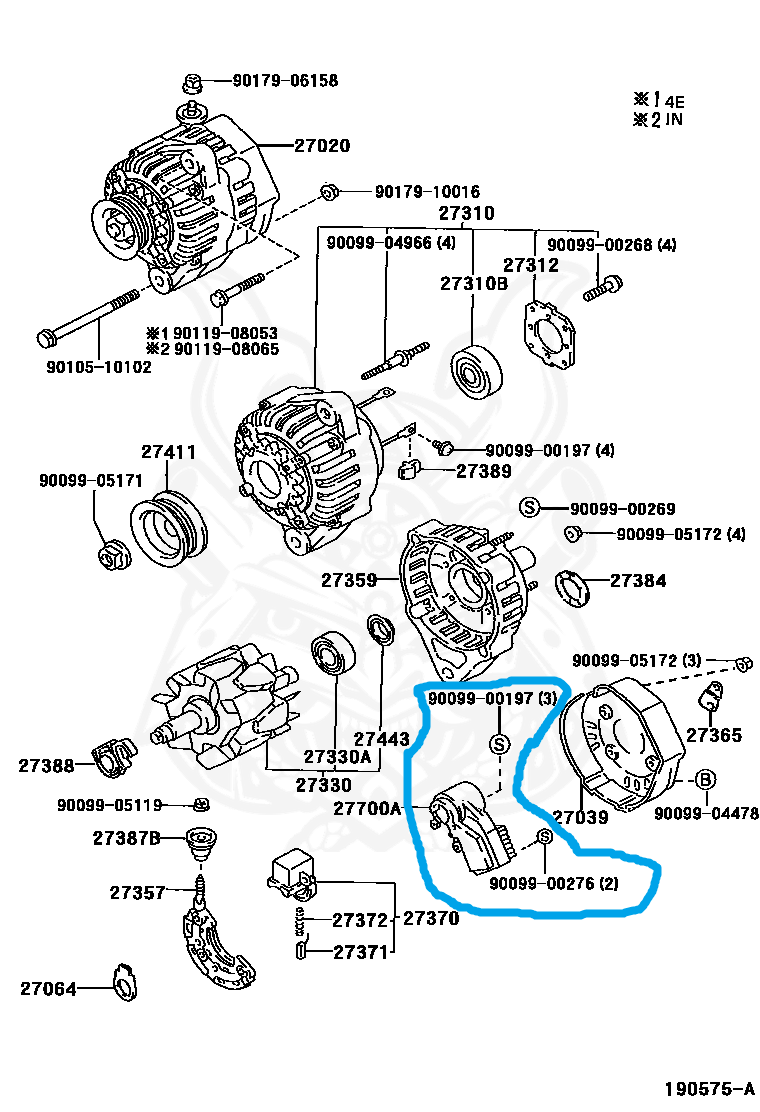

this is the rectifier unit

if you are referring to 80A generator, then look for diesel engine generator part no. 27060-17171

and this is thread i referred to

Xulfiqar's - YOU TUBE

[uzeemujeeb]

the petrol engine US version Genset

[galant1]

Thanks for your efforts. However, my car has 4 pin alternator and as per Toyota indus, 27060-0m040 is the installed alternator in my car. Neither new nor in junkyard is available.
The junkyard contains RLO pin or C pin alternator. Don't know how these two will work in GLI 2012 1.3 model. Need expert opinion by @Xulfiqar on this models.
