How to raise ground clearance

tanker75 (tanker75) 2020-07-19 16:03:24 +0500 #21

Dear faraz I am looking for same tyre does 205 /55/16 touch the car inner body while turning or they dont? And are give better cleaeance than 195/60/16

hkhattak912 (Hamza Khattak) 2020-07-21 04:17:51 +0500 #22

@tanker75 How are the 195 working and average of the car and are they with 16 inch rim?

favadkhan (favadkhan) 2020-07-21 09:40:57 +0500 #23

Contact IMC tell them this is newer model of Corolla if they buy the idea they will raise it Apologies in advance

farazharoon (farazharoon) 2021-02-23 08:50:17 +0500 #24

The Yokohama 205/55/R16 are not touching he inner body of the car. I am able to turn the steering to full lock without any problems.

Yes, there is a better clearance now but it has not solved the problem completely. I think "packing or spacer" is the only real solution I think.

farazharoon (farazharoon) 2021-02-23 08:51:27 +0500 #25

I am not using the 195 tyre. I am using the 205/55/r16 tyre from Yokohama

dosbft11 (dosbft11) 2021-03-12 22:42:50 +0500 #26

So i got an axio

Japanese infotainment sd card issue-what’s that??

Any software/app /unlock for english???

Titanium (Titanium) 2021-03-13 02:21:30 +0500 #27

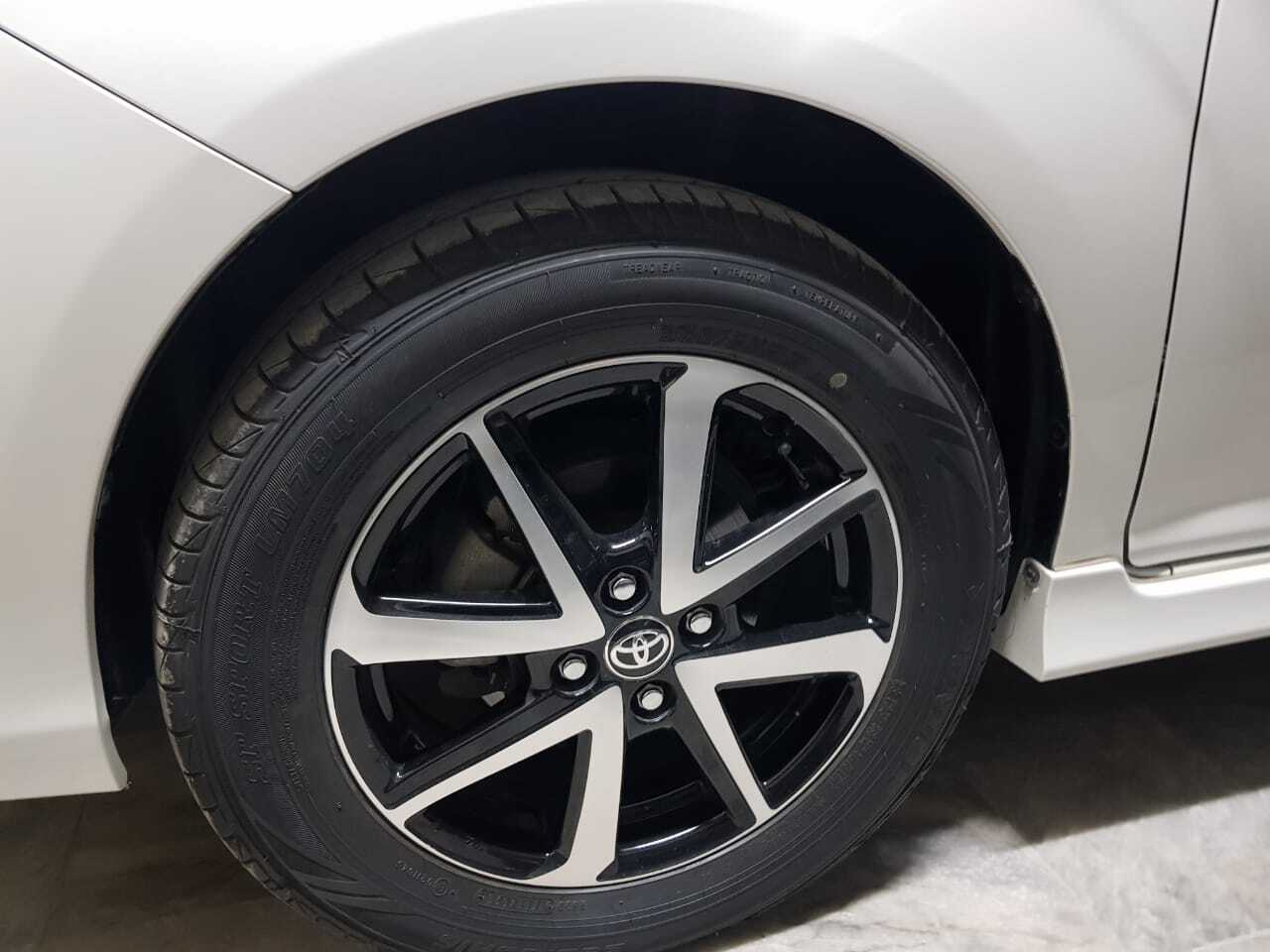

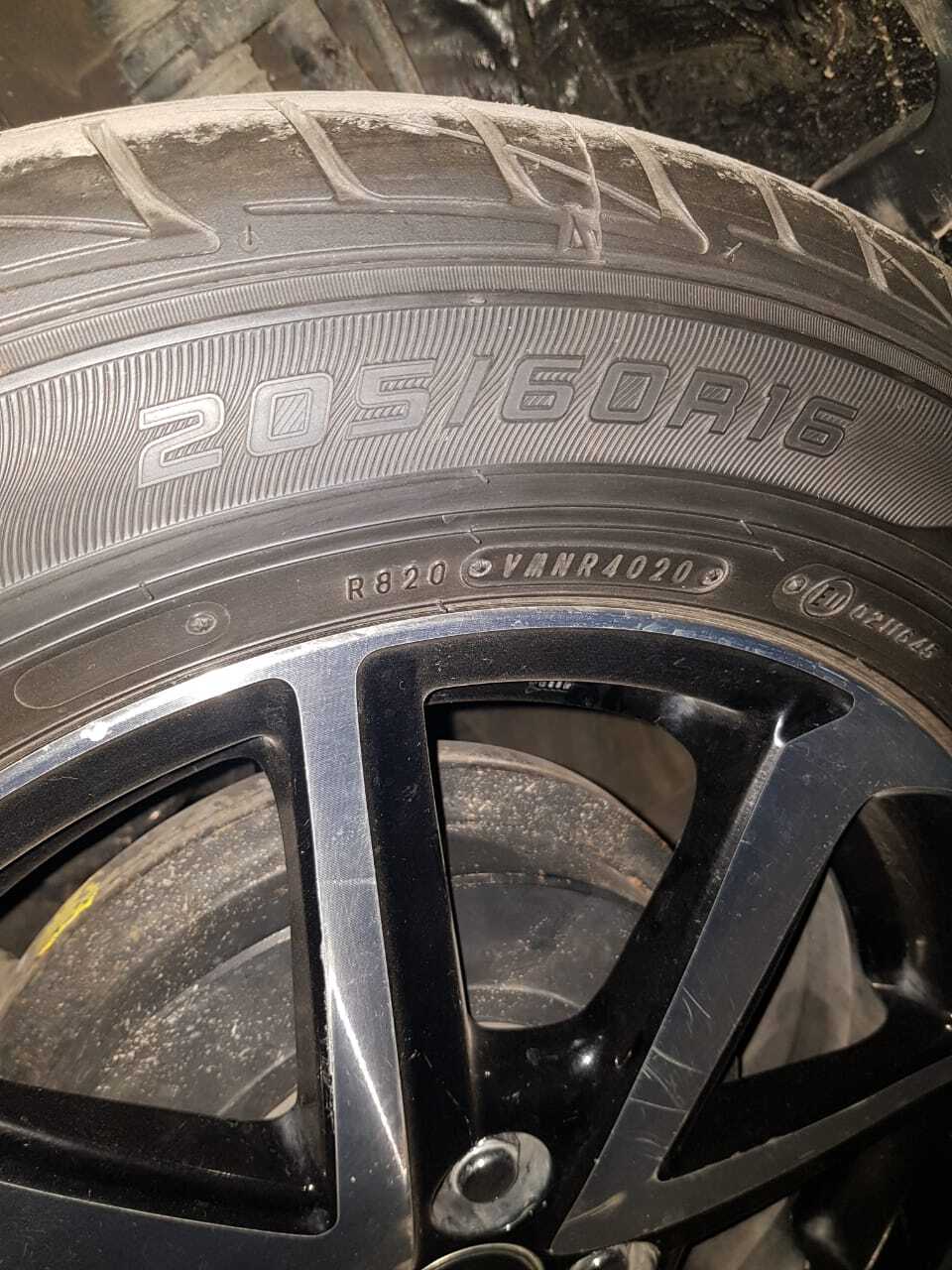

Using 205/60/16 Dunlop SP Sports LM 704 on Axio Fielder Hybrid 2018 and having good time without any touching or scratching.

farazharoon (farazharoon) 2021-03-13 09:47:42 +0500 #28

I had to buy a SD card for the infotainment to make it work.
It is still in Japanese but the functions work if you get the SD-card for it.
As far as I know there is not way to change the language.

Which head unit does your fielder have?

farazharoon (farazharoon) 2021-03-13 09:49:28 +0500 #29

205/60/16 might be better.
205/55/16 on Yokohama is not able to fully solve the problem.

Titanium (Titanium) 2021-03-14 18:59:19 +0500 #30

farazharoon (farazharoon) 2021-03-15 17:32:30 +0500 #31

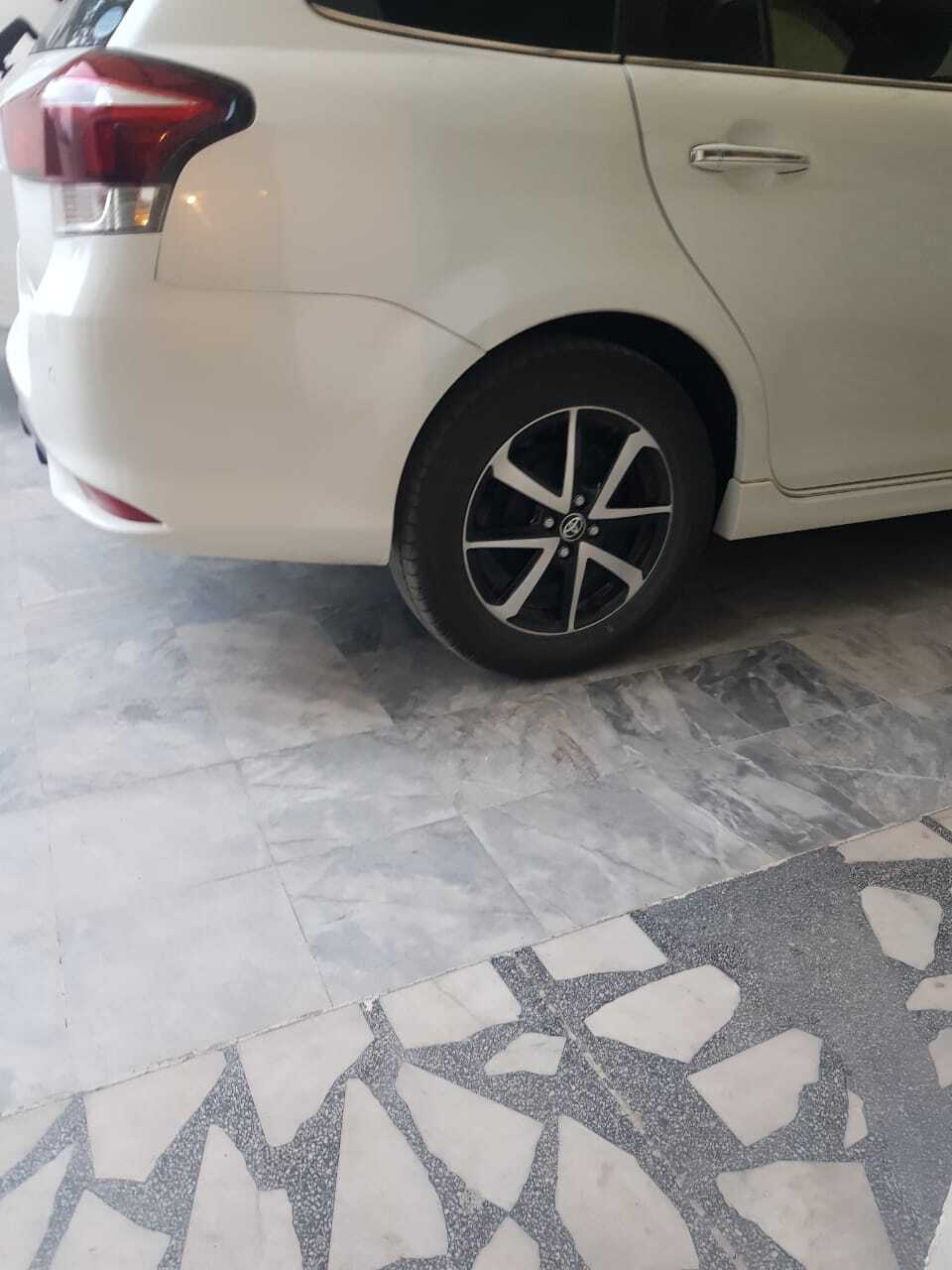

Can you send photo taken from further back. Want to see how the wheels sit in wheel well.

Titanium (Titanium) 2021-03-15 21:45:08 +0500 #32

farazharoon (farazharoon) 2021-03-16 10:03:04 +0500 #33

Wow yours seems to still have lots of space above the tyre. Possibly even more than mine with 205/55/r16s.
Did you have the springs changed?

Titanium (Titanium) 2021-03-21 18:15:04 +0500 #34

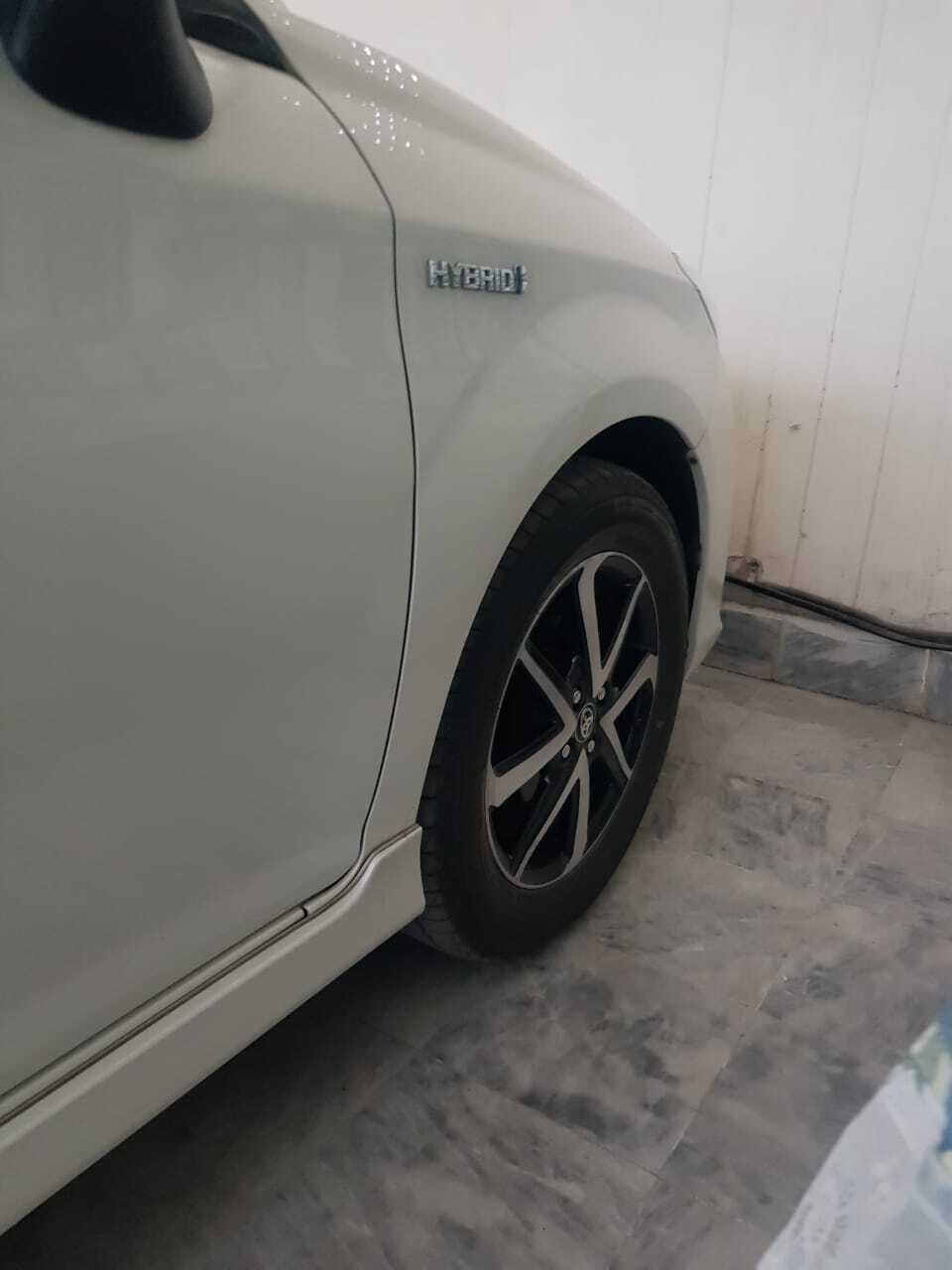

Let me post some better pictures. The previous camera angle seems to be a bit misleading.

Titanium (Titanium) 2021-03-21 18:16:27 +0500 #35

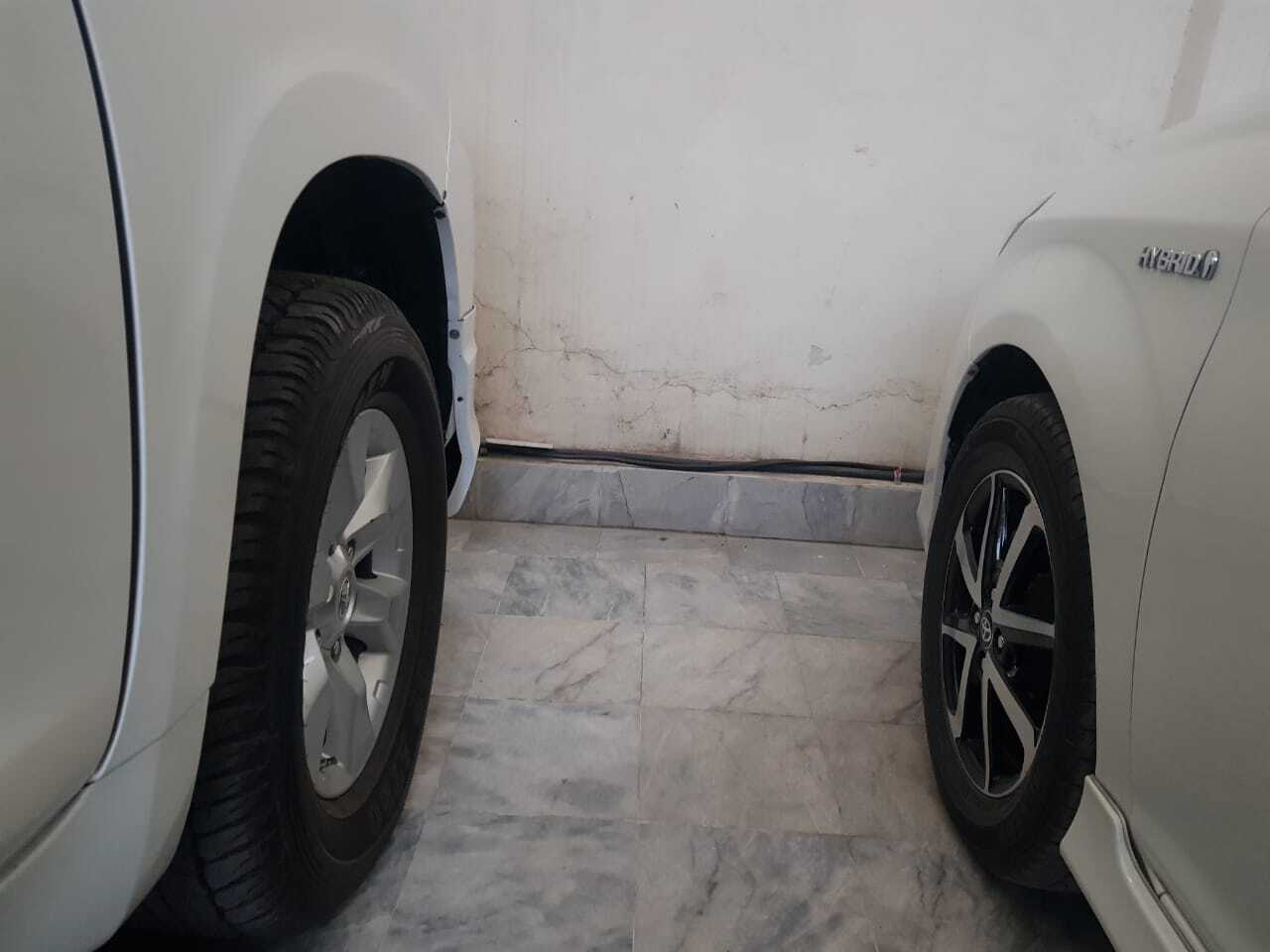

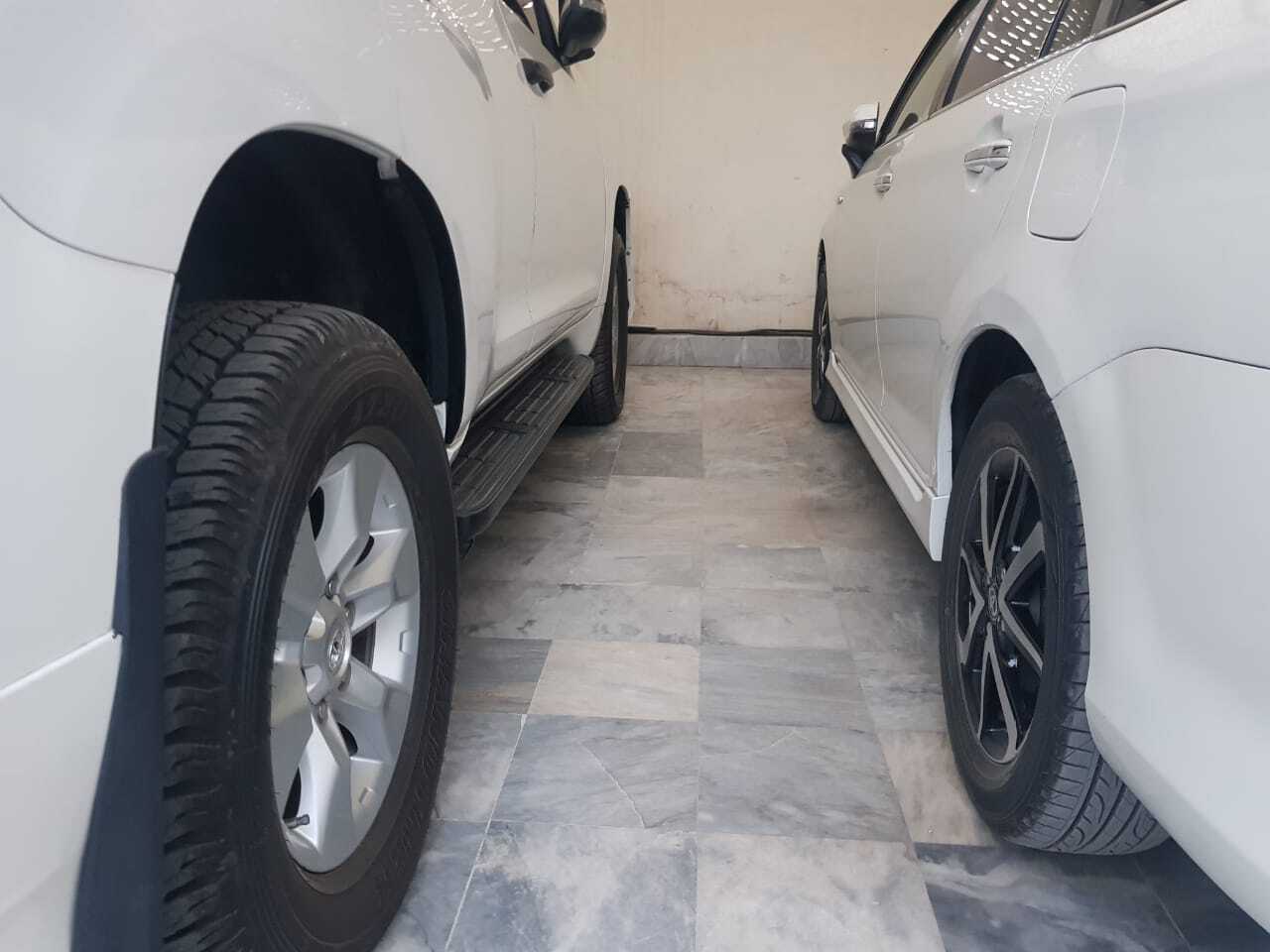

Comparison with prado

Titanium (Titanium) 2021-03-21 18:18:48 +0500 #36

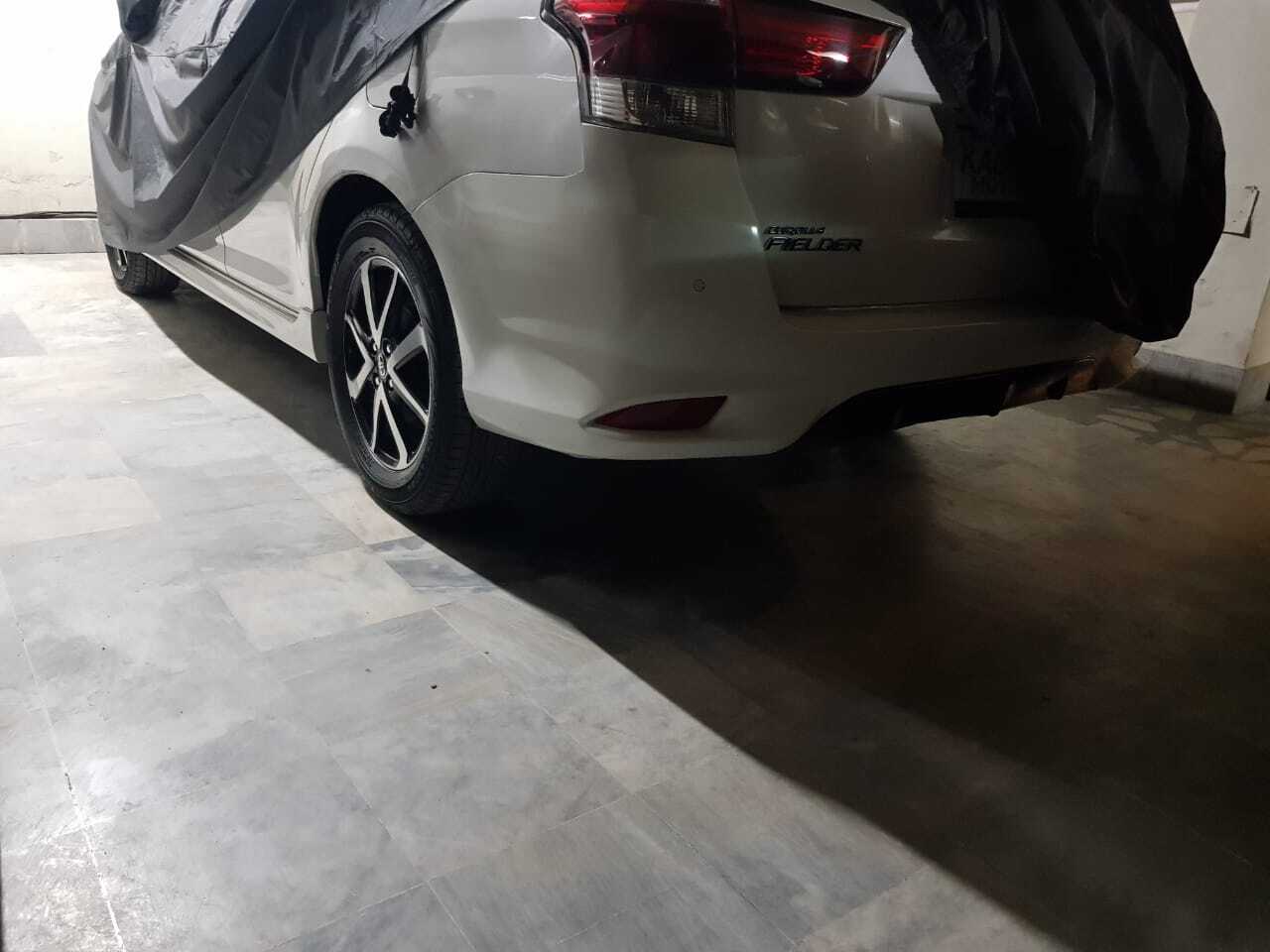

The price I paid for improving the ground clearance

farazharoon (farazharoon) 2021-03-21 21:01:04 +0500 #37

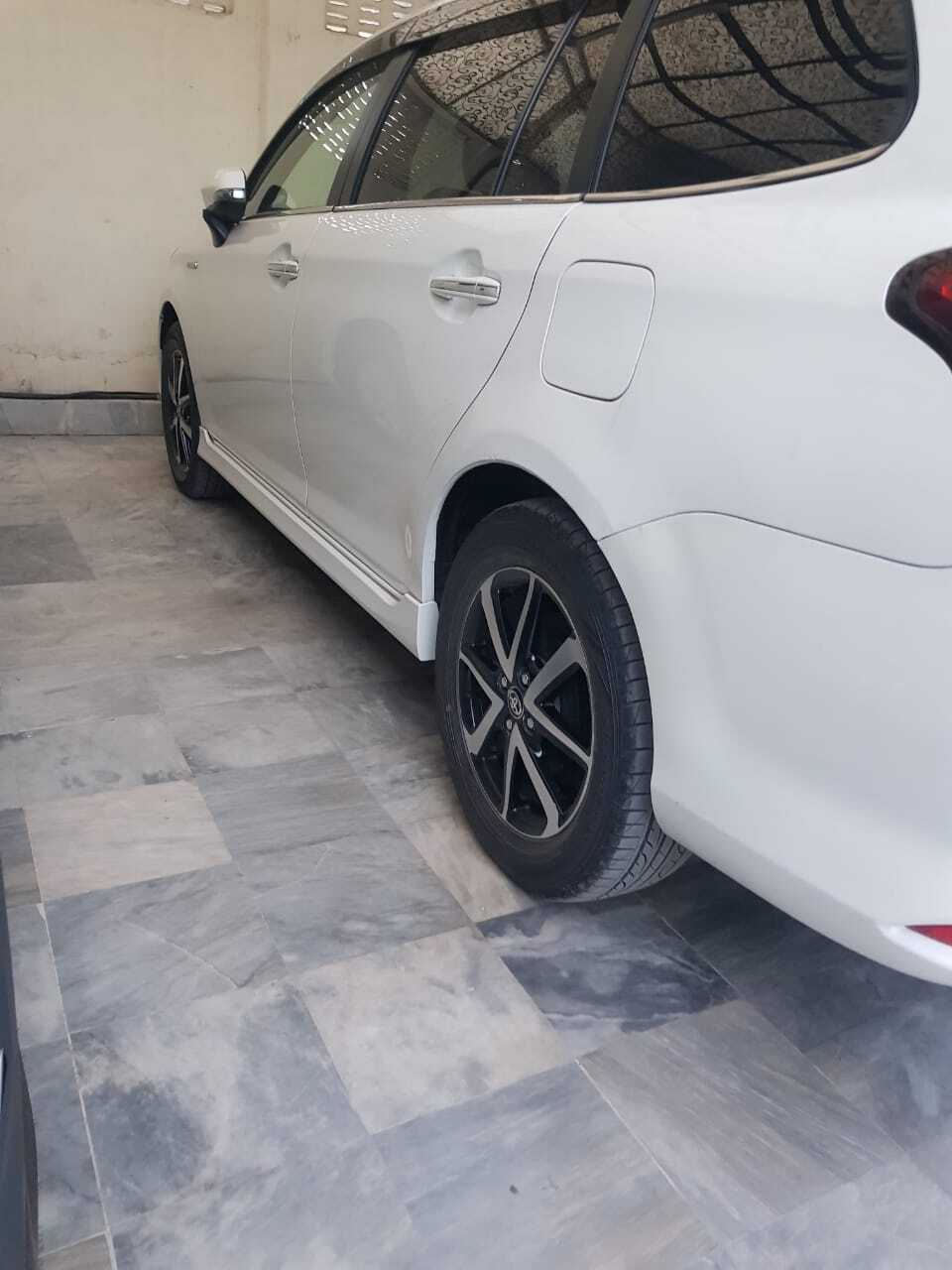

Is this your rear wheel arch?

Titanium (Titanium) 2021-03-21 22:56:14 +0500 #38

Yes. Rear side of the rear wheel arch.

farazharoon (farazharoon) 2021-03-22 09:38:43 +0500 #39

Yes my guess was that it was the rear wheel arch.
When I went to Rawalpindi to get bigger tyres fitted the shop put on 205/60 /R16s

But it scrapped on the rear wheels mud guard. That's why I changed the tyes to 205 55 R16s.

The other size to try would be 195 60 R16 which is the stock tyre on the Honda BRV.

The stock tyre for Fielder from the factory is 185/55/16
which has a side wall of 102 mm.

The Honda BRV tyres 195/60/16
has a side wall of 117 mm. This is an increase of +15%.

The Corolla Grande tyre 205/55/16
which I am using has a side wall of 112mm. This is an increse of +10%.

The tyres you are using 205/60/16
has a side wall of 122 mm. This is an increase of +20%.

I think the best option might be to go for the Honda BRV 195/60/16 tyre which available in General BG Luxo Plus brand.

uzeemujeeb (MUZ) 2021-03-22 10:16:22 +0500 #40

profile is scrapping with the shield. visit any suspension shop and see if they can help
