RPM Fluctuate Honda city 1.5 2007 Steermatic

[Xulfiqar]

And pray tell why was the throttle cleaned?

My own car with spaceship mileage has never needed a throttle cleaning.

[syedfaizan1]

that guy chota on the workshop opened it before i tell them not to open and start cleaning it. they dismantled every sensor lol

[syedfaizan1]

right now i am sitting in my car testing it on cold but i guess the manaul calibration is done it didn't do that problem on cold now. just worried about the milage issue

[syedfaizan1]

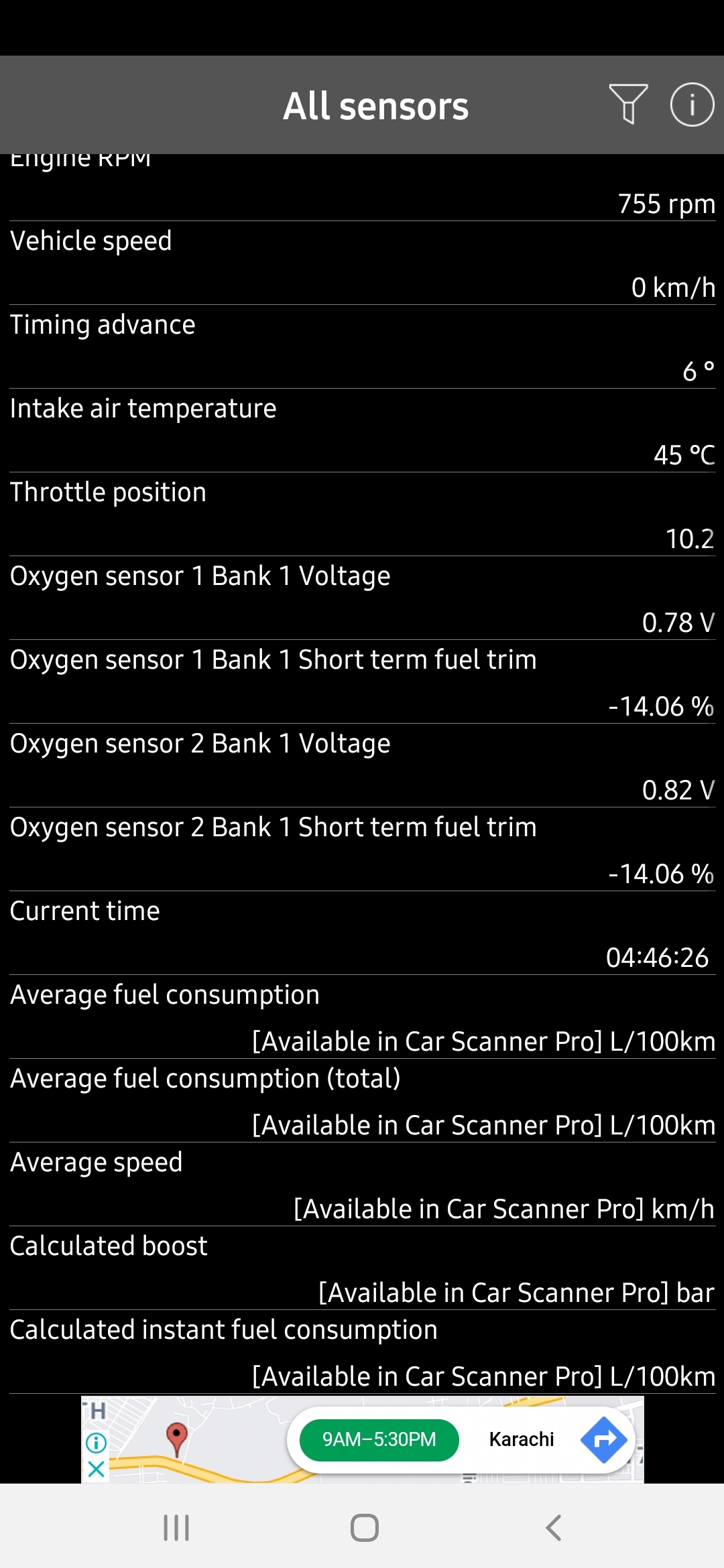

please see these stats if everything looks fine to you

[Hassan1991]

TPS value is still off.

[Xulfiqar]

Find a better workshop.

FYI

the throttle position sensor has carbon tracks in it. Petrol or kerosene cleaning will dissolve that. Furthermore the “axle” of the throttle blade is on teflon bushings with Orings. Petrol will dry it out.

So, stop visiting idiots please.

[syedfaizan1]

can you explain this bro

[syedfaizan1]

i can get a new thoratel from shafiq more . i guess it cost 1500 rs from scrap market

[Hassan1991]

You need to adjust TPS to 0% at idle. Means at idle feedback voltages should be close to 0.45v . And at wide open throttle 4.5v .

[Xulfiqar]

Its never set to 0 at idle otherwise it will throw a tps code, it needs to be at 10% or so to set the base idle.

[syedfaizan1]

it needs to be at 10% or so to set the base idle.

Yes its Showing 10 to 9% on scanner.

[Hassan1991]

Thanks for the correction sir.

[xhaikh1]

Could you please give me picture of obd 2 scanner tool which you are using and for what price you bought it and from where or which city market or online. Because i also have civic 2003 EXI manual and want the obd scanner tool which can read the sensors readings of honda civic. Please help me with picture of obd scanner you are using

[syedfaizan1]

Here you go : https://www.daraz.pk/products/elm327-elm-327-bluetooth-obd2-scanner-elm-327-obd-ii-obd-2-obdii-i107198088-s1255544787.html?spm=a2a0e.searchlistcategory.list.1.3c435fecQXVScS&search=1

[syedfaizan1]

@Xulfiqar, After everything i have observed that my car is Drinking more fuel now.

I Mean All the issues resolved now but car is Drinking more fuel After tuneup. what could be the reason?

1- Thoartel Cleaning was done
2- Injectors were Cleaned by Machine
3- tappet were Adjusted
4- O2 Sensor was Cleaned ( reading keep Fluctuating alot at Idle or running )
5- Cat Cleaned
6- Installed Recommend Iridium Spark Plugs too

but i am observing that Car Fuel needle is going Down more early as compared to before.

Any suggestions please.

the O2 Sensor Reading was Showing 0.75 0.55 0.9 0.85 Readings and i heard it should not be more than 0.45 and if it is then its using RICH fuel in the Combustion. I guess something Wrong with O2 Sensor or Since Engine is changed and there is no EGR Sensor in this PKDM Version and Assembly is of Another Country.

@capsat @xenerking @chinyoti @tingting @Hassan1991 @hash4u @rajaatta @incognito59

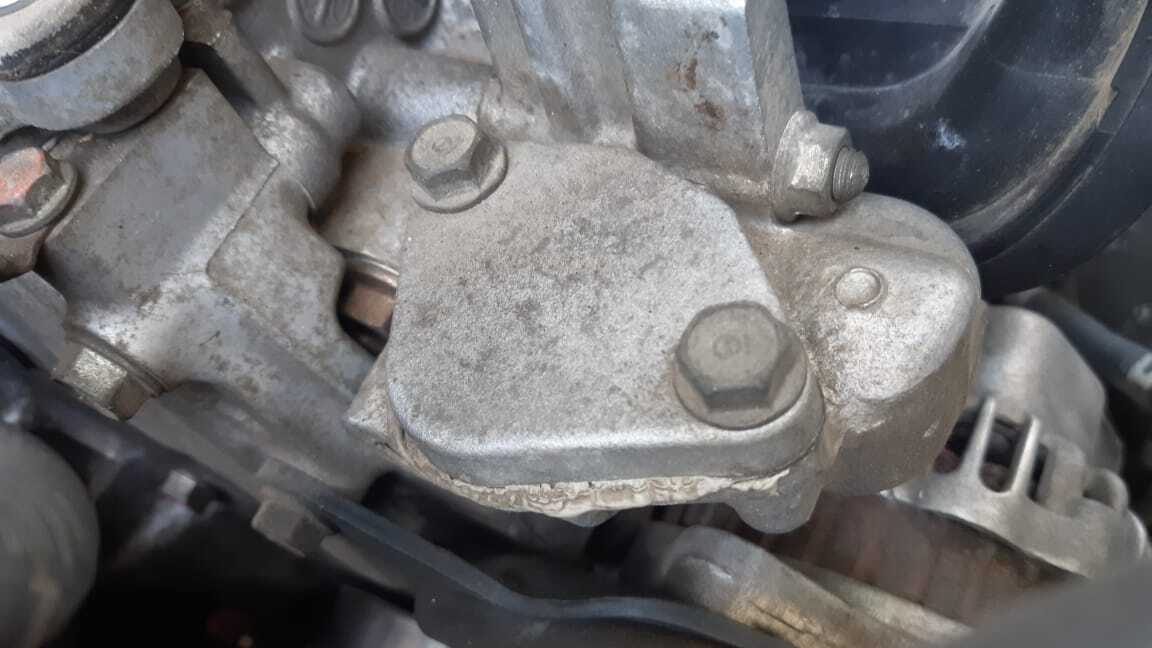

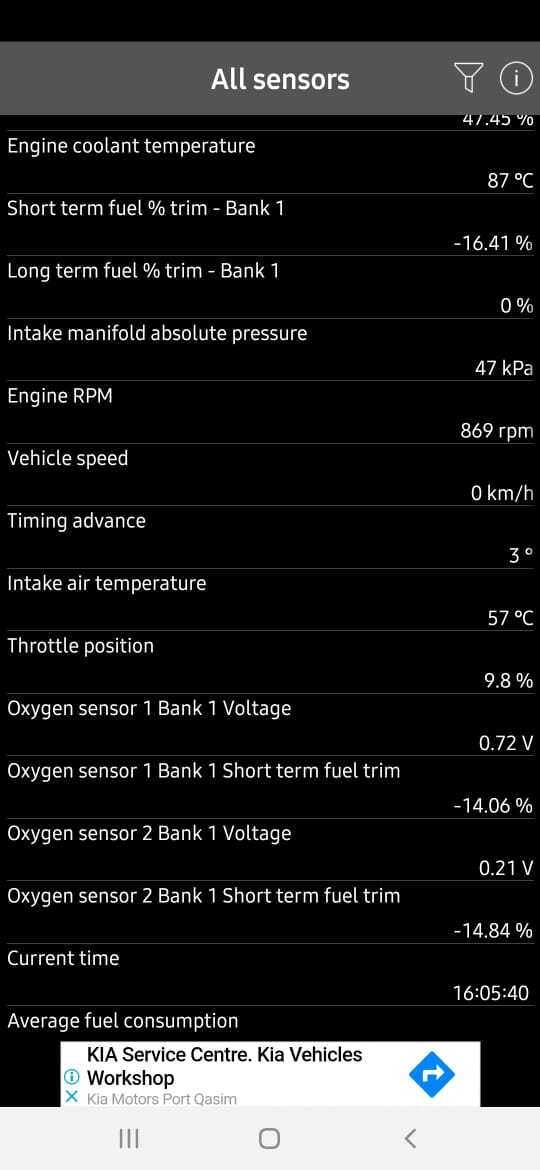

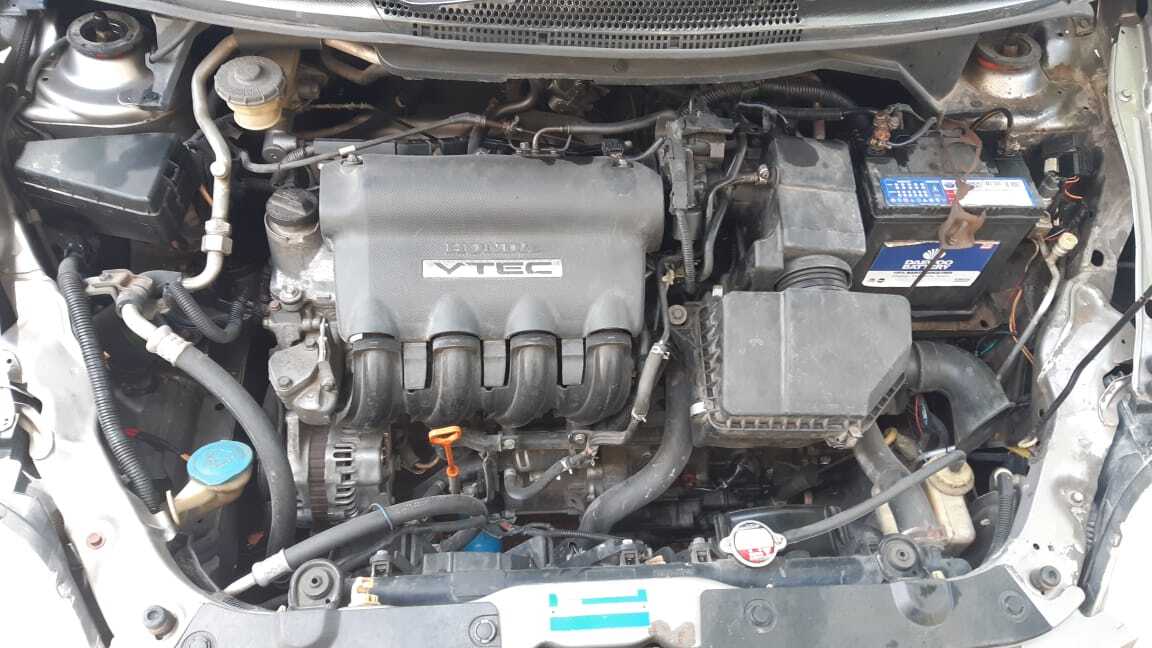

See Some Pics Below

[Hassan1991]

how did you cleaned the o2 sensor? there's nothing like cleaning o2.
ECU is pulling fuel out from the mixture. But that's on idle with 57C intake air temperature.
Map readings seems to be high at idle. Should be between 20-34kpa although depends upon barometric pressure.

[syedfaizan1]

how did you cleaned the o2 sensor? there's nothing like cleaning o2.

Removed it and then clean it with Some Spray and Buff it and then put it back

ECU is pulling fuel out from the mixture. But that's on idle with 57C intake air temperature. Map readings seems to be high at idle. Should be between 20-34kpa although depends upon barometric pressure.

So what you suggest what should i do now. How to get back 10 KM per liter, Right now i guess its giving 6 or 7

[Hassan1991]

these things will eventually damage the sensor.
record the logs while driving and share them. have you done something to map?

[syedfaizan1]

these things will eventually damage the sensor. record the logs while driving and share them. have you done something to map?

I have Checked the Volts of o2 Sensor while driving so that was above 0.45 reading All the time.

[Hassan1991]

o2 sensor reading fluctuates very rapidly. should stay in 0.1-0.9v range.
it is showing rich mixture sign.
