Bro Issue is happening with AC only without AC it's doing good.

[engnr.mubashir]

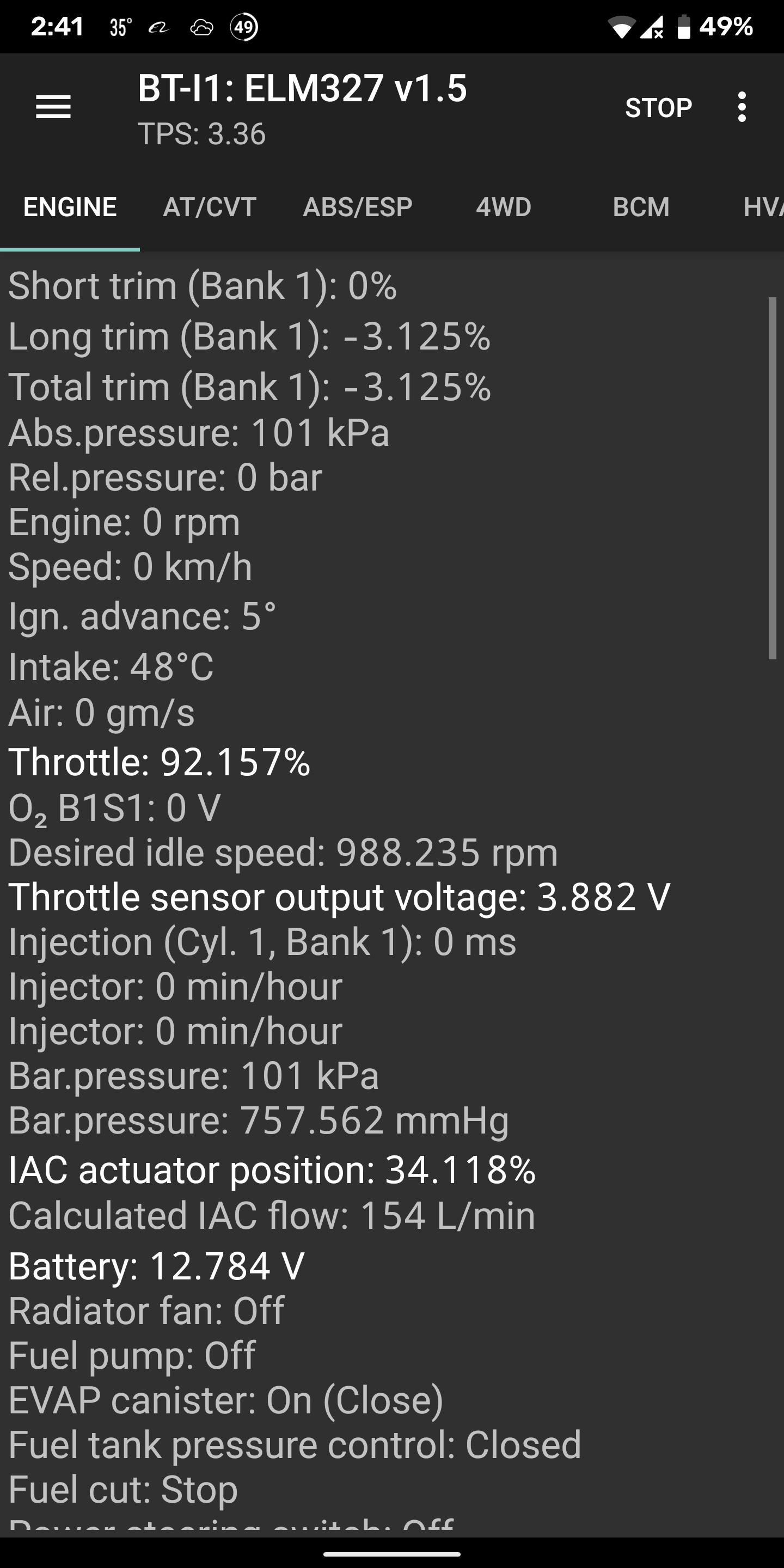

One thing more to ask is why scanner showing 92% TPS position at WOT why not 100% ?

[margallar]

tps should be 0 % at idle and 100% at WOT. otherwise, it is either in need of adjustment or replacement.

Regarding iac position, i can not really comment, ask Xulfiqar for that.

I think idle issue is usually a bad tps or dirty/bad iac.

In your case, i suggest to atleast spray some carb cleaner + wd40 into iac or dismantle and clean it. then recheck.

My experience meanwhile, do not remove throttle for no reason, do not open those special head screws, they are not supposed to be open. if your throttle is good, maintain it with carb cleaner and wd40 once a month (in fitted position)

[RehanBhatti]

Adjust your IAC valve sensor. There are to mounting screws on sensor, loose them and rotate it a little bit anti clockwise. Then check rpm with AC.

[syedshoaibahmed]

Aoa Every one!
Quick question, EFI 2010,Fan Auto with Tvalve installed.
Gari ka Ac jab on hota hy to radiator fan ac ky trip hony ky sath on off hota hy .
With out AC radiator fan works completely fine on its sensor.
So is it normal ?
https://photos.app.goo.gl/cwn4SRYn48e2nHjv8

Kindly have a look in this video as radiator fan will turn on with Ac and will turn off as AC trips.

[Vaqas1]

Yes

[engnr.mubashir]

I have already cleanee IAC valve. Is adjusting TPS a DIY thing ? @Xulfiqar sir can yoi help me in this regard.

[engnr.mubashir]

Check out the TPS position and voltage at WOT

[engnr.mubashir]

Someone tried to be over smart this is not normal radiator works with engine temperature has no link with Car AC because condenser has it's own fan. Get it re wired to it's factory setting.

[pwuser152821058035]

Anyone have idea why mechanics remove the thermostate valve and Radiator fan hotwired.
Running it from 8 months never overheated , sometimes it never get upto half needle. I top up radiator once in a month.

[sleeper]

Because they think the cooler the engine the better it is... Coz "engine garam nahi krna" ..... even if they know then they don't bother doing it correct the first time, because they want u to go to them repeatedly.

You must change ur setting back to auto fan and install the thermostat.

Why? Because engines are meant to run at specific operating temperatures that are best for its long life. Engines running cold will get closer to its death more quick than a normal hot running engine. By hot i don't mean overheating, but within a temperature range about 88-96C (someone correct me if wrong).... This temperature range is maintained by the thermostat and auto fan.

I ruined my mehran engine because of these mechanics because i myself didn't know about this stuff.... Never gonna happen again

[pwuser152821058035]

Any one know the price of thermostate and if possible please attach pic .

[engnr.mubashir]

Does this vgate obd device work with Torque app because it's not showing up any connection window.

[nfsmostwanted]

search 'cars club' on facebook . he had it available in stock . its called 'steering bib'

[xzap042]

That's not what I was referring to, it is a cover at the bottom of steering column

[pwuser152821058035]

I havnt seen anyone using torque app with cultus because (ACCORDING TO MY KNOWLEDGE) our car only uses single pin (Pin 7 K-Line) to get the data from ecu . Torque app works when it communicate with the ECU. The values we see on the SZviewer are the digital signals that are decoded from that adaptor and as it is shown .

[syedshoaibahmed]

hello,yes bro i totally agree with you ,I went that electrician today who fixed my AC and I asked him to disconnect Radiator fan with AC.He said ky bhi isy cooling achi hoti hy or engine save rehta hy lol
any ways thanks for your kind help,cheers

[engnr.mubashir]

Actually I'm gonna try this on Altis 1.6 that's why ask about rorque app.

[engnr.mubashir]

Welcome anytime.

[engnr.mubashir]

Use of CNG lead to engine compression loss. How many of you guys can agree with me.
