Swapp efi engine on corolla EE100.(4AFE or 5AFE)

Toyota

naim934 (Naeem ahmadi) 2017-05-07 20:57:31 +0500 #1

hello Guys my friend is behrooz we have been waiting to do this for some time so here it is.

I Was going for find a clean engine so decided for 5AFE or 4AFE .

My original 2E was in good condition so i got this whole deal for a very very clean engine for 40k.

Just tested the car and its very good the pickup is outstanding I mean hard to handle some time.

Do Comment.

crystalways3 (Destiny Preferred) 2017-05-07 21:13:22 +0500 #2

Bro @Hassan1991 you should look over here.

crystalways3 (Destiny Preferred) 2017-05-07 21:14:06 +0500 #3

Congratulations to you.

Hassan1991 (Electrical Engineer ) 2017-05-07 21:27:58 +0500 #4

Here bhai
@naim934 what about the conversation your doing?? Did 3rd gen intake manifold fits?

crystalways3 (Destiny Preferred) 2017-05-07 21:29:11 +0500 #5

Thank you bhai

Hassan1991 (Electrical Engineer ) 2017-05-07 21:40:07 +0500 #6

No bhai thank you

crystalways3 (Destiny Preferred) 2017-05-07 21:32:18 +0500 #7

That's why i called you.
@naim934 please can you show some visuals .

naim934 (Naeem ahmadi) 2017-05-08 01:27:54 +0500 #8

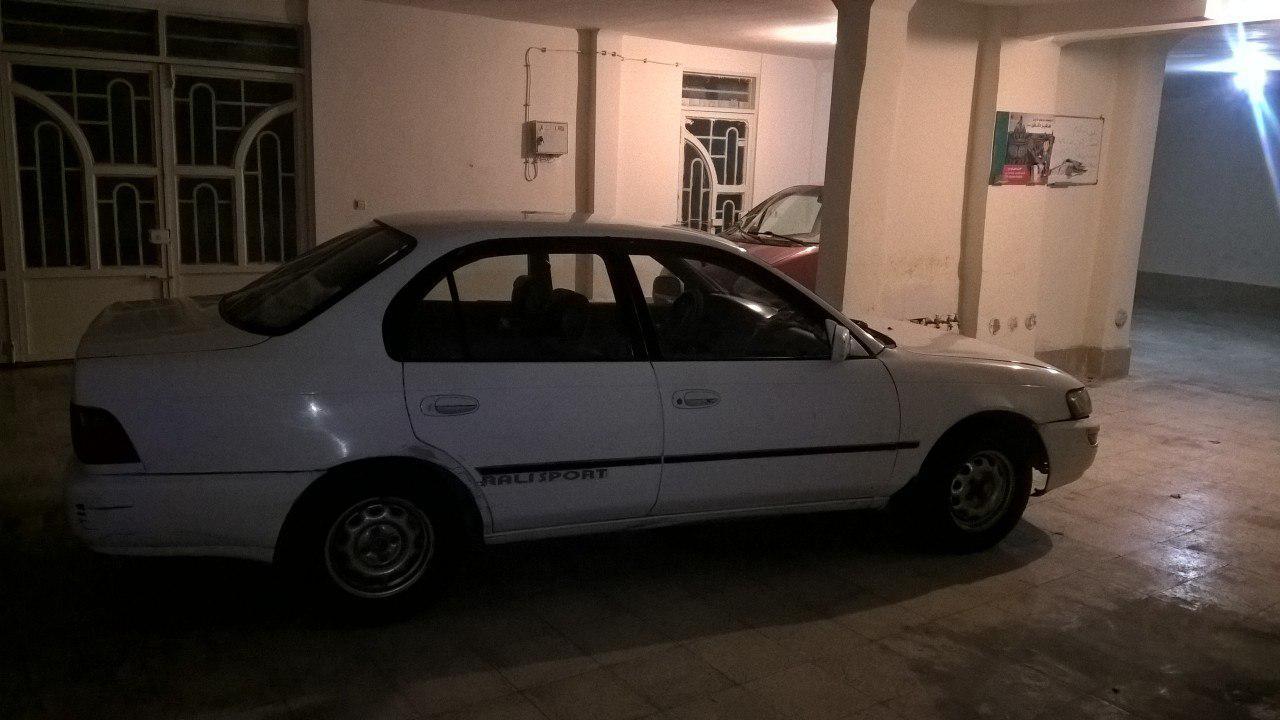

This is my friend's car

Hassan1991 (Electrical Engineer ) 2017-05-08 01:52:08 +0500 #9

Being swapped with 5afe or 4afe?

naim934 (Naeem ahmadi) 2017-05-09 01:51:46 +0500 #10

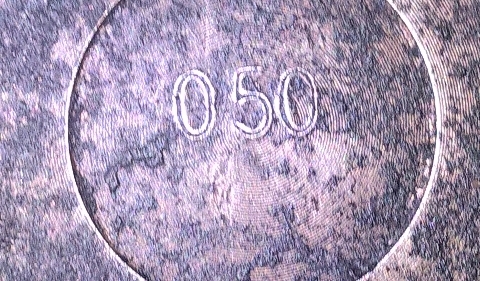

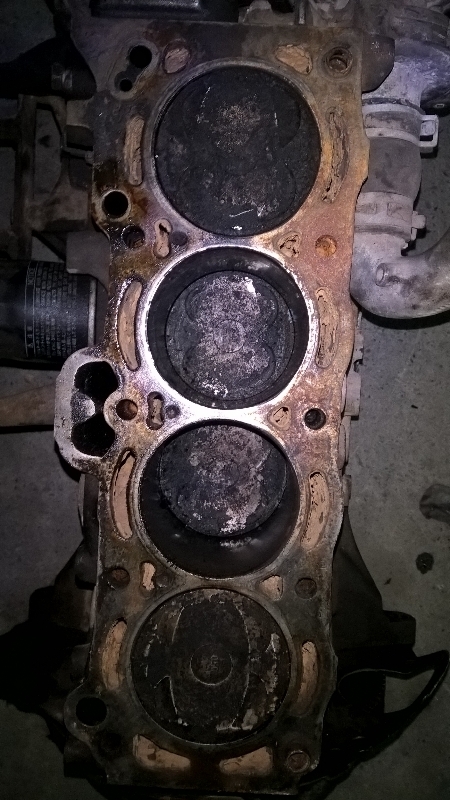

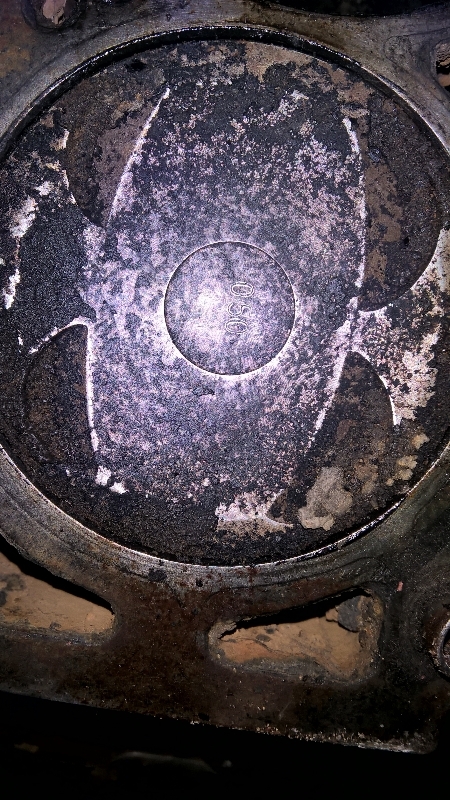

hello my friend was bad chance CYLINDER is not good. the piston is 4af 0.5 . we searching to find a CYLINDER 4af standatd and good

naim934 (Naeem ahmadi) 2017-05-10 19:38:40 +0500 #11

we ordered engine 4afe clean and good today

Hassan1991 (Electrical Engineer ) 2017-05-10 20:33:01 +0500 #12

Good and did you tried fitting 3rd gen intake on 4af?

byazdaani (Behrooz) 2017-05-11 00:59:25 +0500 #13

Al Salam alaik brothers, that's my car, we live in Iran,
At first:please forgive me for bad English
This car specification:
Model:1993
Engine:2E
Body:ee100 gcc customize for Arabic country of Persian gulf
Body is clean and don't any crash, all fabric
Engine didn't repair yet.

I decide to swap efi engine on it

Hassan1991 (Electrical Engineer ) 2017-05-11 01:06:51 +0500 #14

Wailaikum Assalam
Share some more pics....and what type of customization you had done for your country?

Daghalodi (Daghalodi) 2017-05-11 01:31:08 +0500 #15

Walaikum as salam

Bro please share more pictures of the swap

byazdaani (Behrooz) 2017-05-11 01:49:30 +0500 #16

Thanks brothers
I send more pic tomorrow
In Iran importing car from foreign country is limited or very expensive
So there is little foreign car and it is difficult repair or supplying original part
And cars are left hand drive
I decide to swap 4afe on my car
So planning for it
At first study and research about engine and modification needed and collect wiring diagram
I learn so much from pakwheels
Then brought 4afe engine and transmission
12800 ecu
Engine Harness

byazdaani (Behrooz) 2017-05-11 01:53:13 +0500 #17

By now I just supply Parts and diagrams
With company of yours I sawp engin nearly
Thanks all of you brothers

byazdaani (Behrooz) 2017-05-11 14:50:33 +0500 #18

Al Salam o alaik bro Hassan
No i bought an engine (5Afe 2th generation) from one guy 3 month ago.
He said engine is in good Condition and maybe needed changing ring
But after dealing and receive engine I found engine had bad condition and is 4afe And ring size is 50

So I decided. To buy a another one from Abu Dhabi
Dealer promise. Me send good engine ansha

Hassan1991 (Electrical Engineer ) 2017-05-11 18:37:12 +0500 #19

Wailaikum Assalam
Pics are not opening.
This one is clean? What is the estimated driven mileage of this engine?

byazdaani (Behrooz) 2017-05-12 16:49:55 +0500 #20

Salam
Picture Upload Again
2e mileage ~ 7 per 100 km in city 5.5 in road
4afe also similar but with 1600 cc engine
