Dear Members,
Below are details of Devil's Love ( Toyota BJ40) Modification.We started this project in March 2016 and till now almost 90% done.We did this project in Dunyapur Near Multan.
Engine: 1KZ-TE (Surf 2006 Model) bought Kabili and then overhauled with Original Toyota Ring/Piston and other parts.
Transmission: Automatic Transmission
Got Manual Mapper (1KZ Turbo booster) from Australia
Tubes: 1992 Prado Tubes with Differentail 8:39 Ratio 4:88
Suspension
Rancho 9000XL shocks 2-3 inch lift imported from USA Installed
Rancho 9000XL Steering Damper imopted from USA and Installed.
Manafre Inversion Heavy duty 4.8 inch Shackles with Greaseable pins Imported from USA and Installed
Stock Leaf Springs
Tires
Maxxis Bighorn 285/75R16
GT Rims 16x10
Spacer: 2' Wheel Spacer made by precion imported from USA and Installed.

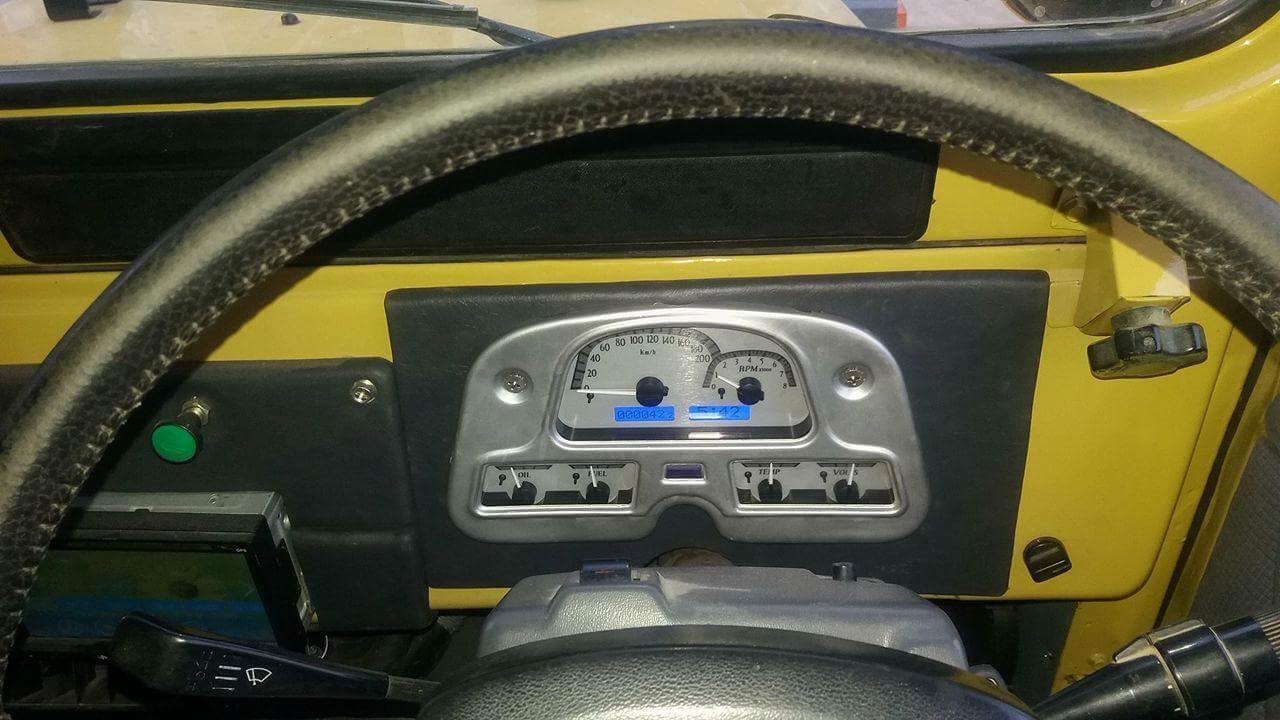

Speedometer: Dakota Digital speedometer imported from USA and installed.
Paint: we dismantled whole body and prepared each peace seperatly and then painted.Final paint done on Paint factory in Multan.Used rust oleum paint under body to avoid maximum rust and avoid heat.

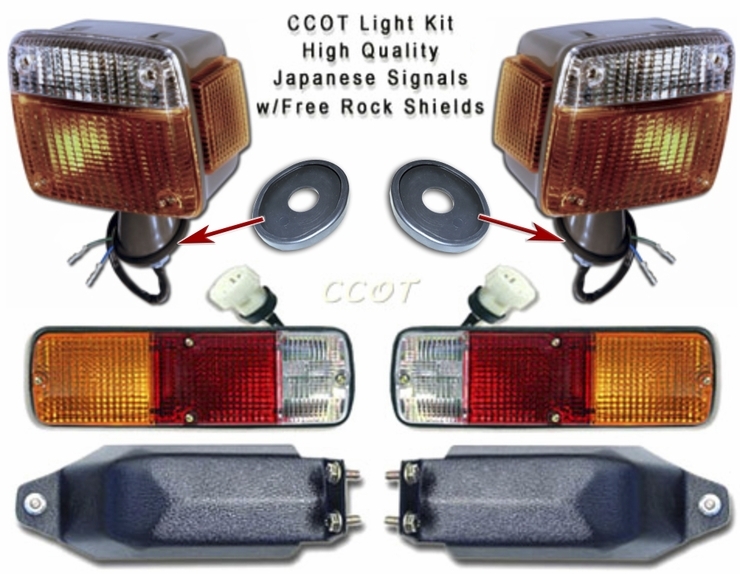

Turn Signal: CCOT Turn signal set imported from USA
Head Lights: TOJMOTO LED Headlights imported from USA
Windshiled lights: KC Hilights impotred from USA
LED Bar: Autofeel 52' LED bar Tripple Row (783W) Imported from USA ( On the way.Will have delivery in few days) Installed.
Fog Lights: KC Hilights imported from USA ( On the way.Will have delivery in few days)
Celendi Car Rear View imported from USA ( On the way.Will have delivery in few days)
Side Mirror: OEM side Mirror imported from USA and Installed.
Door/Windshield hinge imported from USA and Installed
Apron hooks Imported from USA and Installed
Almost all nut and bolts for whole BJ40 imported from USA.
Visor storage Shelf made by CCOT USA imported and Installed
All door lock/Door panels/catchers etc imported from USA and Installed.
Llyods floor mats specially made for BJ40 imoprted from USA
Pearless Auto Trac Traction chains (2Sets) imported from USA
Pirate Life Skull & Swords Saltwater Edition Spare Tire Cover OEM Vinyl Black 32-33 in imported from USA
Kaymar windshield Hilift jack holder imported from Australia and installed.
Fridge: Installed Prado Console with Fridge and successfully conected with A/C
A/C: Universal A/C Installed
Roof Rack: Designed and made in Multan.It took almost 2 months to prepare it.Changed many time and finally made it.
Jerry Can carrier: Designed and made in Multan.It also took almost one month.Changed many times and finally made it.
Winch: warn winch 11000LBS Installed with remote control
Hilift jack installed and Kaymar windshield jack holder imported from Australia
Seats:Prado Seats (Front and Rear Installed with seat belts)
Multimedia: 7inch LCD indash system installed with navigation
BTB products speaker and Kick Vent and rear panels imported from USA and Installed
Project is still going on and working to have and install below in next 6 months
7:37 (5.29 Ratio) Ring and pinion in differentail.Will import from USA
Locker will import from USA
Handmade off road 4x4 fender flare Jungle wheel arches imported from Thailand.

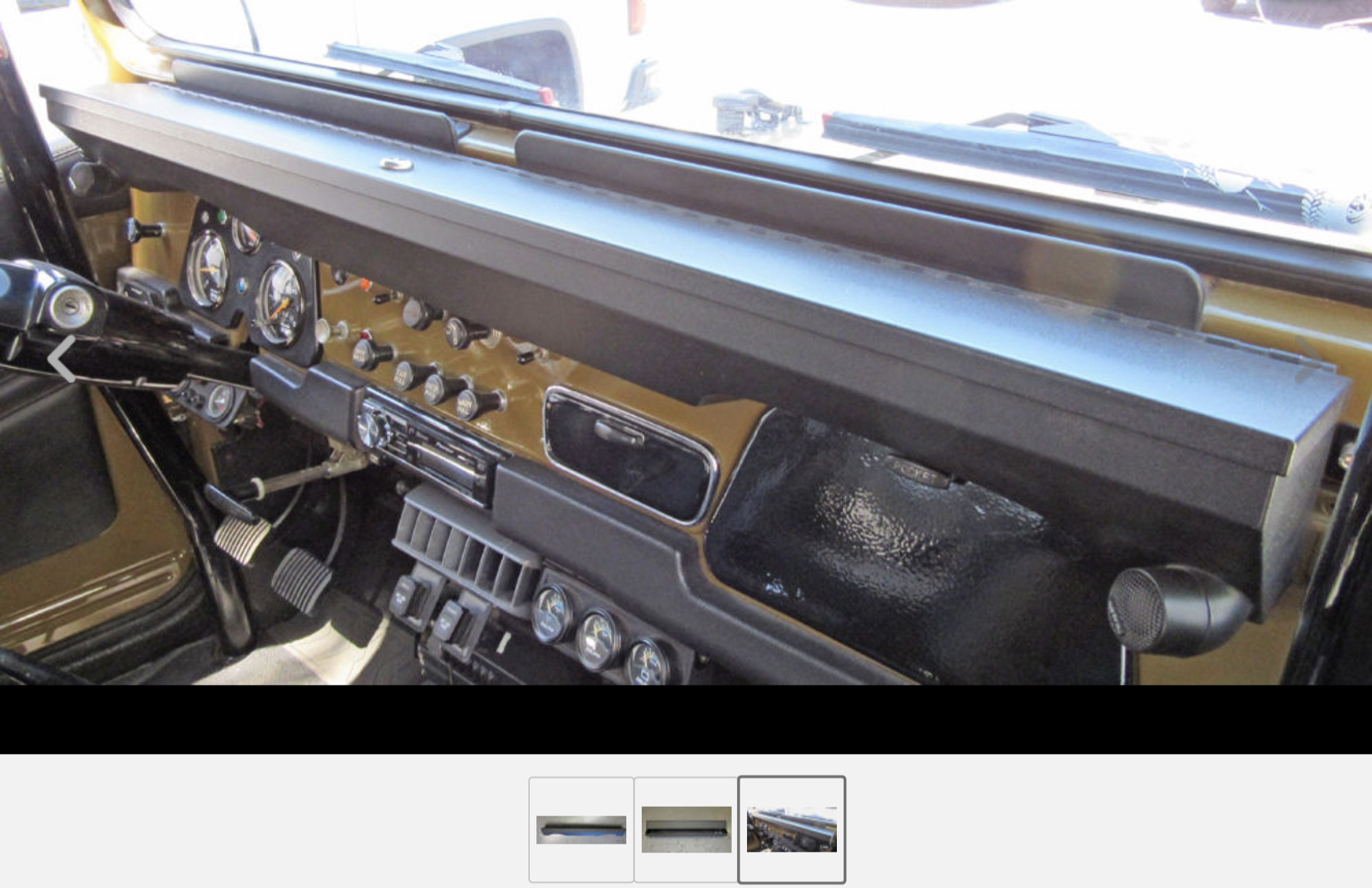

Storage Dash will import from USA and Install (Imported and Installed)
ARB Bullbar
ARB Rooftop Tent
I made youtube chanel of my rig and time to time I post test drive videos on it.U may have look it on below link
You can also visit its Facebook page on www.facebook.com/devilslovepk
any comments/suggestion will highly apprecite.
