Hassan1991 (Electrical Engineer ) 2018-06-27 14:54:14 +0500 #2334

umarabdullah (uma_) 2018-06-28 06:38:51 +0500 #2335

You are right but a turbo from a kei car (660cc) is almost like an electric blower it shouldn't have the strength to do much. Anyways looking forward to seeing your other project, it should be like a custom 4agze, yes?

Hassan1991 (Electrical Engineer ) 2018-06-28 06:53:35 +0500 #2336

Hahaha vo tubiny
If i got 4agze then i will twincharge it
If i got redtop then it will be turbo.
Else n/a HONDA

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:07:32 +0500 #2337

Assalam! i need guidance regarding changing the complete wiring of the 86 corolla.
there is alot of jugarh in the wiring, the internal fuse boxes and the engine compartment fuse box are in a poor condition, kabali wiring is for ten thousand rupees without engine wiring. what should i do?

Hassan1991 (Electrical Engineer ) 2018-07-01 01:33:08 +0500 #2338

WAILAIKUM ASSALAM
Make custom wiring. Buy a coil of wires all of the wires will be in different color. Also buy new fuse boxes of 86 as they will be with wiring sockets, you can add new wires in those pins and can use stock sockets and fuse box with new wiring.

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:38:15 +0500 #2339

can you explain the compartment fuse box of 86 corolla?

Hassan1991 (Electrical Engineer ) 2018-07-01 01:39:54 +0500 #2340

details are written in the upper cover of the fuse box.

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:41:34 +0500 #2341

the upper cover is broken and no writing is there

Hassan1991 (Electrical Engineer ) 2018-07-01 01:42:43 +0500 #2342

your talking about cabin fuse box,that is located near the driver foot?

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:45:12 +0500 #2343

last year i refreshed the wiring of the engine compartment by electrician, he installed relays for Horn, headlights, CNG kit, only the relay for radiator fan is in the fuse box. i am worried that whether all these parts are connected through fuse or not?

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:47:29 +0500 #2344

No i am talking about the engine compartment fuse box

Hassan1991 (Electrical Engineer ) 2018-07-01 01:49:25 +0500 #2345

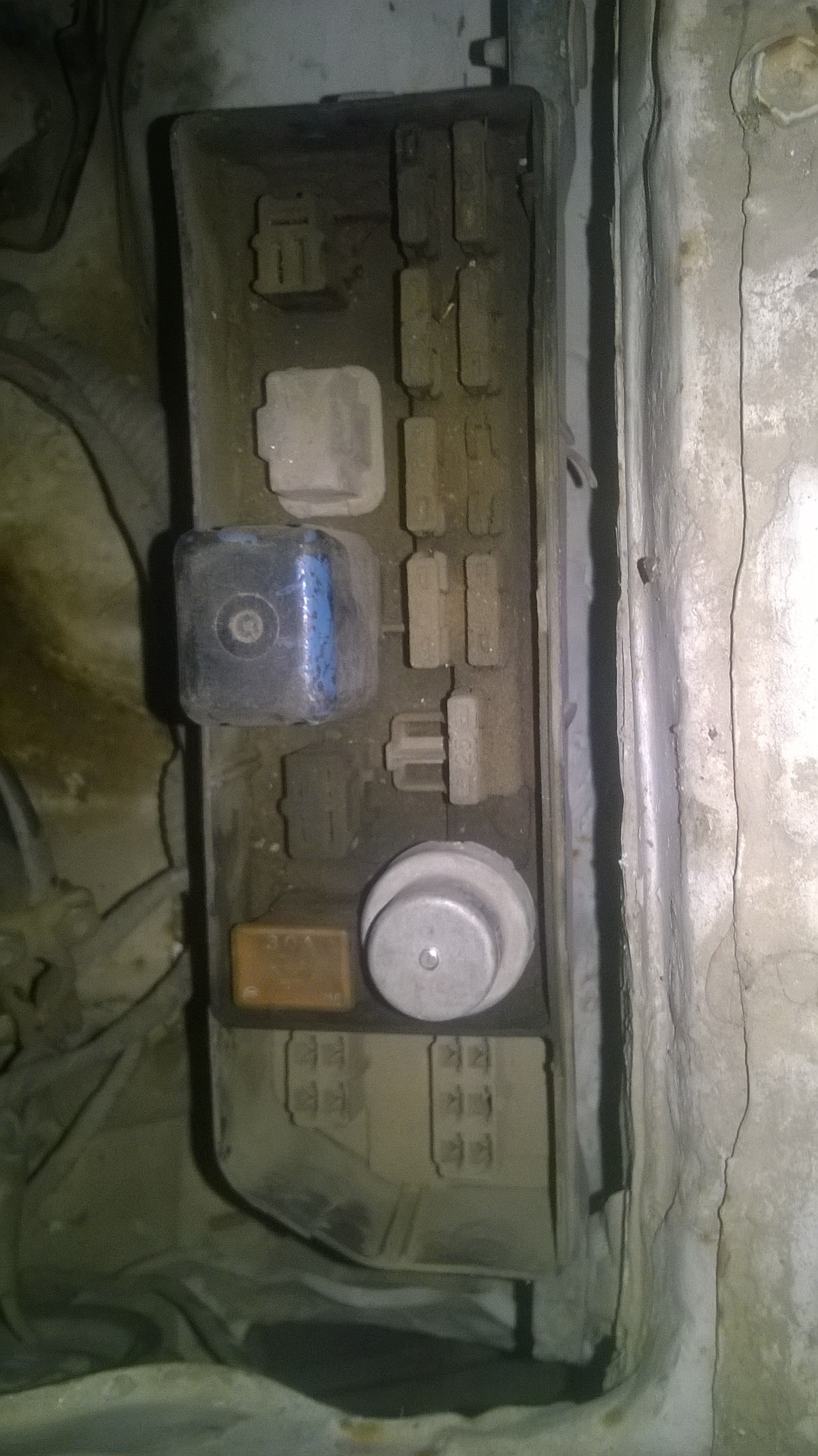

mien one is also broken. i had bypasses the fuse.
the silver round relay is for head lights, blue relay is for fan i think so as mien was burned long before i start playing with her.

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:50:39 +0500 #2346

is it safe to bypass the fuses?

Hassan1991 (Electrical Engineer ) 2018-07-01 01:54:52 +0500 #2347

it's save if you add fuses separately. but still i suggest you should buy new fuse box. Only boxes aren't expensive.

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 01:57:24 +0500 #2348

ok How much will it cost ? and how can i add fuses separately? can you teach me?

Hassan1991 (Electrical Engineer ) 2018-07-01 01:59:48 +0500 #2349

1 to 2k for a fuse box.
you can scroll up i don't remember the page i did the wiring added relays and fuses. also had bypassed cabin fuse box.
Sure.

pwuser149164361145 (EE80 with 4efe ) 2018-07-01 02:00:52 +0500 #2350

ok let me check it

Hassan1991 (Electrical Engineer ) 2018-07-01 02:07:19 +0500 #2351

starting for 300th post
the hole thread is filled with my project
i think so i started sharing my project from 200th post.

Hassan1991 (Electrical Engineer ) 2018-07-01 02:10:06 +0500 #2352

No it's 186th post

Hassan1991 (Electrical Engineer ) 2018-07-01 02:19:37 +0500 #2353

And 1495th post when i start conversion my engine.
from 5AF carby to 5AFE efi .
