Toyota corolla 2.0D 2004 overhauling

agoodfriend (RK Niazi) 2020-01-26 13:26:33 +0500 #241

ODO is around 165K

LX_AFFAN (Affan) 2020-02-02 20:55:04 +0500 #242

Thanks, it was a fun thread to go through.

Bilalicious (Bilalicious) 2020-03-03 00:41:30 +0500 #244

effaf27 (Youngblood) 2020-03-07 07:49:47 +0500 #245

How loosen the v belt tenshioner under the power steering belt and also did you get around to changing the valve stem seals

agoodfriend (RK Niazi) 2020-03-07 11:39:19 +0500 #246

the good rule of thumb is to twist the serpentine belt on its longest running length to 90 degee , it must twist upto 90 degee and must not twist further more ,,,,,,replace the belt if you find more then 6 cracks per inch ,,,,,,,, there is SST mentioned in workshop manual ,,,,,, i try to find it while i was rebuilding ,,,,,,,but unfortunately i dont even find its glimpse,,,,,,,,

effaf27 (Youngblood) 2020-03-11 01:20:27 +0500 #247

If you are talking about the bwlt tension guage i have researched one and was about to order from aliexpress but didnt as per the recent issues

effaf27 (Youngblood) 2020-03-11 18:32:40 +0500 #248

@agoodfriend were you talking about these belt tenshion guages

agoodfriend (RK Niazi) 2020-03-12 13:56:09 +0500 #249

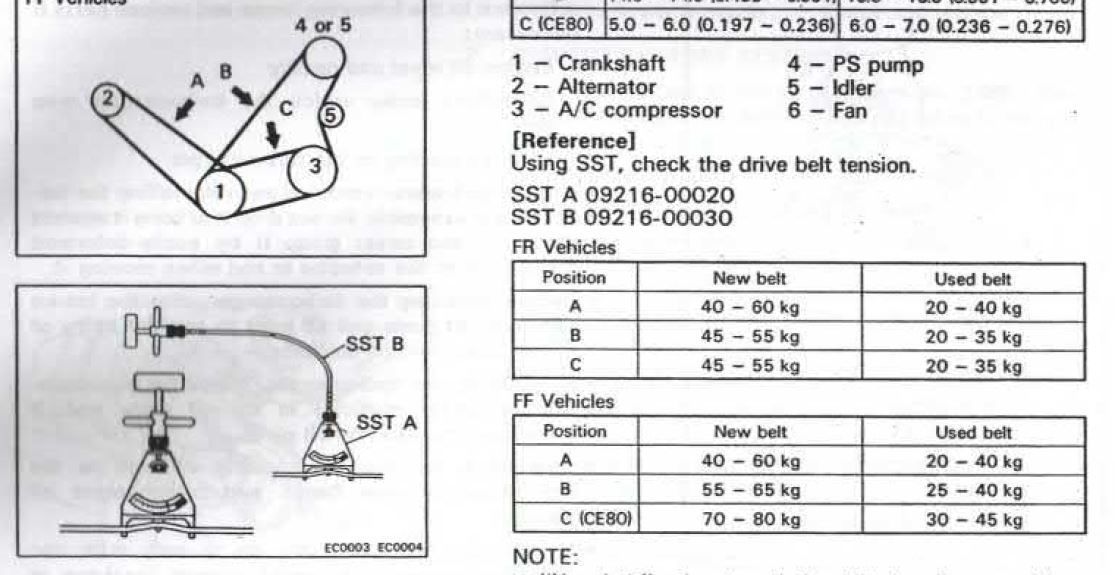

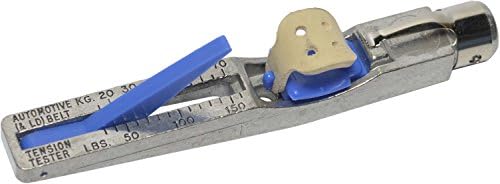

this one you can also use ,,,,,,but its little complex to use ,,,,, as you have to play with lot of unit conversions,,,,,, a much simpler and yet accurate is known as krikit tension gauge ,,,,,, i am sure it will be also available on aliexpress or amazon ,,,,, the one shown in workshop manual has similar working principal to the one you have shown ,,,,but may be an older version,,,,,,,,,

agoodfriend (RK Niazi) 2020-03-12 13:57:24 +0500 #250

its there on amazon ,,,,,,,,,,

effaf27 (Youngblood) 2020-03-14 06:27:27 +0500 #251

Thabks for the link lemme check if this can be bought

effaf27 (Youngblood) 2020-03-14 06:29:45 +0500 #252

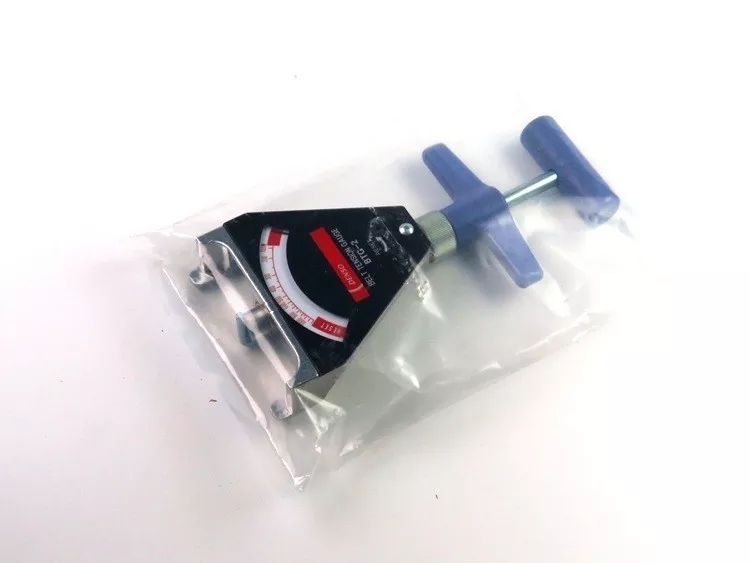

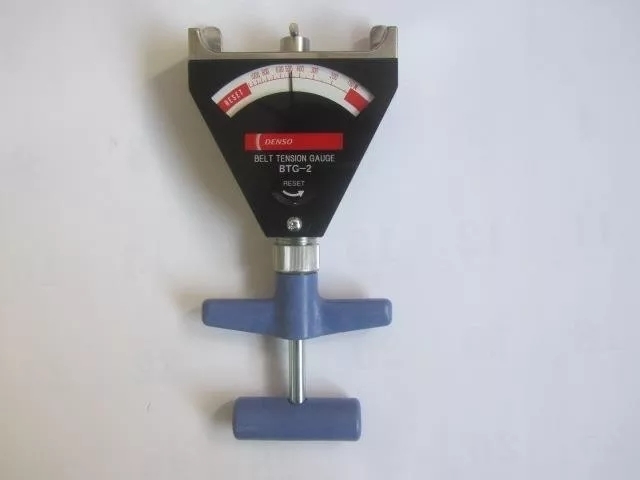

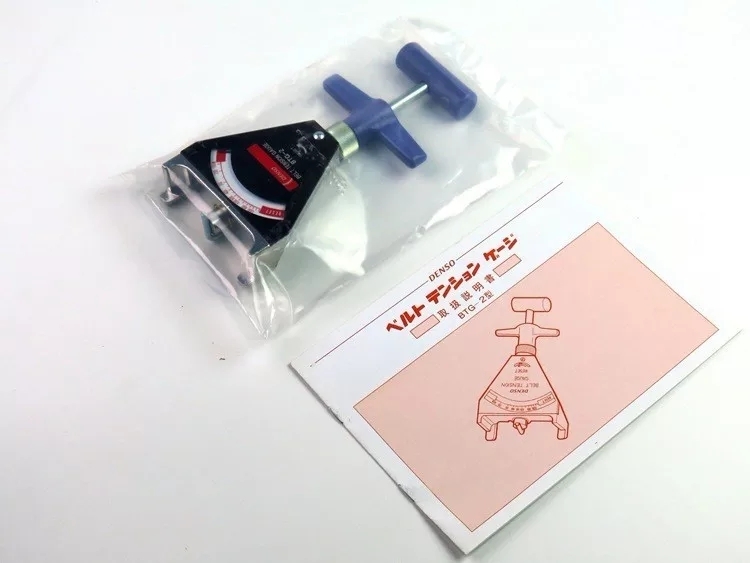

I think this was the actual sst mentioned in the manual

agoodfriend (RK Niazi) 2020-03-14 11:19:38 +0500 #253

yes thats the one mentioned in manual ,,,,,,, take any of these ,,,,,,,,,,

effaf27 (Youngblood) 2020-11-12 01:35:09 +0500 #254

@agoodfriend i hope everything is going good at your end any updates on your valve stem seal job. was intrested in it as now my car is reaching close to 200k now so planning to doing it.

Looking forward to your reply sir.

agoodfriend (RK Niazi) 2020-11-14 16:36:37 +0500 #255

well i haven't replace the valve seals as they show no sign of any kind of leak ,,,,,, so replacing them against cheap after market seals is not a good option ,,,,,,,, but under idea condition they must be replace after coving 200K ,,,,,,, along with timing belt , fan belt , timing belt idle pully and tensioner , water pump , crank and cam shaft seals ,

mwanwar (mwanwar) 2020-11-14 16:53:39 +0500 #256

Guys want to convert 2c to auto can you guys suggest which transmission will mate perfectly

effaf27 (Youngblood) 2021-01-12 00:32:39 +0500 #257

the older caldina used to come with a 2c with a auto trans its a tough find but you can look for a auto trans make sure you have a good mechanic as it requires some wiring

Xulfiqar (Xulfiqar) 2021-01-12 01:27:40 +0500 #258

ancient carina/camry/celica-camry also came with 2C diesel and automatic transmission (full hydraulic) - they used to be plenty in the market and dont require any wiring other than the shift position switch for starting and the overdrive wiring.

pwuser152311353296 (SaLman TaHir) 2021-01-12 01:47:23 +0500 #259

@agoodfriend if you don't mind can u tell me the cost of this project just give a rough idea if you can't tell the exact cost.

Moderator (Moderator) 2021-01-12 11:06:53 +0500 #260

agoodfriend (RK Niazi) 2021-01-12 17:42:49 +0500 #261

i dont remember how much i spend ,,,,,,,,, but above i am sure i did share price of every part which i buy ,,,,,,,
