Toyota corolla 2.0D 2004 overhauling

agoodfriend (RK Niazi) 2021-07-15 11:19:04 +0500 #343

its covered ,,,,,, i will make it functional soon ,,,,,,,

agoodfriend (RK Niazi) 2021-07-15 11:21:29 +0500 #344

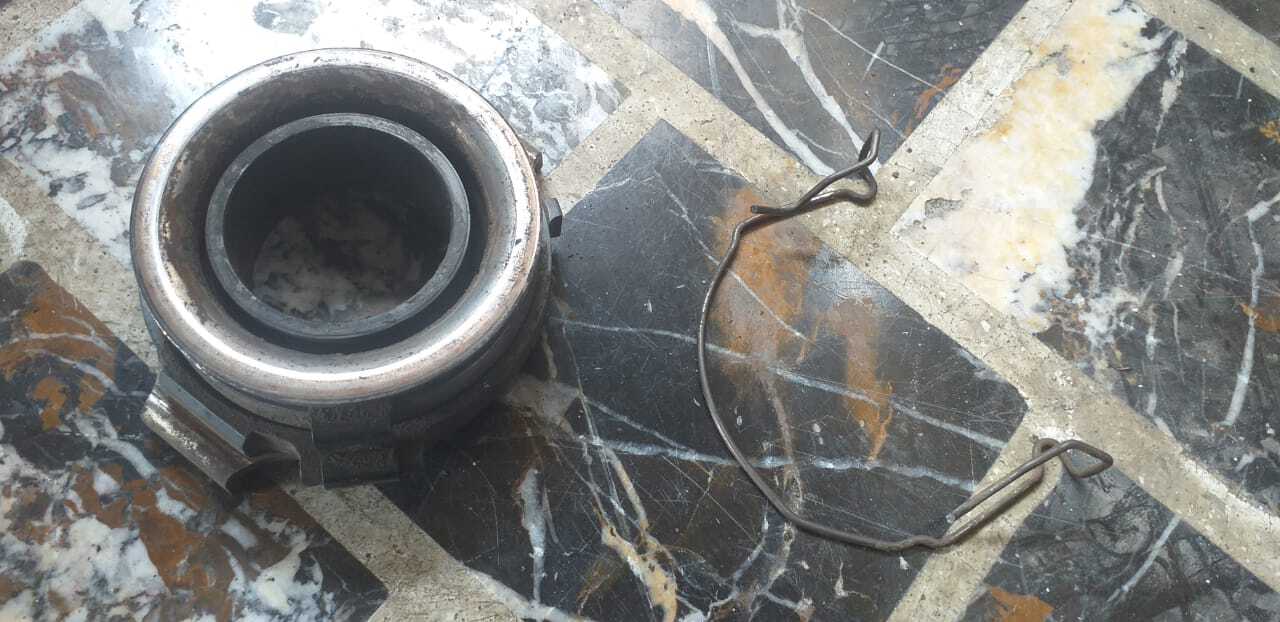

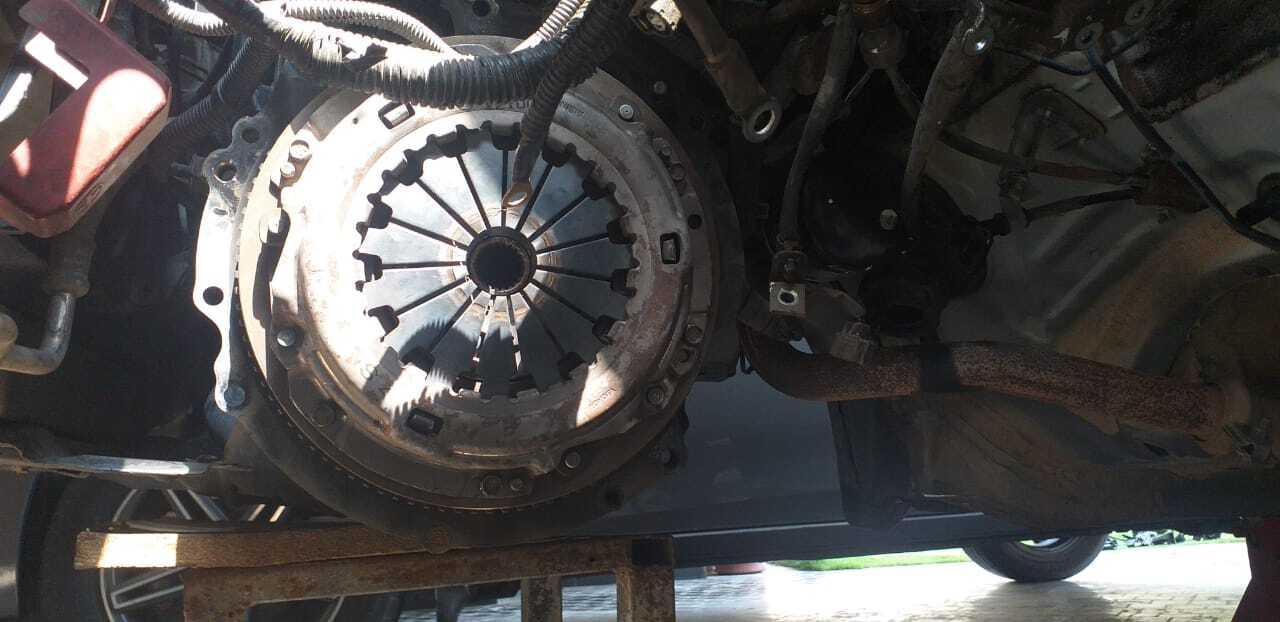

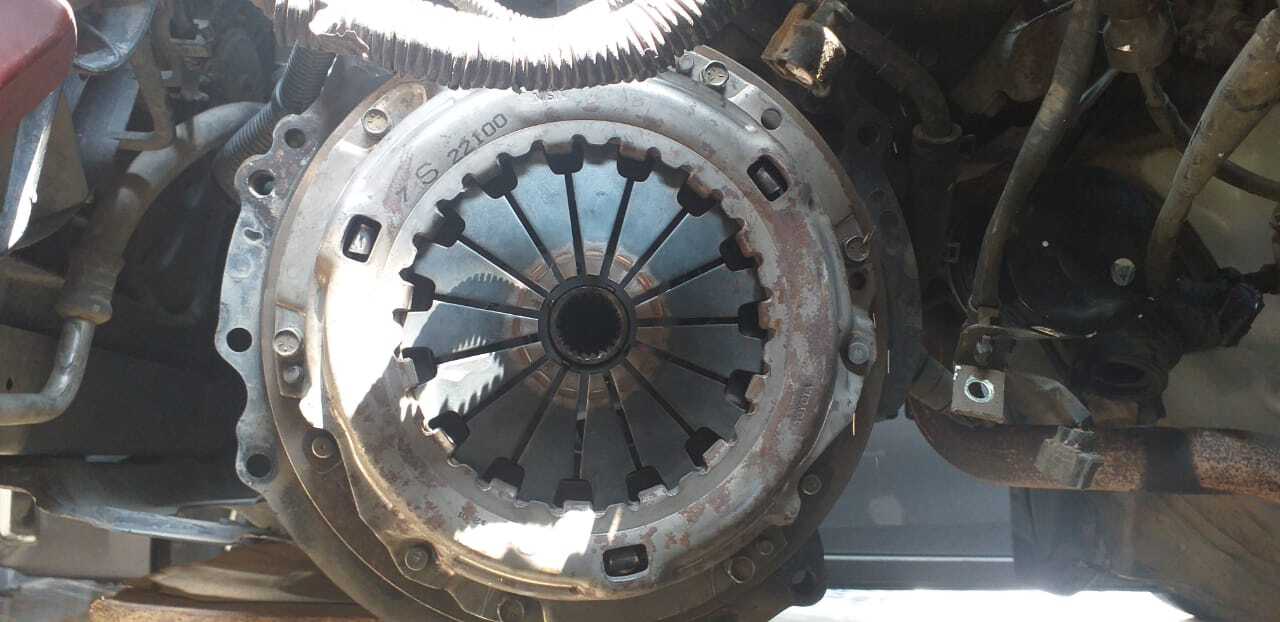

well i have checked all these parts ,,,,,,,,, the clutch plate has almost more then 80% life left ,,,,,, no need to replace it with cheap chinese parts of high copy fake ,,,,,,, this original one will definitely last twice more then then the replacement parts,,,,,,,,

agoodfriend (RK Niazi) 2021-07-15 11:28:03 +0500 #345

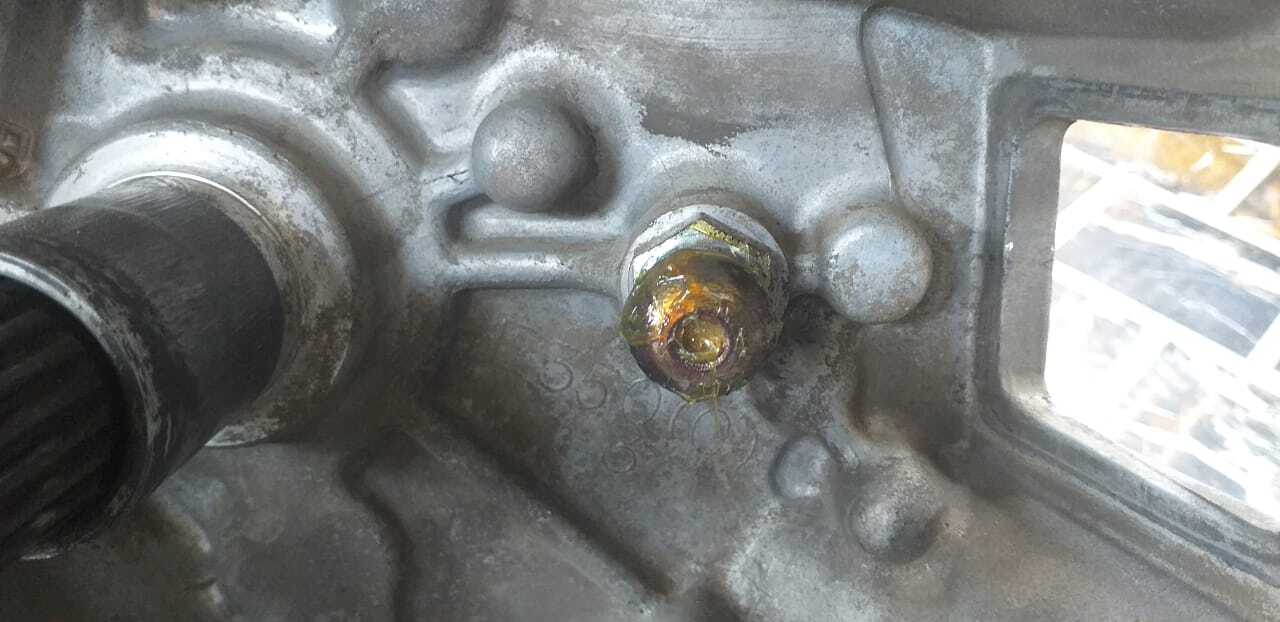

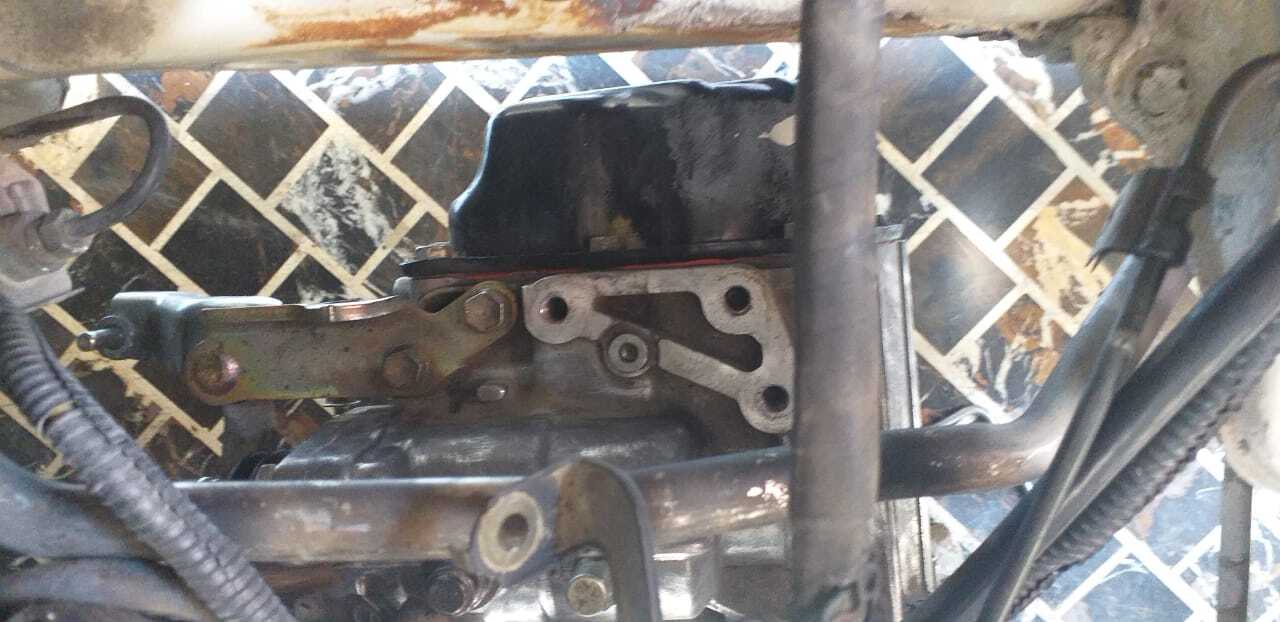

by the way that hard clutch is because of this pivet point ,,,,,,,, i also having this issue and it will be fixed by just slightly grease this point ,,,,,,, i will update you about it when vehicle is assembled back,,,,,,,

agoodfriend (RK Niazi) 2021-07-17 12:31:34 +0500 #346

ok so done with every thing and vehicle back in service ,,,,,,, time was short and i have to finish all that mess before Eid holidays ,,,,,,,

agoodfriend (RK Niazi) 2021-07-17 12:38:13 +0500 #347

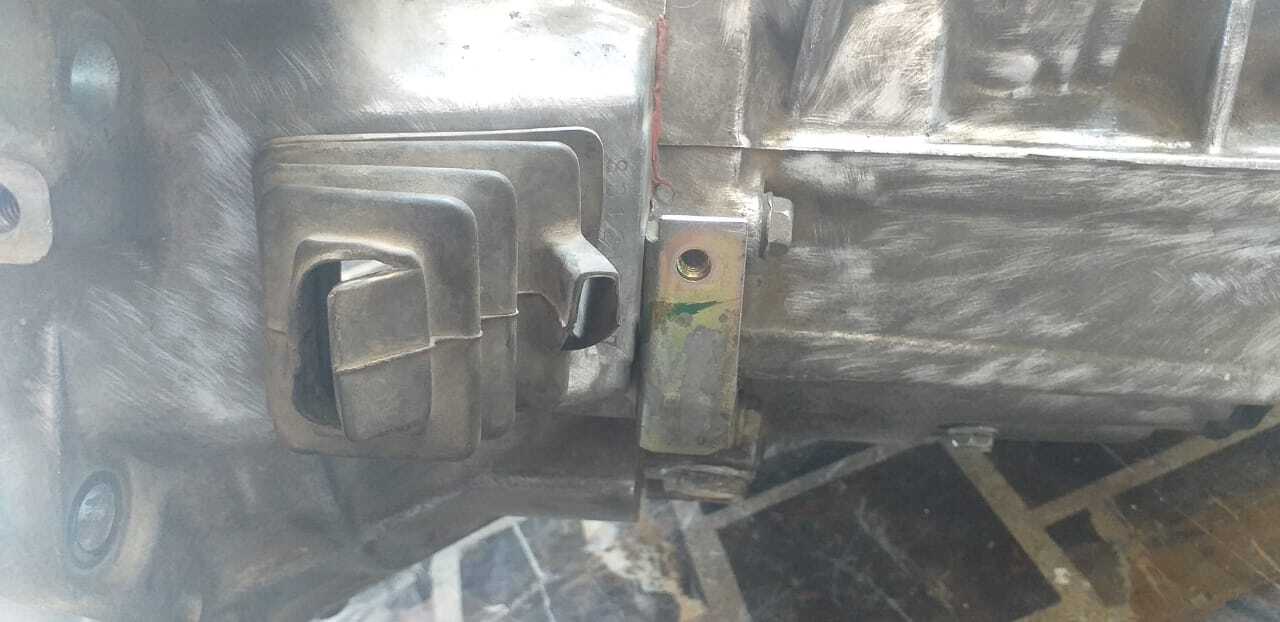

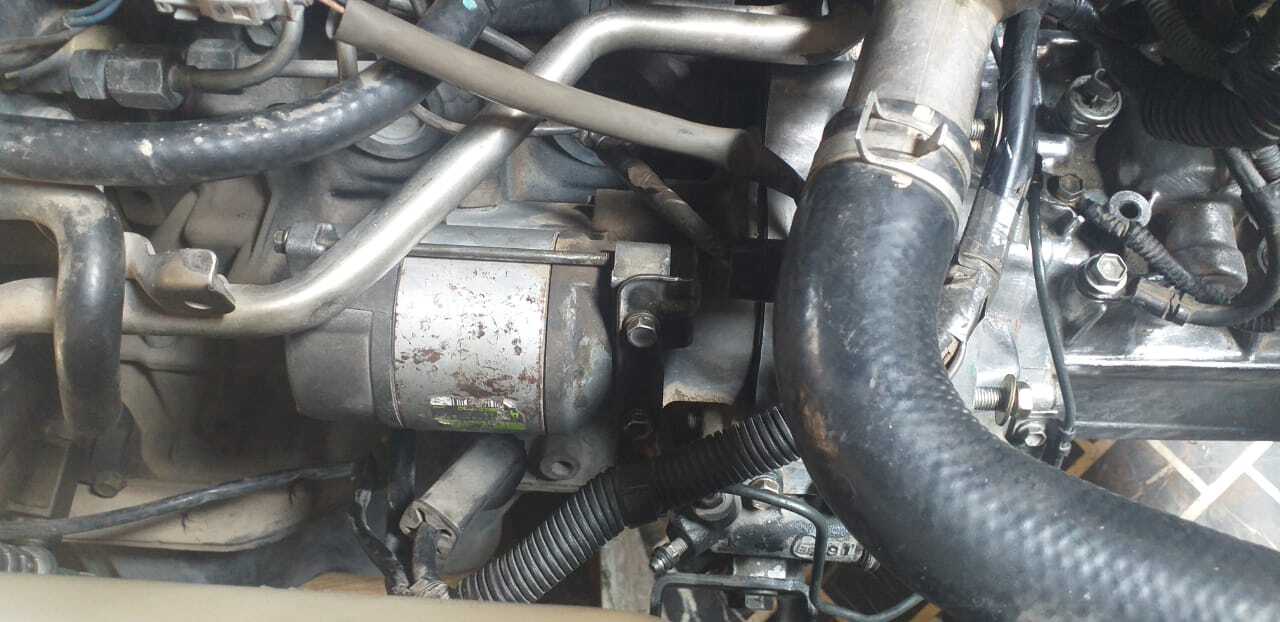

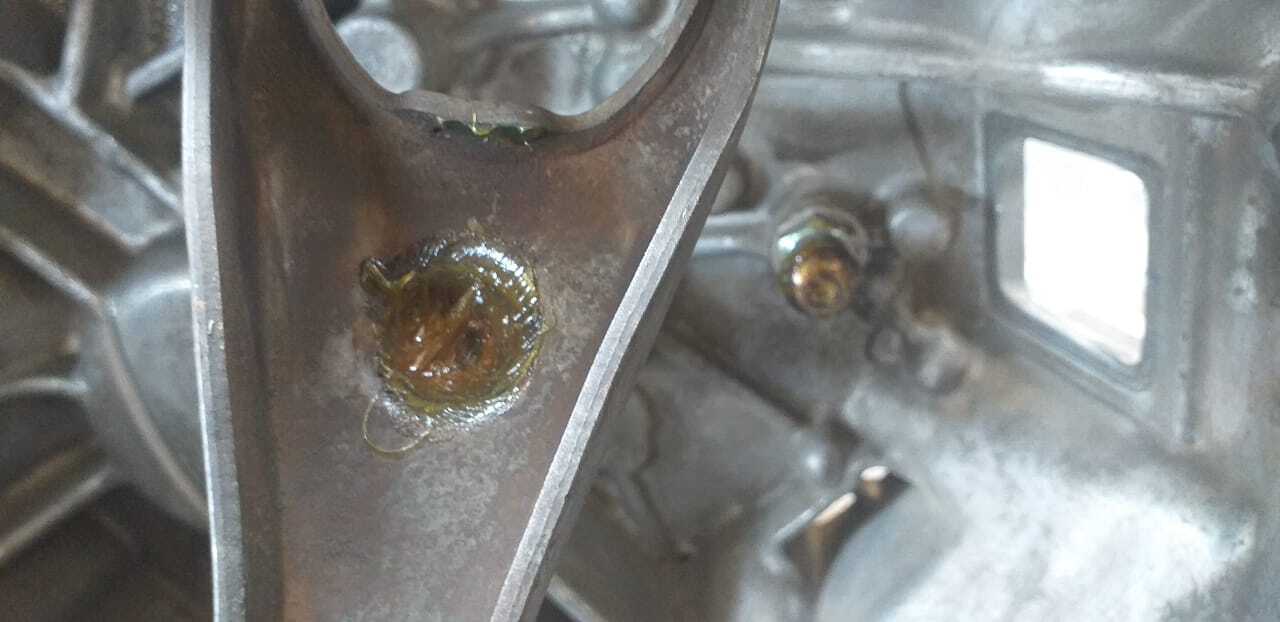

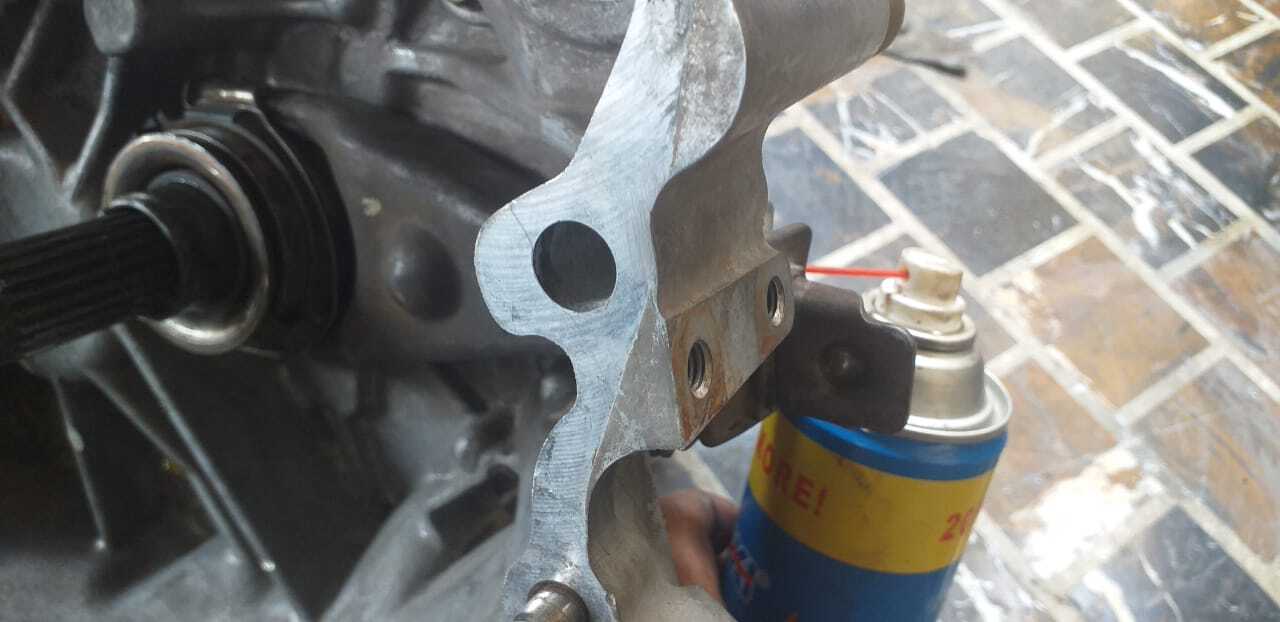

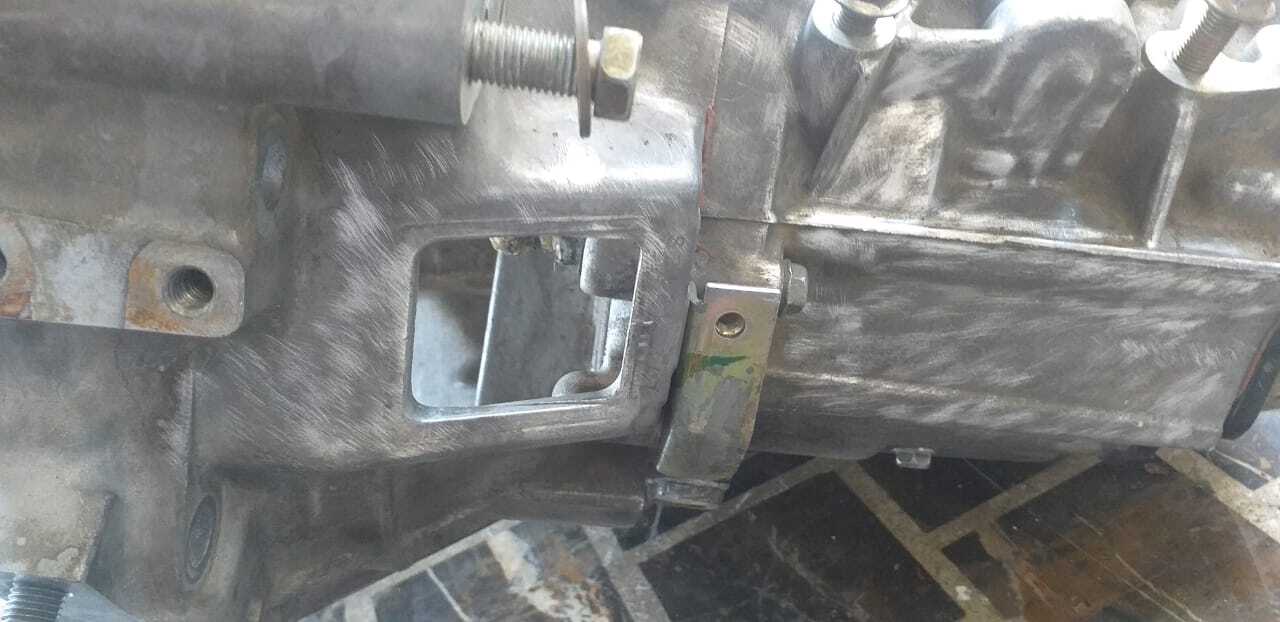

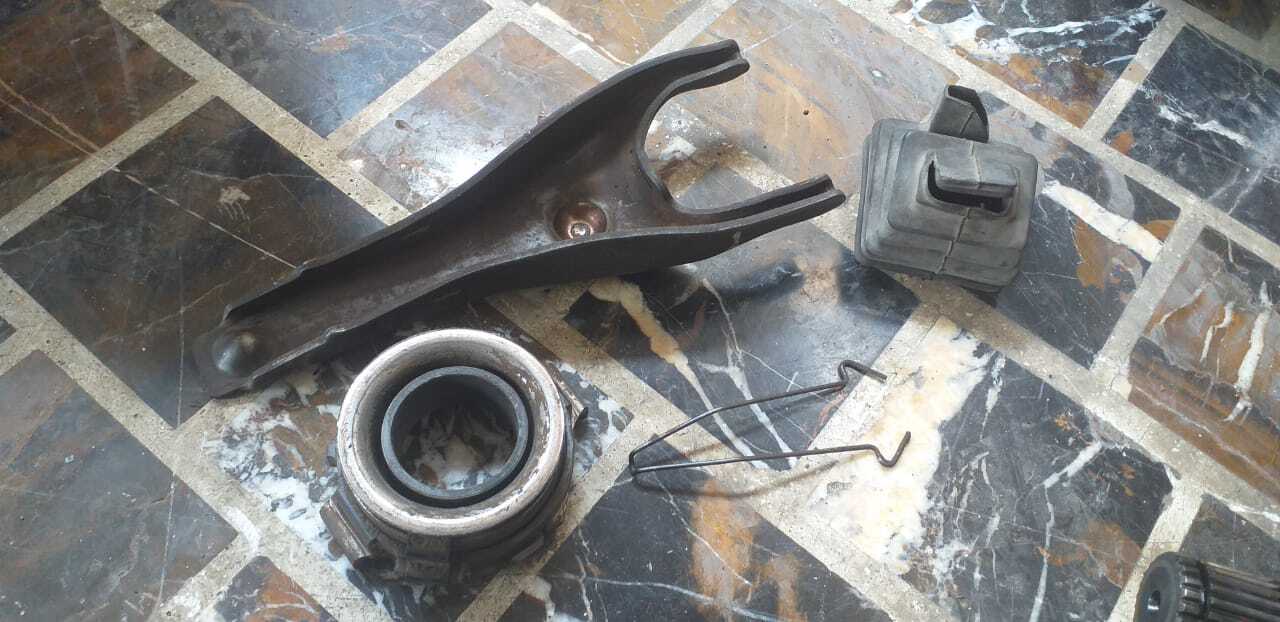

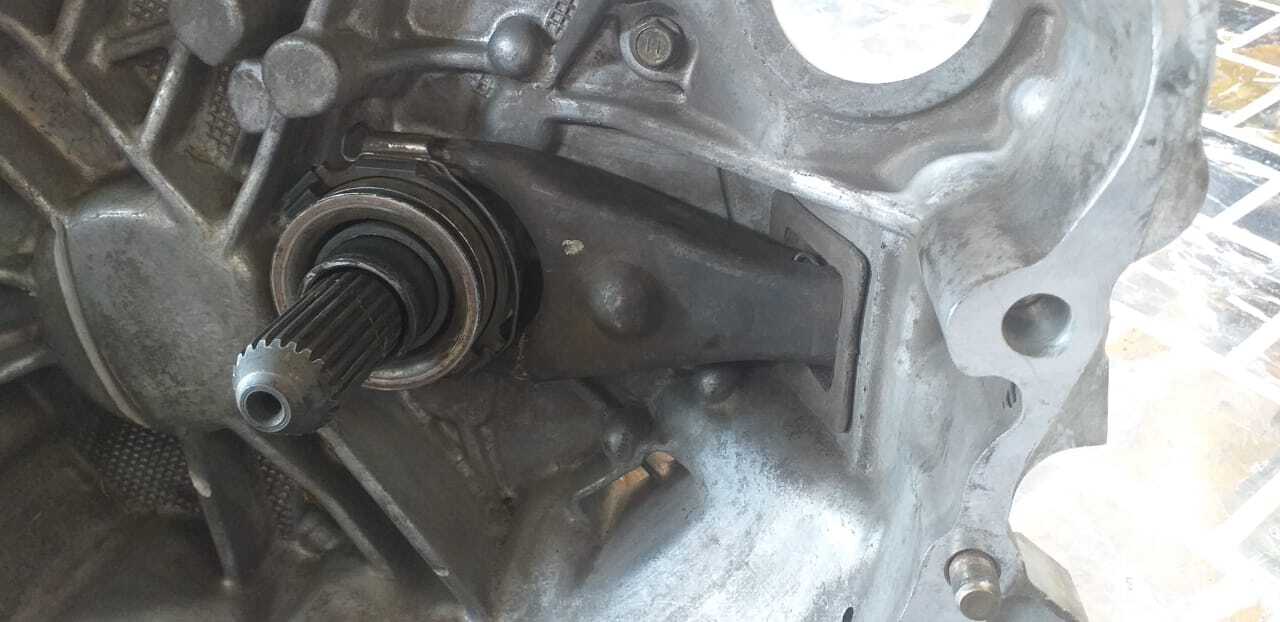

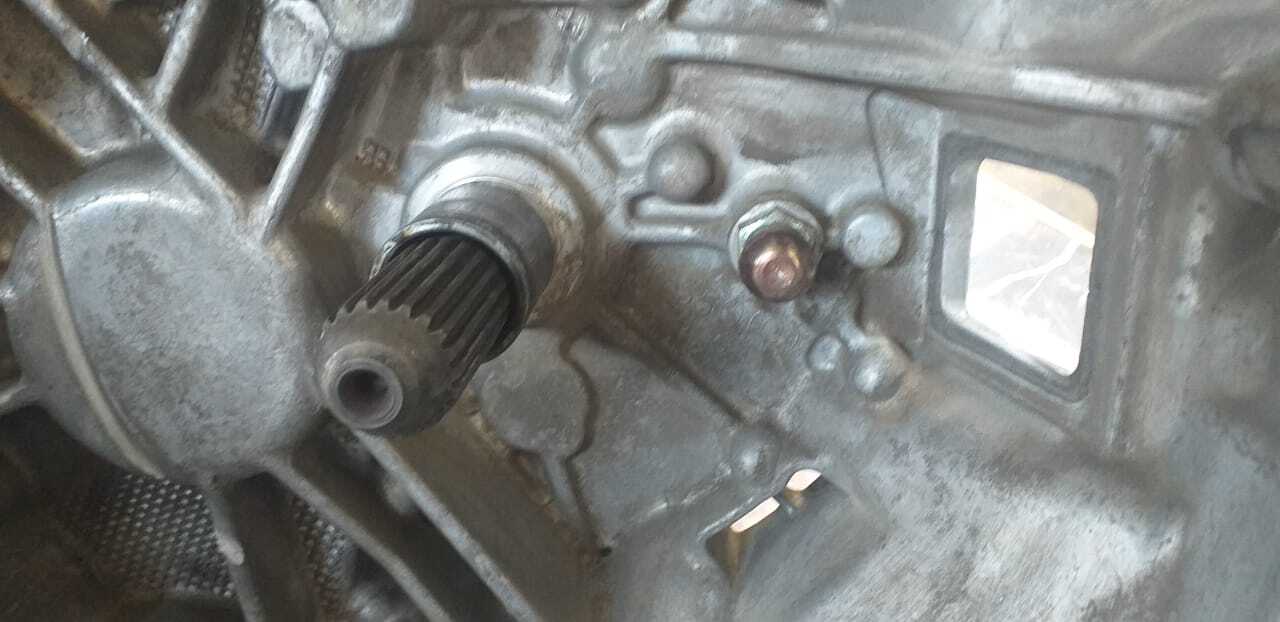

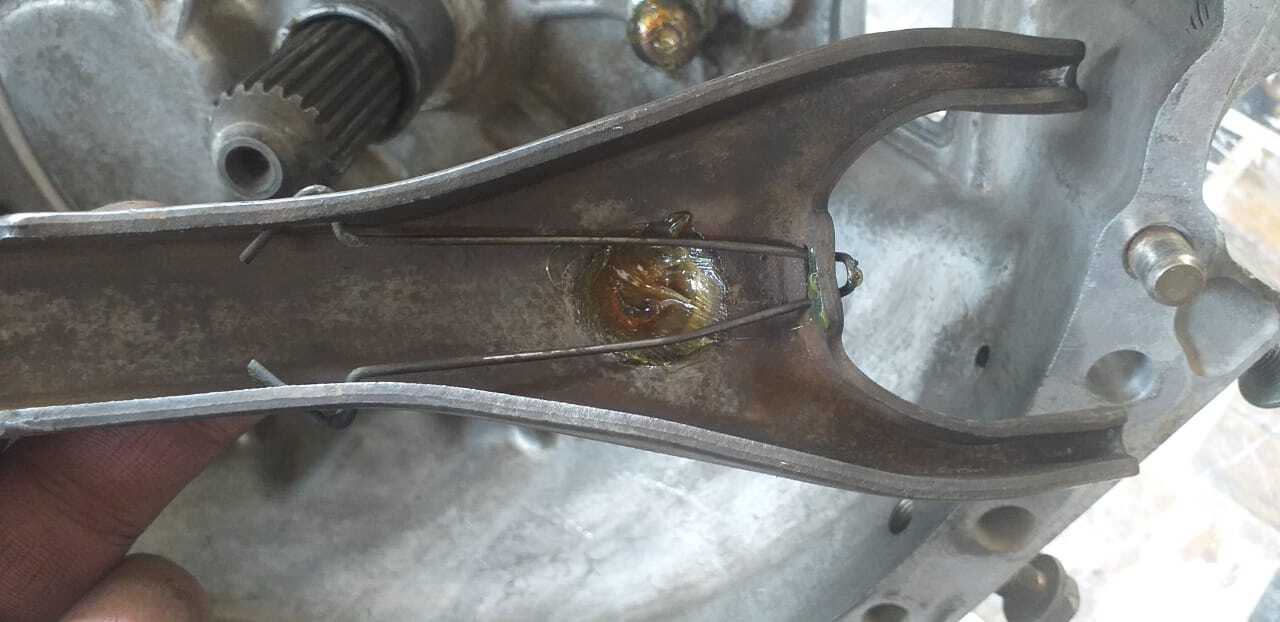

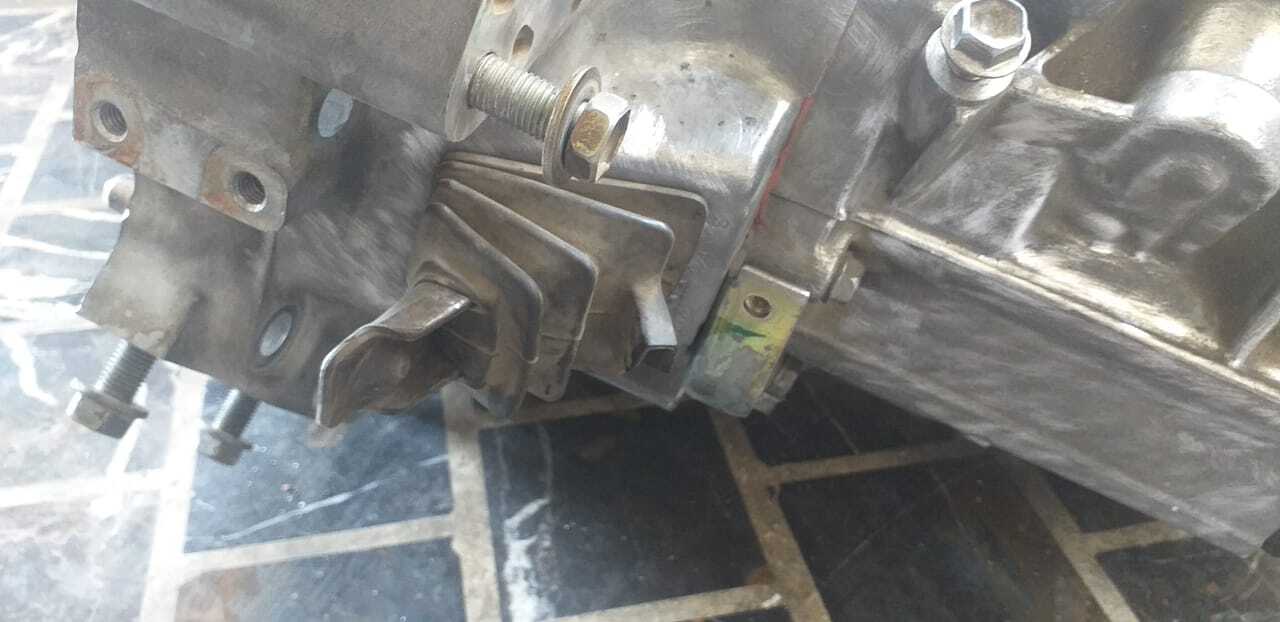

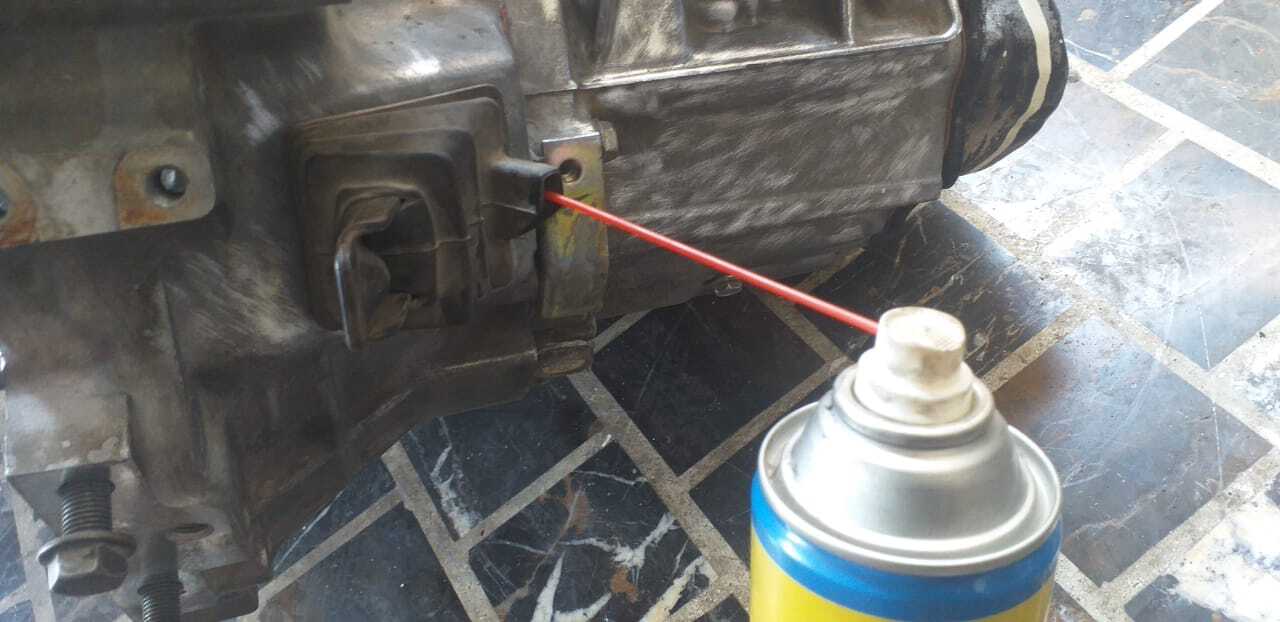

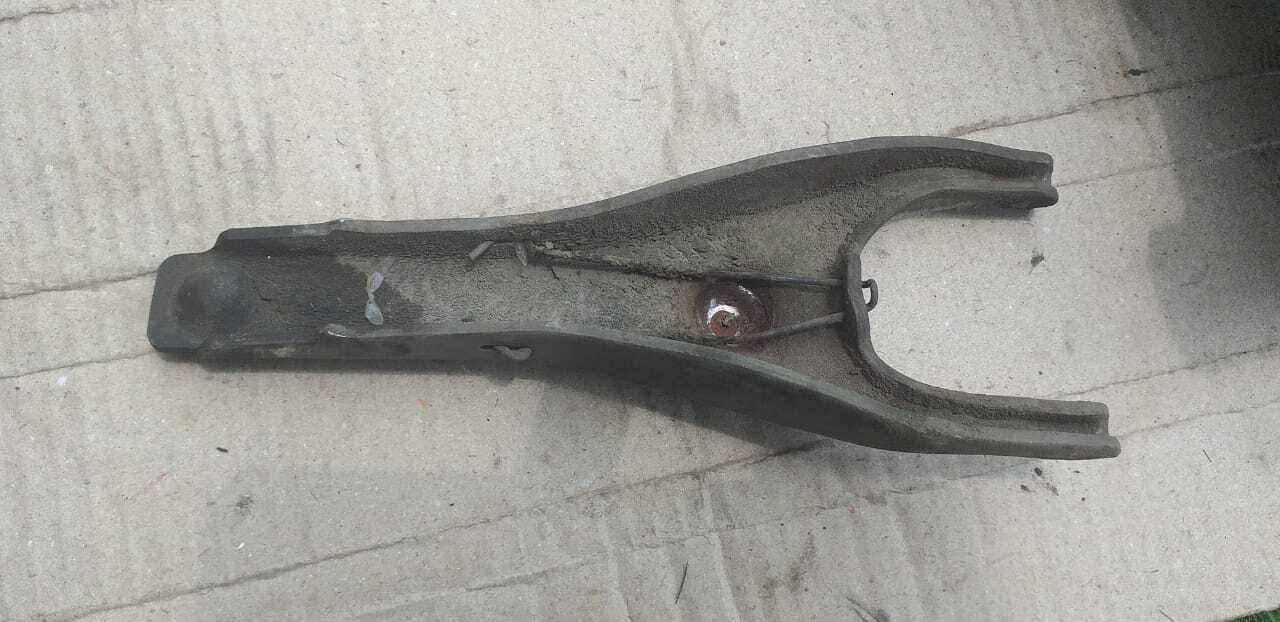

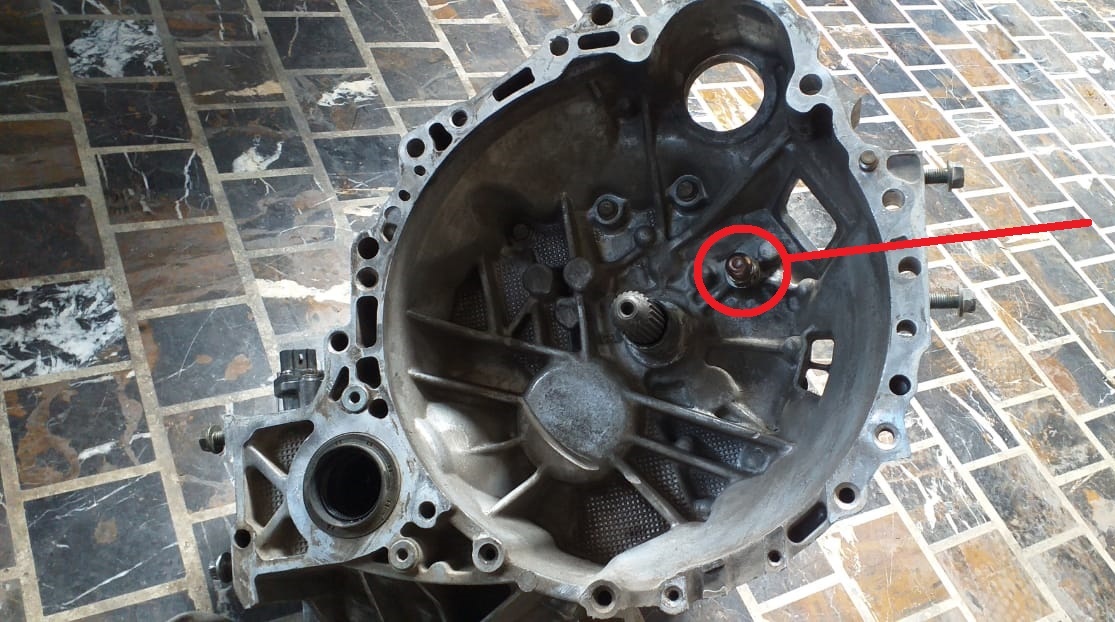

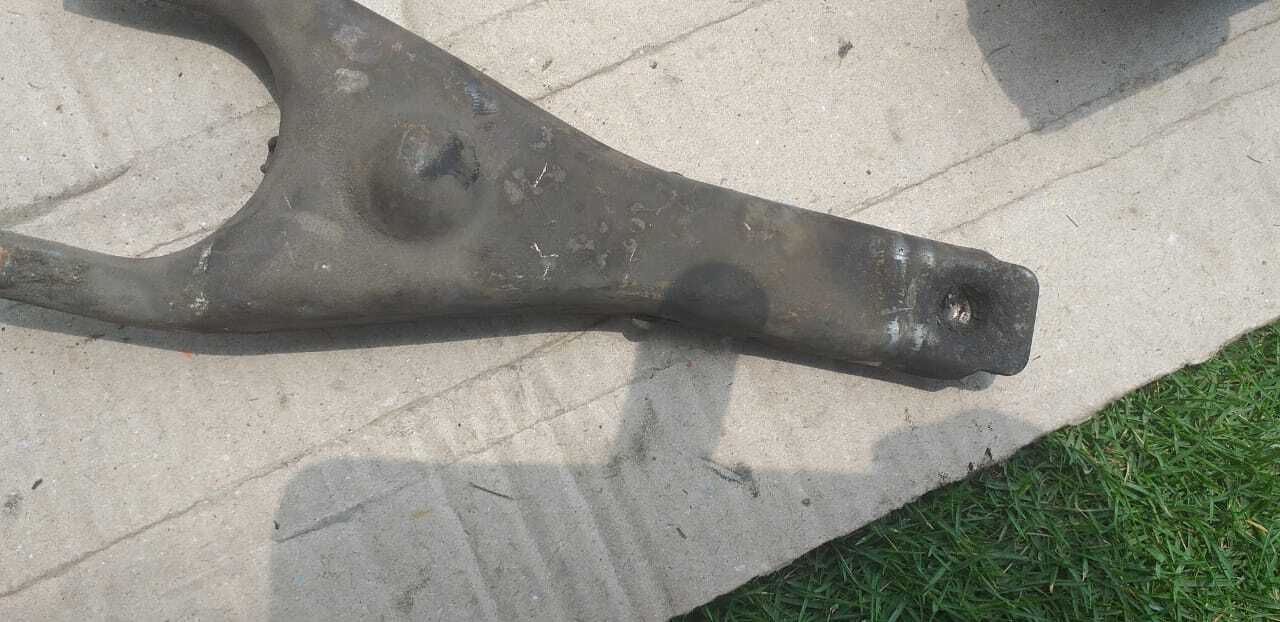

this is the clutch yoke ......... if clutch plate leather is ok and clutch is still hard then this might be the reason ,,,,,, grease it and fit back ,,,,,,, my vehicle clutch was also hard and it is now as smooth as it should be ,,,,,,,, there is no need to remove the tramsission to grease this yoke ,,,,,, in next few pic it will be clear how to grease it without even opening any thing ,,,,,,

agoodfriend (RK Niazi) 2021-07-17 12:39:15 +0500 #348

agoodfriend (RK Niazi) 2021-07-17 12:39:57 +0500 #349

agoodfriend (RK Niazi) 2021-07-17 12:40:54 +0500 #350

agoodfriend (RK Niazi) 2021-07-17 12:41:41 +0500 #351

agoodfriend (RK Niazi) 2021-07-17 12:42:29 +0500 #352

agoodfriend (RK Niazi) 2021-07-17 12:43:13 +0500 #353

.
--

agoodfriend (RK Niazi) 2021-07-17 12:44:52 +0500 #354

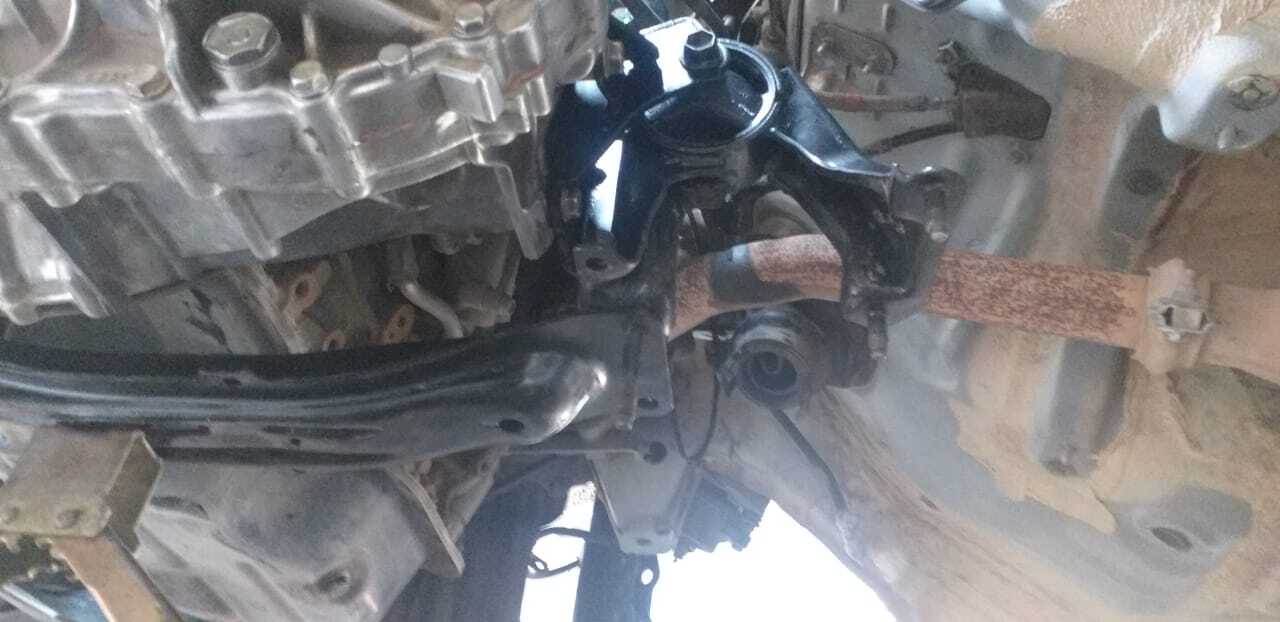

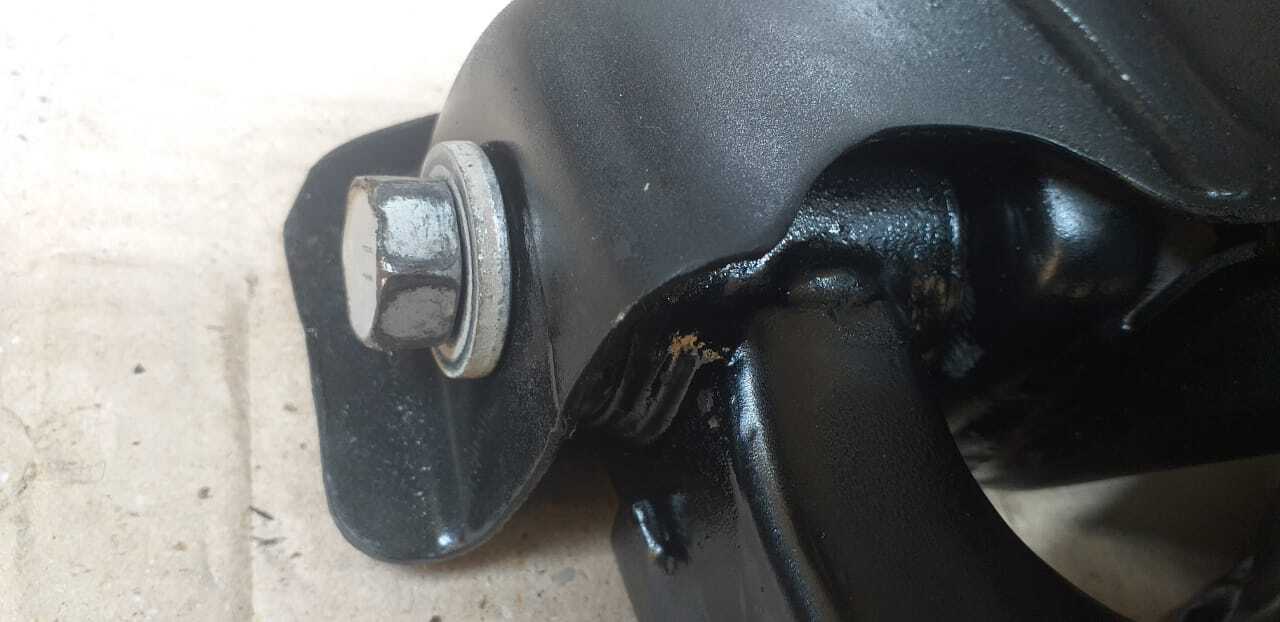

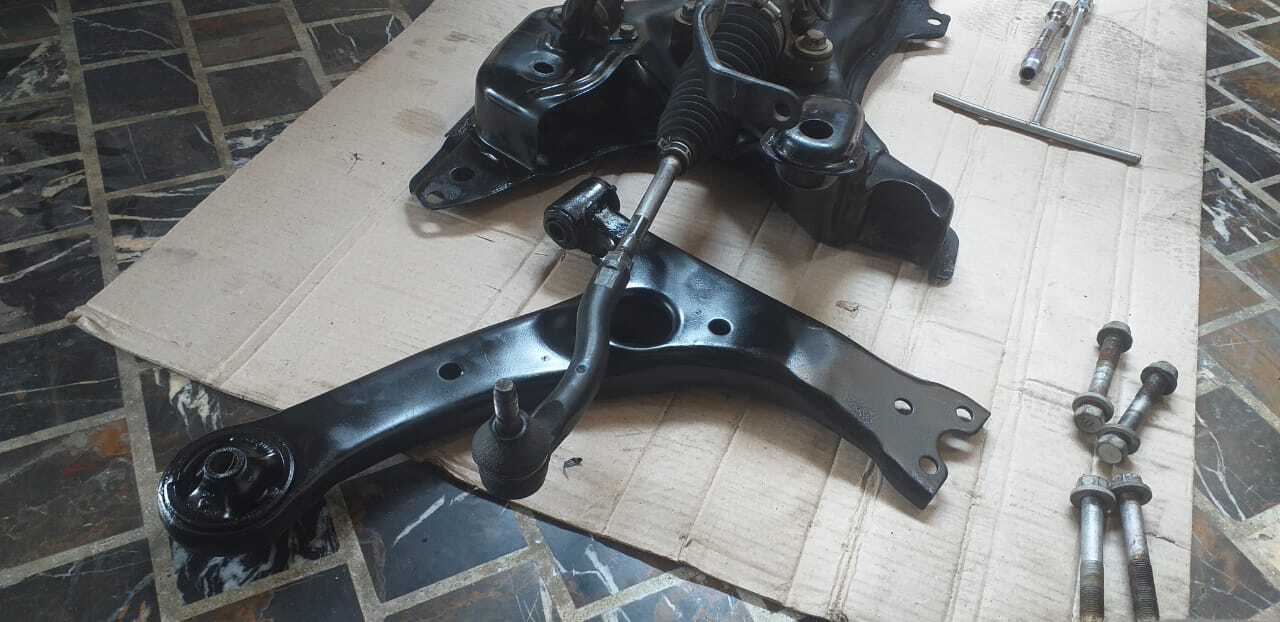

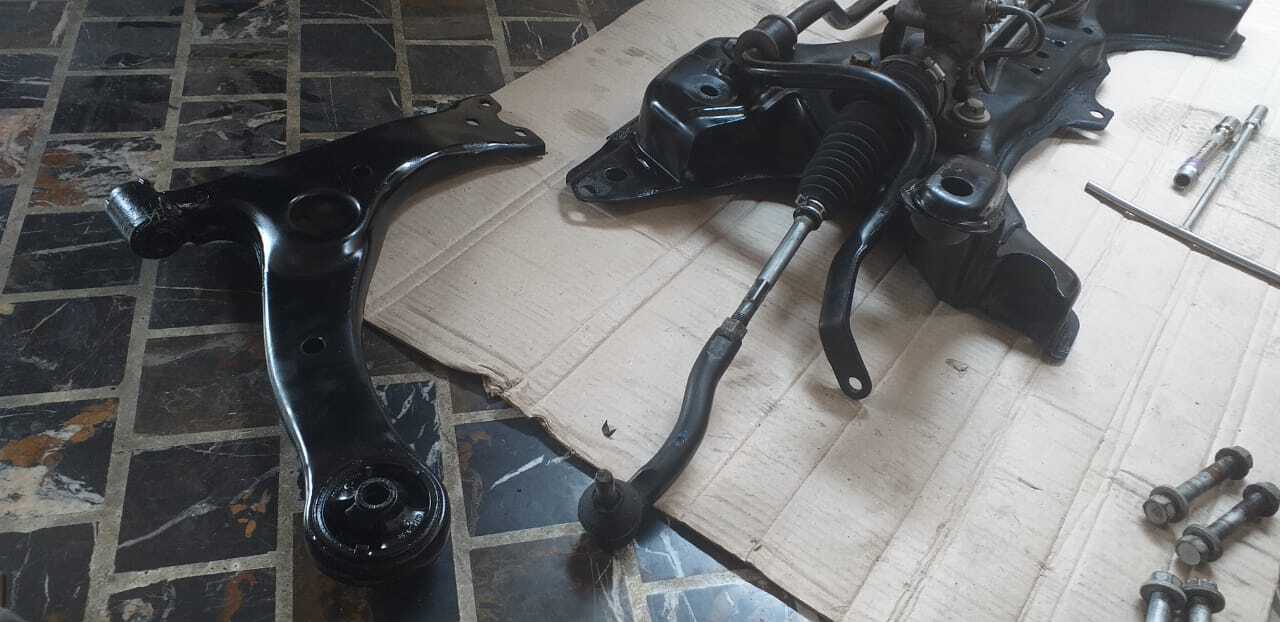

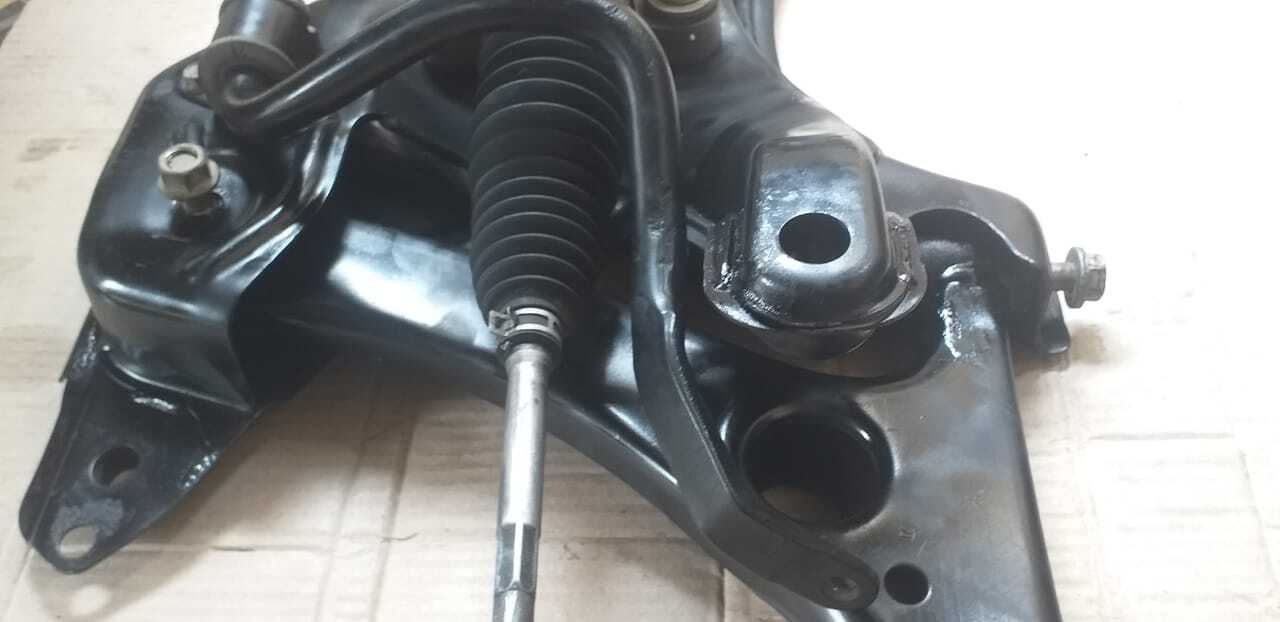

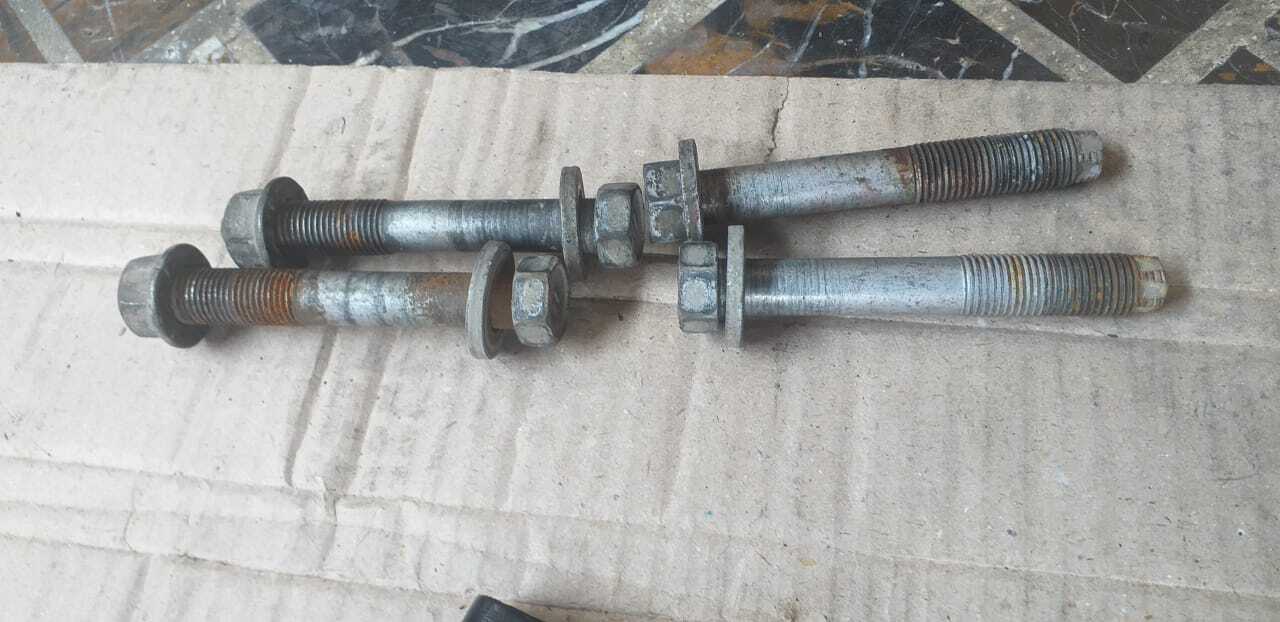

this is the lower control arm bolt ,,,,, do not fully tight it at this point ,,,,,,,, tight it when vehicle weight comes back in its tires,,,,,,,

agoodfriend (RK Niazi) 2021-07-17 12:45:23 +0500 #355

agoodfriend (RK Niazi) 2021-07-17 12:46:31 +0500 #356

agoodfriend (RK Niazi) 2021-07-17 12:47:19 +0500 #357

agoodfriend (RK Niazi) 2021-07-17 12:48:35 +0500 #358

agoodfriend (RK Niazi) 2021-07-17 12:49:21 +0500 #359

agoodfriend (RK Niazi) 2021-07-17 12:50:04 +0500 #360

agoodfriend (RK Niazi) 2021-07-17 12:55:10 +0500 #361

agoodfriend (RK Niazi) 2021-07-17 12:56:00 +0500 #362
