Toyota corolla 2.0D 2004 overhauling

Toyota

agoodfriend (RK Niazi) 2021-07-17 12:56:46 +0500 #363

agoodfriend (RK Niazi) 2021-07-17 12:57:21 +0500 #364

agoodfriend (RK Niazi) 2021-07-17 12:58:19 +0500 #365

agoodfriend (RK Niazi) 2021-07-17 12:58:58 +0500 #366

agoodfriend (RK Niazi) 2021-07-17 12:59:48 +0500 #367

agoodfriend (RK Niazi) 2021-07-17 13:00:28 +0500 #368

agoodfriend (RK Niazi) 2021-07-17 13:01:19 +0500 #369

agoodfriend (RK Niazi) 2021-07-17 13:03:14 +0500 #370

agoodfriend (RK Niazi) 2021-07-17 13:04:14 +0500 #371

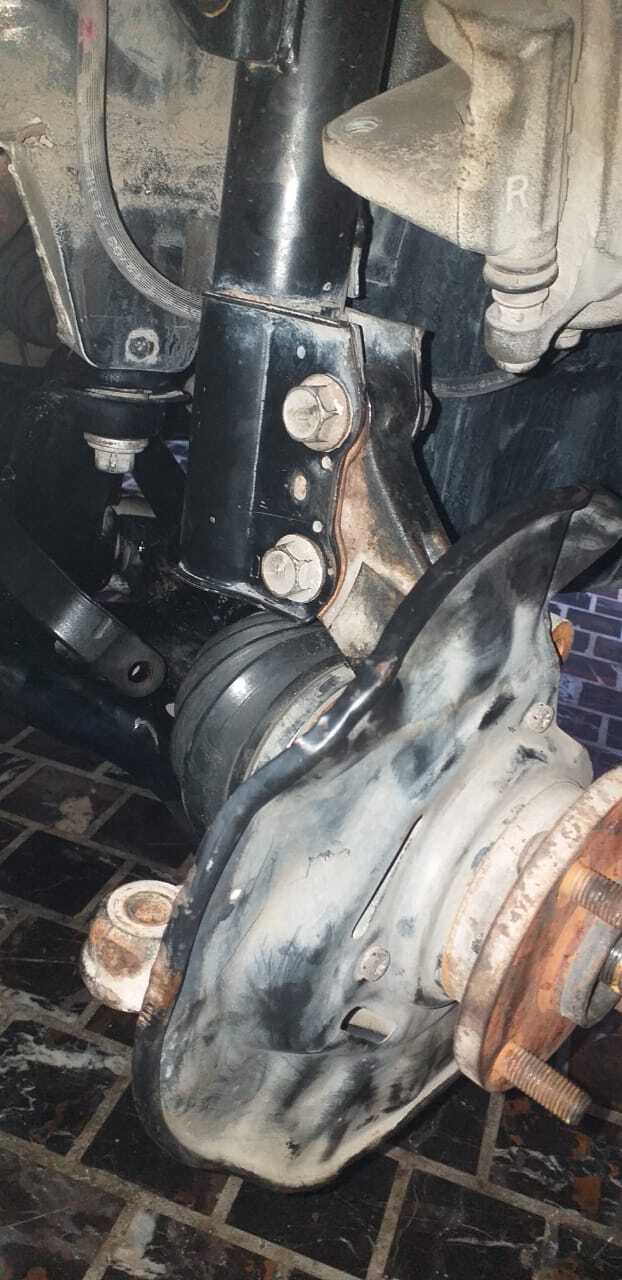

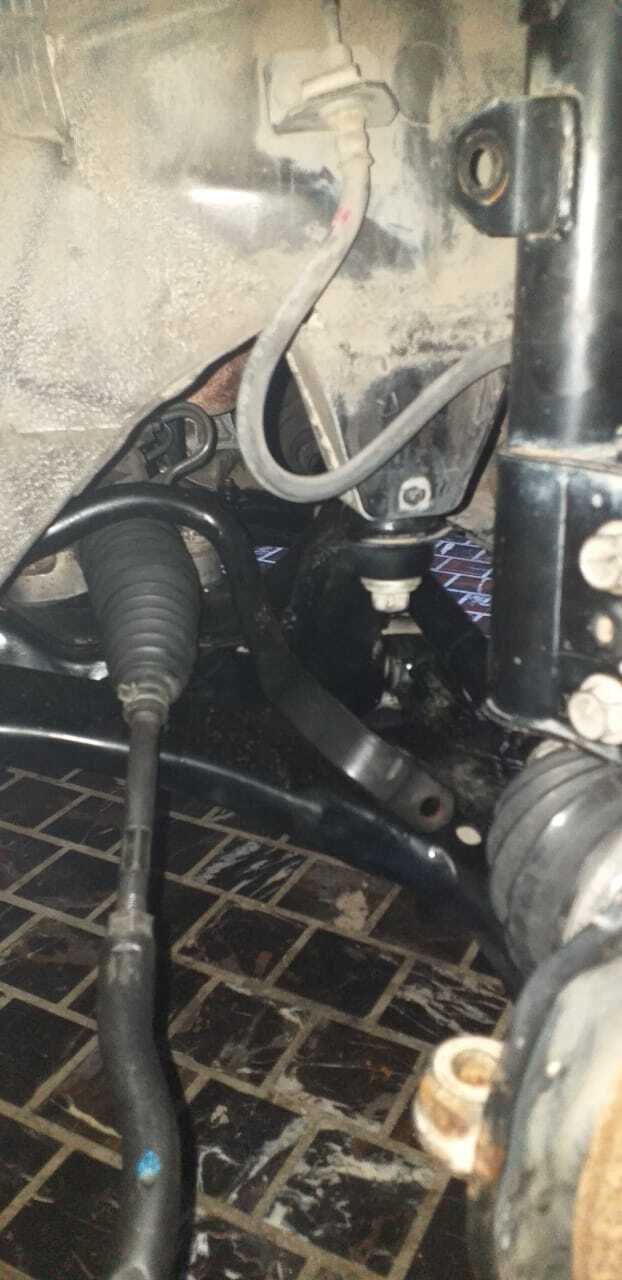

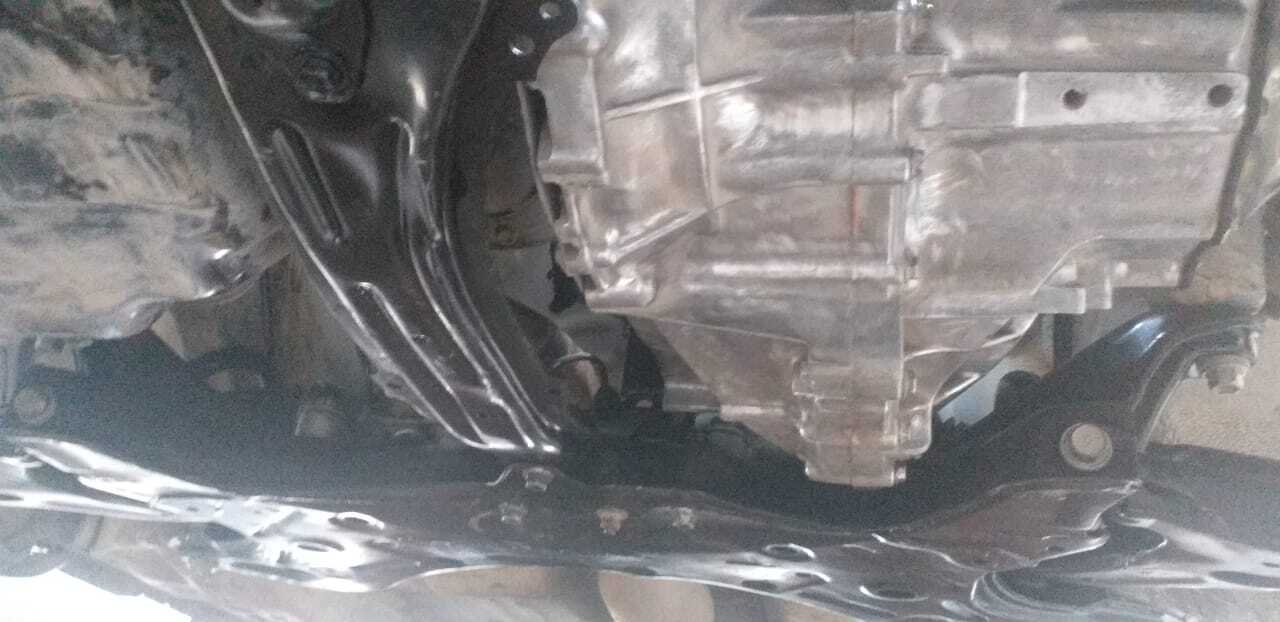

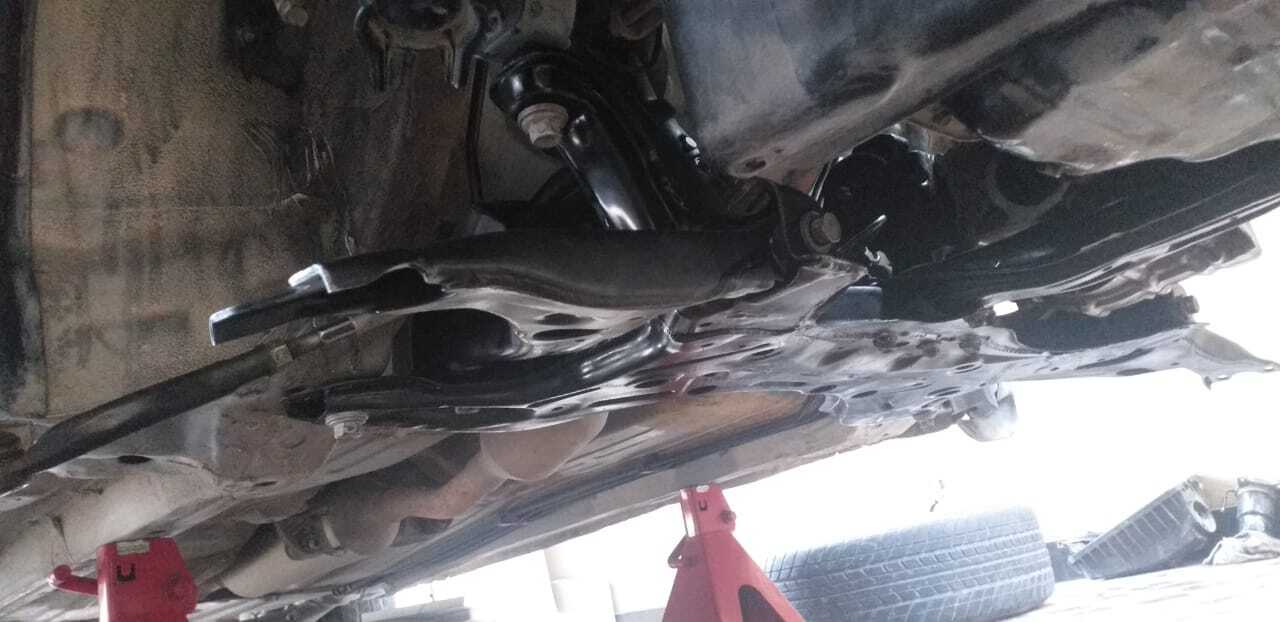

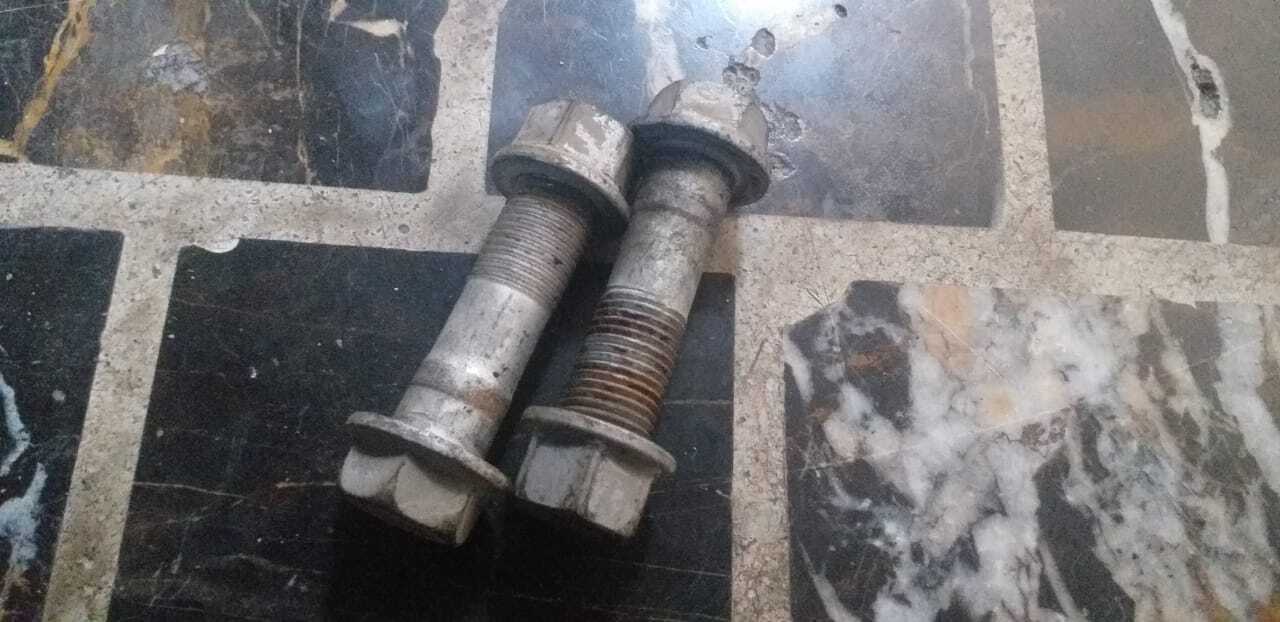

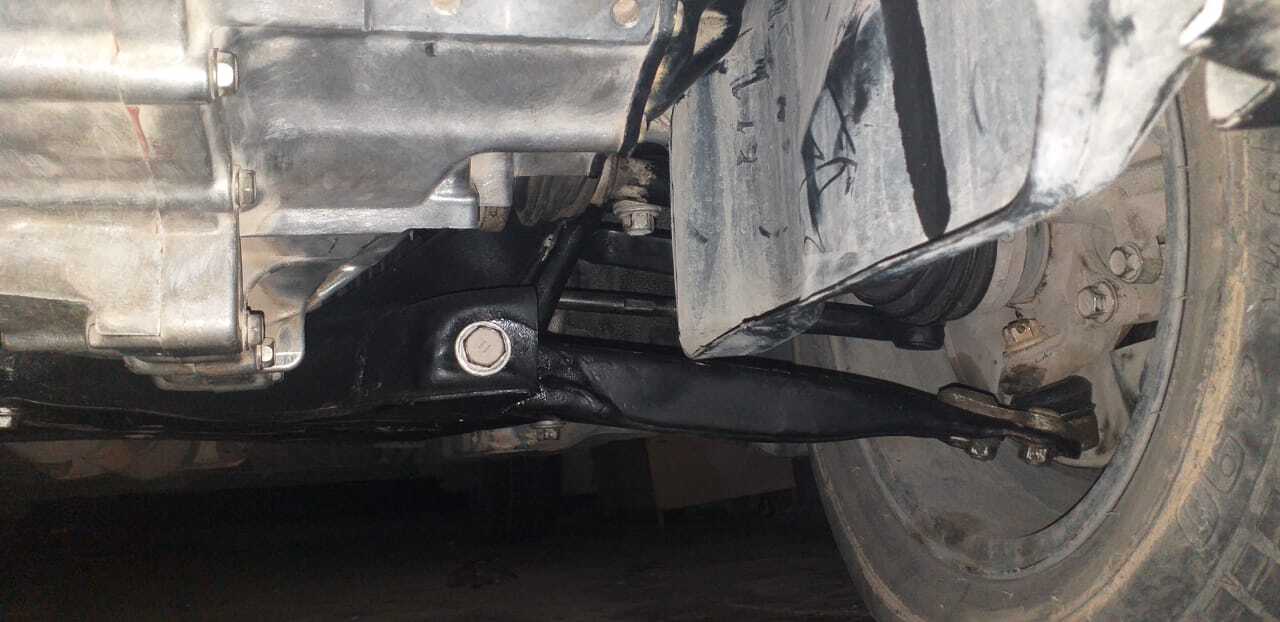

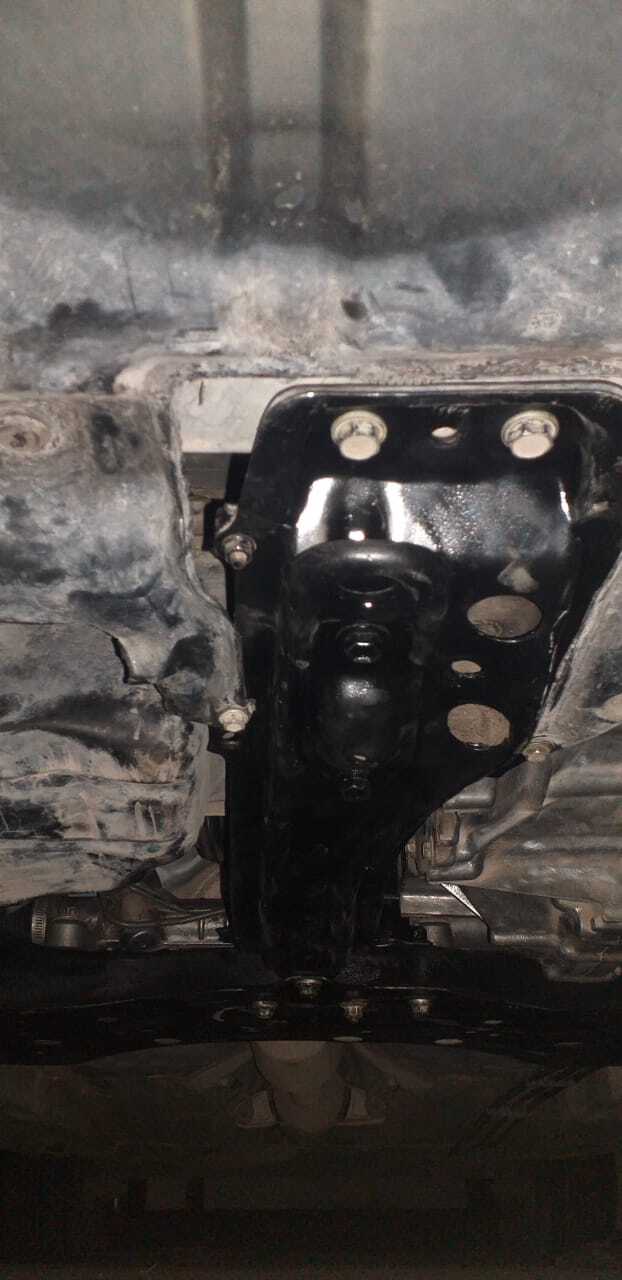

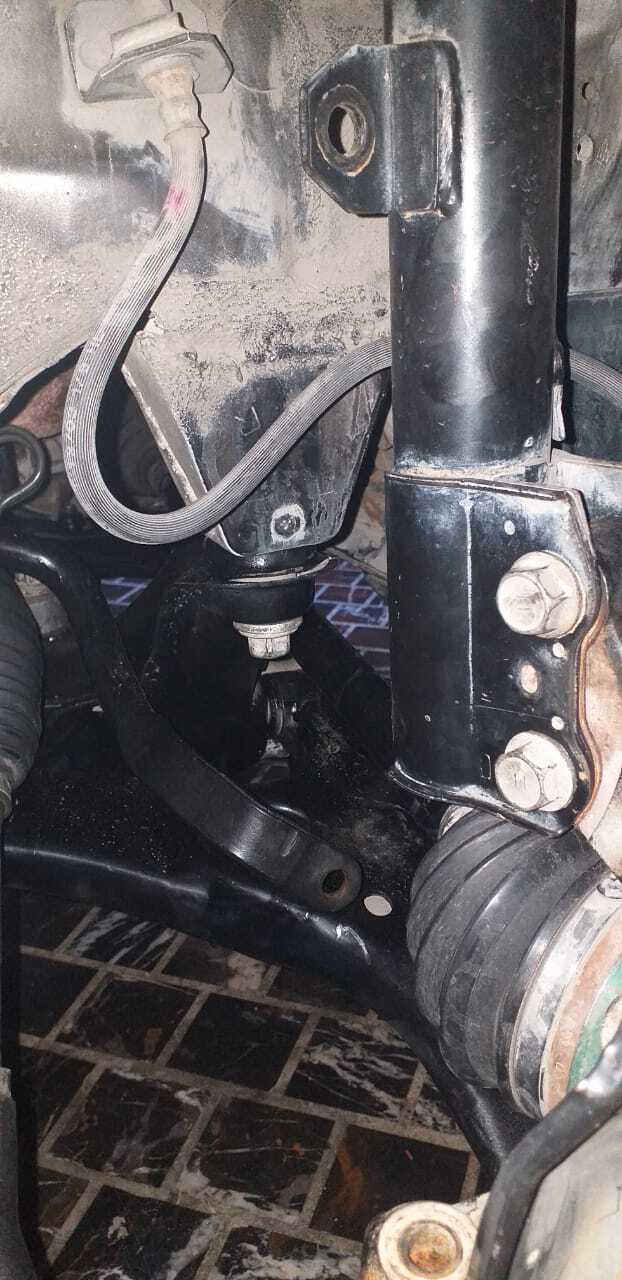

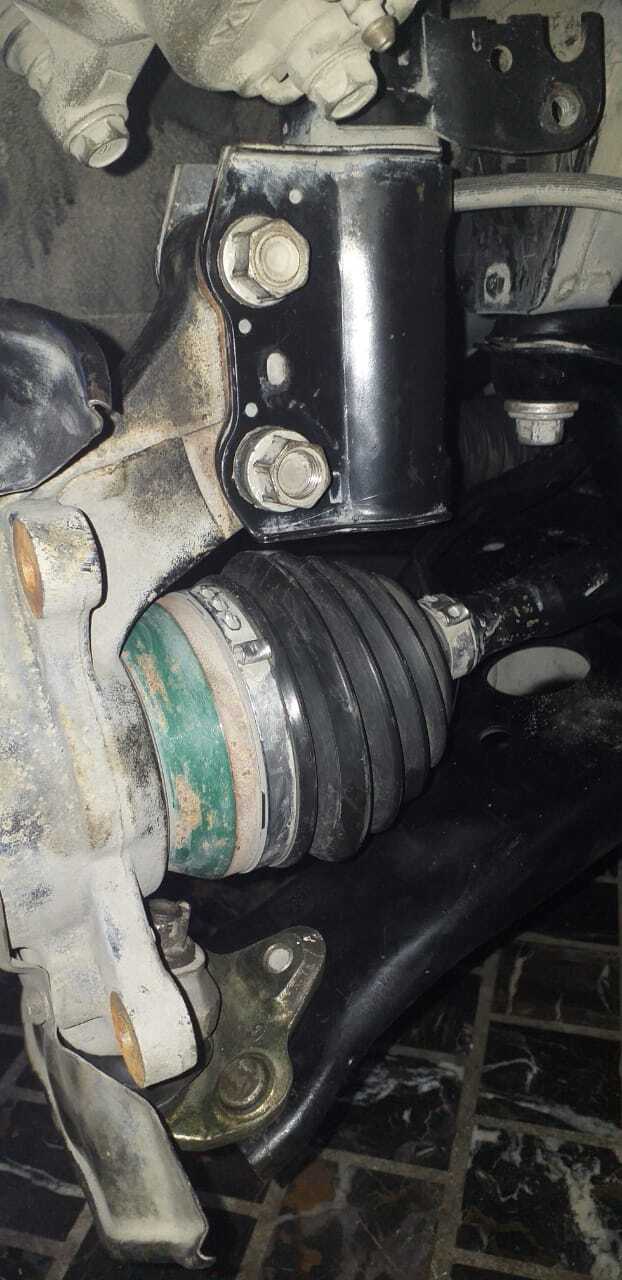

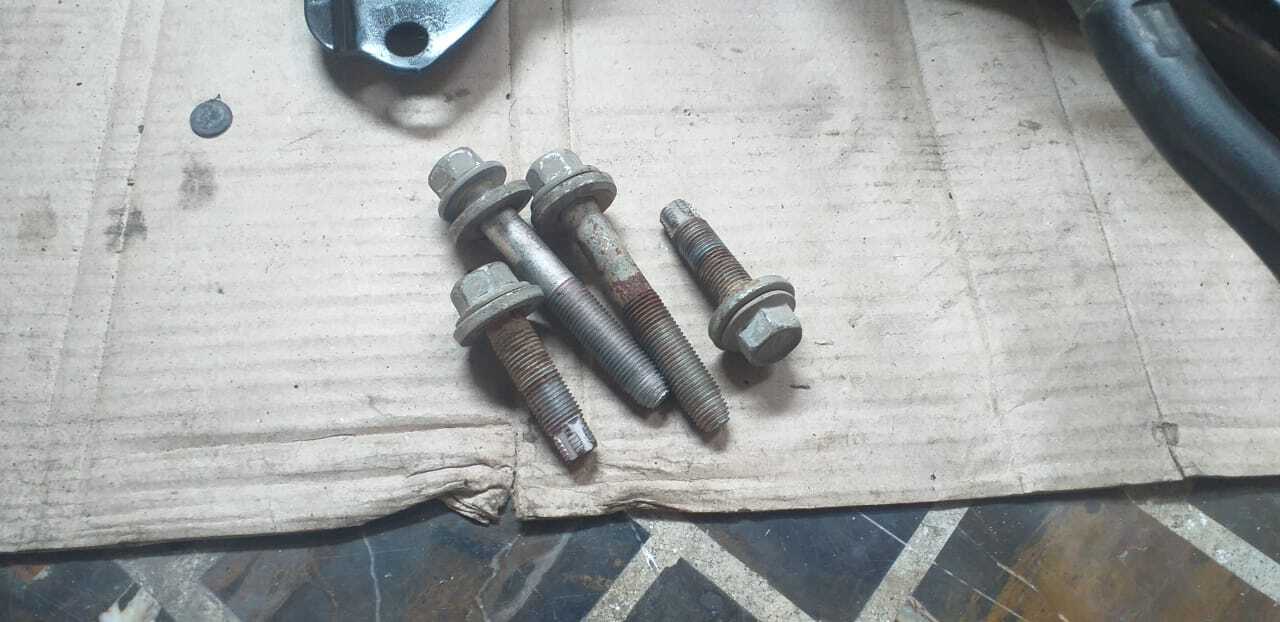

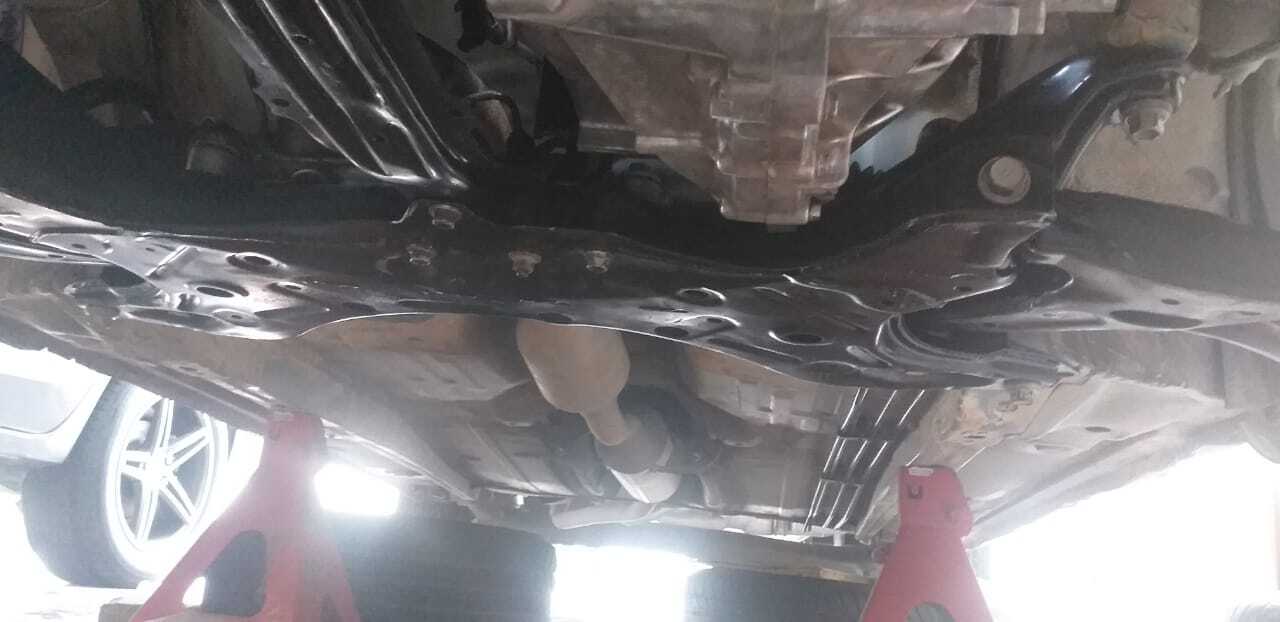

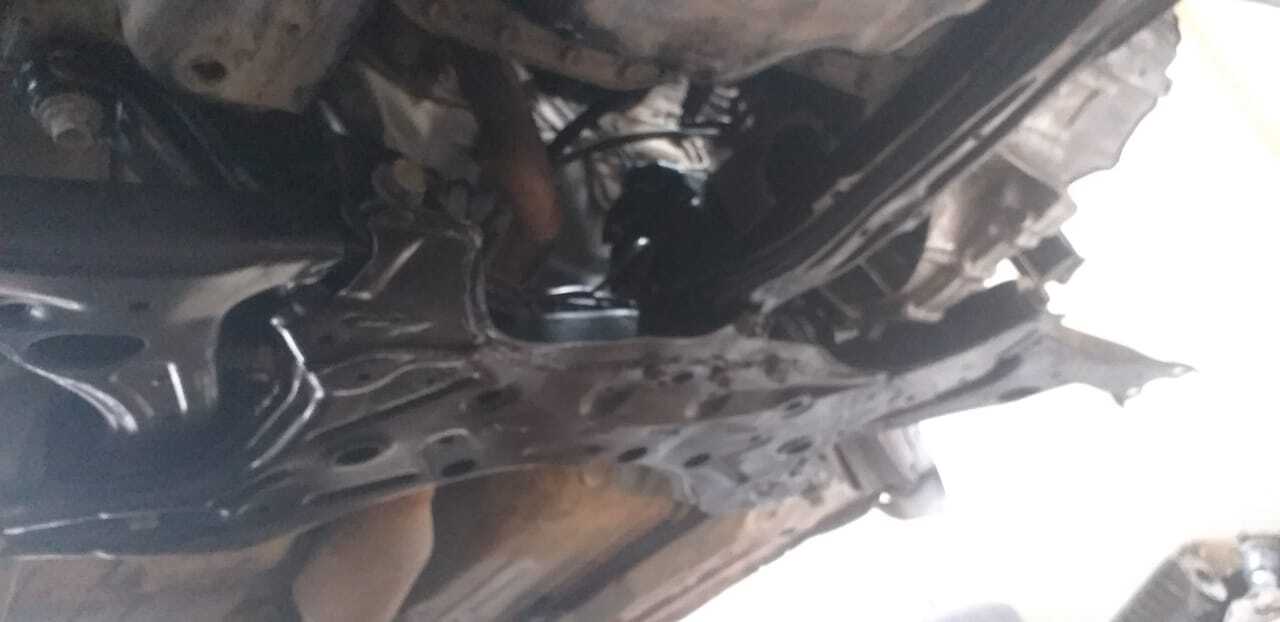

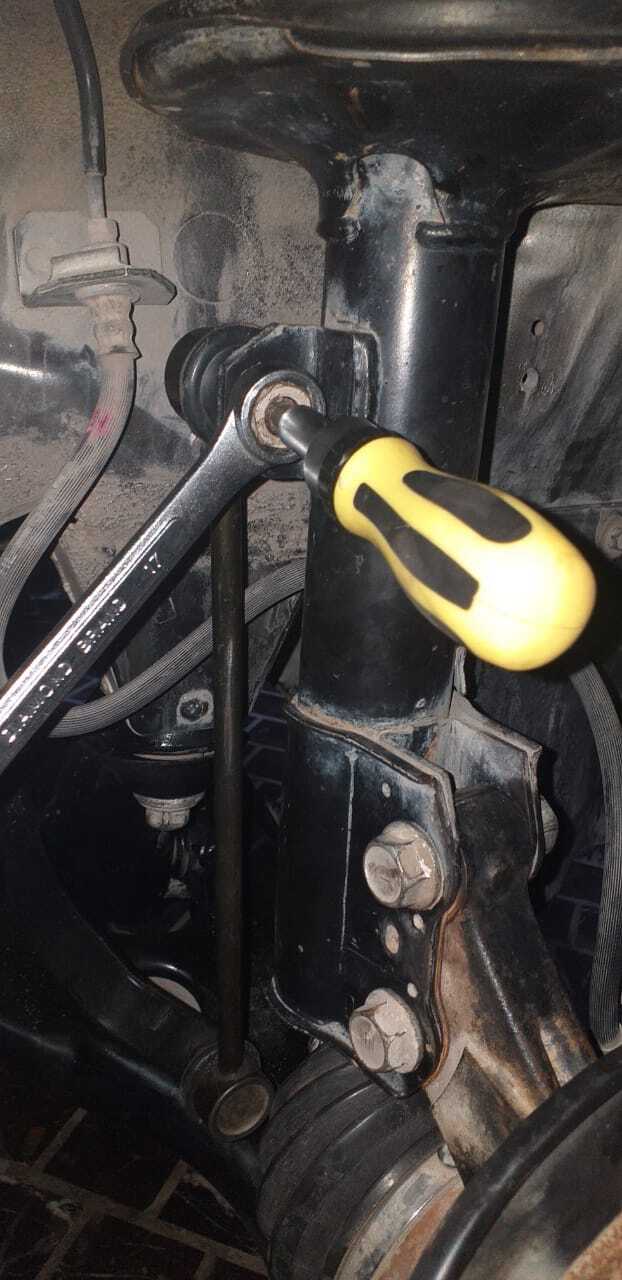

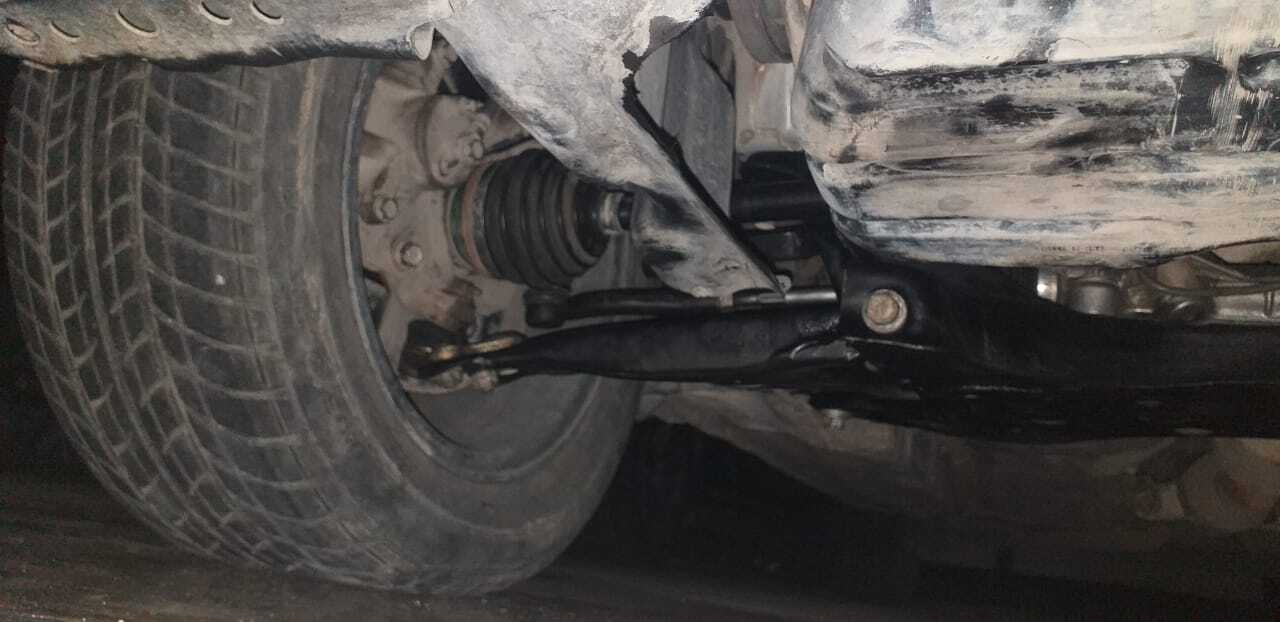

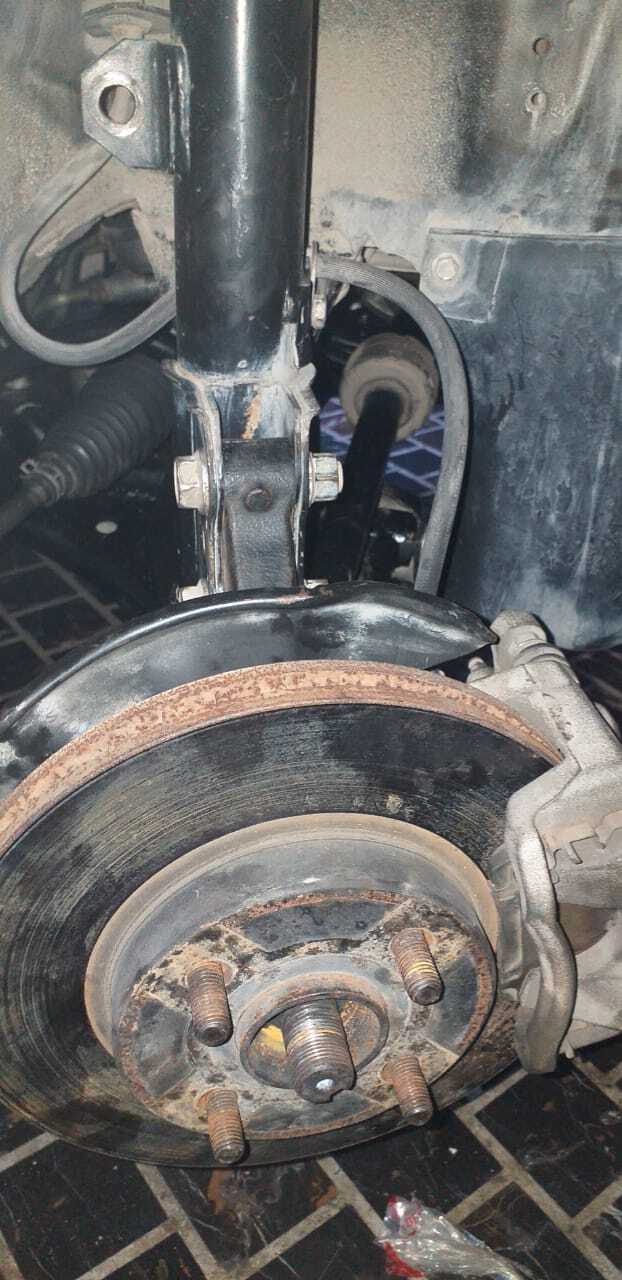

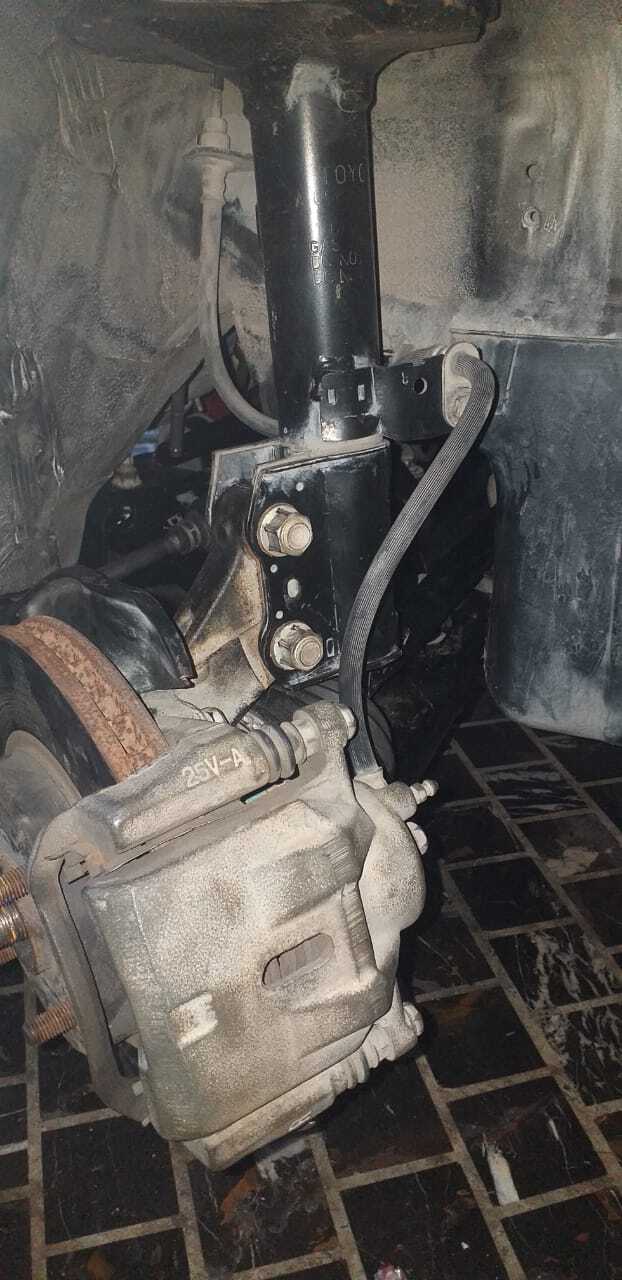

thats the right time to tight these lower control arm bolts when vehicle weight shits on its suspension ,,,,,,,,

Proverbial_Slang (Proverbial_Slang) 2021-07-19 07:28:10 +0500 #372

Excellent thread! Loving it.

effaf27 (Youngblood) 2021-07-24 22:13:56 +0500 #373

@agoodfriend aik cheez bataiye ga NSK or koyo made TIMING belt idlers which one is better to get, just a bit confused as the genuine and the koyo ones have a similar design while the nsk ones are 2 part pulleys with rivets. in your opinion which ones to get.

Kind Regards

pwuser160883723362 (PWUser160883723326) 2021-07-25 17:39:09 +0500 #374

Aslam o alaikum.. Do u live in rawalpindi.. Or islamabad

agoodfriend (RK Niazi) 2021-07-26 12:52:39 +0500 #375

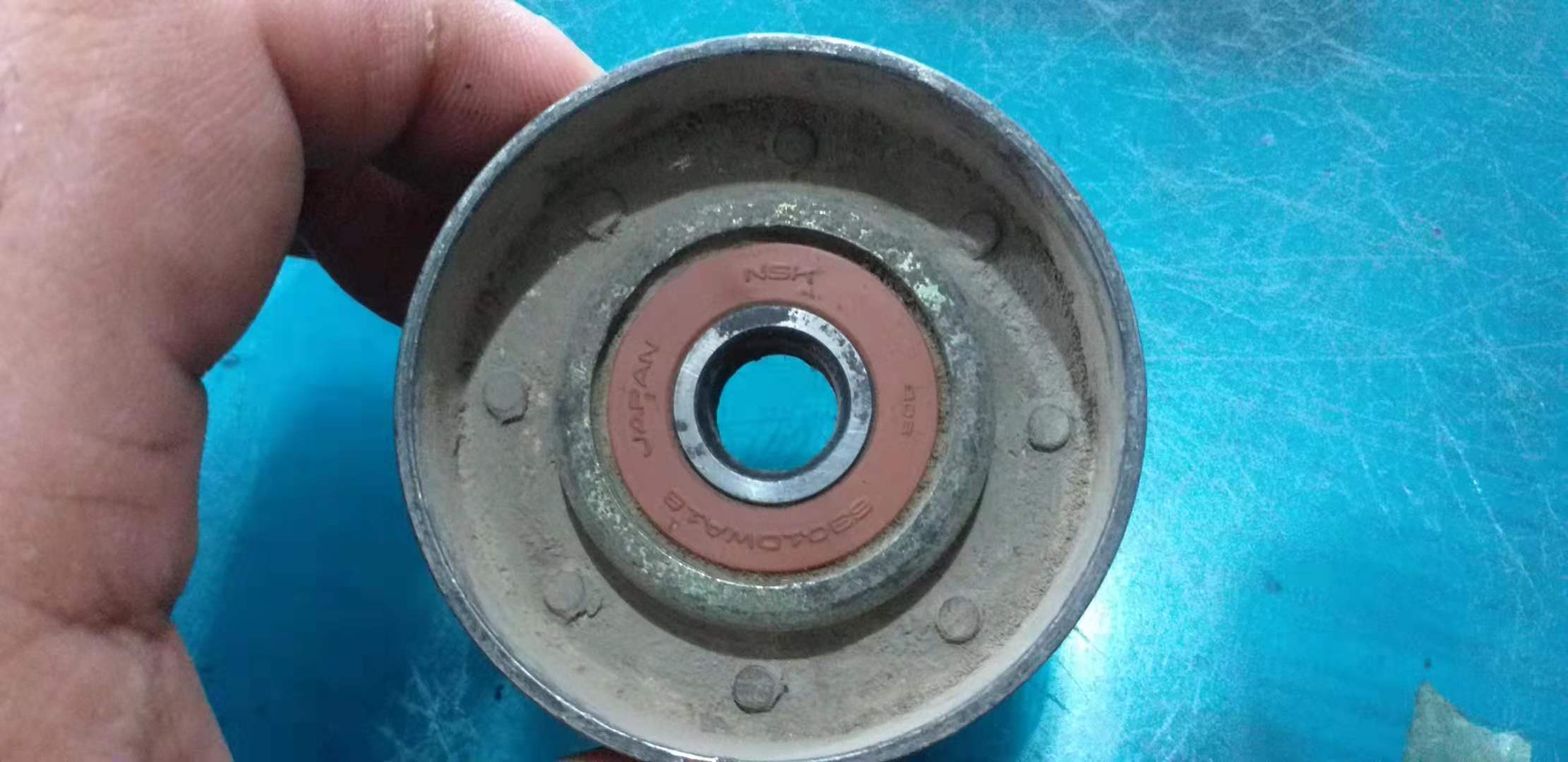

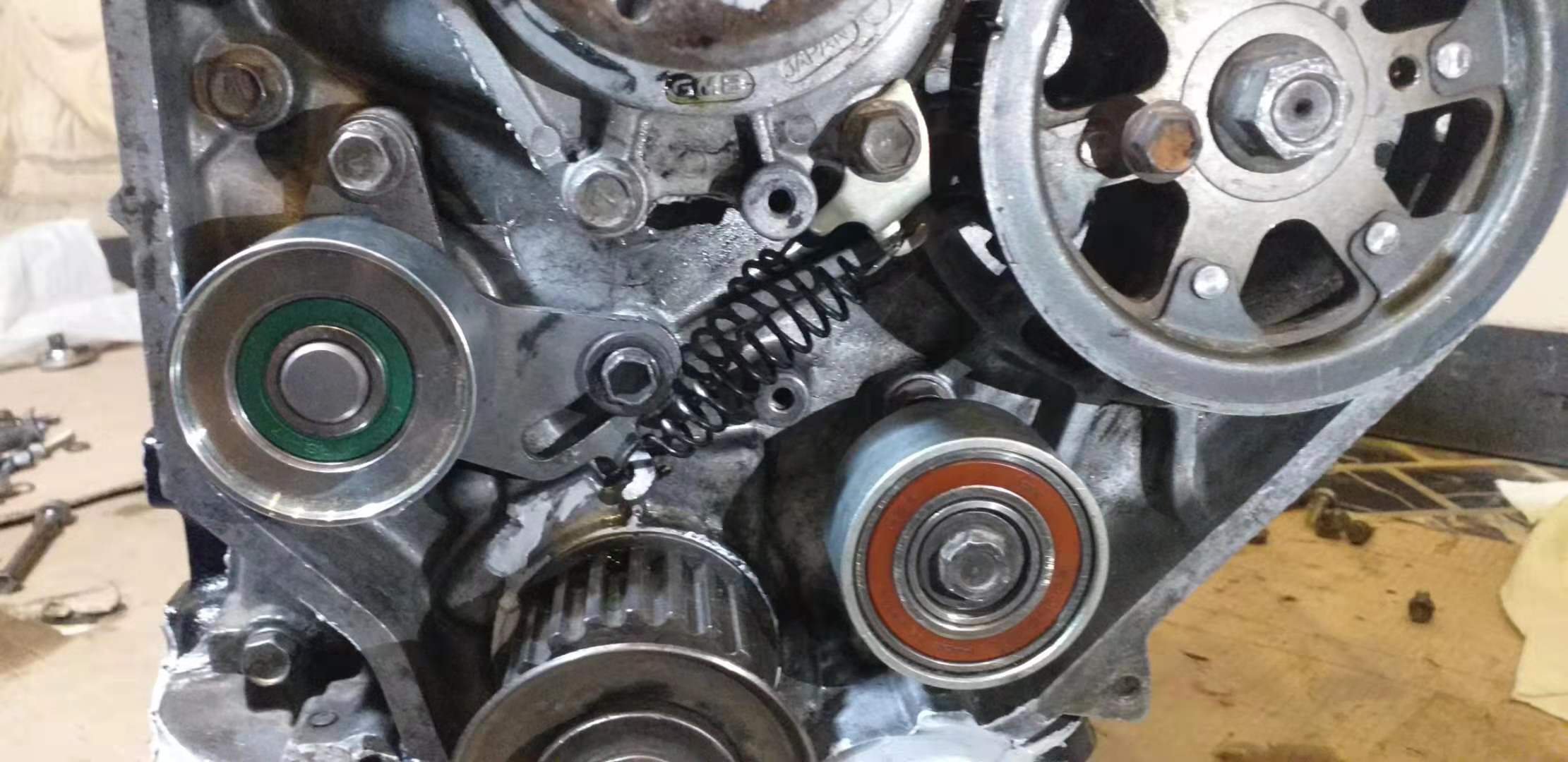

i think you are talking about this idle pully ,,,,,,,, this one is also of 2C ,,,,,,, i dont think it is original ,,,,,,, 13503-64021 this is the part number and both look very different ,,,,,, this one is having a 6301 NSK bearing sandwich between 2 layers of pulleys ,,,,,riveted together ,,,,,, original one has bigger bearing then 6301 ,,,,,,,,batter try to find the original ,,,,,,,,,

effaf27 (Youngblood) 2021-07-26 18:34:46 +0500 #376

yes sir i was asking about these as the koyo made ones are identical to the genuine ones yet these nsk ones are kinda suspicious especially the rivets got me worried that if one of the rivets came off it would cause alot of damage, I did check for genuine ones but they are a bit on steep side but have to ordered and not in ready stock so, do you think the koyo ones are good enough to be put in the car

agoodfriend (RK Niazi) 2021-07-26 19:13:58 +0500 #377

yes koyo will be batter of they are not riveted ,,,,,, try search on kiyani autos gawalmandi ,,,,,,,,

agoodfriend (RK Niazi) 2021-07-26 19:19:53 +0500 #378

they will look like that ,,,,, its a dam common part to replace during engine overhaul ,,,,,, i am sure they will be available in market ,,,,,,,,, i find these for my 2L engine ,,,, later i replace idle pully with the original one from old parts shop ,,,,, luckily i find one from an old parts shop in very good condition ,,,,,,,

effaf27 (Youngblood) 2021-07-26 19:45:12 +0500 #379

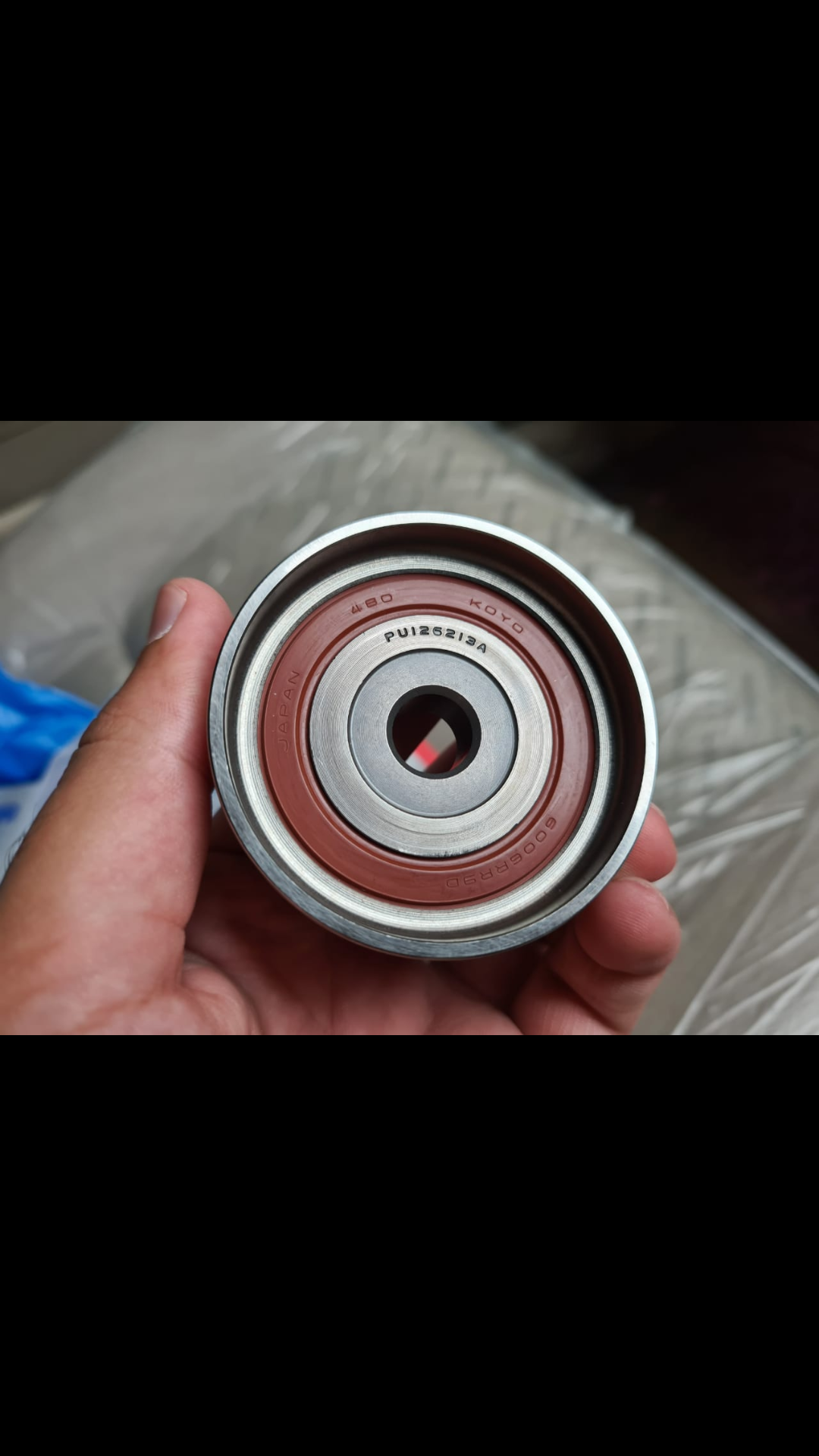

these are the koyo ones

agoodfriend (RK Niazi) 2021-07-27 11:38:22 +0500 #380

koyo is japanese ,,,,,,,,, no doubt in it ,,,,,,,,

dayrider (dayrider) 2021-07-27 12:13:18 +0500 #381

i like how you refer to a scrapyard as an old parts shop

agoodfriend (RK Niazi) 2021-08-04 14:45:08 +0500 #382

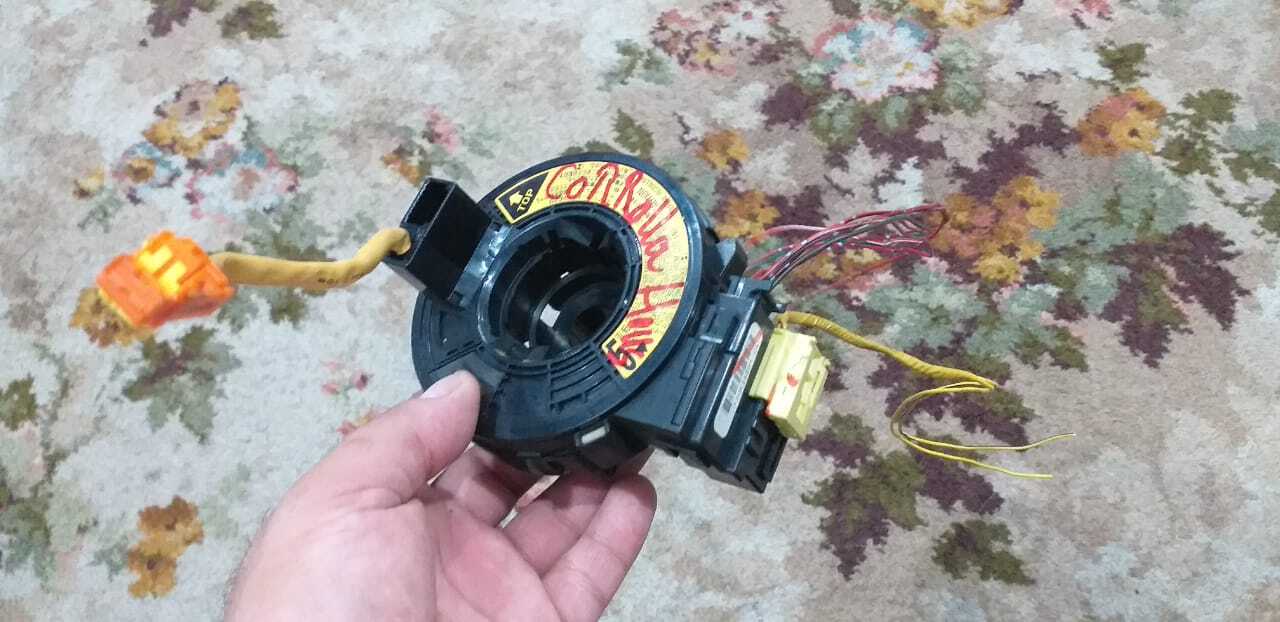

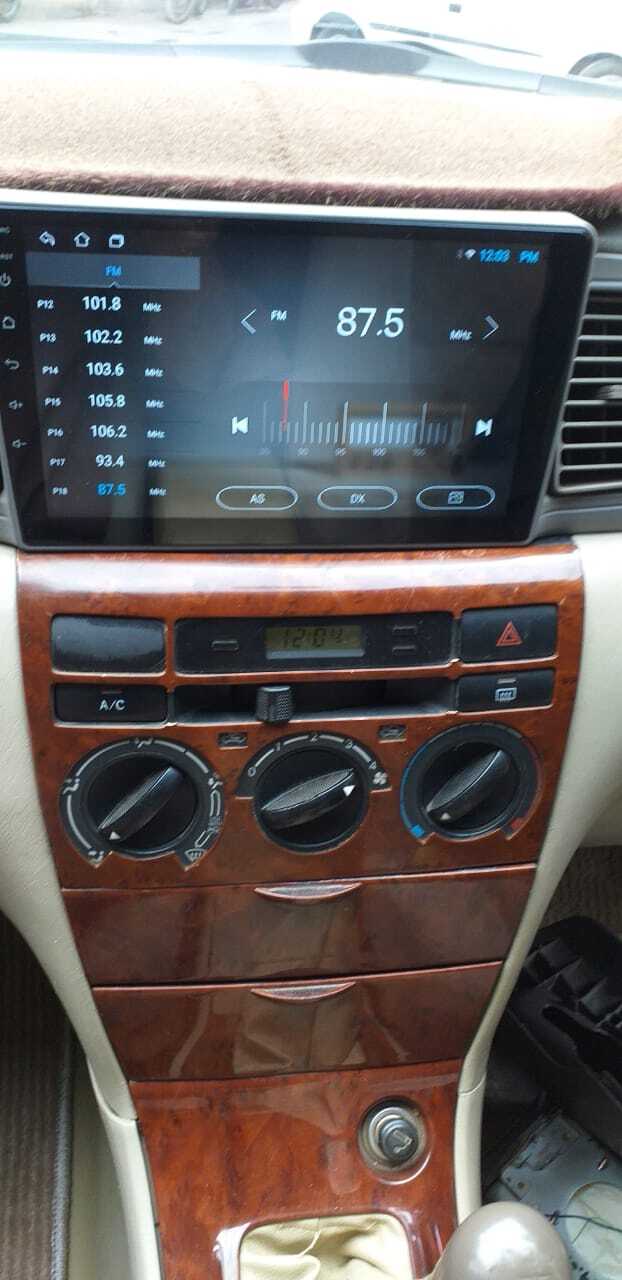

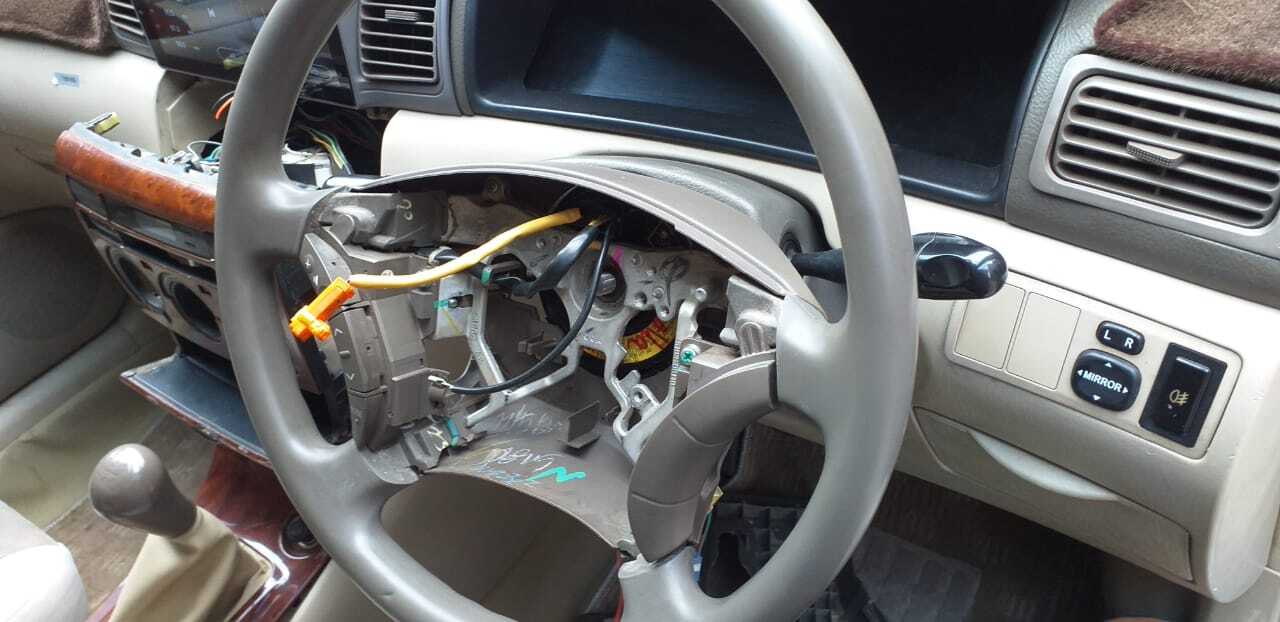

just instal an android sound system in my another vehicle along with multimedia steering wheel ,,,,,, though to share the wiring diagram of multimedia connections ,,,,,,, android pannel is grip to grip installation ,,,,,,, multimedia steering keys need to connect separately ,,,,,,,,,, 3 wire connection of android pannel will go in to connector of clock spring ,,,,,,,,, wires connection are clearly mentioned in pictures attached below ,,,,,,,,
