fastian04 (Salman) 2019-08-16 16:35:11 +0500 #149

2000 for camera and atound 1000 for labour and wiring. Indus can argue on uour electrical system warranty if u ever need to claim

zaidjunaid (i_zj) 2019-08-17 00:26:25 +0500 #150

warranty is only void if any wire is cut but in my case i changed only the panel no wire is cut and front cam lead is direct for android lcd panel and the cost of front cam is 1500

fastian04 (Salman) 2019-08-17 01:29:56 +0500 #151

Bro wire will be cut to give power to camera.. that's enough to allow imc to argue on warranty...

msami (msami) 2019-08-21 16:19:58 +0500 #152

Put the handbrake down while playing the video

msami (msami) 2019-08-21 16:25:09 +0500 #153

password needed. Dealership said they intentionally locked this to avoid road accidents. They enable this upon user's request but first they undertook some agreement plus charge the customer too

engg.ali (Ali) 2019-08-23 01:45:26 +0500 #154

AoA brothers, The issue with Toyota corolla 1.6 Altis 2017/2018 infotainment system is while driving it is un-able to play VIDEO content from DVD/CD as it show a warning sign when hand brake is lowered down. Today I found a clip under handbrake which is connected to this system.

Pics are attached

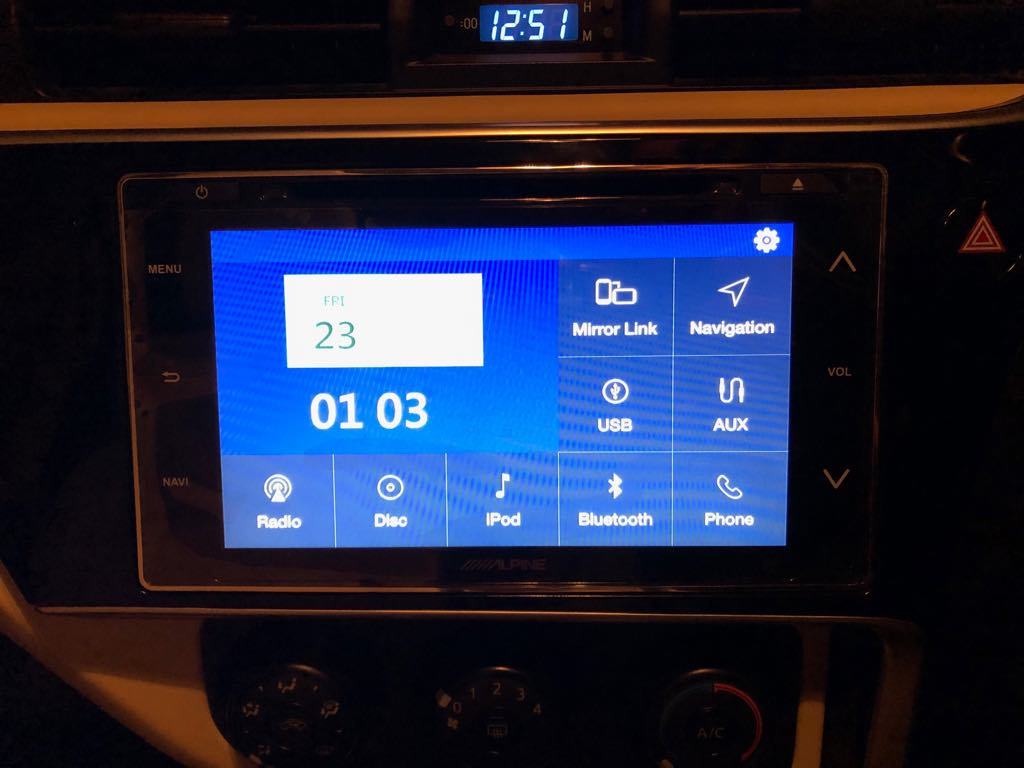

Alpine System

Warning Screen

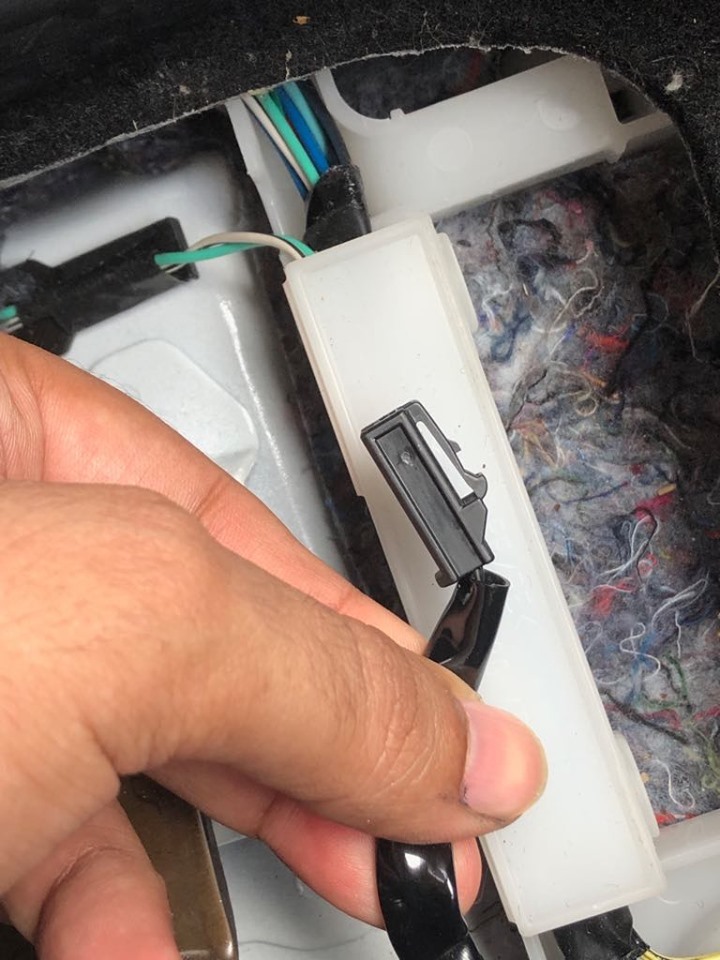

Female Connector disconnected from Handbrake Male connector.

Female connector connected with Handbrake by default.

I have shared the picture of this clip. Anyone have any info from where we can buy a secondary clip to connect the cable in it which will complete the circuit and eventually avoid the warning screen.

Just to inform you all if the cable is disconnected the warning sign shows, so it requires a male connector to complete the circuit.

reason of asking this spare male connector is to avoid warranty as the screws and connectors are marked with paint. Therefore I am hesitant to remove it. If anyone knows or has already found a solution please share your finds here.
Else guide me where to buy this spare-connector

pwuser155906415975 (PWUser155906415988) 2019-08-24 09:45:06 +0500 #155

Does 2019 1.6 infotainment system alpine has dvd player?

engg.ali (Ali) 2019-08-25 02:10:16 +0500 #156

No, now it has been replaced by an Android System.

hash737 2019-08-25 12:00:51 +0500 #157

syedwaqarhussain22 (Waqar) 2019-10-04 01:15:14 +0500 #158

How much is the price of Android unit ?

Sorry . Posting here since in the main group the discussion gets lost,
When my Altis goes into dig holes like the balance of the car is uneven or is slightly tilted the driving door shows the sign it's open.

What could be the issue ? The lock is not working fine or what ?

zaidjunaid (i_zj) 2019-11-05 22:11:57 +0500 #159

i got it for 15500 with front camera

joji_887 (joji_887) 2019-11-06 23:46:45 +0500 #160

It depends from where u r getting it. Ppl with big names like Entertainment on wheel or JDM are selling 10inch Android panel with back and front camera @28-30k. While u can get the same stuff from Montgomery road in 15-17k, depending upon ur negotiation skills. I recently got one with front and back camera in 17,5.

nomanimam (nomanimam) 2019-12-17 11:42:42 +0500 #161

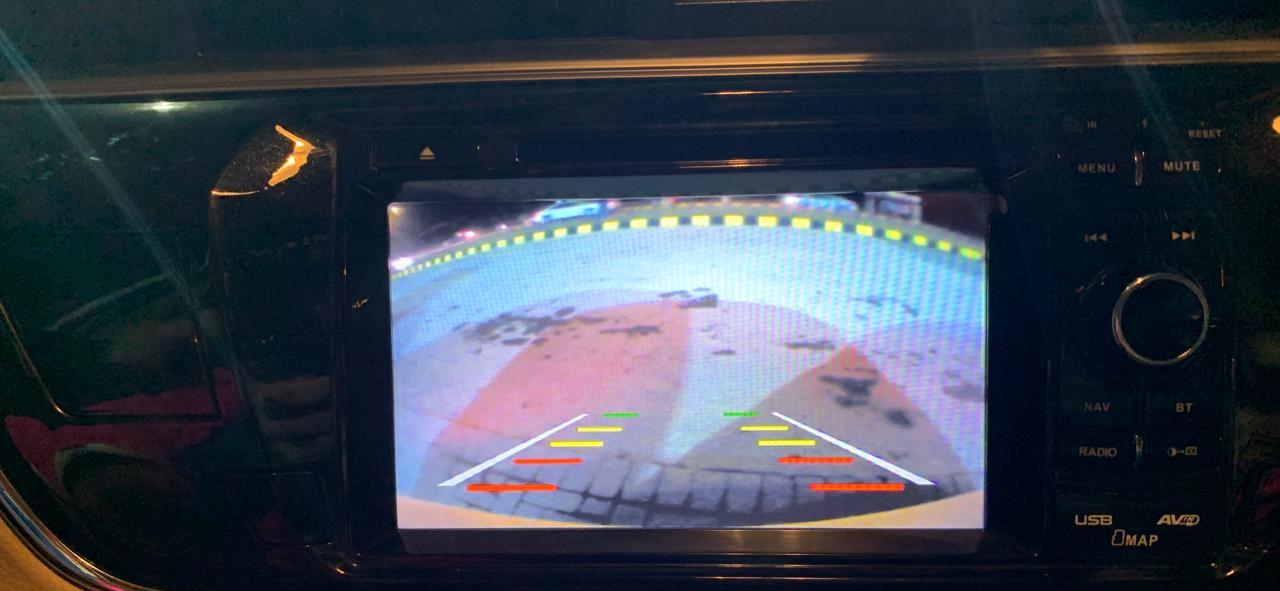

Can you please help me to identify the name of this stereo system. as I m facing a problem that my display has been gone, but all the other things are working perfectly fine. like DVD is playing even touch is working. When i reverse the car back camera is showing on the screen, I have checked this with Toyota, they said, software issues. Is there anyone who could help me to find the software of this model.

Toyota Corolla Altis 2017 Model

pwuser152363668966 (AP78) 2020-01-01 02:54:52 +0500 #162

I have an issue regarding Bluetooth in the new alpine android system, corolla 1.6. The songs play fine when the phone is first connected, but when the car starts again the music stops playing smoothly. Does anyone else has the same issue? Should i claim warranty?
Also regarding navigation, i dnt use sygic or mirror link,instead i frequently update google maps using wifi and then save the map in the alpine system, the only downside is that it doesn't show live traffic information, works fine otherwise.

pwuser15546578356 (Engr. Basit Saeed Chaudhary) 2020-07-18 22:39:53 +0500 #163

Now sygic is update. M using it, map is updated upto dev 2018

ViKiNg (M.ali) 2021-12-15 08:38:43 +0500 #164

I am also facing the same problem. Have you found any solution for this connectivity issue

pwuser149736238994 (Usman Khalid) 2021-12-22 19:07:20 +0500 #165

I have bought altis 1.6 Special edition. In android player at settings menu one cannot open car settings for unlock option of video play during drive. it asks for password which is not provided by the dealer. i have tried 1234, 1111, 0000 but failed.
Can any one help? the issue is with latest models of Grande and altis 1.6 players.

usman_arooq2 (usman_arooq2) 2021-12-23 04:35:14 +0500 #166

4321

pwuser149736238994 (Usman Khalid) 2021-12-26 12:01:12 +0500 #167

4321 also not worked.

malikaman430 (Malik Aman) 2022-01-04 20:33:51 +0500 #168

Facing the same issue ! If you get the password then please let me know too !
