Toyota Corolla Model (E-120) 2002--2008 Owner's and Fan Club

[capsat]

try this LINK from my one drive

[waqar19]

Can anyone provide the service manual for this car?
@capsat

https://drive.google.com/file/d/19S61ggnpe-W82lR_k06vcPGxxvH7C5Bq/view?usp=drivesdk

[hasankhurshid29]

Thanks bro @waqar19
But this one I already have. It is not clear and pictures are also not clear. I was trying to find the factory service manual like honda civic has. This I think is third party one by hayness

[hasankhurshid29]

Thanks

[hasankhurshid29]

Can someone please tell me the price of 3zz fe, 2nz , 1nz and similar engine for se saloon 2002

[hasankhurshid29]

So now the latest situation: Sometimes there are problem arising and then they vanishes. Like last week when car starts it burbs for 30 to 60 seconds and then normal. This problem automatically vanishes this week and from last 2 days difficulty in starting the car sometimes and hesistation on starting. 2 things are constant: coolant loss and oil loss One thing to mention that acceleration and everything is smooth. So today I went to the mechanic car starts fine. He opened the radiator cap …

Please give your suggestions

[mohsin-212]

2 NZ will cost you around 55-60 k as per my mechanic said 1zzfe is a bit costly like 85-90k no idea about 1NZ

[hasankhurshid29]

I think these are only the engine whereas I am in favour of buying complete engine with wiring/ecu as those Japanese engine are different from our engines like o2 sensor and vvti enabled

[def3nder]

Will share my ODO meter image soon

[suhaylshah]

Hi,

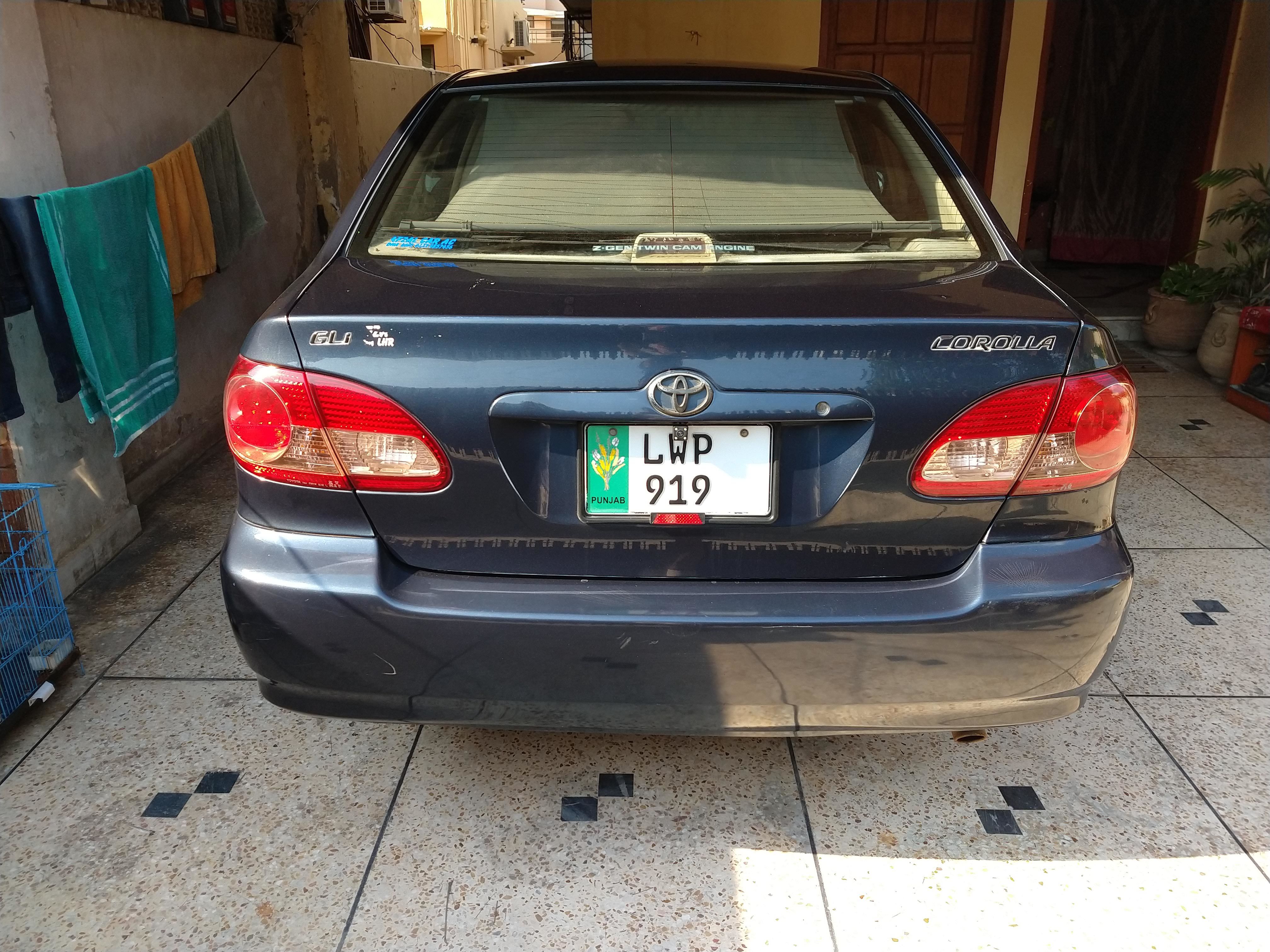

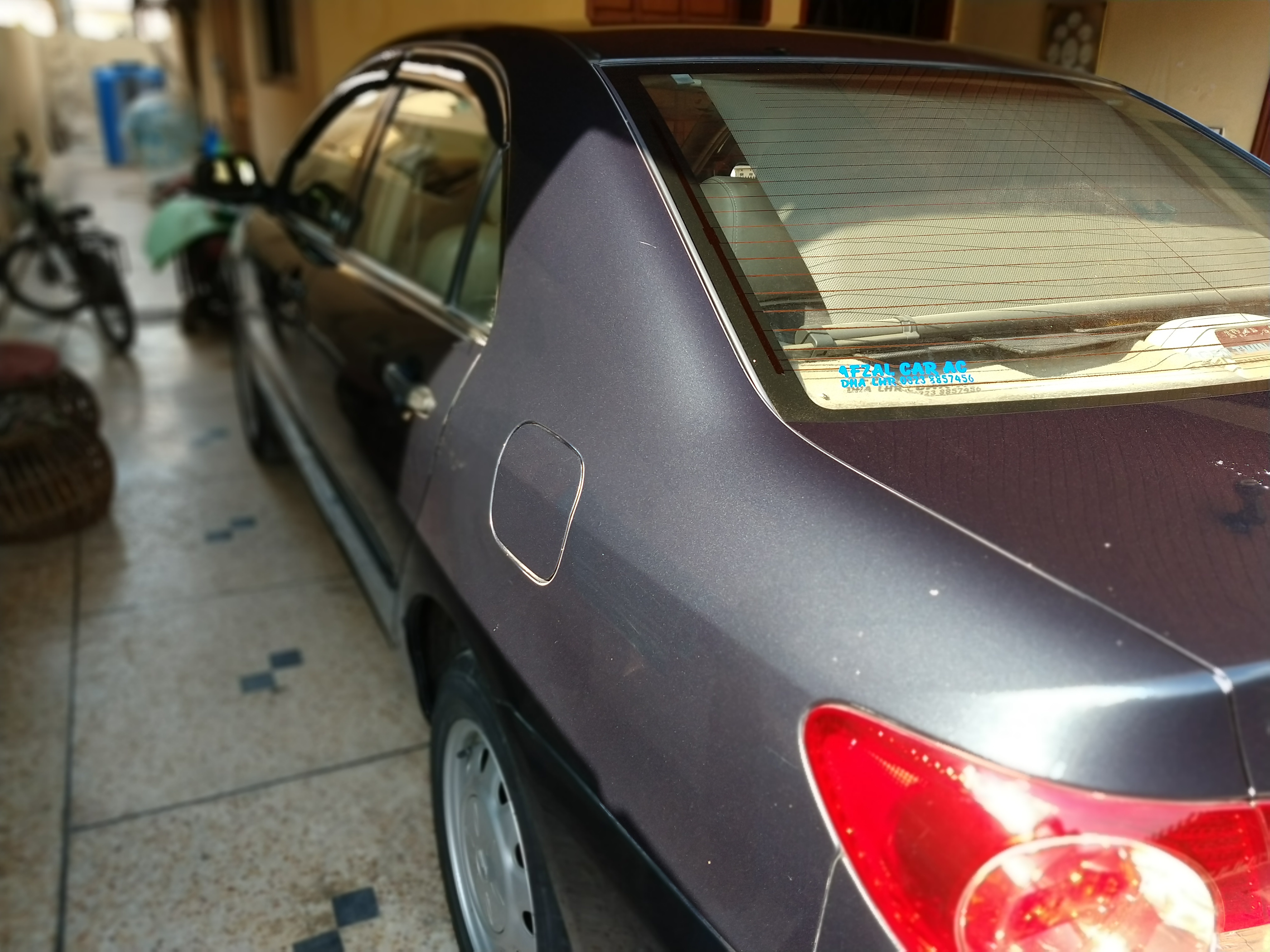

Although i had heard names like Chua, Dadu (City 2003 - 2006) but i had never heard of the nick name Dumba for my corolla. Anyway i also happen to have one in pristine condition and some of the pictures are given below. Its a GLi 1.3 litre

2006 without ABS braking. When i took these pictures i had not installed alloy rims but now my car has them from the same Dumba shaped altis vvti (geniuin rims).

I have had this dumba for a couple of years now and believe me it is a great car to have. The fuel economy is excellent and there is hardly any maintenance cost. I have clocked 160ks on the odometer and got some suspension job done.

I am having some problems with the car. Although these are very ignorable but a petrol head like me wants a car that 100%.
1. There is a vibration at 40km/h when accelerating from the left side. I got one excel changed and this problem has been there ever since. My mechanic says that there is some problem with the inner cups of the excel and that is resulting in the vibration. If someone could elaborate/help here is will be gratefull.
2. There is steering wheel vibration at 110 km/h. I have got all the wheels balanced and non of the rims are fualty.
3. There is engine idling issue. When stopping at a red light, the engine rpm drops below 750 rpms momentarily and then returns back to its actual position. This problem happens only when the ac is running and does not occur without ac.The engine vibrates as if it is going to stall until the ECU kicks in trying to correct the situation but struggles to do so and the rpm just goes haywire. There is no engine check light and no error codes. Sometimes it gets so worse for exacmple when the ac is running at full fan speed and headlights are at full beam (max. generator load). I have got the throttle body changed replaced with a kabli one and also got the fuel pumps replaced but still this problem has not been fixed. There is however one important point that i would like to share here. The previous owner was running the car on CNG and i threw it out as soon as i purchased the car.

Any one on this forum can help with his personal experience here please.

Enjoy the pictures.

[KamranAslam]

^^^ Looks pristine CNG driven is the only draw-back.

Since how long CNG removed.

[suhaylshah]

more than a year bro

[abdkhan2]

1nzfe manual 85k.. N plz dont go for 1nzfe auto ever as it has very low average.

[abdkhan2]

Your mechanic is right these are inner axcels, a common problem in this model.
Idle issue is due to head valve issue they become weak due to cng usage.

[suhaylshah]

any solutiion for the head ?

[abdkhan2]

Do compression test which will elaborate engine health,i had same issue i increase idle engine speed to 1100 rpm which worked for me.

[abdkhan2]

Cng ia poison for this engine n you will end up swapping assembly.i have seen 300k driven cars with zero vibration issue bcoz they are driven through out on petrol.

[hasankhurshid29]

1nzfe manual 85k.. N plz dont go for 1nzfe auto ever as it has very low average.

Are you sure auto has low average? 85k for complete wiring and ec?

[abdkhan2]

I gurranty you, i have premio 2006 factory 1nz auto fitted max it gives is 10 local n 13 long.. N engine is in prestion condition now imagine how a swap one will give u more.

[hasankhurshid29]

Can u tell me a better auto engine?
