Hassan1991 (Electrical Engineer ) 2022-10-14 16:04:10 +0500 #162

Check this.

horticulturalist (Toretto) 2022-10-14 17:23:07 +0500 #163

Thanks

asadgitl (Asad Ali) 2022-10-14 17:23:27 +0500 #164

Perfect

helper_learner (helper_learner) 2023-04-26 17:44:51 +0500 #165

Hi, I want to know how to reverse the direction of this fan (Make it 2-way)?
Thanks.

Hassan1991 (Electrical Engineer ) 2023-04-27 01:48:56 +0500 #166

You have it already or going to buy it?
This one would got a capacitor inside like a ceiling fan which will be connected to starting winding.
If you haven't bought it prefer 12v or 24v and connect H bridge.

helper_learner (helper_learner) 2023-04-27 02:30:27 +0500 #167

Yep I already have it.

All i have to do is this? Right?

Hassan1991 (Electrical Engineer ) 2023-04-27 02:59:05 +0500 #168

Yes but before that you need to dismantle the fan.

helper_learner (helper_learner) 2023-04-27 18:02:13 +0500 #169

, Will look into it

patelishaan91 (ishaan patel) 2023-04-29 13:01:48 +0500 #170

i am not sure but you replace to other diode like photodiode

horticulturalist (Toretto) 2023-04-30 23:36:27 +0500 #171

AoA,
Can I connect cctv camera directly to a tv or tv receiver by video-in port, vga port, hdmi port, etc without the need of DVR?

In youtube there are several methods. Are they real?

afarooqi (afarooqi) 2023-05-03 09:05:02 +0500 #172

If you have a camera with AV output, you can connect to TV direct on A/V port, just connect Video port and power on the camera, and select TV Source to A/V. If it is a IP Camera, then you will need some work around.

horticulturalist (Toretto) 2023-05-03 10:04:52 +0500 #173

Simple cctv cameras have BNC connector with coaxial cable. If I transform BNC to AV connector, will it work?

helper_learner (helper_learner) 2023-05-03 13:31:39 +0500 #174

I think it should be possible since DVR is analog, and TV Coaxial is also analog.

horticulturalist (Toretto) 2023-05-05 14:57:35 +0500 #175

I am planning to do as such, and also try to record the footage in usb hope we could bypass the dvr

helper_learner (helper_learner) 2023-05-07 18:18:40 +0500 #176

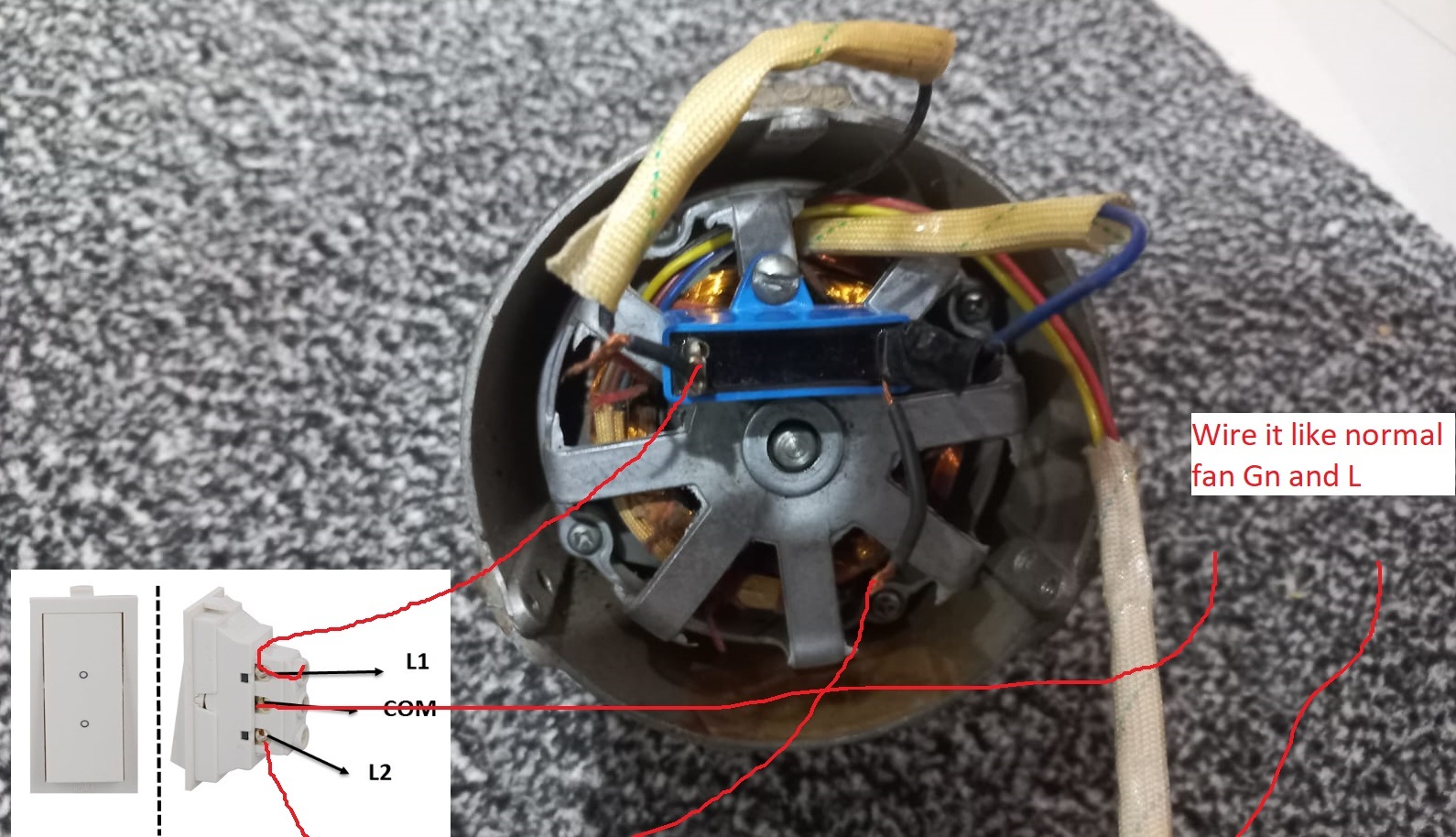

Instead of doing it on that fan, I did it on this fan,

I just change the wire (ground or live) going in to the Capacitor, from one terminal of cap to the other one.

Add a 2 way switch the work ^^.

Just a quick shot to tell what i have done.

Hassan1991 (Electrical Engineer ) 2023-05-07 18:25:29 +0500 #177

Problem is to approach the capacitor of that fan.
I also got one. Will try to open it up.

helper_learner (helper_learner) 2023-05-07 18:47:55 +0500 #178

Yep, Will head to it soon, Currently i have this fan (Which was removed to install new one.) So tried on it.

Good luck , and do share it here.

helper_learner (helper_learner) 2023-05-11 20:00:42 +0500 #179

The fan has gone dark, Not burnt but is not working any longer

These two seals has fallen from the fan. Don't know from where.

Hassan1991 (Electrical Engineer ) 2023-05-11 21:24:59 +0500 #180

Which fan? And from where?
Might be bearing seal.

helper_learner (helper_learner) 2023-05-12 21:37:49 +0500 #181

Above one, With the fankari

Hmmmm Maybe, BTW, I messed with it, and it has started to work, I think it was some sort of seal that keeps the shaft between the field. And since these seals have broken the shaft is allowed to move a bit, and it goes out of the field so was not spinning.
