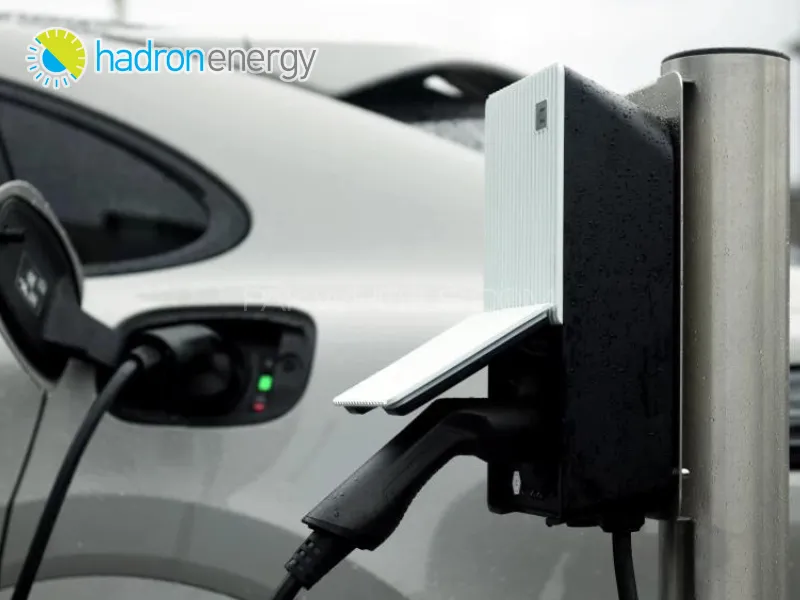

Teltonika EV Charger Type 2 - 7.4 kW Single Phase 32 Amps - Made in Europe.

• DIMENSIONS

Width 170mm; Height 341mm; Depth 94mm

• INTERCHANGABLE FRONT PLATES

Users have the ability to change the front plates by themselves

• FRONT PLATE OPTIONS

Slate Grey; Accoya Wood; Burgundy; Granite Brown; Winter White

• OUTPUT OPTIONS

Type 2 cable; Type 2 socket

• CONNECTIVITY TYPES

APP - Bluethooth

OCPP 1.6 - Ethernet; Wifi; GSM (optional)

RFID (NFC); Modbus/RS485

• CONNECTION POINT

Tethered cable with Type 2 outlet (IEC 62196-2); Type 2 socket (IEC 62196-2)

• CERTIFICATIONS

CE & UKCA compliant

Codes and standards - EMC: 2014/53/EU, IEC 61851-21

Environment - 2011/65/EU, REACH, RoHS

• WARRANTY

24 months

• APPLICATION CONNECTIVITY

Bluetooth (LE)

• CHARGER CONNECTIVITY

WiFi 2.4 Ghz b/g/n connection

Local managment via APP

NFC reader

OCPP 1.6

Ethernet (RJ45)

4G/LTE (CAT1), 3G, 2G (optional)

• PROTECTION

Output voltage and current monitoring

Temperature monitoring

Input voltage monitoring

Residual current monitoring (30mA AC / 6 mA DC) Standard: IEC62752:2016

Ground fault detection

Degree of protection - IP55

Impact resistant - IK10

Fire class - UL94

• TETHERED CABLE

Flame retardant rating - UL-94V-0

Operating temperature - -30ºC - +50ºC

Plug and play count - 10000

Cable length - 5 m/7.5 m

IP rating - IP54

Socket - Type 2

• CHARGING SPECIFICATION

7.4kW

Up to 7.36kW at 32A 1 phase

Dynamic configuration

• NETWORK TYPE

T/N and IT/TT

• VOLTAGE

Single phase: 230 V (+-10%); Three phase: 400 V (+-10%)

• MAIN FREQUENCY

50/60 Hz

• OPERATING SPECIFICATIONS

Humidity to 95% RH non condensing, -30ºC - +50ºC;

Storage temperature -30ºC - +50ºC

• TEMPERATURE SENSORS

In all main components

• LED LIGHTS

LEDs showing the status of the charger

• BUILT-IN ENERGY METER

Statistical data tracking

• LOAD BALANCING

Statistic load balancing

Dynamic load balancing

Phase balancing

Solar energy support

Dynamic load management
