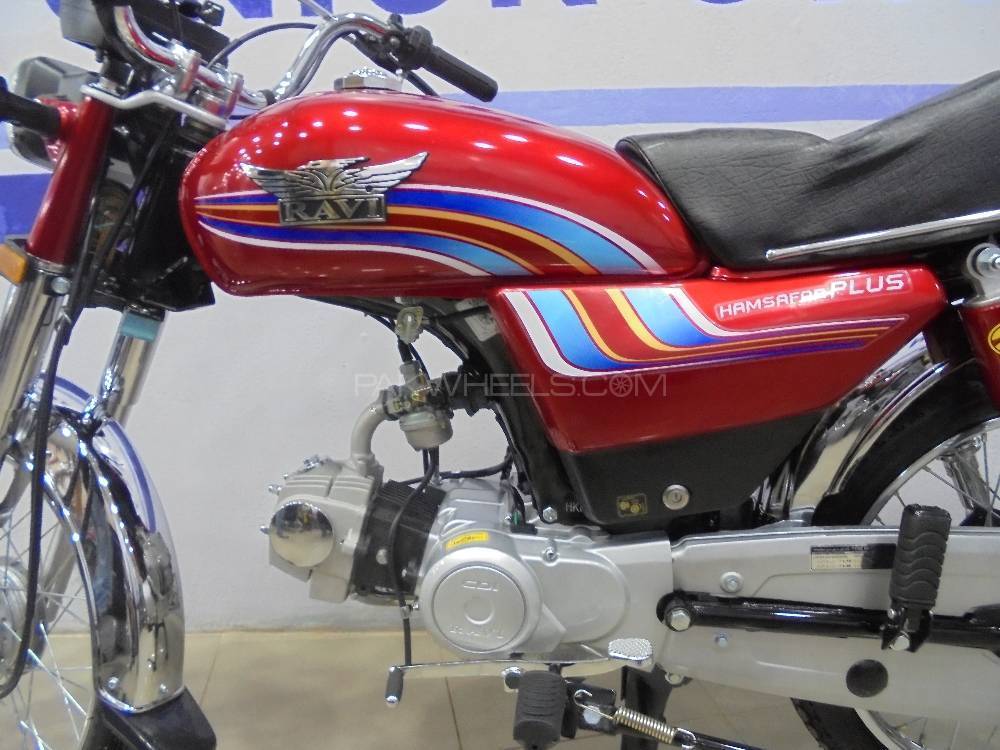

Ravi Humsafar 70 2016

Murree Road, Rawalpindi Punjab

Click Photo to Enlarge
SOLD

2016

10 km

4 Stroke

Seller's Comments

Engine 4 stroke, single cylinder, over head cam, air cooled
Displacement 78 cc
Compression ratio 9.1:1
Max. Horse Power 7.0 PS @ 6500 rpm (5.3 KW)
Max. Torque 5.4 n.m @ 6500 rpm (0.55 kgm)
Transmission 4 speed constant mesh, all forward (N-1-2-3-4)
Lubrication Pressure and splash
Clutch type Wet multi plate, left hand operated
Engine oil capacity 0.8 liter (20W40, Grade)
Starting Kick Start
Chassis / Frame Backbone type sheet metal frame
Size (length, width, height) 1885 x 760 x 990 mm
Wheel base 1210 mm
Seat height 770 mm
Ground clearance 135 mm
Petrol tank capacity 9.5 liters


Tyre size & air pressure Front: 2.25-17-4PR, Air pressure: 26 lbs/sq in
Rear: 2.50-17-4PR, Air pressure: 32 lbs/sq in
Brakes Front: Drum brake expending shoe
Rear: Drum brake expending shoe
Electrical System Capacitor discharge ignition system
