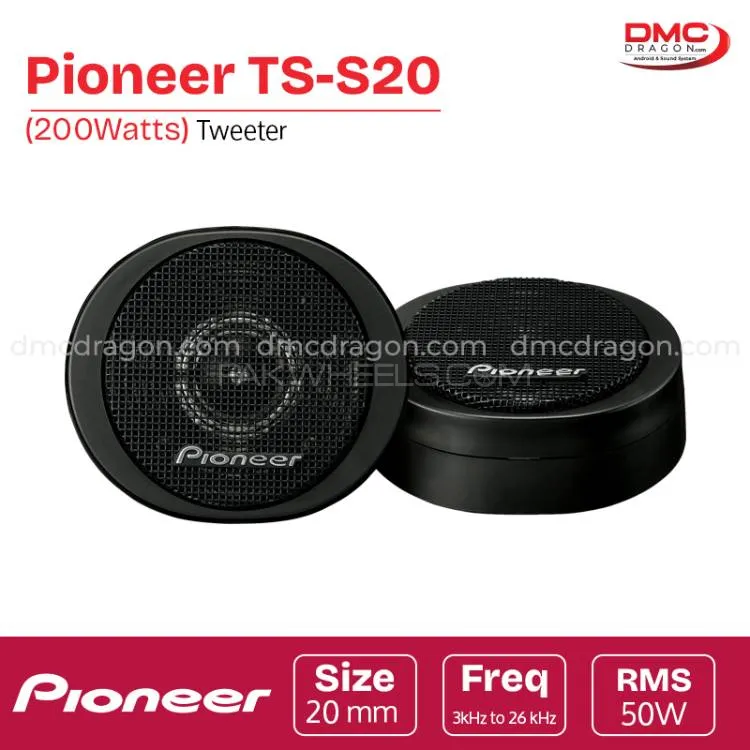

Pioneer TS-S20 20 mm High Power Super Tweeter Original

Click Photo to Enlarge

Category	Audio / Video		Sub Category	Car Speakers
Last Updated:	Sep 01, 2025		Ad Ref #	11733136

The Pioneer TS-S20 is a 20mm high-power "super tweeter" designed for car audio systems, often as an upgrade for higher frequency sound reproduction. It is a component tweeter, meaning it is separate from the main speakers and includes its own in-line crossover.

Key specifications

Type: 20mm (3/4-inch), dome tweeter.
Diaphragm material: Amorphous-titanium-coated polyphenylene sulfide (PPS), which is designed to be durable and resistant to heat.
Magnet: Strontium magnet, designed for high performance.
Peak power handling: 200W.
RMS power handling: 50W. This is the more important figure for determining the amplifier power needed for continuous, high-quality output.
Frequency response: 3kHz to 26kHz (with the included crossover network).
Sensitivity: 92 dB (1W/1m). This indicates the tweeter's efficiency at producing sound, meaning it can get relatively loud with less power.
Impedance: 8Ω.
Crossover: Includes a passive in-line crossover network to filter out low frequencies that the tweeter is not designed to reproduce.

PKR 20,100
